WVB-FXP853WQFixed Wireless Phone

FXP-853WQ 3G FWP User Manual Before use Please read the manual Conten- 2 WELCOME： Thank you for choosing this WCDMA FWP product. After reading this guide, you will be able to fully master the usage of your mobile phone and appreciate all its thorough functions and simple operation approaches. DECLARATION： This manual as a product use instruction does not represent the explanation for the product’s software and hardware, the features possibly varies by region. This WCDMA FWP product is compatible with GSM/GPRS/EDGE/WCDMA technology. Some functions referred in this guide also need the support from a network operator or a service provider. In order to ensure use in safety, please read the “Safety Notice” in advance. Regarding all the functions marked (*)，the manufacturer reserves the right to final interpretation. Conten- III ICONs： Indicates caution information. Indicates special explanation or tip in usage. Indicates warning for special attention. Conten- IV Contents 1. GETTING TO KNOW YOUR PHONE ····················································· 10  STATUS BAR ····························································································· 11 2. GETTING STARTED ···························································································· 13  INSTALL THE USIM/SIM CARD AND BATTERY ················································ 13  CHARGE THE BATTERY ················································································ 16  TURN YOUR PHONE ON AND OFF ································································· 16  PASSWORD ······························································································ 16 PIN code ··················································································· 16 PIN2 code ················································································· 17 PUK code ·················································································· 17 PUK2 code ················································································ 17 3. QUICK START GUIDE ························································································· 18  STANDBY ·································································································· 18 Standby Mode ·········································································· 18 Date and Time Setting ····························································· 18 Main Menu ··············································································· 19  MAKE A CALL···························································································· 19 Make a call ··············································································· 19 Make a call from Dial Board ····················································· 19 Make a call from Phonebook ··················································· 20 Make a call from Call Log ························································· 20 Make an international call ······················································· 20 Dial an extension number ························································ 20 Make an emergency call ·························································· 21 Conten- V  ANSWER A CALL, CHECK MISSED CALLS ························································· 21 Answer a call ············································································ 21 Answer two calls in the same time ·········································· 21 Check missed calls ···································································· 21 Adjust volume ·········································································· 21 End call ····················································································· 22  SEND A MESSAGE ····················································································· 22  READ A NEW MESSAGE ·············································································· 22 Read a message ········································································ 22 4. FUNCTIONS DESCRIPTION ··············································································· 23  CALL LOG ································································································· 23 Check call log ············································································ 23 Call back quickly ······································································· 24  CONTACTS ···························································································· 25 Add a new contact ··································································· 26 View contacts information ······················································· 26 Edit contact information ·························································· 27 Delete contacts ········································································ 27 Speed find ················································································ 28  SMS ······································································································ 28 Create a SMS ············································································ 28 Read the message ···································································· 28 Inbox························································································· 29 Outbox······················································································ 29 Drafts ························································································ 29 Sent ·························································································· 29 Settings ····················································································· 29 SMS setting ·············································································· 29 Conten- V…

Text truncated - open the document above for the full version.

Date: July 13, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Brightstar Corporation FCC ID: WVB-FXP853WQ FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Brightstar Corporation requests that the following documents regarding this submission for FCC ID: WVB- FXP853WQ be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX WVB- FXP853WQ_Block Diagram.pdf Schematics CONF APPENDIX WVB- FXP853WQ_Schematics.pdf Operational Description CONF APPENDIX WVB- FXP853WQ_Operational Description.pdf Part list CONF APPENDIX WVB- FXP853WQ_BOM.pdf Tune-Up-Procedure CONF APPENDIX WVB- FXP853WQ_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Brightstar Corporation considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Brightstar Corporation considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Welton Giolo Manager Brightstar Corporation

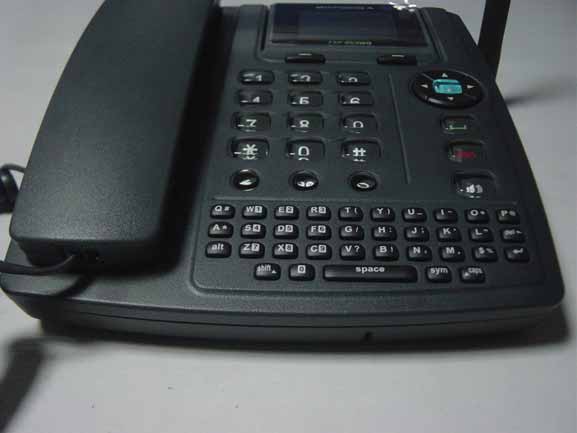

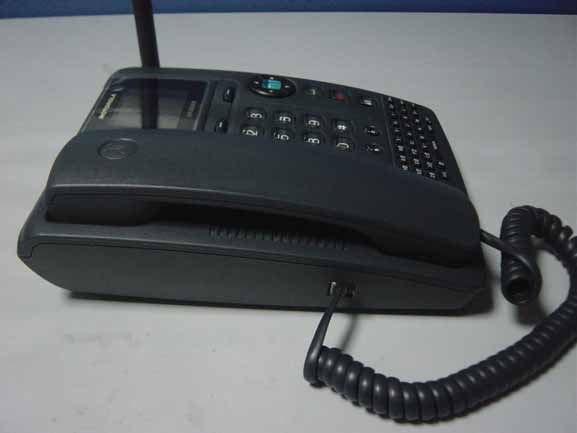

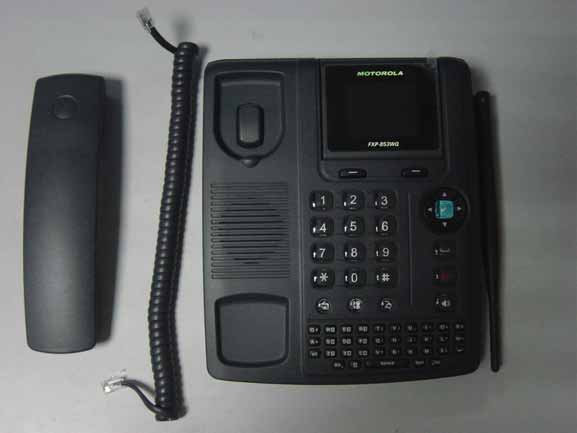

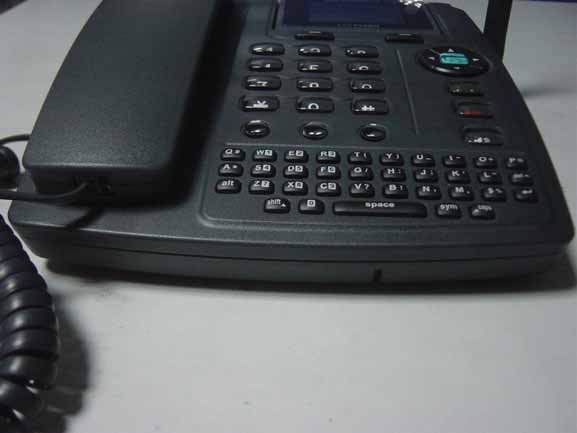

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Internal Photos

Project No.: SZ11050077 Evaluation of RF Exposure for FXP-853WQ Wireless Communication Module In this application we seek approval to the FXP-853WQ fixed wireless phone for use in mobile configuration. Based on the FCC OET Bulleting 65 Supplement C and 47CFR 2.1091, we have concluded that the FXP-853WQ will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 0.54dBi in GSM and 4.4dBi in PCS band. The following analysis will demonstrate such compliance. Operation in cellular band (824-849MHz) The peak conducted output power of FXP-853WQ in cellular band is 32.67dBm. Take the worst case as an example, in which an antenna with 0.54dBi gain is used. The resulted power density at a distance of 20cm can be deducted as follows: EIRP=32.67+0.54=33.21=2094.11mW Power Density=EIRP*DutyCycle/4πR 2 =2094.11*0.25/(4πR 2 ) =0.104mW/cm 2 where DutyCycle is 0.25 for GPRS class 10 and R is 20cm The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit=824/1500=0.55mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore FXP-853WQ in Celluar band is compliant with the FCC rules on RF exposure. Operation in cellular band (1850-1910MHz) The peak conducted output power of FXP-853WQ in cellular band is 34.26dBm. Take the worst case as an example, in which an antenna with 4.4dBi gain is used. The resulted ERP can be expressed as follows: EIRP=34.26+4.4=38.66=7345mW Power Density=EIRP*DutyCycle/4πR 2 =7345*0.25/(4πR 2 ) =0.36mW/cm 2 where DutyCycle is 0.25 for GPRS class 10 and R is 20cm MPE limit=1mW/cm 2 The analysis is done in GSM 850/1900 bands. WCDMA850/1900 bands conducted power is less than GSM 850/1900MHz., so these frequency bands power density are also satisfied.

Report No.: SZ11050077W02 Page 2 of 107 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 7 2.1 Conducted RF Output Power .................................................................................................... 7 2.2 99% Occupied Bandwidth ....................................................................................................... 37 2.3 Frequency Stability ................................................................................................................... 45 2.4 Conducted Out of Band Emissions ......................................................................................... 49 2.5 Band Edge ................................................................................................................................. 69 2.6 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 76 2.7 Radiated Out of Band Emissions ............................................................................................ 92 Change History Issue Date Reason for change 1.0 Jul 26, 2011 First edition Report No.: SZ11050077W02 Page 3 of 107 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : Fixed Wireless Phone Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : HV2.0 Software Version .................. : Applicant .............................. : Manufacturer ........................ : M640_SS_V0.1.0.19631 Brightstar Corporation 9725 NW 117th Avenue, #300 Miami, FL 33178 LAKIA Teletech Co., Ltd. 2F, Unit A, Technology Service Building, Software Garden 1, Xiamen, China Frequency Range .................. : GSM 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) WCDMA 850MHz Tx: 826.4- 846.6MHz (at intervals of 200kHz); Rx: 871.4 – 891.6MHz (at intervals of 200kHz) WCDMA 1900MHz Tx: 1852.4 – 1907.6MHz (at intervals of 200kHz); Rx: 1932.4 – 1987.6MHz (at intervals of 200kHz) Modulation Type................... : GPRS/GSM Mode with GMSK Modulation EDGE Mode with 8PSK Modulation WCDMA Mode with QPSK Modulation Emission Designators ........... : GSM:265KGXW, EGPRS:260KG7W WCDMA:4M18F9W Power Supply ....................... : Battery Model Name: 3xNR44AAA600P 3.6V Brand name: GREPOW Capacitance: 600mAh Rated voltage: 3.6V Charge Limit: 4.2V Manufacturer: SHENZHEN GREPOW BATTERY CO., LTD. Ancillary Equipments ........... : AC Adapter (Charger for Battery) Model Name: IVP045-050-1000 Brand Name: INNOV Serial No.: (n.a. marked #1 by test site) Report No.: SZ11050077W02 Page 4 of 107 Rated Input: 100-240V, 50/60Hz, ±3Hz Rated Output: 4.7~5.3V, 1.0A Manufacturer: Innov Electronics Tech Co., Ltd. Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: The transmitter (Tx) frequency arrangement of the WCDMA 850MHz band used by the EUT can be represented with the formula F(n)=826.4+0.2*(n-4132), 4132<=n<=4233; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 4132 (826.4MHz), 4175 (835MHz) and 4233 (846.6MHz). Note 4: The transmitter (Tx) frequency arrangement of the WCDMA 1900MHz band used by the EUT can be represented with the formula F(n)=1852.4+0.2*(n-9262), 9262<=n<=9538; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 9262 (1852.4MHz), 9400 (1880MHz) and 9538 (1907.6MHz). Note 5: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ11050077W02 Page 5 of 107 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-09 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-09 Edition) Public Mobile Services 3 47 CFR Part 24 (10-1-09 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.1046 Conducted RF Output Power PASS 2 2.1049 20dB Occupied Bandwidth PASS 3 2.1055 22.355 24.235 Frequency Stability PASS 4 2.1051 2.1057 22.917 24.238 Conducted Out of Band Emissions PASS 5 2.1051 2.1057 22.917 24.238 Band Edge PASS 6 22.913 24.232 Transmitter Radiated Power (EIPR/ERP) PASS 7 2.1053 2.1057 22.917 24.238 Radiated Out of Band Emissions PASS NOTE：Measurement method according to TIA/EIA 603.C-2004 Report No.: SZ11050077W02 Page 6 of 107 1.3 Facilities and Accreditations 1.3.1 Faciliti…

Text truncated - open the document above for the full version.

FreqEffiEffiGainGainMaxMinAttenutAttenut Passive Test For 820-900 FreqEffiEffiGainGainMaxMinAttenutAttenut (MHz)(%%)(dB)(dBi) (dBd)(dB)(dB)HorVer 82046.61 -3.32 -0.77 -2.92 -0.77 -15.33 44.35 43.87 83053.42 -2.72 -0.32 -2.47 -0.32 -17.56 45.15 44.83 84053.27 -2.74 -0.33 -2.48 -0.33 -20.8245.1 44.93 85056.4 -2.49 -0.21 -2.36 -0.21 -18.3 44.67 44.86 86056.61 -2.47 -0.29 -2.44 -0.29 -16.53 44.58 44.78 87058.96 -2.29 -0.04 -2.19 -0.04 -15.58 44.9444.9 88069.22-1.60.44 -1.710.44 -15.42 45.25 45.05 89071.88 -1.430.54 -1.610.54 -14.99 45.05 45.03 90071.04 -1.480.39 -1.760.39 -15.9645.4 45.53

FreqEffiEffiGainGainMaxMin Attenut Attenut (MHz)(%%)(dB)(dBi) (dBd)(dB)(dB)HorVer 170052.36 -2.813.681.533.68 -16.79 52.01 53.53 171050.96 -2.933.211.063.21 -14.68 52.44 54.15 172050.48 -2.973.461.313.46 -14.95 52.73 54.69 173056.88 -2.454.332.184.33 -18.5 53.17 55.42 174069.51 -1.585.343.195.34 -15.87 53.58 56.46 175068.98 -1.614.932.784.93 -14.8 53.84 56.59 176069.27 -1.594.452.34.45 -16.66 54.02 56.44 177073.31 -1.354.892.744.89 -14.72 54.11 56.62 178075.57 -1.224.732.584.73 -15.66 54.16 56.33 179068.44 -1.654.412.264.41 -13.53 53.87 55.79 180074.35 -1.294.722.574.72 -12.59 54.11 56.22 181078.36 -1.064.982.834.98 -13.87 54.39 56.31 182077.79 -1.094.762.614.76 -12.18 54.25 56.08 183070.2 -1.544.312.164.31 -12.11 54.16 55.94 184071.49 -1.464.592.444.59 -11.41 54.61 56.18 185068.77 -1.634.42.254.4 -11.92 54.75 56.09 186065.94 -1.813.941.793.94 -11.73 54.83 56.37 187067.78 -1.693.851.73.85 -10.25 55.34 57.28 Passive Test For 1700-1990 188074.41 -1.284.121.974.12 -8.83 56.04 57.87 189076.31 -1.174.362.214.36 -8.8556.2 57.82 190072.98 -1.374.111.964.11 -10.79 56.19 57.76 191070.32 -1.533.71.553.7 -9.3656.7 57.91 192077.29 -1.124.121.974.12 -12.19 57.38 58.72 193091.03 -0.414.632.484.63 -9.4358.2 59.76 194090.23 -0.454.512.364.51 -9.42 58.3859.9 195086.86 -0.614.232.084.23 -9.96 58.77 60.33 196090.26 -0.454.832.684.83 -8.6459.5 61.37 197081.86 -0.874.272.124.27 -9.74 59.64 61.47 198081.18 -0.914.091.944.09 -10.55 60.34 61.56 199091.2-0.43.911.763.91 -13.87 61.46 63.02

Test Setup Photos 1. CSE 2. RSE
