WVB-FXP86XWFixed wireless phone

User Manual FXP-862W WCDMA Fixed Wireless Phone 1 PREFACE WELCOME Congratulations on the purchase of your FXP-862W product! Please retain your original dated sales receipt for your records. For warranty service of your FXP-862W product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Thank you for choosing Motorola product. Please read important safety instructions before use. Read and understand all instructions before use. Please retain this guide for future reference. The information contained in the FXP-862W user guide is believed to be correct at the time of printing. We reserve the right to change or modify any information, product specifications, features or functionality without notice. The contents of the FXP-862W user guide are provided “as is.” Certain features may not be activated by your service provider, and/or their network settings may limit the feature’s functionality. Additionally, certain features may require a subscription. Contact your service provider for details. 2 Contents PHONE OVERVIEW .................................................................................................... 4 INSTALLATION ............................................................................................................. 5 KEY FUNCTION ........................................................................................................... 6 [1] Left / Right Soft Key ( Menu / Call logs key ) ................................................ 6 [2] Send key ........................................................................................................... 6 [3] End key ............................................................................................................. 6 [4] Numeric Keys / ‘＊’ keys / ‘#’ Keys ................................................................. 6 [5] Navigation / Scroll keys .................................................................................. 6 [6] Speaker key ...................................................................................................... 7 [7] Volume key ....................................................................................................... 7 [8] FM Radio ........................................................................................................... 7 [9] OK key .............................................................................................................. 7 DISPLAY INDICATORS AND ICONS ........................................................................ 8 BASIC OPERATION .................................................................................................... 9 [1] Switching the phone ON and OFF .............................................................. 9 [2] Making a call.................................................................................................. 9 [3] Answering a call ......................................................................................... 10 [4] Speaker mode. ............................................................................................ 10 [5] Adjusting the Ring Volume ........................................................................ 10 [6] Redialing the last-dialed number .............................................................. 10 [7] Caller ID ....................................................................................................... 11 [8] SMS and Voice Mail .................................................................................... 11 [9] Wi-Fi hotspot ............................................................................................... 11 USING PHONE MENUS............................................................................................ 13 [1] Menus ........................................................................................................... 13 [2] Scrolling through menus ........................................................................... 13 [3] Exiting menu levels .................................................................................... 13 3 [4] Menu Tree .................................................................................................... 13 [5] Using shortcuts through menu ................................................................. 13 ENTER LETTERS AND NUMBERS ........................................................................ 14 [1] Entering Letters ............................................................................................. 14 [2] Editing name or phone number ...................................................................... 14 [3] Changing the case of letters and numbers ................................................... 14 OVERVIEW OF MENU TREE .................................................................................. 15 SAFETY INFORMATION ........................................................................................... 19 GARANTÍA.................................................................................................................. 23 FCC NOTICE TO USERS......................................................................................... 26 REGULATORY ............................................................................................................ 28 4 PHONE OVERVIEW No. Description No. Description 1 LCD display 9 OK Key 2 Numeric Key 10 Navigation key 3 Left / Menu / OK Key 11 FM key 4 Right / Call logs / Back Key 12 Coil cord 5 Call / Send Key 13 Microphone 6 End / Power off Key 14 Speaker 7 Volume Key 15 Receiver 8 Speaker Key 16 Hook 5 INSTALLATION [1] Connect the coil cord to both the handset and the transceiver (phone). [2] Install the antenna to the antenna connector. Hold the plastic portion of the antenna and turn the metal screw clock-wise. [3] Connect the adaptor to the AC Wall outlet and put adapter jack into the hole on the rear side of …

Text truncated - open the document above for the full version.

Ad-HocCountry Code Cover Letter We, Brightstar Corporation, declare that this EUT (FCC ID: WVB-FXP86XW) doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disable by firmware for device marketed to the US/Canada. For DTS part of this device, only channel 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Welton Giolo Brightstar Corporation Project Manager Te l : 1 305.921-1470 Fax: 1 305.863-3367 Email: [email protected]

Date: July 12,2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Brightstar Corporation FCC ID: WVB-FXP86XW FCC Part 15&22&24 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Brightstar Corporation requests that the following documents regarding this submission for FCC ID: WVB-FXP86XW be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Tune Up Tune up.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which WVB-FXP86XW considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, WVB-FXP86XW considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market.

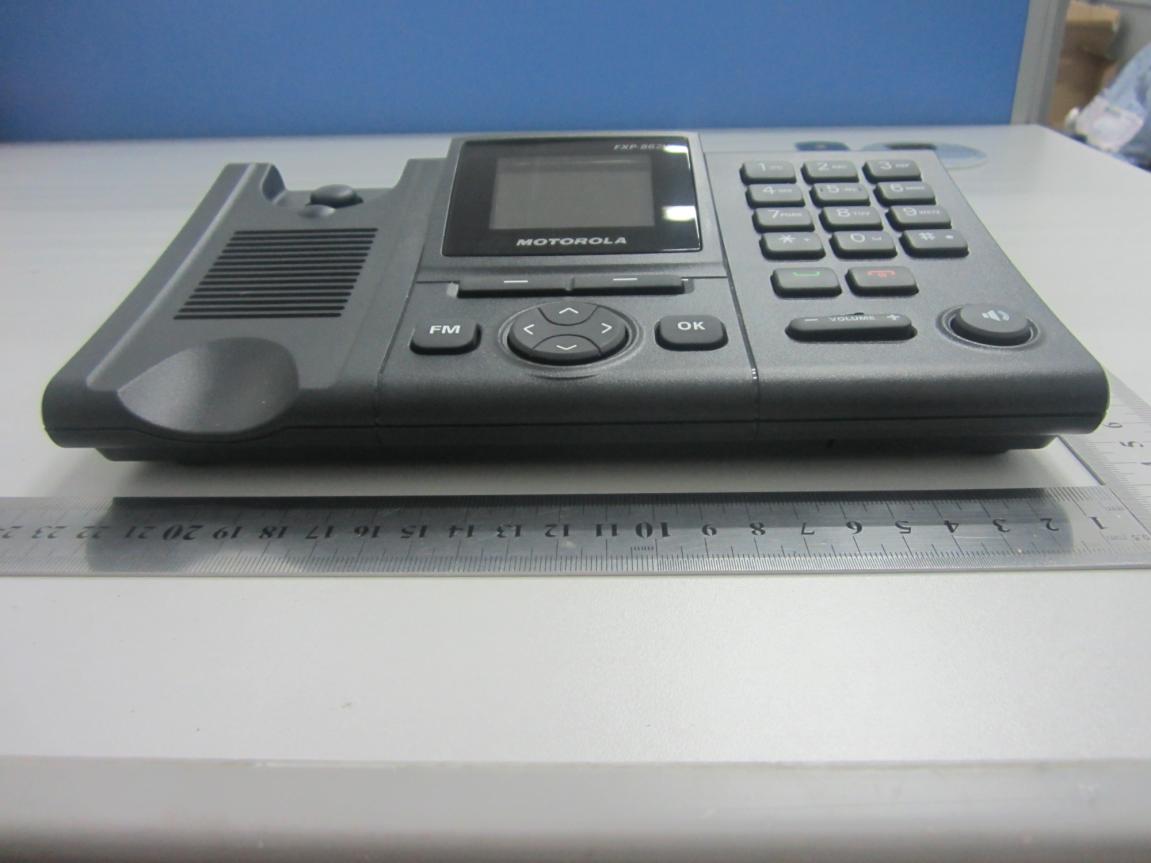

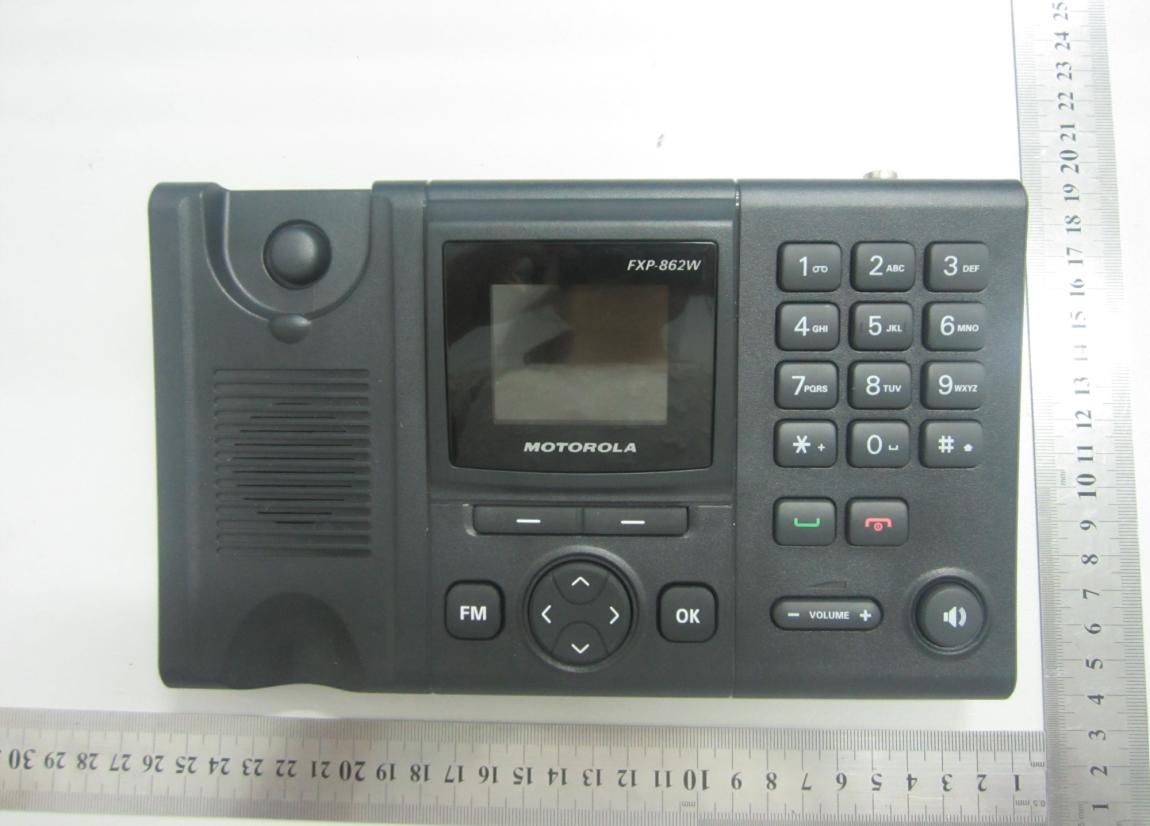

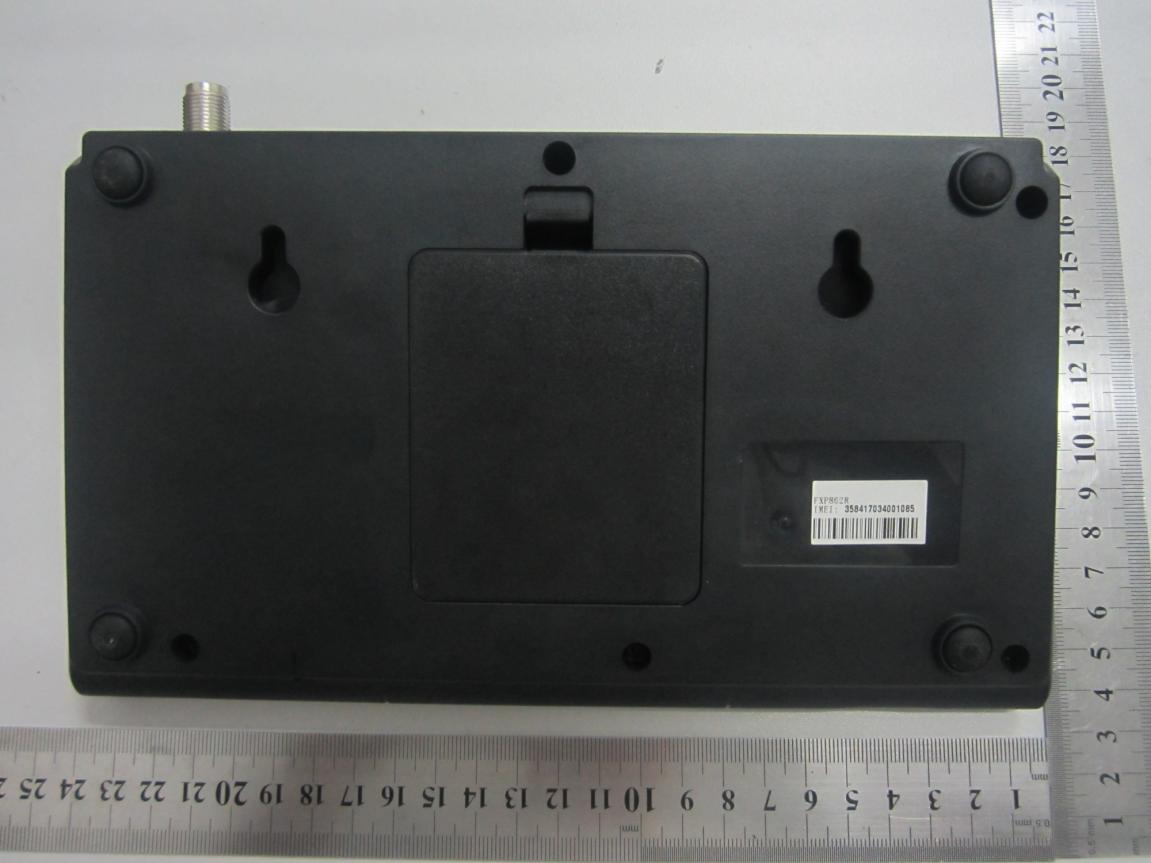

External Photos 1. EUT full view with accessories 2. EUT front view 3. EUT rear view 4. EUT left side view 5. EUT right side view 6. EUT top view 7. EUT bottom view

FCC label and label location(FXP-862W) 1. Label 2. Label location

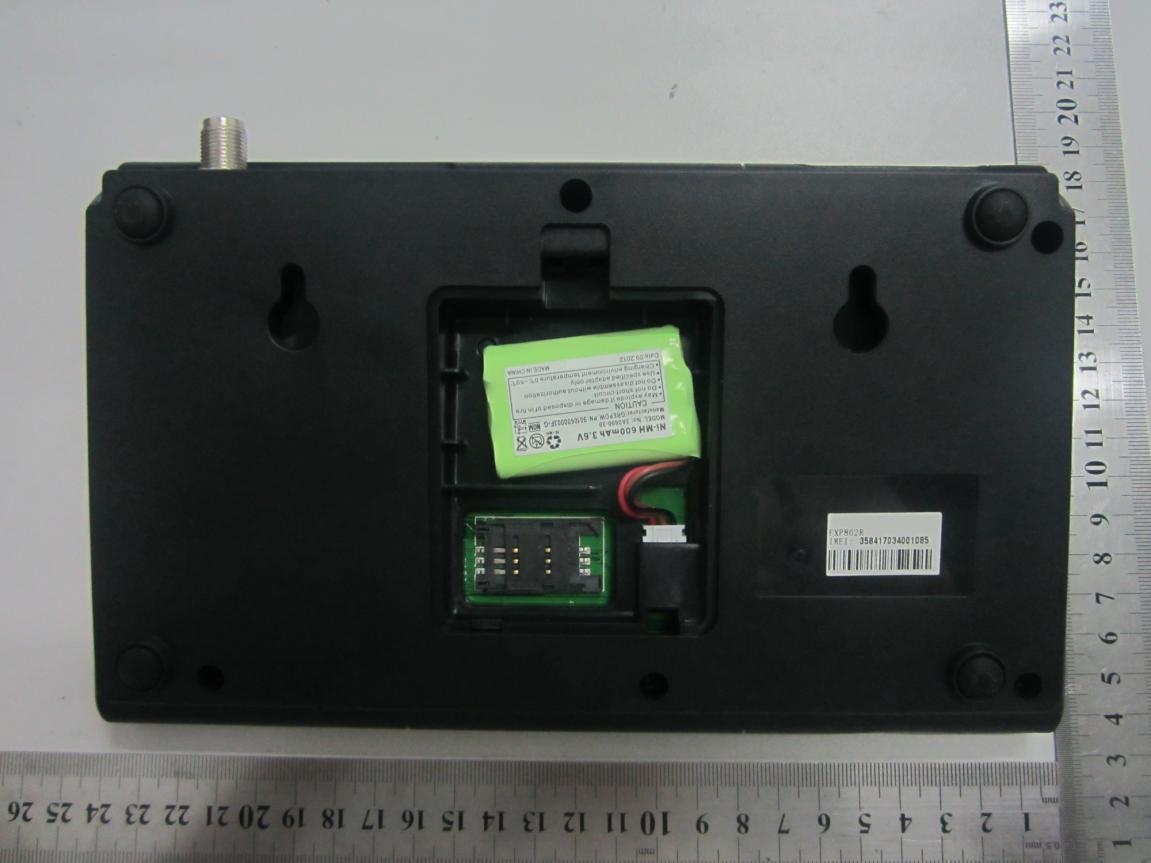

Internal Photos 1. EUT uncover view 2. Mainboard front view with shielding 3. Mainboard rear view 4. Mainboard front view without shielding 5. GSM/WCDMA chip view 6. WIFI chip view 7. CPU chip view 8. GSM/WCDMA antenna view 9. WIFI antenna view 10. Keyboard and Speaker view

SZ13050202S01 Page 2 of 10 DIRECTORY DIRECTORY....................................................................................................................................2 1.TESTING LABORATORY..........................................................................................................3 1.1. Identification of the Responsible Testing Location.....................................................................3 1.2. Accreditation Certificate..............................................................................................................3 2.TECHNICAL INFORMATION...................................................................................................4 2.1. Identification of Applicant...........................................................................................................4 2.2. Identification of Manufacturer.....................................................................................................4 2.3. Equipment Under Test (EUT)......................................................................................................4 2.3.1. Photographs of the EUT............................................................................................................4 2.3.2. Identification of all used EUT...................................................................................................4 2.4. Applied Reference Documents.................................................................................................... 5 3. DEVICE CATEGORY AND RF EXPOSURE LIMIT.............................................................6 4. MEASUREMENT OF CONDUCTED PEAK OUTPUT POWER......................................... 7 5. RF EXPOSURE EVALUATION................................................................................................ 9 Change History IssueDateReason for change 1.0Jul. 4, 2013First edition SZ13050202S01 Page 3 of 10 1. Testing Laboratory 1.1. Identification of the Responsible Testing Location Name:Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory Address:FL.3, Building A, FeiYang Science Park, No.8 LongChang Road, Block 67, BaoAn District, ShenZhen, GuangDong Province, P. R. China 518101 FCC Registration Number:695796 1.2. Accreditation Certificate Accredited Testing Laboratory:No. CNAS L3572 SZ13050202S01 Page 4 of 10 2.Technical Information Note: the following data is based on the information by the applicant. 2.1. Identification of Applicant Company Name:Brightstar Corporation Address:9725 NW 117th Avenue, #300 Miami, FL 33178 2.2. Identification of Manufacturer Company Name:LAKIA Teletech Co., Ltd. Address: 2/F,Unit A, Technology Service Building, Software Garden, 1phase, Xiamen, Fujian, China Zip: 361005 2.3. Equipment Under Test (EUT) Model Name:FXP-862W Trade Name:Motorola Brand Name:Motorola Hardware Version:FXP-862W_P4.0 Software Version:Z93A_FXP862W_E33_V0.1.6 Frequency Bands:GSM 850MHz / PCS 1900MHz; WCDMA 850MHz / 1900MHz; 802.11 b/g; Modulation Mode:GSM/GPRS: GMSK; WCDMA/HSDPA/HSUPA: QPSK; 802.11 b: DSSS; 802.11g: OFDM; Multislot ClassGPRS: Multislot Class 12; Antenna type:External Monopole Antenna Development Stage:Identical prototype Battery Model:3A0600-30 Battery specification:600mAh3.6V 3GPP version:Release 6 2.3.1. Photographs of the EUT Please see for photographs of the EUT. 2.3.2. Identification of all used EUT The EUT identity consists of numerical and letter characters, the letter character indicates the test sample, and the following two numerical characters indicate the software version of the test sample. EUT Identity Hardware VersionSoftware Version 1#FXP-862W_P4.0Z93A_FXP862W_E33_V0.1.6 SZ13050202S01 Page 5 of 10 2.4. Applied Reference Documents Leading reference documents for testing: No.IdentityDocument Title 147 CFR§2.1091Radiofrequency Radiation Exposure Evaluation: mobile devices 2FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields 3KDB 447498 D01General RF Exposure Guidance v05 SZ13050202S01 Page 6 of 10 3. Device Category and RF Exposure Limit Per user manual, this device is a wireless phone within home use. Based on FCC OET65c and 47CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained betweenthe transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “ fixed location ” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. GENERAL POPULATION / UNCONTROLLED EXPOSURE The general population/uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolledexposure limits apply to these devices. TABLE1 — LIMITS FORMAXIMUMPERMISSIB…

Text truncated - open the document above for the full version.

SZ13050202W02 Page 2 of 44 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 6 2.1. Antenna requirement ................................................................................................................. 6 2.2. Peak Output Power.................................................................................................................... 6 2.3. Bandwidth ................................................................................................................................. 8 2.4. Conducted Spurious Emissions ............................................................................................... 13 2.5. Power spectral density (PSD) ................................................................................................. 17 2.6. Restricted Frequency Bands.................................................................................................... 22 2.7. Conducted Emission ............................................................................................................... 28 2.8. Radiated Emission................................................................................................................... 31 2.9. RF exposure evaluation ........................................................................................................... 44 Change History Issue Date Reason for change 1.0 July 12, 2013 First edition SZ13050202W02 Page 3 of 44 1. General Information 1.1. EUT Description EUT Type ............................. : Fixed Wireless Phone Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : FXP-862W_P4.0 Software Version .................. : Applicant .............................. : Manufacturer ........................ : Z93A_FXP862W_E33_V0.1.6 Brightstar Corporation 9725 NW 117 th Avenue, #300 Miami, FL 33178 LAKIA Networks CO., LTD. 2/F,Unit A, Technology Service Building, Software Garden, 1phase, Xiamen, Fujian, China Zip: 361005 Frequency Range .................. : 802.11b/g: 2.412GHz - 2.462GHz Channel Number................... : 802.11b/g: 11 Modulation Type .................. : DSSS (802.11b), OFDM (802.11g) Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Note 1: The EUT is Fixed Wireless Phone, it contains WIFI Module operating at 2.4GHz ISM band; it supports 802.11b, 802.11g, 802.11n and they are all tested in this report. Note 2: The frequencies allocated is F (MHz) =2412+5*(n-1) (1<=n<=11). The lowest, middle, highest channel numbers of the EUT used and tested in this report are separately 1 (2412MHz), 6 (2437MHz) and 11 (2462MHz). Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 4: The antenna connector of EUT is designed with permanent attachment and no consideration of replacement. SZ13050202W02 Page 4 of 44 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Wi-Fi, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 15.203 Antenna Requirement PA S S 2 15.247(b) Peak Output Power PASS 3 15.247(a) Bandwidth PASS 4 15.247(d) Conducted Spurious Emission PASS 5 15.247(d) Restricted Frequency Bands PASS 6 15.207 Conducted Emission PASS 7 15.209 ,15.247(d) Radiated Emission PASS 8 15.247(d) Power spectral density (PSD) PASS 9 15.247(i), 1.1307&2.1093 RF exposure PASS The tests of Conducted Emission and Radiated Emission were performed according to the method of measurements prescribed in ANSI C63.4 2009. These RF tests were performed according to the method of measurements prescribed in KDB558074 D01 V02 10/04/2012. SZ13050202W02 Page 5 of 44 1.3. Facilities and Accreditations 1.3.1. Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at FL.1, Building A, FeiYang Science Park, Block 67, BaoAn District, Shenzhen, 518101 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.10 2009, ANSI C63.4 2009 and CISPR Publication 22; the FCC registration number is 695796. 1.3.2. Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 SZ13050202W02 Page 6 of 44 2. 47 CFR Part 15C Requirements 2.1. Antenna requirement 2.1.1. Applicable Standard According to FCC 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. 2.1.2. Result: Compliant The EUT has a permanently and irreplaceable atta…

Text truncated - open the document above for the full version.

Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. Conducted emission antenna’s port
