WVB-FXT850WFixed Wireless Terminal

Fixed Wireless Terminal MRV7517PW22-B1 FW R01 July 2010 Copyright Notice Copyright of all the contents and materials published in the manual is owned by Arcadyan. None of the materials provided on this manual may be duplicated, reproduced or transmitted, either partially or completely, in any form or by any means. 2010 Copyright Arcadyan Technology Corporation Disclaimers Arcadyan makes no warranty as to the materials and information in this manual, including representations of the materials or information. The materials or information are provided “as is”. There are no implied warranties or conditions of merchantability, fitness for particular purpose or non- infringement. Arcadyan assumes no responsibility for the accuracy and completeness of the information. Arcadyan may change the materials or products mentioned therein at any time without notice. Arcadyan shall not be liable for any special, indirect or consequential damages, including, without limitation, damages resulting from use of or reliance on the information presented, loss of profits or revenues or costs. Submission of Information Except as otherwise agreed by Arcadyan in writing, any material, information or other communication you transmit or post to this manual will be deemed non-confidential and non-proprietary (“Non-confidential Information”). Arcadyan shall have no obligations with respect to the Non-confidential Information. Arcadyan will be free to copy, disclose, distribute, incorporate and otherwise use the Non-confidential Information and all data, images, sounds, text, and other things embodied therein for any and all commercial or non-commercial purposes. Manufactured by Arcadyan Technology Corporation 4F No. 9 Park Avenue II, Hsinchu Science Park Hsinchu, Taiwan Trademarks: The Arcadyan brand name, logos, trademarks and service marks (“Trademark”) used and displayed in this manual are registered and unregistered trademark of Arcadyan. Arcadyan is not granting you a license to use them in any way or function. Other product and company names are trademarks or registered trademarks of their respective holders. i Table of Contents CHAPTER 1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 About the Broadband Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 CHAPTER 2Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hardware Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ISP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connect the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Configuring Client PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Window XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Window Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Macintosh Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 CHAPTER 3Web Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Navigating the Web Browser Interface . . . . . . . . . . . . . . . . . . . . . .19 Making Configuration Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Table of Contents ii LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Firewall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 DNS & DDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Extras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61 HSPA Modem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Password Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Time Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Diagnostic Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Product Specifications. . . . . . . . …

Text truncated - open the document above for the full version.

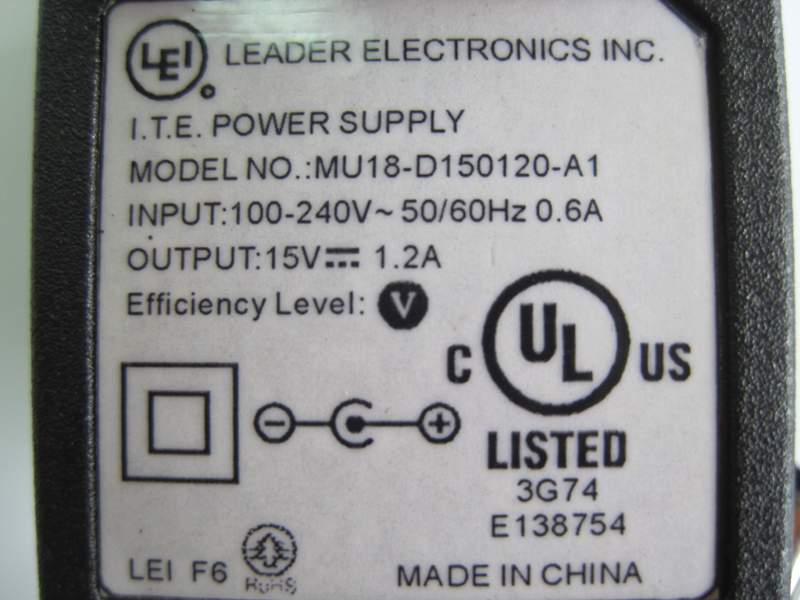

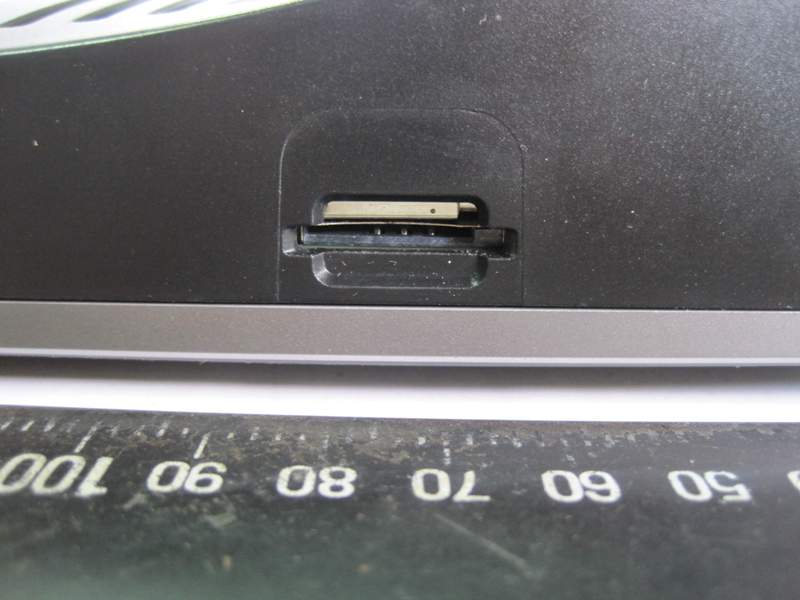

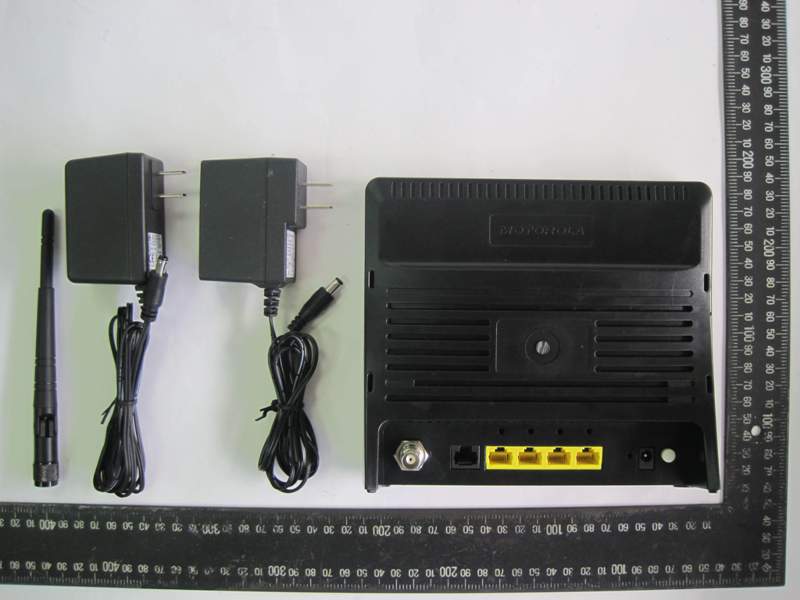

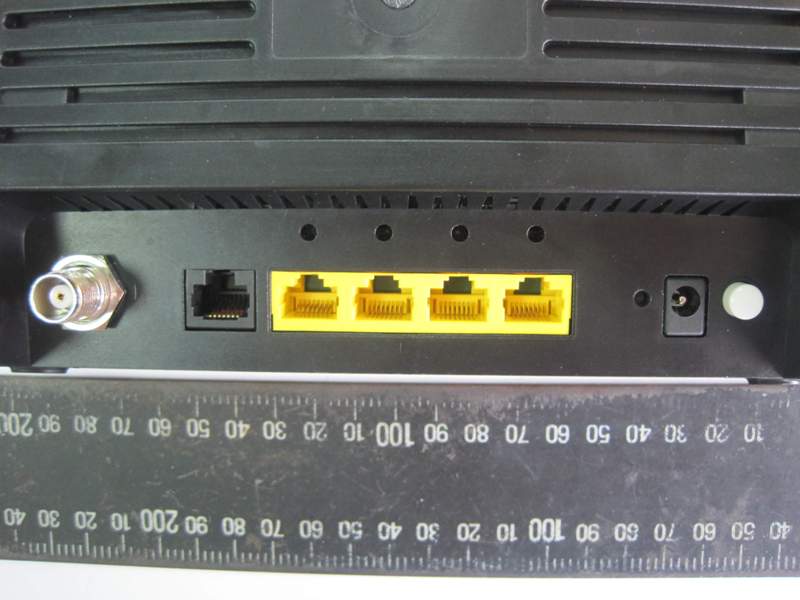

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A18 OF A18 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 13, 2010 FAX : 886-2-2696-2255

Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : C1 of C5 Appendix C. Maximum Permissible Exposure Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : C2 of C5 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : C3 of C5 1.3. Calculated Result and Limit <For WLAN Function>: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz Ant. A + Ant. B: 24.92 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result -1.1 0.7762 24.9223 310.6185 0.047993 1 Complies Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : C4 of C5 <For GSM 850 Function>: 3G module, FCC ID: HFS-GKRN Antenna Type : dipole Antenna Function Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Average EIRP (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) GSM 850 5.5 3.55 32.23 1671.09 741.16 0.15 0.55 CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.047993 / 1 + 0.15 / 0.549 = 0.321192, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : D1 of D3 Appendix D. Co-location Report Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 24.5°C Humidity 56% Test Engineer Serway Li Configurations WLAN + GSM850 / Mode 1 Horizontal Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : D3 of D3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Brightstar Corp Applicant Address 9725 NW 117th Avenue, #300 l Miami, FL 33178 FCC ID WVB-FXT850W Product Name Fixed Wireless Terminal Brand Name MOTOROLA Model Name FXT-850W Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jul. 14, 2010 Final Test Date Sep. 10, 2010 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR071411 Report Format Version: 01 Page No. : i of ii FCC ID: WVB-FXT850W Issued Date : Sep. 13, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................27 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................33 4.5. Radiated Emissions Measurement ....................................................................................................................................................39 4.6. Band Edge Emissions Measurement .................................................................................................................................................57 4.7. Antenna Requirements .....................................................................................................................................................................66 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 67 6. TEST LOCATION.............................................................................................................................................. 69 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 70 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A25 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B6 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE......................................................................................... C1 ~C4 APPENDIX D. CO-LOCATION REPORT....................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : 4 of 6 Test Configuration: 30MHz ~1GHz/ Mode 1 FRONT VIEW REAR VIEW Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : 5 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR071411 FCC ID: WVB-FXT850W Page No. : 6 of 6 Test Configuration: Co-location Test Mode: Mode 1 FRONT VIEW REAR VIEW
