WVB-GT853Fixed Wireless Phone

User Manual GT-853 CONTENTS Recharge Recharge Recharge Log Report Setting SETTINGS PHONE SETTING DISPLAY NETWORK SETUP SECURITY SETUP FACTORY DEFAULT Recharge Setting menu includes: Recharge Recharge log Report setting [1] Recharge [ 1.1 ] Recharge End User 1) Press Menu > Recharge >Scroll to Recharge End User>OK key 2) Enter recharge amount [ ]
OK key 3) Enter phone number [ ]
OK key. 4) Enter PIN number [ ]
OK key [ 1.2 ] Recharge Store 1) Press Menu > Recharge > Recharge >Recharge store >OK key 2) Enter recharge amount [ ]
OK key 3) Enter phone number [ ]
OK key. 4) Enter PIN number [ ]
OK key 5) Enter Confirm PIN [ ]
OK key [2] Recharge Log 1) Press Menu > Recharge > Scroll to Recharge Log and press OK key. 2) All charging: Display all charging list, total 100 record could be stored. 3) Last Charging : Display the last charging record ( Time / Date / Number / Amount ) 4) Clear : Delete all charging list [3] Report Setting 1) Press Menu > Recharge > Scroll to Report Setting and press OK key. 2) Recharge Report : Two option: Enable & Disable 3) Center Number : enter center number 4) Delivery Schedule : Options as below 1. Date: Every day / Every three days / Every week
Notification saved ! 2. Time. Setting time using up/down navi key SETTINGS Setting menu includes: Phone Settings Display Network Setup Security Setup Factory Default [1] Phone Settings [ 1.1 ] Clock settings This menu guides you to set Time/Date. Date/Time Setting: Set the correct time and date. Time Setting 5) Press Menu > Settings > OK key 6) Scroll Phone Settings and press OK key. 7) Select Clock Settings then press OK key. 8) Select Time Setting and press OK key. 9) Input hour/minute/am or pm by using numeric keys and left / right key. 10) Press OK key Date Setting 1) Press Menu > Settings > OK key 2) Scroll Phone Settings and press OK key. 3) Select Clock Settings then press OK key. 4) Select Date Setting and press OK key. 5) Input month / day / year by using numeric keys and left / right key. 6) Press OK key Date Format: There are four types of expressions of dates DD / MM / YY (day / month / last two digits of this year) MM / DD / YY DD / MM / YYYY (day / month / full digits of this year) MM / DD / YYYY Date Separator: There are four types of separators of date digits OO-OO-OO (Hyphen) OO/OO/OO (Slash) OO.OO.OO (Dot) OO OO OO (Blank) Time Format: You can choose 12h or 24 hours. For example, if the time is 1:22 pm ( 12h expression) , it can be shown as 13:22 (24h expression) [ 1.2 ] Language Three languages options can be selected: Automatic /English / Spanish ( Español ). Also you may choose automatic option; Your native language can be chosen without manual selection. 1) Press Menu > Settings and press OK key 2) Scroll Phone Settings and press OK key 3) Select Language and then press OK key 4) Select the language you need and press OK key [ 1.3 ] Volume Call : using up/down navi key Keypad Tone : using up/down navi key 1) Press Menu > Settings and press OK key 2) Scroll Phone Settings and press OK key 3) Select Volume and then press OK key [2] Display [ 2.1 ] Idle Display Clock and Date When you choose Enable, you can see the date and clock on your idle display (The phone should be in full service state, otherwise display net state) [ 2.2 ] Contrast There are 20 levels for LCD contrast. Press right key then the contrast goes up. Press left key then the contrast is down [ 2.3 ] Backlight Set Specific LCD and Keypad Backlight time. 1) Select Backlight and press OK key 2) Toggle Always off, 5 sec, 15 sec, 30 sec or 45 sec and press OK key [3] Network Setup [ 3.1 ] Network Select mode You can set the recharge to automatically search the most suitable network to camp on or to manually select the network you need. 1) Press Menu > Settings and press OK 2) Scroll Network Setup and press OK 3) Select Network Select mode and press OK 4) Select Automatic selection or Manual selection and then press OK Manual mode: The recharge starts searching available networks. Use the up and down key to browse the network list, and press OK to set the highlighted networks [4] Security Setup There are three options available: SIM PIN : Prevent unauthorized use of the SIM card and or the some features of services of telephone service provider Phone Lock: Prevent unauthorized use of the phone Change Password : Change by inputting the phone password two times [ 4.1 ] SIM PIN SIM PIN (SIM Personal Identification number) is a four-to-eight digit numeric or password. It is related with the service of your service provider. For more detail, contact your service provider. 1) Press Menu > Settings and press OK key 2) Scroll Security Set Up and press OK key 3) Select SIM PIN and press OK key 4) Select PIN Check, Change PIN1, Change PIN2 and then press OK key. PIN Check : Allow or disallow the use of SIM PIN by entering SIM PIN code Change PIN 1: This is a pin code that locks the SIM card until you enter the correct code. The default code is set by the Service Provider. You can change it if you like by entering defaulted PIN code by Service provider, but make sure you don't forget the new code Change PIN 2: This SIM card code controls access to some of the more advanced features of the phone. The default code is set by the Service Provider. You can change it if you like by entering defaulted PIN code by Service provider, but make sure you don't forget the new code. Not all networks support pin 2. Caution: If you unsuccessfully enter the SIM PIN code sometimes depends on SIM card or country in succession the SIM card will be Locked. And then contact your telephone service provider to get PUK code to unlock SIM card. [ 4.2 ] Phone Lock The default password is “0000”. 1) Press Menu > Settings and press OK key 2) Scroll Security Set Up and press OK key 3) Select Phone Lock and press OK key 4) When ‘On’ is chosen, there are two options. Verify when Power-on: Every time you must enter password when power on Verify with new SIM: When you change …

Text truncated - open the document above for the full version.

Brightstar Corporation 9725 NW 117th Avenue, #300 Miami, FL 33178 Date: 2012-07-24 FCC ID: WVB-GT853 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to DA 04-1705 of the commission’s public notice, we request short-term confidential treatment for the following information until 2 22 20 00 01 11 12 22 2-12-24 in order to ensure sensitive business information remains confidential until the actual marketing of the device:
External photos
Test Setup photos
User’s manual
Internal Photos Sincerely yours,

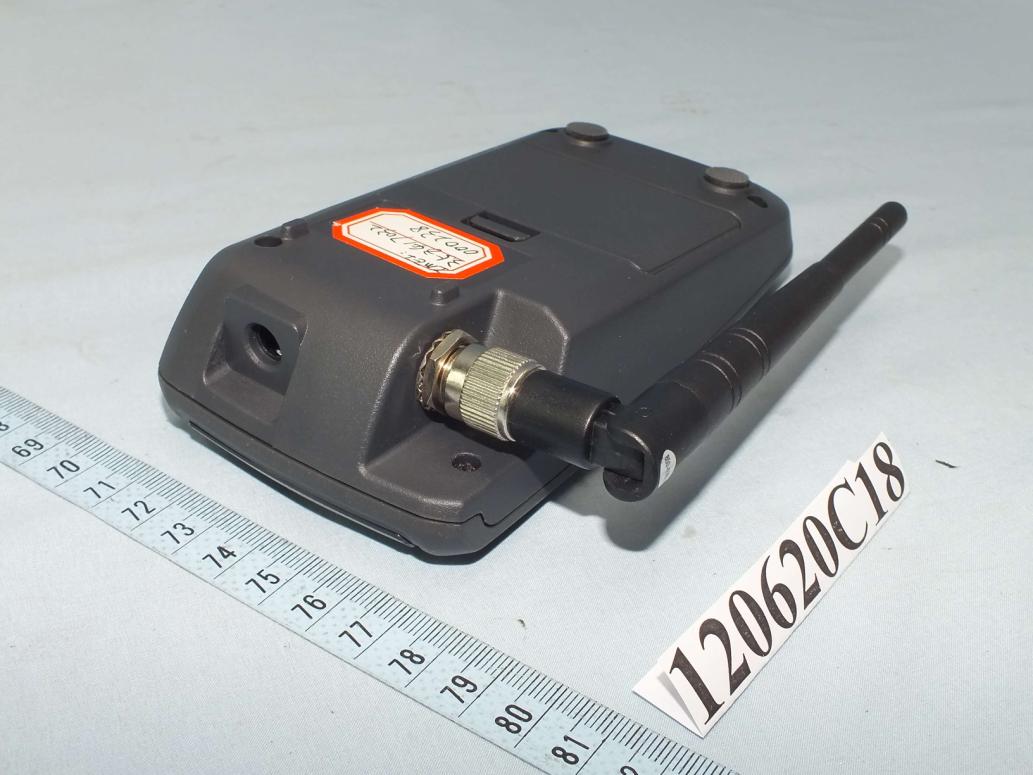

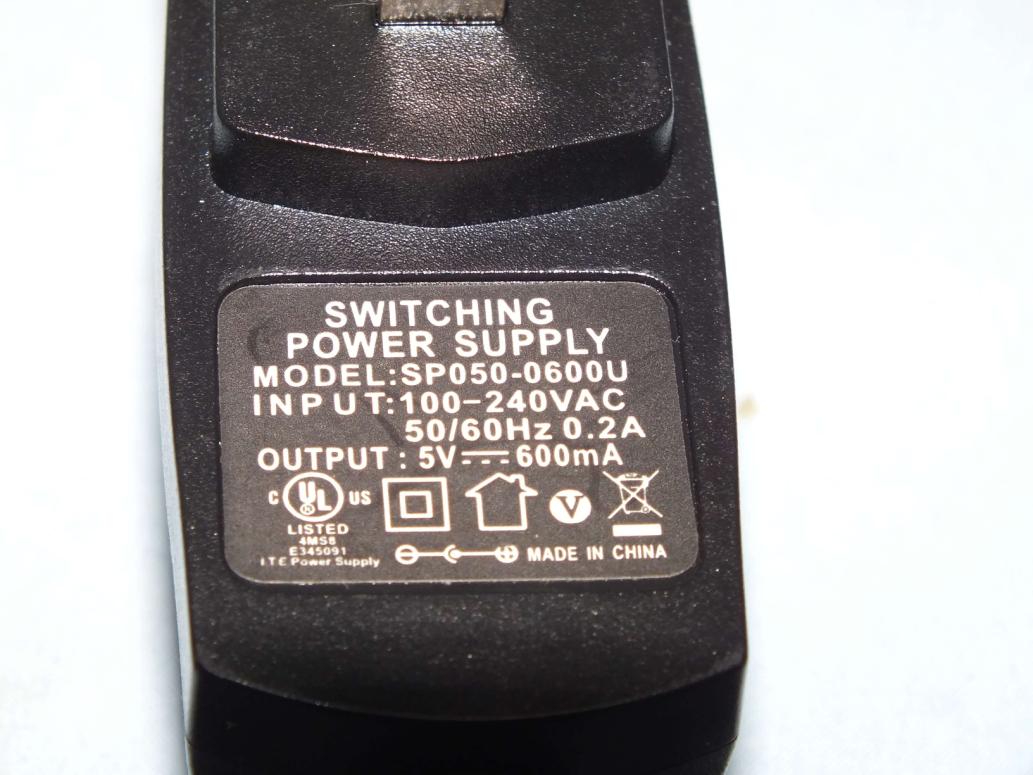

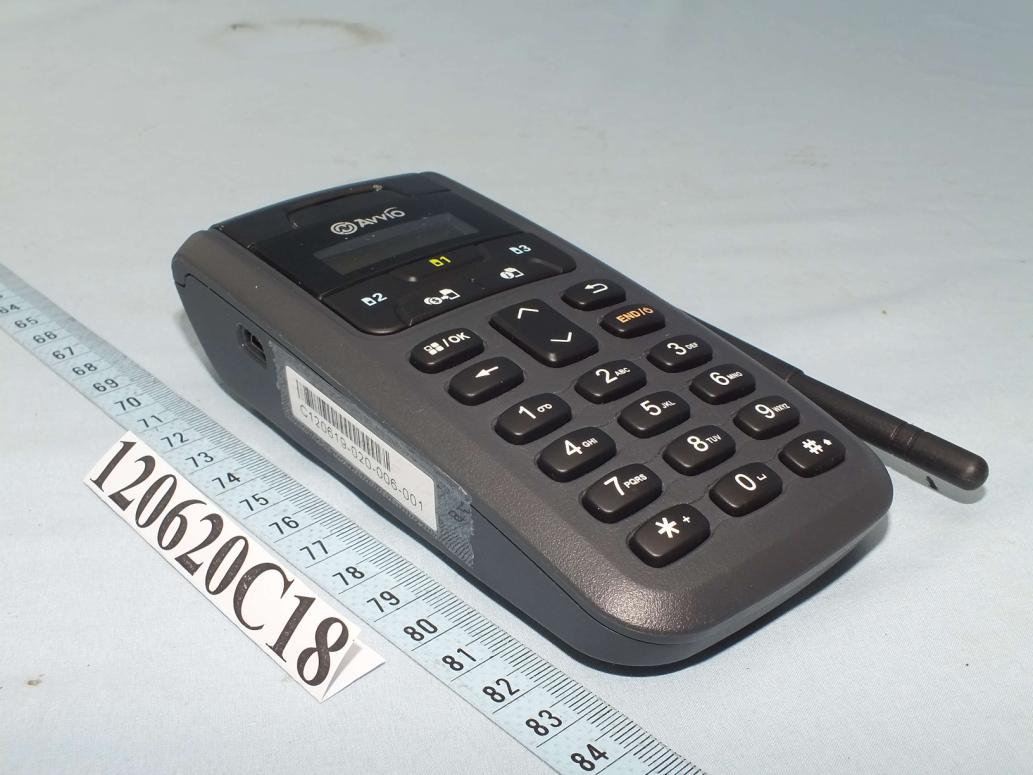

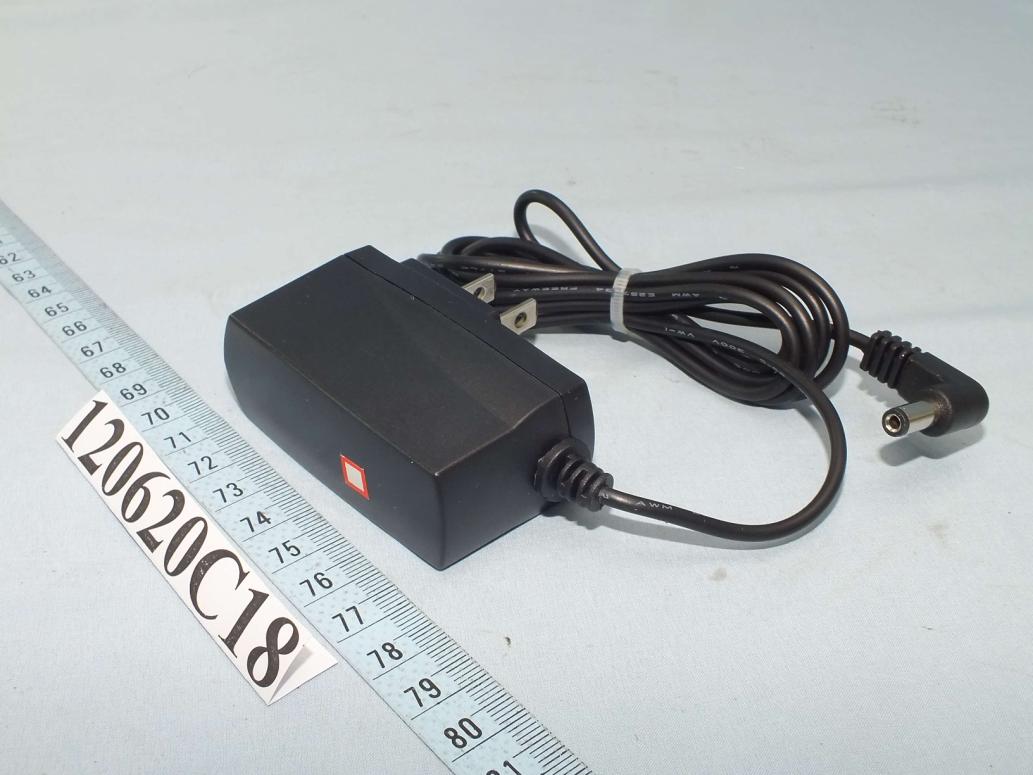

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: WVB-GT853 Label, on the back of the EUT

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 19 Report No. : SA120620C18 Issued Date : Aug. 03, 2012 Revision : R01 FCC SAR Test Report Report No. : SA120620C18 Applicant : Brightstar Corporation Address : 9725 NW 117th Avenue, #300 Miami, FL 33178 Product : Fixed Wireless Phone FCC ID : WVB-GT853 Brand : Avvio Model No. : GT-853 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 447498 D01 v04 / KDB 941225 D03 v01 Date of Testing : Aug. 01, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 19 Report No. : SA120620C18 Issued Date : Aug. 03, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 12 3.4 SAR Measurement Procedure ................................................................................................................................... 13 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 13 3.4.2 Volume Scan Procedure................................................................................................................................... 13 3.4.3 Power Drift Monitoring ...................................................................................................................................... 13 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 14 3.4.5 SAR Averaged Methods ........................................................................…

Text truncated - open the document above for the full version.

Report No.: RF120620C18 1 of 29 Report Format Version 5.0.0 FCC TEST REPORT (PART 22) REPORT NO.: RF120620C18 MODEL NO.: GT-853 FCC ID: WVB-GT853 RECEIVED: Jun. 20, 2012 TESTED: Jul. 03 ~ Jul. 24, 2012 ISSUED: Aug. 01, 2012 APPLICANT: Brightstar Corporation ADDRESS: 9725 NW 117th Avenue, #300 Miami, FL 33178 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120620C18 2 of 29 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ........................................................................................... 4 1 CERTIFICATION ....................................................................................................... 5 2 SUMMARY OF TEST RESULTS ............................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................ 6 2.2 TEST SITE AND INSTRUMENTS ............................................................................. 7 3 GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT .......................................................................... 8 3.2 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................... 9 3.4 TEST ITEM AND TEST CONFIGURATION ..............................................................10 3.5 EUT OPERATING CONDITIONS ............................................................................. 11 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 11 4 TEST TYPES AND RESULTS ..................................................................................12 4.1 OUTPUT POWER MEASUREMENT .......................................................................12 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT .....................................................12 4.1.2 TEST PROCEDURES ..............................................................................................12 4.1.3 TEST SETUP ...........................................................................................................13 4.1.4 TEST RESULTS ......................................................................................................14 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................15 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ........................................15 4.2.2 TEST PROCEDURE ................................................................................................15 4.2.3 TEST SETUP ...........................................................................................................15 4.2.4 TEST RESULTS ......................................................................................................16 4.3 OCCUPIED BANDWIDTH MEASUREMENT ...........................................................17 4.3.1 TEST PROCEDURES ..............................................................................................17 4.3.2 TEST SETUP ...........................................................................................................17 4.3.3 TEST RESULTS ......................................................................................................18 4.4 BAND EDGE MEASUREMENT ...............................................................................19 4.4.1 LIMITS OF BAND EDGE MEASUREMENT .............................................................19 4.4.2 TEST SETUP ...........................................................................................................19 4.4.3 TEST PROCEDURES ..............................................................................................19 4.4.4 TEST RESULTS ......................................................................................................20 4.5 CONDUCTED SPURIOUS EMISSIONS ..................................................................21 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT ...................21 4.5.2 TEST PROCEDURE ................................................................................................21 4.5.3 TEST SETUP ............................…

Text truncated - open the document above for the full version.

Report No.: RF120620C18-1 1 of 28 Report Format Version 5.0.0 FCC TEST REPORT (PART 24) REPORT NO.: RF120620C18-1 MODEL NO.: GT-853 FCC ID: WVB-GT853 RECEIVED: Jun. 20, 2012 TESTED: Jul. 03 ~ Jul. 24, 2012 ISSUED: Aug. 01, 2012 APPLICANT: Brightstar Corporation ADDRESS: 9725 NW 117th Avenue, #300 Miami, FL 33178 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120620C18-1 2 of 28 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 3 1 CERTIFICATION ........................................................................................................ 4 2 SUMMARY OF TEST RESULTS ................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .............................................................................. 5 2.2 TEST SITE AND INSTRUMENTS ............................................................................... 6 3 GENERAL INFORMATION ......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ......................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ........................................................................ 8 3.4 TEST ITEM AND TEST CONFIGURATION ................................................................ 9 3.5 EUT OPERATING CONDITIONS .............................................................................. 10 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 10 4 TEST TYPES AND RESULTS................................................................................... 11 4.1 OUTPUT POWER MEASUREMENT ........................................................................ 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ...................................................... 11 4.1.2 TEST PROCEDURES .............................................................................................. 11 4.1.3 TEST SETUP ........................................................................................................... 12 4.1.4 TEST RESULTS ....................................................................................................... 13 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................ 14 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ......................................... 14 4.2.2 TEST PROCEDURE ................................................................................................. 14 4.2.3 TEST SETUP ........................................................................................................... 14 4.2.4 TEST RESULTS ....................................................................................................... 15 4.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................ 16 4.3.1 TEST PROCEDURES .............................................................................................. 16 4.3.2 TEST SETUP ........................................................................................................... 16 4.3.3 TEST RESULTS ....................................................................................................... 17 4.4 BAND EDGE MEASUREMENT ................................................................................ 18 4.4.1 LIMITS OF BAND EDGE MEASUREMENT .............................................................. 18 4.4.2 TEST SETUP ........................................................................................................... 18 4.4.3 TEST PROCEDURES .............................................................................................. 18 4.4.4 TEST RESULTS ....................................................................................................... 19 4.5 CONDUCTED SPURIOUS EMISSIONS ................................................................... 20 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT .................... 20 4.5.2 TEST PROCEDURE ...................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST (30MHz~1GHz) 3 RADIATED EMISSION TEST (Above 1GHz)

1 PHOTOGRAPHS OF THE TEST CONFIGURATION (PART 22) RADIATED EMISSION TEST 2 ERP POWER TEST 3 (PART 24) RADIATED EMISSION TEST 4 EIRP POWER TEST

FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA120620C18 Revision : R01 <Photographs of EUT> <Photographs of SAR Setup> Vertical Antenna with 2.5 cm Gap
