WVBA1001Tablet PC

Avvio PAD 2 User Manual Precautions when using the tablet PC Please read these simple guidelines. Not following them may be dangerous or illegal. Tablet PC keys and function: 1. Power Button: Power on/Shut down Tablet PC. 2. Volume Key: Adjust volume to higher or lower. 3. Recently Key: Recently used applications. 4. Home Key: Return to the IDLE. 5. Back Key: Return to previous menu. Install SIM card 1. Power off the tablet PC, open the SIM card slot. 2. Inset the SIM card. Install memory card 1. Power off the tablet PC, open the memory card slot. 2. Inset the memory card. Lock Screen ·After tablet PC power on, short press the power button to lock the screen. ·After a period of inactivity, the tablet PC automatically sleep and lock screen. Unlock Screen 1. Short press the power button to wake up the screen and lock screen will appear. 2. Press and hold the lock icon to the right slide to unlock it. The Home screen is the starting point for access to the various functions. Wallpaper In IDLE screen, long press the IDLE screen, select “Wallpaper”, choose wallpaper from Gallery, Live Wallpapers, Video Wallpaper and wallpapers. Call Click the phone icon to enter the Dialpad. It provides several ways to make the call. You can call the number via dialpad, contacts, messages, call history etc. Connect to the network You can connect the tablet PC to a wireless LAN (WLAN), using a wireless LAN high-speed Internet access or download. 1. In the main screen, press the Main Menu Key→Settings→Wi-Fi. 2. Switch to “ON”. 3. Select the network you want to connect. 4. If the network is set up security protection, you need to enter the security key. 5. Click on “Connect”. Connect to the Bluetooth You can connect the other device with Bluetooth. 1.In the main screen, press the Main Menu Key→Settings→Bluetooth. 2. Switch to “ON”. 3. Select the devices you want to connect. Using a browser Click on the main screen Open your browser. Click the “Menu” key, you can select：Refresh, Stop, Home, Close, New incognito tab, Save for offline reading, Share page, Find on page, Request desktop site, New tab, Page info, Settings. Using GPS In the main screen, press the Main Menu Key→Settings→Location access. Maps app will use GPS function. Click on the main screenOpen your Maps. Camera/Camcorders In the main screen, Click .Enter the Camera/ Camcorders. Play FM In the main screen, Click .Enter the FM. If you forgot to plug in earphones. Music Player In the main menu, Click Enter the music player function. Simple Trouble shooting Commonproblems Check item Can not charge Please check if the charger is properly connected to the tablet PC and the power source jack. Can not power on Please check if the battery level is too low; Please check if the batter is properly loaded; Please press Power Key enough time. Insert the U-SIM card but can not read the information in the U-SIM card Please check if properly inserted the U-SIM card; Please check if your U-SIM card is valid. The device displays “Input PUK Code” Please communicate with the service provider to get the PUK code and use it to unlock. Can not make phone call Please check if the number is valid. Please check if you are in service area. Weak talk quality Please check if the tablet PC signal is strong enough; If you are in the building, please move the device or move near the window. Receiver sound is too low Please check if your receiver volume has been adjusted to the minimal. The tablet PC has a weak receive signal or usually drop in the phone call Please check if the tablet PC has a strong signal. If no signal, please use it in a strong signal place. The screen display the information such as “No Service” or: Searching... Please check if you are in a weak signal area (in the channel or surround by buildings), change the area and retry. Please check if you can try to get the services without the service provider permission. If needed the service, please contact the service provider for more information. Care and Maintenance  Keep your tablet PC and all its parts and accessories out of the reach of small children and pets. They may accidentally damage these things or choke on small parts.  Keep the tablet PC dry. Precipitation, humidity, and liquids contain minerals that corrode electronic circuits.  Do not use the tablet PC with a wet hand. Doing so may cause an electric shock to you or damage to the tablet PC.  Do not use or store the tablet PC in dusty, dirty areas. Its moving parts may be damaged.  Do not store the tablet PC in hot areas. High temperature can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.  Do not store the tablet PC in cold areas. When the tablet PC warms up to its normal operating temperature, moisture can form inside the tablet PC, which may damage the tablet PC’s electronic circuit boards.  Do not drop, knock, or shake the tablet PC. Rough handling can break internal circuit boards.  Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the tablet PC. Wipe it with a soft cloth slightly dampened in a mild soap-and water solution.  Do not paint the tablet PC. Paint can clog the device’s moving parts and prevent proper operation.  Do not put the tablet PC in or on heating devices, such as a microwave oven, stove, or radiator. The tablet PC may explode when overheated.  When the tablet PC or battery gets wet, the label indicates water damage inside the tablet PC changes color. In this case, tablet PC repairs are no longer guaranteed by the manufacturer's warranty, even if the warranty for your tablet PC has not expired. FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a …

Text truncated - open the document above for the full version.

Brightstar Corporation 9725 NW 117th Ave.,Miami,Florida,United States,33178 Tel: 1 305.921-1470 ; Fax: 1 305.863-3367 Date: February 26, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: WVBA1001 To Whom It May Concern: We, Brightstar Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Contact Person: Welton Giolo Company: Brightstar Corporation TEL: 1 305.921-1470 FAX: 1 305.863-3367 E-mail: [email protected]

Rev. 1/1/03 Brightstar Corporation 9725 NW 117th Ave.,Miami,Florida,United States,33178 Tel: 1 305.921-1470 ; Fax: 1 305.863-3367 Date: February 26, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: WVBA1001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Welton Giolo

Brightstar Corporation 9725 NW 117th Ave.,Miami,Florida,United States,33178 Tel: 1 305.921-1470 ; Fax: 1 305.863-3367 Date: February 26, 2014 Power of Attorney To whom it may concern, Please be notified that I, Welton Giolo, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: WVBA1001 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Welton Giolo Company: Brightstar Corporation TEL: 1 305.921-1470 FAX: 1 305.863-3367 E-mail: [email protected]

1/1 Brightstar Corporation Date: February 26, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : WVBA1001 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Brightstar Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Welton Giolo Company: Brightstar Corporation TEL: 1 305.921-1470 FAX: 1 305.863-3367 E-mail: [email protected]

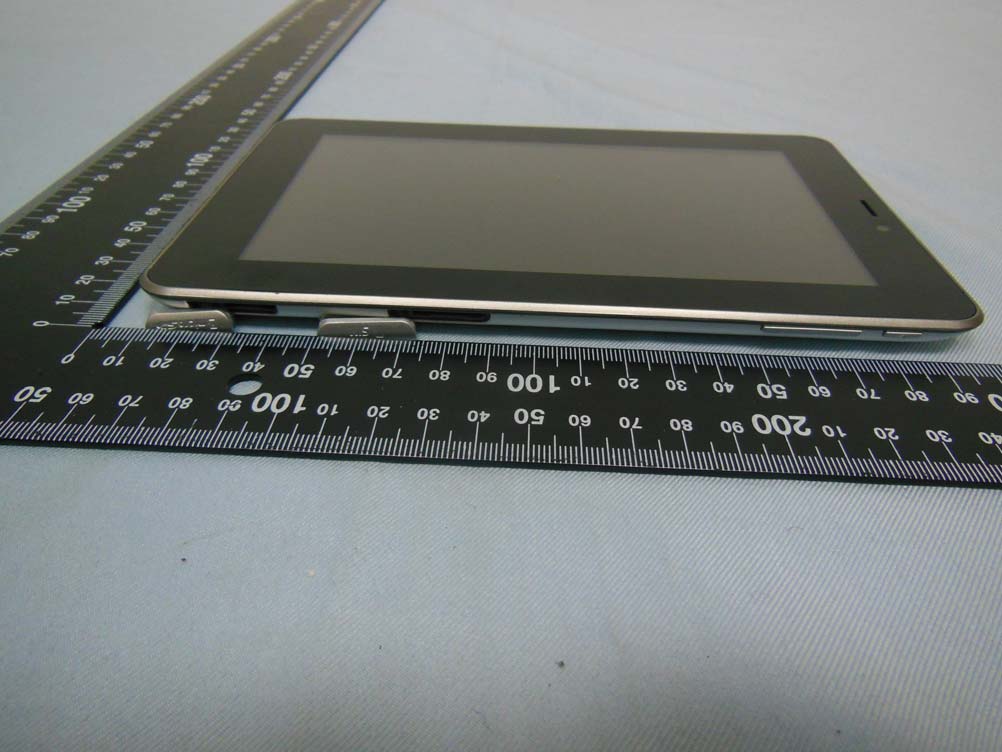

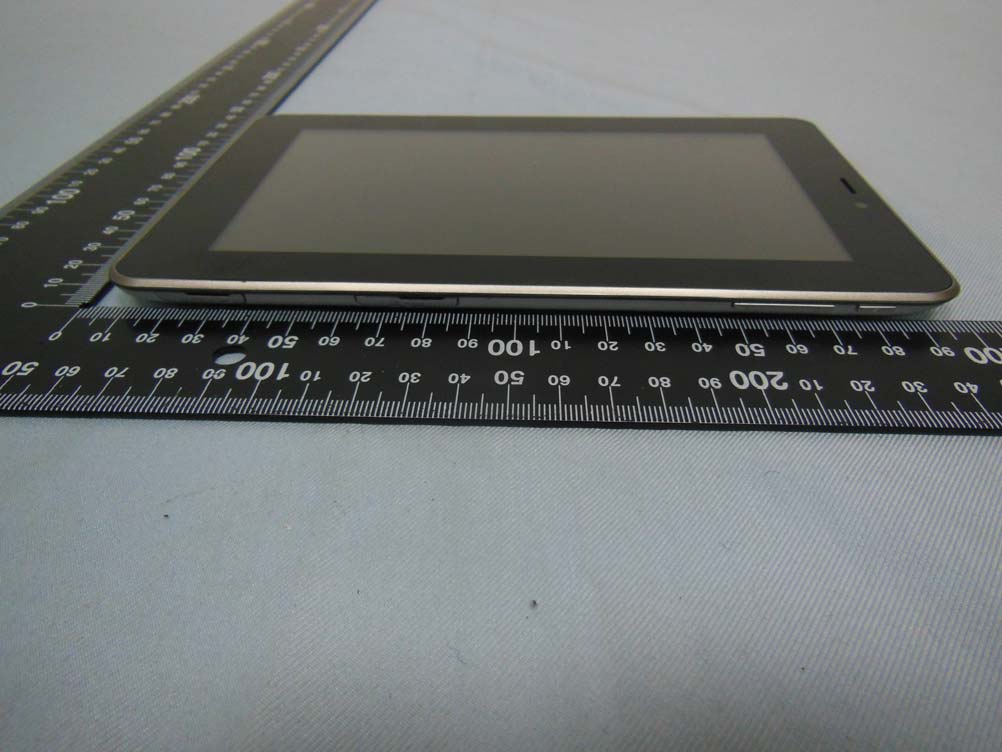

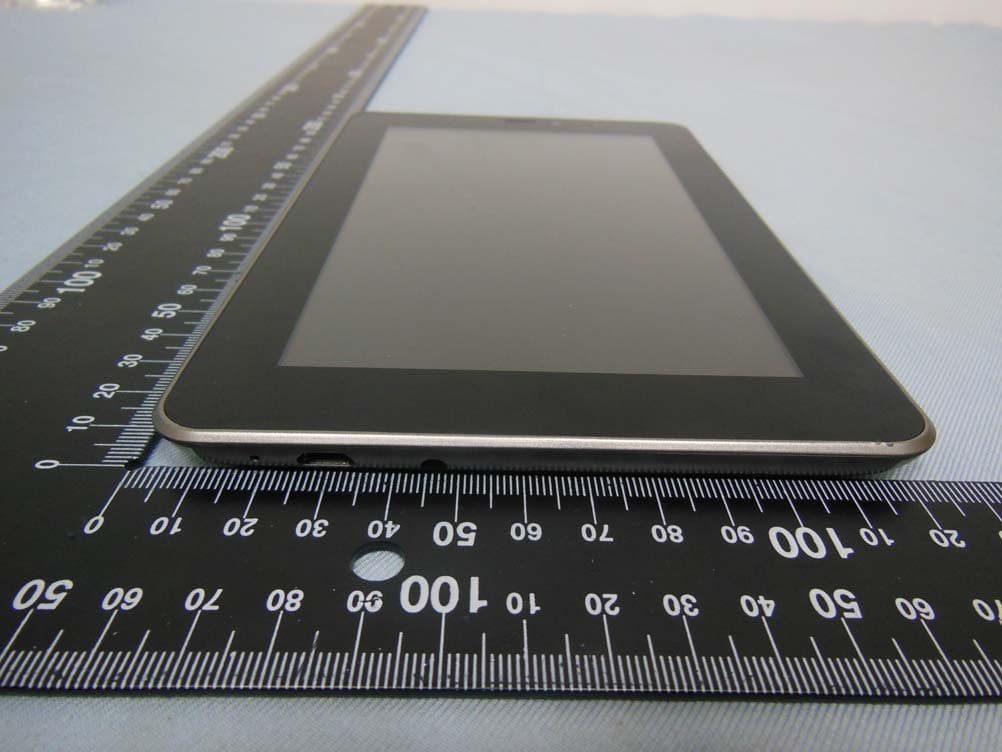

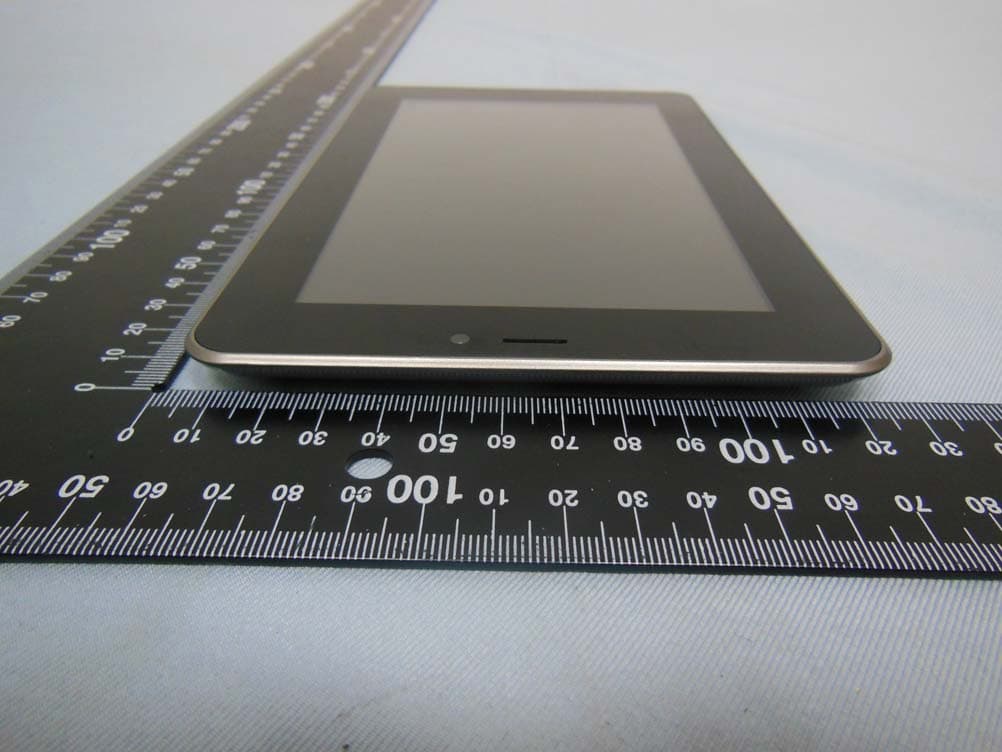

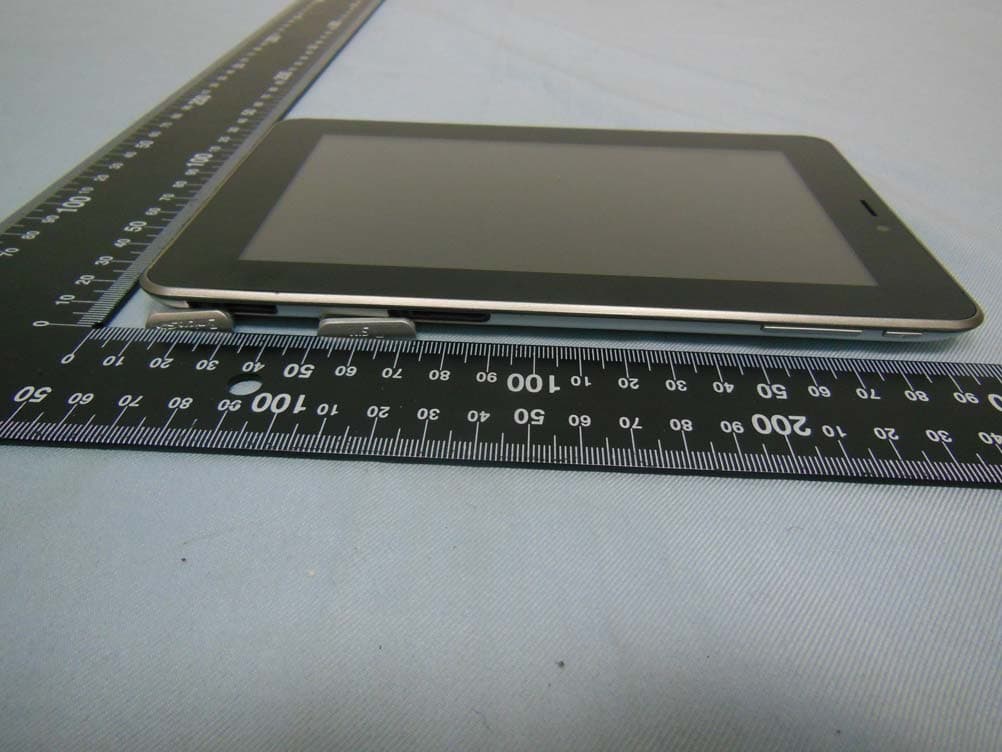

Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 List of Accessory: Specification of Accessory AC Adapter Brand Name myACT Model Name APS-B010050150W-G Battery Brand Name DBK Model Name AKX-3455140 USB Cable Signal Line Type 1.2m, shielded cable, without core Earphone Signal Line Type 1.2m, unshielded cable Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 AC Adapter Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Battery

B M7B-55-138-01 银灰色后 壳_菲林 图 _ 3.08.001.00863.08.001.0086 3.08.001.0086_M7B-55-138-01银灰色后壳_菲林图_B 注： LOGO位置, 左右居中，尺寸30mm,距底42mm 其它标签如图所示，垃圾筒距底26.3mm 灰色本色注塑/喷涂银灰色哑光，LOGO+字符镭雕效果 123.38mm 194mm 30mm 42mm 26.3mm A B 20131115 20131202 第一次下发 PAD大写 潘程结 潘程结

Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 3. Internal Photograph of EUT Bluetooth & WLAN Antenna WWAN Antenna GPS Antenna Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP411703 Brand Name: Avvio; Model Name: Avvio PAD 2 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 28, 2014 FCC ID : WVBA1001 Report Version : Rev. 01 GPS Antenna <Rx>

N SPORTON INT TEL : 86-755-8 FAX : 86-755-8 FCC ID : WVB The p (SHEN accor stand The t writte be rep No. 101, Com A Revi e TERNATIONAL 8637-9589 8637-9595 BA1001 FCC SA APPLIC EQUIPM BRAND MODEL MARKE FCC ID STAND product was NZHEN) INC rdance with dards. test results en approval produced ex SP mplex Buildi pproved by ewed by: Eri L (SHENZHEN) AR Test Re FCC CANT MENT D NAME L NAME ETING NAM ARD s testing c C., would li the proced in this rep of SPORTO xcept in full PORTON ing C, Guanl : Jones Tsa ic Huang / D INC. eport C SAR : Brigh : Table : Avvio : Avvio ME : Avvio : WVB : FCC ANS I IEEE ompleted o ke to decla dures and s port apply e ON INTERNA . INTERNA long Village ai / Manager Deputy Mana R Tes htstar Corp et PC o o PAD 2 o PAD 2 BA1001 47 CFR P a I/IEEE C95 E 1528-2003 on Feb. 27, are that the hown the c exclusively ATIONAL (SH NATIONAL e, Xili Town, ager st Re poration art 2 (2.109 .1-1992 3 2014. We, e tested sam ompliance w to the test HENZHEN) L (SHEN Nanshan D Page Numb Report Issu Report Vers eport 3) SPORTON mple has b with the app ed model / INC., the tes NZHEN) IN District, Shen ber : 1 o ued Date : Fe sion : Re Report No. t INTERNAT been evalua plicable tec / sample. W st report sh NC. nzhen, Guan of 50 eb. 28, 2014 ev. 01 : FA411703 IONAL ated in chnical Without all not ngdong, P.R 3 R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 50 TEL : 86-755-8637-9589 Report Issued Date : Feb. 28, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : WVBA1001 FCC SAR Test Report Report No. : FA411703 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Applied Standard .....................................................................................................................................................8 3.4 Device Category and SAR Limits ............................................................................................................................8 3.5 Test Conditions ........................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................9 4.1 Introduction .............................................................................................................................................................9 4.2 SAR Definition .........................................................................................................................................................9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. System Verification Procedures .................................................................................................................................19 7.1 Purpose of …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B1 TEL : 86-755-8637-9589 Report Issued Date : Feb. 28, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : WVBA1001 FCC SAR Test Report Report No. : FA411703 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.02.27 61 GSM850_GPRS(3 Tx slots)_Right Cheek_Ch128 Communication System: UID 0, GPRS/EDGE11 (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.77 Medium: HSL_835_140227 Medium parameters used: f = 824.2 MHz; σ = 0.888 S/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.68, 9.68, 9.68); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2013.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch128/Area Scan (101x151x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.00670 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.145 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.00841 W/kg SAR(1 g) = 0.00585 W/kg; SAR(10 g) = 0.00479 W/kg Maximum value of SAR (measured) = 0.00707 W/kg 0 dB = 0.00707 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.02.27 62 GSM850_GPRS(3 Tx slots)_Right Tilted_Ch128 Communication System: UID 0, GPRS/EDGE11 (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.77 Medium: HSL_835_140227 Medium parameters used: f = 824.2 MHz; σ = 0.888 S/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.68, 9.68, 9.68); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2013.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch128/Area Scan (101x151x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.0117 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.149 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.0130 W/kg SAR(1 g) = 0.011 W/kg; SAR(10 g) = 0.00935 W/kg Maximum value of SAR (measured) = 0.0123 W/kg 0 dB = 0.0123 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.02.27 63 GSM850_GPRS(3 Tx slots)_Left Cheek_Ch128 Communication System: UID 0, GPRS/EDGE11 (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.77 Medium: HSL_835_140227 Medium parameters used: f = 824.2 MHz; σ = 0.888 S/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.68, 9.68, 9.68); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2013.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch128/Area Scan (101x151x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.0166 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.469 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.0170 W/kg SAR(1 g) = 0.016 W/kg; SAR(10 g) = 0.014 W/kg Maximum value of SAR (measured) = 0.0167 W/kg 0 dB = 0.0167 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.02.27 64 GSM850_GPRS(3 Tx slots)_Left Tilted_Ch128 Communication System: UID 0, GPRS/EDGE11 (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.77 Medium: HSL_835_140227 Medium parameters used: f = 824.2 MHz; σ = 0.888 S/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.68, 9.68, 9.68); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2013.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch128/Area Scan (101x151x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.0123 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.338 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.0120 W/kg SAR(1 g) = 0.011 W/kg; SAR(10 g) = 0.00891 W/kg Maximum value of SAR (measured) = 0.0115 W/kg 0 dB = 0.0115 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014.02.27 81 GSM1900_GPRS(3 Tx slots)_Right Cheek_Ch661 Communication System: UID 0, GPRS/EDGE11 (0); Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium: HSL_1900_140227 Medium parameters used: f = 1880 MHz; σ = 1.392 S/m; ε r = 41.101; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(8, 8, 8); Calibrated: 2013.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2013.11.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Ch661/Area Scan (101x151x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.0222 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.045 …
