Brightstar Corporation 9725 NW 117th Ave.,Miami,Florida,United States Tel: 305-863-3367 ; Fax: 305-921-1470 Date: March 23, 2012 We, Brightstar Corporation, declare that this EUT (FCC ID: WVBA560S) doesn't have Ad Hoc Mode function on "non-US/Canada frequencies". In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Welton Giolo Company: Brightstar Corporation TEL: 305-863-3367 FAX: 305-921-1470 E-mail: [email protected]

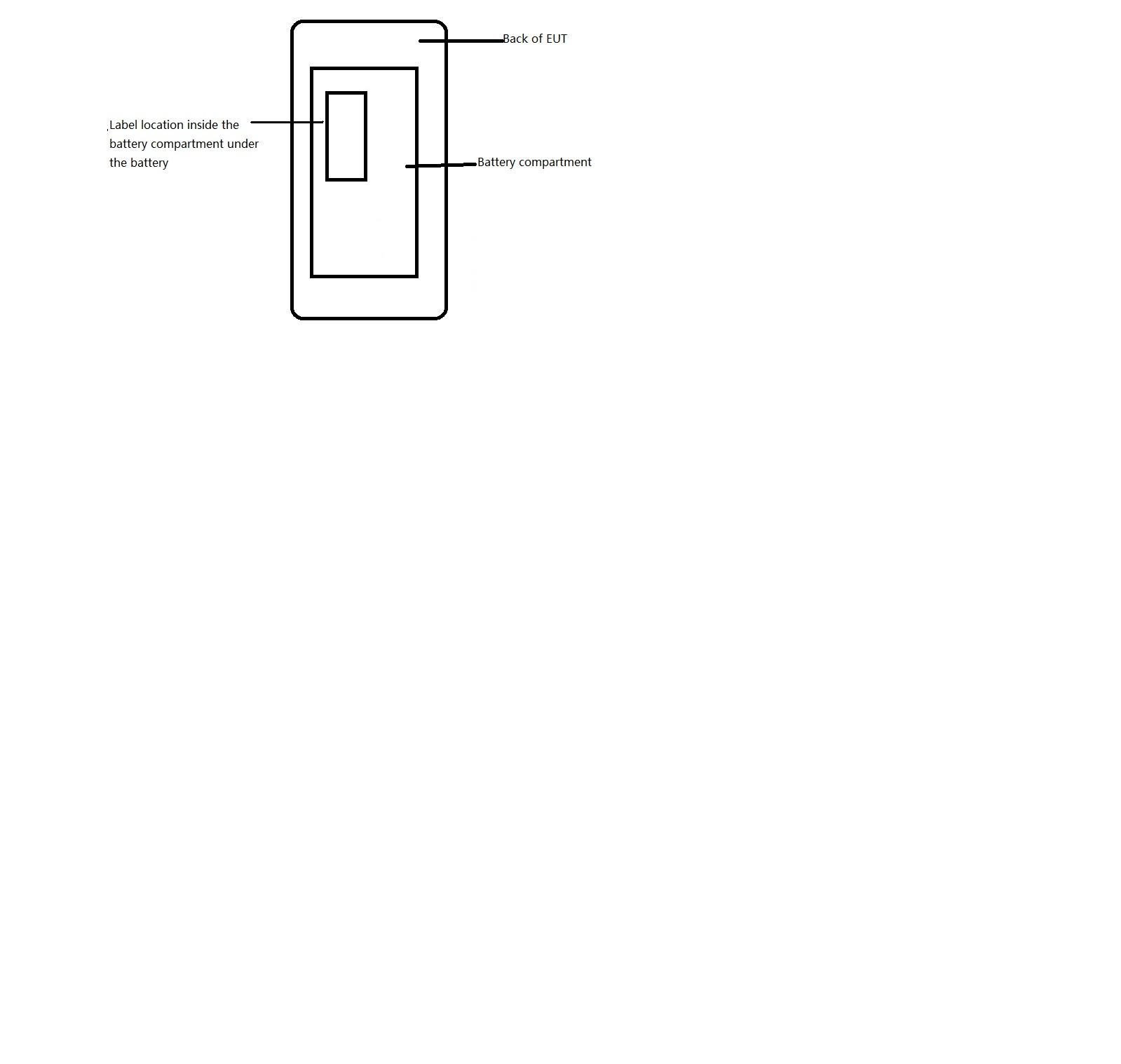

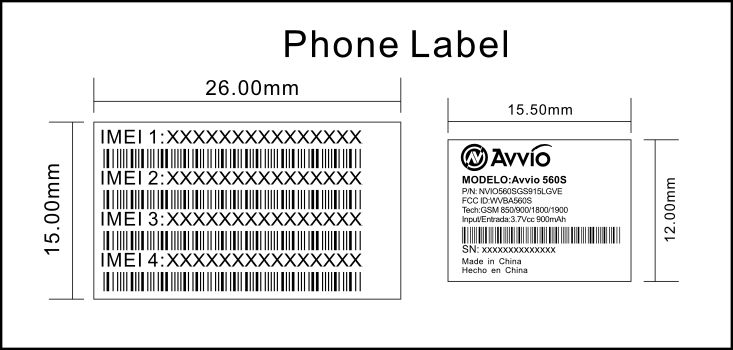

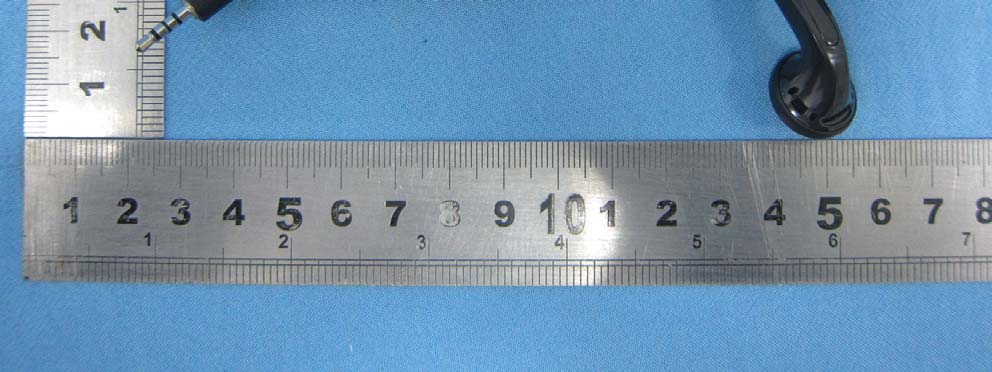

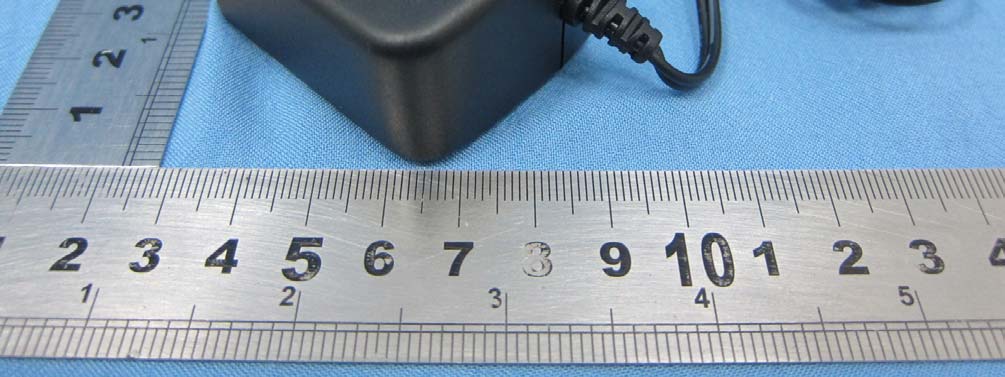

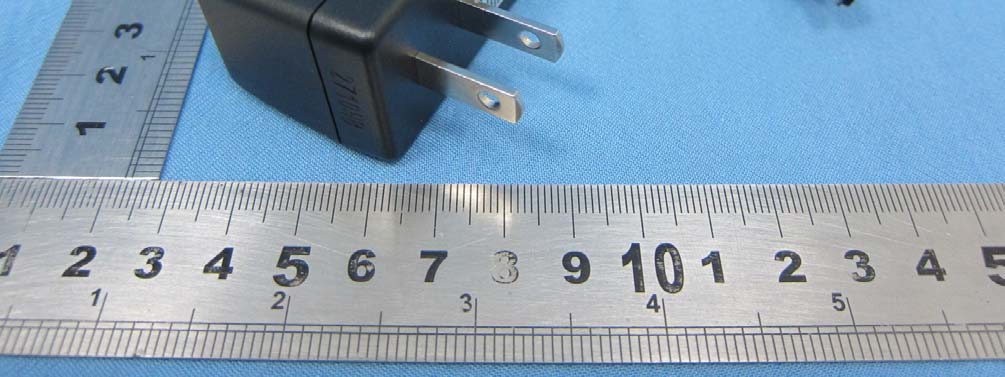

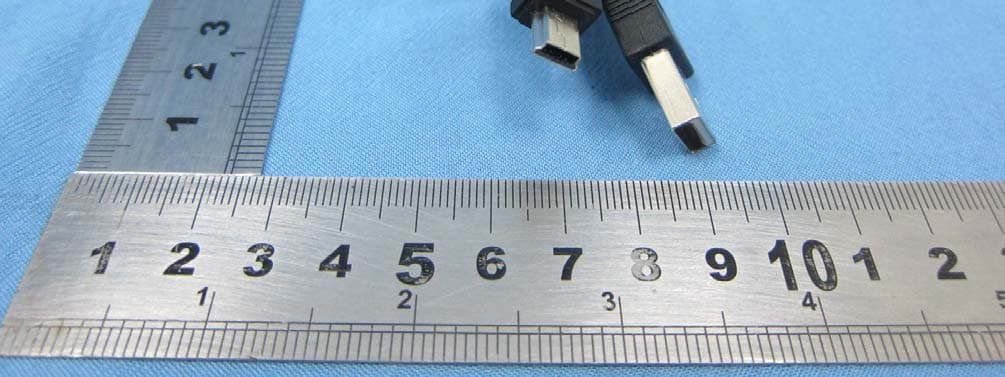

Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S 1. External Photograph of EUT Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S List of Accessory: Specification of Accessory AC Adapter Brand Name Avvio Model Name DSA-3RNA-05 FUS 050065 Battery Brand Name Avvio Model Name BL-5F Earphone Type 95cm non-shielded without core USB Cable Type 120cm shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S

Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S 3. Internal Photograph of EUT Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S Bluetooth Antenna Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S WLAN Antenna Photographs of EUT Report No.: EP222801 Brand Name: Avvio / Model Name: Avvio 560S SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S FCC SAR Test Report Report No. : FA222801 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 System Check_Head_835MHz_120229 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120229 Medium parameters used: f = 835 MHz; σ = 0.902 mho/m; ε r = 40.749; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.6 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.650 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.861 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.7780 SAR(1 g) = 2.47 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.672 mW/g 0 dB = 2.670mW/g = 8.53 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 System Check_Body_835MHz_120229 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120229 Medium parameters used: f = 835 MHz; σ = 0.976 mho/m; ε r = 54.369; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：21.5 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.72, 9.72, 9.72); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.645 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.634 V/m; Power Drift = 0.00026 dB Peak SAR (extrapolated) = 3.7130 SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.639 mW/g 0 dB = 2.640mW/g = 8.43 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 01.03.2012 System Check_Head_1900MHz_120301 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120301 Medium parameters used: f = 1900 MHz; σ = 1.412 mho/m; ε r = 39.311; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.7 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(8.36, 8.36, 8.36); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.726 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.615 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 18.8200 SAR(1 g) = 10 mW/g; SAR(10 g) = 5.19 mW/g Maximum value of SAR (measured) = 11.244 mW/g 0 dB = 11.240mW/g = 21.02 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 System Check_Body_1900MHz_120229 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120229 Medium parameters used: f = 1900 MHz; σ = 1.501 mho/m; ε r = 53.849; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.3 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(7.71, 7.71, 7.71); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM3; Type: QDOVA002AA; Serial: TP:1149 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.700 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.530 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 18.4650 SAR(1 g) = 10 mW/g; SAR(10 g) = 5.23 mW/g Maximum value of SAR (measured) = 11.216 mW/g 0 dB = 11.220mW/g = 21.00 dB mW/g

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S FCC SAR Test Report Report No. : FA222801 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 05 GSM850_Right Cheek_Ch128 DUT: 222801 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120229 Medium parameters used: f = 824.2 MHz; σ = 0.892 mho/m; ε r = 40.852; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.6 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.185 mW/g Ch128/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.515 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.3160 SAR(1 g) = 0.180 mW/g; SAR(10 g) = 0.109 mW/g Maximum value of SAR (measured) = 0.189 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 05 GSM850_Right Cheek_Ch128_2D DUT: 222801 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120229 Medium parameters used: f = 824.2 MHz; σ = 0.892 mho/m; ε r = 40.852; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.6 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.185 mW/g Ch128/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.515 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.3160 SAR(1 g) = 0.180 mW/g; SAR(10 g) = 0.109 mW/g Maximum value of SAR (measured) = 0.189 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 06 GSM850_Right Tilted_Ch128 DUT: 222801 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120229 Medium parameters used: f = 824.2 MHz; σ = 0.892 mho/m; ε r = 40.852; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.6 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.156 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.563 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.2260 SAR(1 g) = 0.140 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (measured) = 0.152 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 07 GSM850_Left Cheek_Ch128 DUT: 222801 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120229 Medium parameters used: f = 824.2 MHz; σ = 0.892 mho/m; ε r = 40.852; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.6 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.155 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.873 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.2430 SAR(1 g) = 0.153 mW/g; SAR(10 g) = 0.100 mW/g Maximum value of SAR (measured) = 0.163 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 29.02.2012 08 GSM850_Left Tilted_Ch128 DUT: 222801 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_120229 Medium parameters used: f = 824.2 MHz; σ = 0.892 mho/m; ε r = 40.852; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.6 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(9.4, 9.4, 9.4); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronics: DAE4 Sn1303; Calibrated: 10.11.2011 -Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 -Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch128/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.151 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.266 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.2140 SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.093 mW/g Maximum value of SAR (measured) = 0.148 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 01.03.2012 13 GSM1900_Right Cheek_Ch810 DUT: 222801 Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_120301 Medium parameters used: f = 1910 MHz; σ = 1.422 mho/m; ε r = 39.308; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.7 °C DASY5 Configuration: -Probe: EX3DV4 -SN3819; ConvF(8.36, 8.36, 8.36); Calibrated: 16.11.2011 -Sensor-Surface: 4mm (Mechanical Surface Detection) -Electronic…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : C1 of C1 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S FCC SAR Test Report Report No. : FA222801 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S FCC SAR Test Report Report No. : FA222801 FCC SAR Test Report APPLICANT : Brightstar Corporation EQUIPMENT : Mobile phone BRAND NAME : Avvio MODEL NAME : Avvio 560S FCC ID : WVBA560S STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 28, 2012 and completely tested on Mar. 01, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 23, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : WVBA560S FCC SAR Test Report Report No. : FA222801 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standards ...................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ............................................................................................................…
