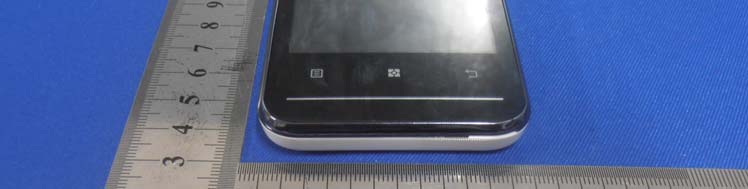

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 120927N007 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 120927N007 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 120927N007

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Nov. 09, 2012 Report No. : SA121026C13 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/24 System Check_H835_121024 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d139 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_1024 Medium parameters used: f = 835 MHz; σ = 0.910 mho/m; ε r = 42.116; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.13, 9.13, 9.13); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Right Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1722 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Pin=250mW/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.08 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.705 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.68 W/kg Maximum value of SAR (measured) = 3.16 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/ 06 System Check_H835_121106 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d139 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_1106 Medium parameters used: f = 835 MHz; σ = 0.898 mho/m; ε r = 40.597; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.13, 9.13, 9.13); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Pin=250mW/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.04 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.705 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.62 W/kg SAR(1 g) = 2.48 W/kg; SAR(10 g) = 1.66 W/kg Maximum value of SAR (measured) = 3.11 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/25 System Check_H1900_121025 DUT: Dipole 1900 MHz;Type: D1900V2; SN: 5d159 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_1025 Medium parameters used: f = 1900 MHz; σ = 1.425 mho/m; ε r = 41.558; ρ = 1000 kg/m 3 Ambient Temperature：21.9°C; Liquid Temperature：20.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(7.74, 7.74, 7.74); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.1 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.476 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 17.1 W/kg SAR(1 g) = 9.66 W/kg; SAR(10 g) = 5.07 W/kg Maximum value of SAR (measured) = 13.7 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/25 System Check_H2450_121025 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 893 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450_1025 Medium parameters used: f = 2450 MHz; σ = 1.85 mho/m; ε r = 40.901; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(6.91, 6.91, 6.91); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Right Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1722 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 19.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 101.4 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 26.9 W/kg SAR(1 g) = 12.8 W/kg; SAR(10 g) = 5.84 W/kg Maximum value of SAR (measured) = 19.7 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/27 System Check_B835_121027 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d139 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_1027 Medium parameters used: f = 835 MHz; σ = 0.962 mho/m; ε r = 53.632; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.23, 9.23, 9.23); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Pin=250mW/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.00 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.262 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.50 W/kg SAR(1 g) = 2.43 W/kg; SAR(10 g) = 1.62 W/kg Maximum value of SAR (measured) = 3.04 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 System Check_B835_121106 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d139 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_1106 Medium parameters used: f = 835 MHz; σ = 1.011 mho/m; ε r = 53.581; ρ = 1000 kg/m 3 Ambient Temperature：22.1 °C; Liquid Temperature：21.1 °C DASY5 Configuration:…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Nov. 09, 2012 Report No. : SA121026C13 Revision : R01 Appendix B. SAR Plots of SAR Measurement The plots for SAR measurement are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P01 GSM850_GPRS 12_Right Cheek_Ch128 DUT: 120927N007 Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_1106 Medium parameters used: f = 824.2 MHz; σ = 0.887 mho/m; ε r = 40.745; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.13, 9.13, 9.13); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch128/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.628 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.559 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.691 W/kg SAR(1 g) = 0.570 W/kg; SAR(10 g) = 0.434 W/kg Maximum value of SAR (measured) = 0.652 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P02 GSM850_GPRS 12_Right Tilted_Ch128 DUT: 120927N007 Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_1106 Medium parameters used: f = 824.2 MHz; σ = 0.887 mho/m; ε r = 40.745; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.13, 9.13, 9.13); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch128/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.444 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.482 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.455 W/kg SAR(1 g) = 0.372 W/kg; SAR(10 g) = 0.293 W/kg Maximum value of SAR (measured) = 0.419 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P03 GSM850_GPRS 12_Left Cheek_Ch128 DUT: 120927N007 Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_1106 Medium parameters used: f = 824.2 MHz; σ = 0.887 mho/m; ε r = 40.745; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.13, 9.13, 9.13); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch128/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.715 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.924 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.723 W/kg SAR(1 g) = 0.557 W/kg; SAR(10 g) = 0.428 W/kg Maximum value of SAR (measured) = 0.636 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P04 GSM850_GPRS 12_Left Tilted_Ch128 DUT: 120927N007 Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_1106 Medium parameters used: f = 824.2 MHz; σ = 0.887 mho/m; ε r = 40.745; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.13, 9.13, 9.13); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch128/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.407 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.770 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.425 W/kg SAR(1 g) = 0.357 W/kg; SAR(10 g) = 0.281 W/kg Maximum value of SAR (measured) = 0.397 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/25 P05 GSM1900_GPRS 12_Right Cheek_Ch661 DUT: 120927N007 Communication System: GPRS12; Frequency: 1880 MHz;Duty Cycle: 1:1.99986 Medium: H1900_1025 Medium parameters used: f = 1880 MHz; σ = 1.404 mho/m; ε r = 41.617; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(7.74, 7.74, 7.74); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch661/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.04 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.054 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.746 W/kg; SAR(10 g) = 0.479 W/kg Maximum value of SAR (measured) = 0.903 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/25 P06 GSM1900_GPRS 12_Right Tilted_Ch661 DUT: 120927N007 Communication System: GPRS12; Frequency: 1880 MHz;Duty Cycle: 1:1.99986 Medium: H1900_1025 Medium parameters used: f = 1880 MHz; σ = 1.404 mho/m; ε r = 41.617; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(7.74, 7.74, 7.74); C…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P24 GSM850_GPRS 12_Rear Face_1cm_Ch128_Earphone DUT: 120927N007 Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: B835_1106 Medium parameters used: f = 824.2 MHz; σ = 1 mho/m; ε r = 53.697 ; ρ = 1000 kg/m 3 Ambient Temperature：22.1 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.23, 9.23, 9.23); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch128/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.816 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.728 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.935 W/kg SAR(1 g) = 0.722 W/kg; SAR(10 g) = 0.534 W/kg Maximum value of SAR (measured) = 0.833 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P46 GSM850_GPRS 12_Front Face_1cm_Ch189 DUT: 120927N007 Communication System: GPRS12; Frequency: 836.4 MHz;Duty Cycle: 1:1.99986 Medium: B835_1106 Medium parameters used: f = 836.4 MHz; σ = 1.013 mho/m; ε r = 53.568; ρ = 1000 kg/m 3 Ambient Temperature：22.1 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.23, 9.23, 9.23); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch189/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.974 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.749 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.788 W/kg; SAR(10 g) = 0.584 W/kg Maximum value of SAR (measured) = 0.927 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P47 GSM850_GPRS 12_Front Face _1cm_Ch251 DUT: 120927N007 Communication System: GPRS12; Frequency: 848.8 MHz;Duty Cycle: 1:1.99986 Medium: B835_1106 Medium parameters used: f = 849 MHz; σ = 1.025 mho/m; ε r = 53.444; ρ = 1000 kg/m 3 Ambient Temperature：22.1 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.23, 9.23, 9.23); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch251/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.809 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.152 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.890 W/kg SAR(1 g) = 0.668 W/kg; SAR(10 g) = 0.492 W/kg Maximum value of SAR (measured) = 0.788 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P48 GSM850_GPRS 12_Rear Face_1cm_Ch189 DUT: 120927N007 Communication System: GPRS12; Frequency: 836.4 MHz;Duty Cycle: 1:1.99986 Medium: B835_1106 Medium parameters used: f = 836.4 MHz; σ = 1.013 mho/m; ε r = 53.568; ρ = 1000 kg/m 3 Ambient Temperature：22.1 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.23, 9.23, 9.23); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch189/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.13 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.955 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.985 W/kg; SAR(10 g) = 0.731 W/kg Maximum value of SAR (measured) = 1.14 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/11/06 P49 GSM850_GPRS 12_Rear Face_1cm_Ch251 DUT: 120927N007 Communication System: GPRS12; Frequency: 848.8 MHz;Duty Cycle: 1:1.99986 Medium: B835_1106 Medium parameters used: f = 849 MHz; σ = 1.025 mho/m; ε r = 53.444; ρ = 1000 kg/m 3 Ambient Temperature：22.1 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(9.23, 9.23, 9.23); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial: TP:1695 - Measurement SW: DASY52, Version 52.8 (3); SEMCAD X Version 14.6.7 (6848) Ch251/Area Scan (61x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.954 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.592 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.808 W/kg; SAR(10 g) = 0.608 W/kg Maximum value of SAR (measured) = 0.937 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/26 P25 GSM1900_GPRS 12_Front Face_1cm_Ch661 DUT: 120927N007 Communication System: GPRS12; Frequency: 1880 MHz;Duty Cycle: 1:1.99986 Medium: B1900_1026 Medium parameters used: f = 1880 MHz; σ = 1.482 mho/m; ε r = 53.619; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3873; ConvF(7.33, 7.33, 7.33); Calibrated: 2012/08/06; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2012/08/07 - Phantom: Front Phantom with CRP v5.0; Type: QD000P40CD; Serial:…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Nov. 09, 2012 Report No. : SA121026C13 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 27 Report No. : SA121026C13 Issued Date : Nov. 09, 2012 Revision : R01 FCC SAR Test Report Report No. : SA121026C13 Applicant : Brightstar Corporation Address : 9725 NW 117th Ave.,Miami,Florida,United States Product : GSM / WCDMA Smartphone FCC ID : WVBA760X Brand : Avvio Model No. : Avvio760S/ Avvio 760 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 648474 D01 v01r05 / KDB 941225 D01 v02 KDB 941225 D03 v01 / KDB 941225 D06 v01 Date of Testing : Oct. 24, 2012 ~ Nov. 06, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., China Branch - Dongguan Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by A2LA or any government agencies. No: 2951.01 Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 27 Report No. : SA121026C13 Issued Date : Nov. 09, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System .....…
