Brightstar Corporation 9725 NW 117th Ave.,Miami,Florida,United States,33178 Tel: 1 305.921-1470; Fax: 1 305.863-3367 Date: February 12, 2014 Statement We, Brightstar Corporation, states that our device, FCC ID: WVBA778X. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Welton Giolo

1/1 Brightstar Corporation Date: February 12, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : WVBA778X To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Brightstar Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Welton Giolo Company: Brightstar Corporation TEL: 1 305.921-1470 FAX: 1 305.863-3367 E-mail: [email protected]

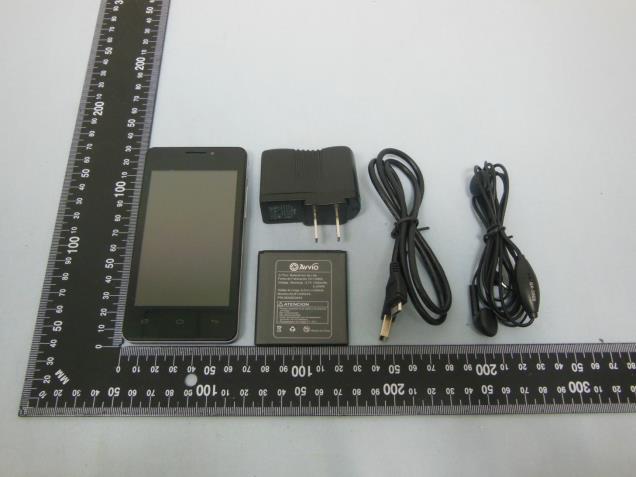

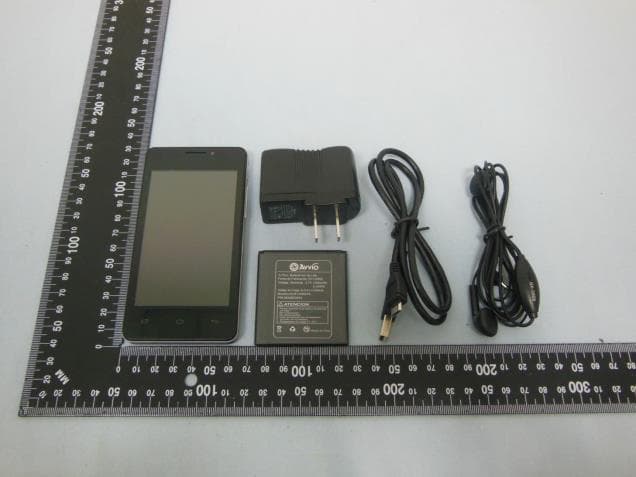

Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Specification of Accessory AC Adapter Brand Name Avvio Model Name SKL-5WU-U050-1000 Battery Brand Name Avvio Model Name KLB150N249 Earphone Signal Line Type 1.5meter, non-shielded cable, with w/o ferrite core USB Cable Signal Line Type 0.75meter, shielded cable, with w/o ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 AC Adapter Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Battery Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01

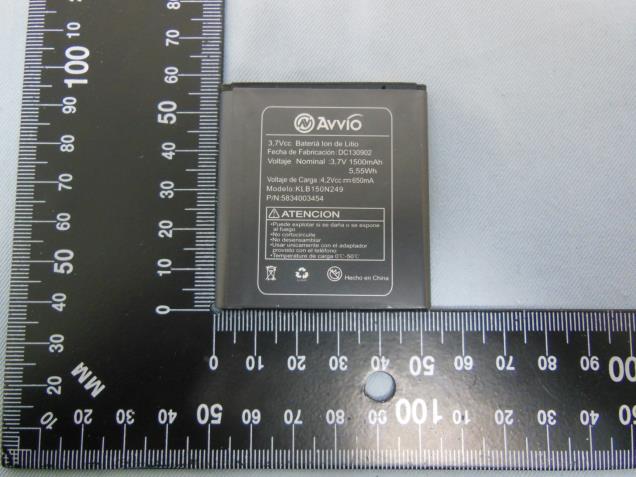

Modelo/Model: Avvio 778 ABC Made in China / Hecho en China YYYYMMDD FCC IDWVBA778X Tech: GSM 850/900/1800/1900 UMTS: 850/1900 MHz Input/Entrada: 4.2Vcc 650mA IMEI : XXXXXXXXXXXXXXXX SN: XXXXXXXXXXXXXXXXX Modelo/Model: Avvio 778S ABC Made in China / Hecho en China YYYYMMDD FCC IDWVBA778X Tech: GSM 850/900/1800/1900 UMTS: 850/1900 MHz Input/Entrada: 4.2Vcc 650mA IMEI 1: XXXXXXXXXXXXXXXX IMEI 2: XXXXXXXXXXXXXXXX SN: XXXXXXXXXXXXXXXXX

Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 3. Internal Photograph of EUT Dual SIM Card (Model Name: Avvio 778S) Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx> WWAN Antenna <Tx / Rx> TV Antenna <Rx> Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Single SIM Card (Model Name: Avvio 778) Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx> TV Antenna <Rx> WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP411502 Brand Name: Avvio / Model Name: Avvio 778S / Avvio 778 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 33 of 39 TEL : 86-755- 3320-2398 Report Issued Date : Feb. 12, 2014 FCC ID : WVBA778X Report Version : Rev. 01 Photographs of EUT Report No.: EP…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (XI’AN) INC. Page Number : 1 of 58 TEL : +86-029-8860-8767 Report Issued Date : Feb. 12, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : WVBA778X FCC SAR Test Report Report No. : FA411502 FCC SAR Test Report APPLICANT : Brightstar Corporation EQUIPMENT : Mobile Phone BRAND NAME : Avvio MODEL NAME : Avvio 778S / Avvio 778 FCC ID : WVBA778X STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was testing completed on Jan. 23, 2014. We, SPORTON INTERNATIONAL (XI’AN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (XI’AN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (XI’AN) INC. 1F, Building A3, No. 39 Chuangye Rd., Xi'an Hi-teck Zone, Shanxi Province, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (XI’AN) INC. Page Number : 2 of 58 TEL : +86-029-8860-8767 Report Issued Date : Feb. 12, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : WVBA778X FCC SAR Test Report Report No. : FA411502 Table of Contents 1. Statement of Compliance ....................................................................................................................................................................... 4 2. Administration Data ................................................................................................................................................................................ 5 2.1 Testing Laboratory .......................................................................................................................................................................... 5 2.2 Applicant ......................................................................................................................................................................................... 5 2.3 Manufacturer ................................................................................................................................................................................... 5 2.4 Application Details .......................................................................................................................................................................... 5 3. General Information ................................................................................................................................................................................ 6 3.1 Description of Equipment Under Test (EUT) ................................................................................................................................... 6 3.2 Maximum RF output power among production units ...................................................................................................................... 7 3.3 Applied Standard ............................................................................................................................................................................ 8 3.4 Device Category and SAR Limits ................................................................................................................................................... 8 3.5 Test Conditions ............................................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ............................................................................................................................................................ 9 4.1 Introduction ..................................................................................................................................................................................... 9 4.2 SAR Definition ................................................................................................................................................................................ 9 5. SAR Measurement System .................................................................................................................................................................. 10 5.1 E-Field Probe ................................................................................................................................................................................. 11 5.2 Data Acquisition Electronics (DAE) ................................................................................................................................................ 11 5.3 Robot ............................................................................................................................................................................................ 12 5.4 Measurement Server .................................................................................................................................................................... 12 5.5 Phantom ....................................................................................................................................................................................... 13 5.6 Device Holder ............................................................................................................................................................................... 13 5.7 Data Storage and Evaluation ........................................................................................................................................................ 14 5.8 Test Equipment List ..................................................................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (XI’AN) INC. Page Number : A1 of A1 TEL : +86-029-8860-8767 Report Issued Date : Feb. 12, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : WVBA778X FCC SAR Test Report Report No. : FA411502 Appendix A. Plots of System Performance Check The plots are shown as follows. TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2014.01.22 System Check_Head_835MHz_140122 DUT: D835V2 - SN: 4d151 Communication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_140122 Medium parameters used: f = 835 MHz; σ = 0.913 S/m; ε r = 40.859; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(10.05, 10.05, 10.05); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.93 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.968 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.47 W/kg SAR(1 g) = 2.31 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.92 W/kg 0 dB = 2.92 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2014.01.22 System Check_Head_1900MHz_140122 DUT: D1900V2 - SN: 5d170 Communication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_140122 Medium parameters used: f = 1900 MHz; σ = 1.446 S/m; ε r = 39.090; ρ = 100 0 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY 5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(8.25, 8.25, 8.25); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 1; Type: QD 000 P40 C; Serial: TP-1753 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.6 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.867 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 9.92 W/kg; SAR(10 g) = 5.13 W/kg Maximum value of SAR (measured) = 14.0 W/kg 0 dB = 14.0 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2014.01.23 System Check_Head_2450MHz_140123 DUT: D2450V2 - SN: 908 Communication System: CW;Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_140123 Medium parameters used: f = 2450 MHz; σ = 1.810 S/m; ε r = 37.626; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(7.22, 7.22, 7.22); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 1; Type: QD 000 P40 C; Serial: TP-1753 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (71x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 21.1 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 107.4 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.40 W/kg; SAR(10 g) = 6.14 W/kg Ma ximum value of SAR (measured) = 20.8 W/kg 0 dB = 20.8 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2014.01.22 System Check_Body_835MHz_140122 DUT: D835V2 - SN: 4d151 Communication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_140122 Medium parameters used: f = 835 MHz; σ = 0.974 S/m; ε r = 54.111; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(9.93, 9.93, 9.93); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.91 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.177 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.38 W/kg SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.88 W/kg 0 dB = 2.88 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2014.01.21 System Check_Body_1900MHz_140121 DUT: D1900V2 - SN: 5d170 Communication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_140121 Medium parameters used: f = 1900 MHz; σ = 1.519 S/m; ε r = 53.569; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(7.7, 7.7, 7.7); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.0 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.863 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 10.60 W/kg; SAR(10 g) = 5.53 W/kg Maximum value of SAR (measured) = 14.8 W/kg 0 dB = 14.8 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2014.01.23 System Check_Body_2450MHz_140123 DUT: D2450V2 - SN: 908 Communication System: CW;Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140123 Medium parameters used: f = 2450 MHz; σ = 1.951 S/m; ε r = 53.859; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (XI’AN) INC. Page Number : C1 of C1 TEL : +86-029-8860-8767 Report Issued Date : Feb. 12, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : WVBA778X FCC SAR Test Report Report No. : FA411502 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows.

SPORTON INT TEL : 86-755- FCC ID : WV B The p SPOR has b applic The te appro repro Re v Ap No. 3 Buil TERNATIONAL 3320-2398 BA778X FCC RF APPLIC EQUIPM BRAND MODEL FCC ID STANDA CLASSI product was RTON INTER been evaluat cable techn est results i oval of SPO oduced exce viewed by: J pproved by: SP lding, the th L (SHENZHEN) F Test Rep FCC CANT MENT D NAME L NAME ARD IFICATION rece…

Text truncated - open the document above for the full version.
