WVBAVVIO209GSM Mobile Phone

Avvio 209 User Manual Table of Contents LEGAL INFORMATION .............................................. 1 IMPORTANT NOTICE ................................................ 2 Safety Precaution / Measures ................................ 2 GETTING STARTED .................................................. 3 Packing Contents ................................................... 3 Installing SIM, Battery and Attaching other Accessories ............................................................ 3 SIM Card, Memory Card & Battery Installation .. 3 Connecting Hands-free Kit ................................. 3 Connecting the charger/Charging the Battery .... 4 Phone Keypad Layout (Figure 4)............................ 4 Left Soft Key ....................................................... 4 Right Soft Key .................................................... 4 Dial Key .............................................................. 4 End Key .............................................................. 5 OK Key ............................................................... 5 Up and Down Direction Keys ............................. 5 Left and Right Direction Keys ............................. 5 0-9 Keys ............................................................. 5 * & # Key ............................................................ 5 Important Phone Icons ........................................... 5 Signal Strength Icon ........................................... 5 Battery Meter Icon .............................................. 6 Keypad Lock Icon ............................................... 6 BASIC FUNCTIONS ................................................... 7 Make a Call ............................................................. 7 Making a Call Using Call history ............................. 7 Answering a Call ..................................................... 7 Call Option .............................................................. 7 MENU LAYOUT .......................................................... 8 Call center ............................................................... 9 Call history .......................................................... 9 Call settings ........................................................ 9 Multimedia ............................................................ 10 Image viewer .................................................... 10 Video player ..................................................... 11 Audio player ..................................................... 11 Sound recorder ................................................. 11 FM radio ........................................................... 12 Phonebook ............................................................ 12 Add new contact ............................................... 12 File manager ......................................................... 14 Messaging ............................................................ 14 Write message ................................................. 14 Inbox ................................................................. 14 Outbox .............................................................. 14 SMS .................................................................. 14 MMS ................................................................. 14 Broadcast message.......................................... 15 Templates ......................................................... 15 SMS settings .................................................... 15 SMS black list ................................................... 16 Organizer .............................................................. 16 Calendar ........................................................... 16 Tasks ................................................................ 16 Alarm ................................................................ 16 World clock ....................................................... 17 Calculator ......................................................... 17 Settings ................................................................. 17 User profiles ..................................................... 17 Phone settings .................................................. 18 Network settings ............................................... 19 Security settings ............................................... 19 Connectivity ...................................................... 20 Restore factory settings ................................... 20 Shortcuts .......................................................... 20 Fun & Games ........................................................ 20 Games .............................................................. 20 Services ................................................................ 21 STK .................................................................. 21 Internet service ................................................. 21 1 LEGAL INFORMATION All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Avvio is prohibited. Avvio operates on a policy of continuous development. Avvio reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Avvio be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as it is". Except as required by applicable law, no warranties of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Avvio reserves the right to revise this document or withdraw it at any time without prior notice. The availabil…

Text truncated - open the document above for the full version.

Date: July 22, 2010 Subject: FCC ID: WVBAVVIO209 Attestation of USB port The USB port of this device is only used for charging, it is not available to transfer data by connect to a personal computer. Thank you for your attention to this matter. Yours Sincerely,

Brightstar Corporation Date: July 22, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Brightstar Corporation, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Brightstar Corporation solely in matters relating to the application for an FCC equipment authorization for FCC ID < WVBAVVIO209 >including the signing of documents in connection with this Application. Necessary acts carried out by Brightstar Corporation on our behalf of the Brightstar Corporation in connection with the Application shall have the same effect as acts of the Brightstar Corporation. The Brightstar Corporation also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely,

Date: July 22, 2010 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Brightstar Corporation FCC ID: WVBAVVIO209 FCC Part 22&24 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Brightstar Corporation requests that the following documents regarding this submission for FCC ID: WVBAVVIO209 be kept confidential: Exhibit Type File Name Block Diagram WVBAVVIO209 _Block Diagram.pdf Schematics WVBAVVIO209_Schematics.pdf Operational Description WVBAVVIO209_Operational Description.pdf Part list WVBAVVIO209_BOM.pdf Tune-Up-Procedure WVBAVVIO209_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Brightstar Corporation considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Brightstar Corporation considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market.

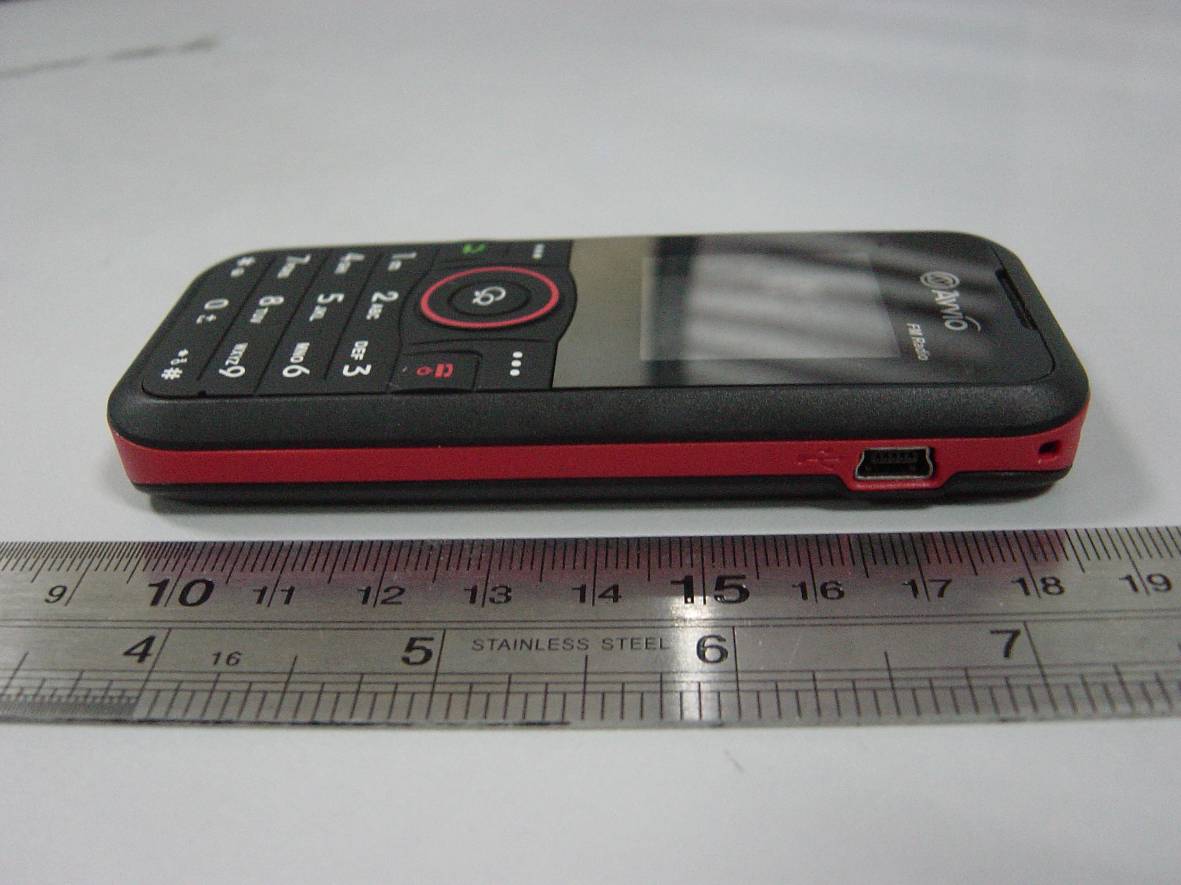

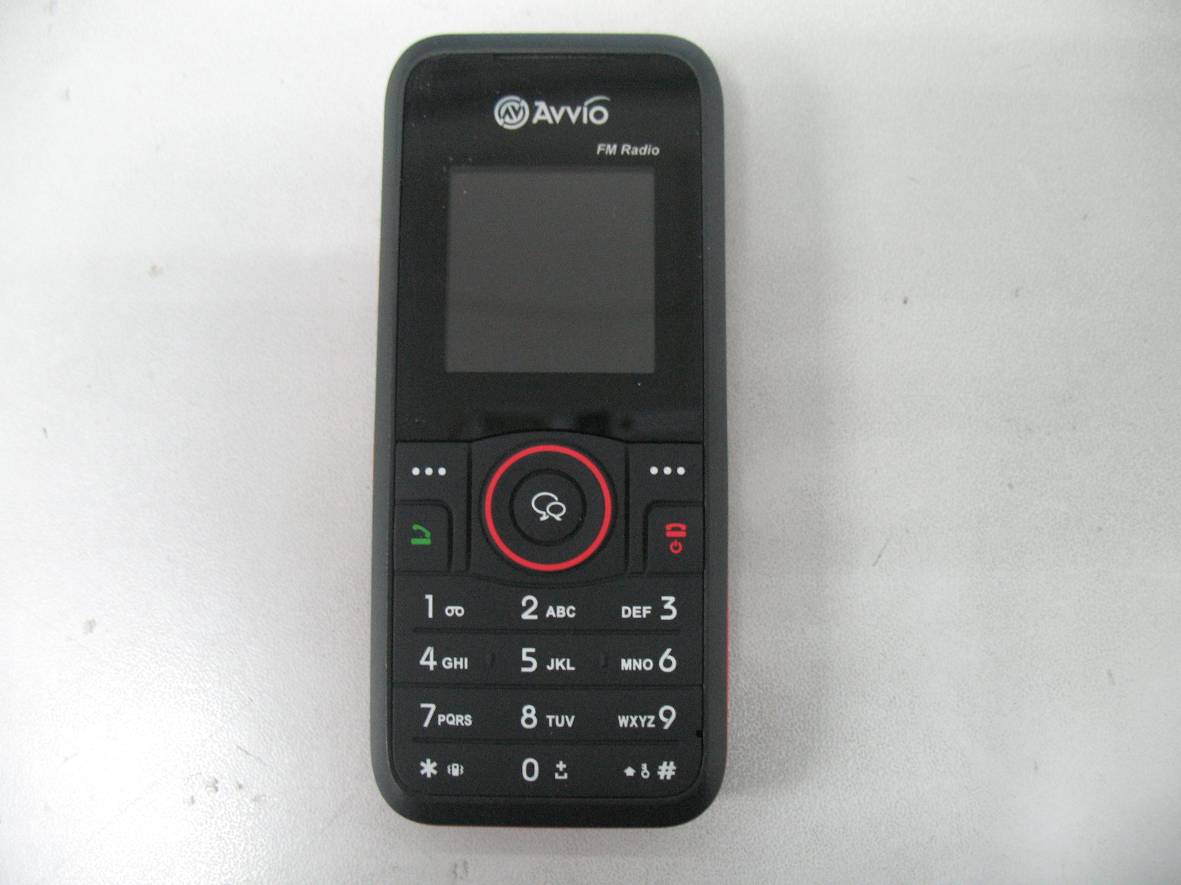

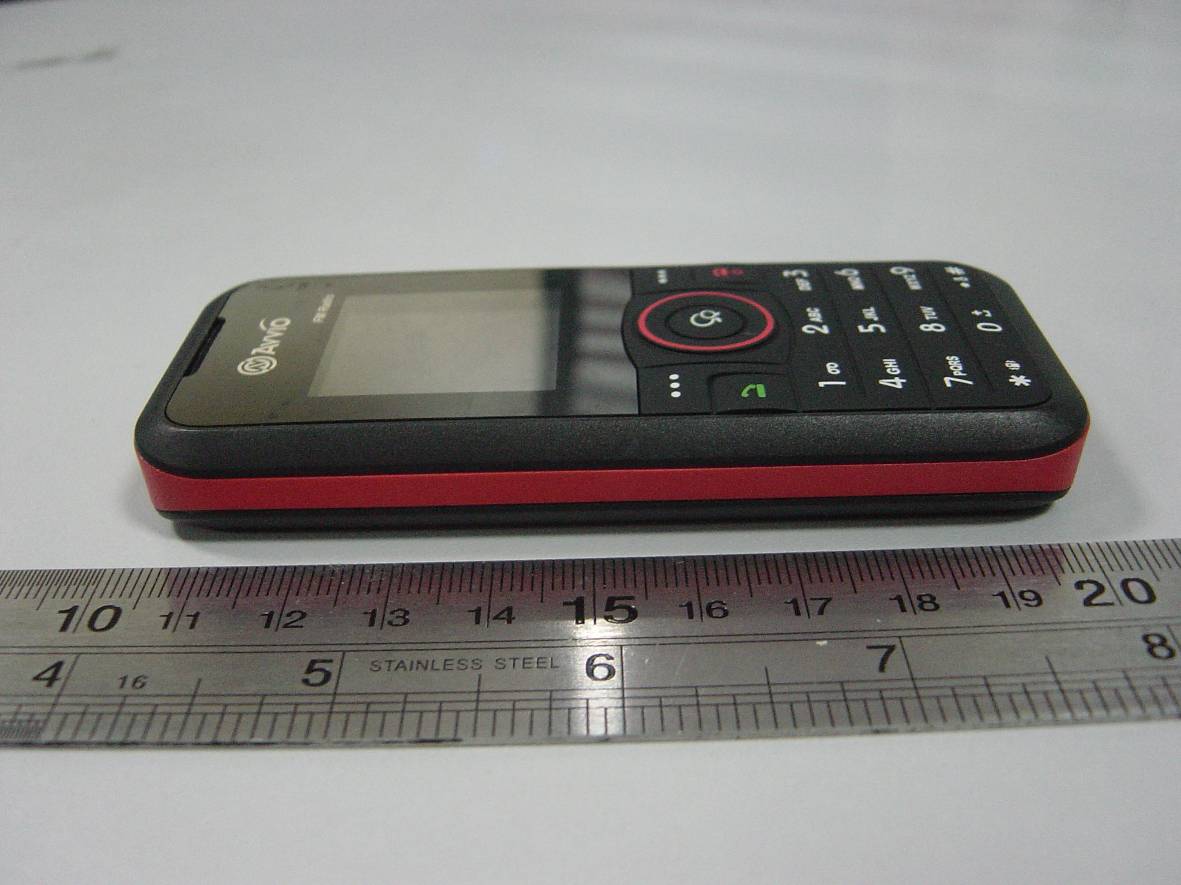

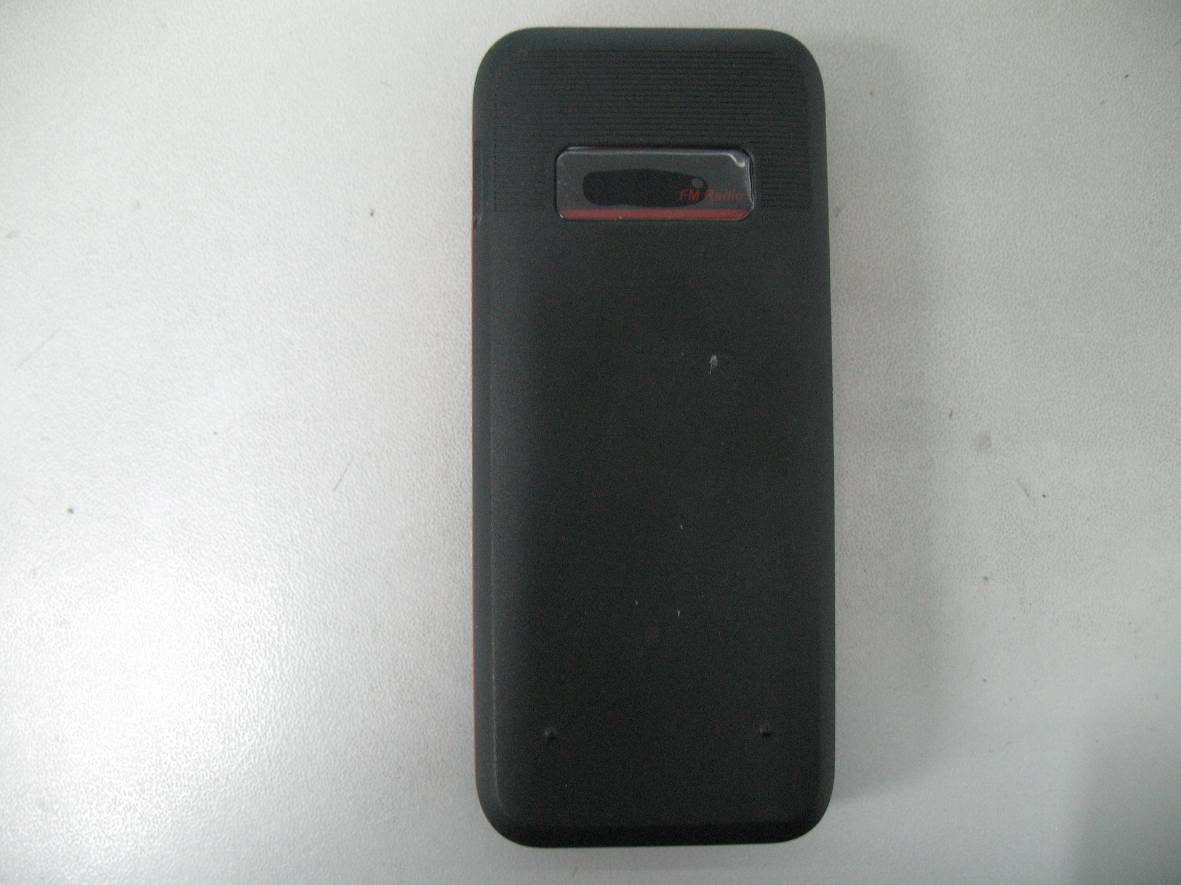

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Label Label Location

Internal Photos

Report No.: SZ10060151S01 Page 2 of 143 Contents 1.ȱGENERAL INFORMATION....................................................................................................3ȱ 1.1.ȱNotes.........................................................................................................................................3ȱ 1.2.ȱOrganization item....................................................................................................................3ȱ 1.3.ȱConclusion................................................................................................................................3ȱ 2.ȱTESTING LABORATORY.......................................................................................................4ȱ 2.1.ȱIdentification of the Responsible Testing Laboratory..........................................................4ȱ 2.2.ȱIdentification of the Responsible Testing Location..............................................................4ȱ 2.3.ȱAccreditation Certificate........................................................................................................4ȱ 2.4.ȱList of Test Equipments..........................................................................................................4ȱ 3.ȱTECHNICAL INFORMATION ...............................................................................................4ȱ 3.1.ȱIdentification of Applicant......................................................................................................5ȱ 3.2.ȱIdentification of Manufacturer..............................................................................................5ȱ 3.3.ȱEquipment Under Test (EUT)................................................................................................5ȱ 3.3.1.ȱPhotographs of the EUT..................................................................................................6ȱ 3.3.2.ȱIdentification of all used EUTs........................................................................................6ȱ 4.ȱTEST RESULTS.........................................................................................................................6ȱ 4.1.ȱApplied Reference Documents...............................................................................................6ȱ 4.2.ȱTest Environment/Conditions................................................................................................7ȱ 4.3.ȱOperational Conditions During Test.....................................................................................7ȱ 4.3.1.ȱInformations On The Testing..........................................................................................8ȱ 4.3.2.ȱThe Measurement System.............................................................................................10ȱ 4.3.3.ȱUncertainty Assessment.................................................................................................12ȱ 4.4.ȱMEASUREMENT PROCEDURES....................................................................................13ȱ 4.4.1.ȱProcedures Used To Establish Test Signal....................................................................14ȱ 4.5.ȱItems used in the Test Results List.......................................................................................15ȱ 4.6.ȱTest Results List.....................................................................................................................16ȱ ANNEX AȱACCREDITATION CERTIFICATE..........................................................................17ȱ ANNEX BȱPHOTOGRAPHS OF THE EUT ................................................................................19ȱ ANNEX CȱGRAPH TEST RESULTS ...........................................................................................22ȱ Report No.: SZ10060151S01 Page 4 of 143 2. Testing Laboratory 2.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Electronic Product Quality Testing Center Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 2.2. Identification of the Responsible Testing Location Name: Shenzhen Electronic Product Quality Testing Center Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 2.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L1659 (see 0) 2.4. List of Test Equipments No.InstrumentTypeCal. Date Cal. Due 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 2009-09-26 1year 3 Voltmeter Keithley (2000, SN:1000572) 2009-9-24 1year 4 Synthetizer Rohde&Schwarz (SML_03, SN:101868) 2009-9-24 1year 5 Amplifier Nucl udes (ALB216, SN:10800) 2009-9-24 1year 6 Power Meter Rohde&Schwarz (NRVD, SN:101066) 2009-9-24 1year 7 Probe Antennessa (SN:SN_3708_EP80) 2009-9-24 1year 8 Phantom Antennessa (SN:SN_36_08_SAM62) 2009-9-24 1year 9 Liquid Antennessa (Last Calibration:21 08 08)2009-08-21 1year Report No.: SZ10060151S01 Page 5 of 143 3. Technical Information Note: the following data is based on the information by the applicant. 3.1. Identification of Applicant Company Name: Brightstar Corp Address: 9725 NW 117th Ave, #300 – Doral – FL – 33178 3.2. Identification of Manufacturer Company Name: Longcheer Technology (Shanghai) Co.,Ltd Address: Building 1,No.401,Caobao Rd,Xuhui District,Shanghai,P.R.China 3.3. Equipment Under Test (EUT) Brand Name: Avvio Type Name: Avvio Marking Name: 209 Hardware Version: LK6M101B1-1 Software Version: LK63S02.8.28.1.0T04G0705_M101 Frequency Bands: GSM 850MHz (channel 128:824.20MHz,channel 190:836.59MHz, channel 251:848.29MHz) PCS 1900MHz (channel 512:1850.19MHz,channel 661:1880.00MHz, channel 810:1909.80MHz) Modulation Mode: GMSK Antenna type:Build inside Development Stage: Identical prototype Battery Model: BL-4C Battery spe…

Text truncated - open the document above for the full version.

Report No.: SZ10060151E01 Page 2 of 43 TABLE OF CONTENTS 1. TEST CERTIFICATION ...........................................................................................................3 2. GENERAL INFORMATION ....................................................................................................4 2.1 EUT Description .........................................................................................................................4 2.2 Test Standards and Results ........................................................................................................6 2.3 Facilities and Accreditations ......................................................................................................7 3. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................8 3.1 Frequencies..................................................................................................................................8 3.2 Conducted RF Output Power ..................................................................................................12 3.3 99% Occupied Bandwidth .......................................................................................................19 3.4 Frequency Stability ...................................................................................................................23 3.5 Conducted Out of Band Emissions .........................................................................................25 3.6 Band Edge .................................................................................................................................29 3.7 Transmitter Radiated Power (EIRP/ERP) .............................................................................32 3.8 Radiated Out of Band Emissions ............................................................................................37 Change History Issue Date Reason for change 1.0 July 28, 2010 First edition Report No.: SZ10060151E01 Page 4 of 43 2. GENERAL INFORMATION 2.1 EUT Description EUT Type.............................. : GSM Mobile Phone Model Name ......................... : 209 Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : LK6M101B1-1 Software Version .................. : LK63S01.8.28.1.0T04G0705_M101 Frequency Range .................. : GSM 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) Modulation Type................... : GMSK Emission Designators ........... : 300KGXW Power Supply........................ : Battery Model Name: BL-4C Brand name: Avvio Capacitance: 650mAh Rated voltage: 3.7V Manufacturer: Shenzhen BAK Battery Co.,Ltd Manufacturer Address: BAK Industrial Park, Kuichong Town, Longgang District, Shenzhen, P.R.C Ancillary Equipments ........... : AC Adapter (Charger for Battery) Model Name: DSA-3RNA-05 FUS 050065 Brand Name: AVVIO Serial No.: (n.a. marked #1 by test site) Rated Input: 100-240V, 50/60Hz, 300mA Rated Output: 5.0V, 650mA, Manufacturer: DEE VAN ENTERPRISE CO., LTD Manufacturer Address: 5th Industrial District, Gong Ming Town, Baoan County, Shen Zhen, Guang Dong, CHINA Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can Report No.: SZ10060151E01 Page 5 of 43 be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: The GPRS was tested under 2 time-slots mode. Note 4: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ10060151E01 Page 6 of 43 2.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-05 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-05 Edition) Public Mobile Services 3 47 CFR Part 24 (10-1-05 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.106 22.905 24.229 Frequencies PASS 2 2.1046 Conducted RF Output Power PASS 3 2.1049 20dB Occupied Bandwidth PASS 4 2.1055 22.355 24.235 Frequency Stability PASS 5 2.1051 2.1057 22.917 24.238 Conducted Out of Band Emissions PASS 6 2.1051 2.1057 22.917 24.238 Band Edge PASS 7 22.913 24.232 Transmitter Radiated Power (EIPR/ERP) PASS 8 2.1053 2.1057 22.917 24.238 Radiated Out of Band Emissions PASS Report No.: SZ10060151E01 Page 7 of 43 2.3 Facilities and Accreditations 2.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 2.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°…

Text truncated - open the document above for the full version.

Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2009/10/06 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2009/10/06 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/200 9 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2009/10/06 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2009/10/06 4 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 5/26 Issue: A Date: 2009/10/06 5 PROBE UNCERTAINTIES Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 6/26 Issue: A Date: 2009/10/06 6 1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW) 0.72 V/m (0.47 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: 2 3 2 2 2 1 **EEEE= The following tables represent the calibration curves linearization by curve segment in CW signal. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 7/26 Issue: A Date: 2009/10/06 7 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.000311 2.759206 0.000236 2.486639 -0.000312 2.489933 0.000246 2.460514 0.000…

Text truncated - open the document above for the full version.

Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 1/6 Issue: B Date: 2009/10/05 1 DIPOLE 835 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 2/6 Issue: B Date: 2009/10/05 2 DIPOLE 835 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPC99 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPC99 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2009 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 3/6 Issue: B Date: 2009/10/05 3 PRODUCT DESCRIPTION Dimension: L=161 mm/ h=89.8mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2009 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 835 MHz head liquid. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 4/6 Issue: B Date: 2009/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 835 MHz: -24.77 dB. -24,77 -40 -35 -30 -25 -20 -15 -10 -5 0 0,7350,8350,935 Frequency (GHz) S11 (dB) Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 5/6 Issue: B Date: 2009/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2009 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2008 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2008 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-200 9 Probe SATIMO Bretagne (SN:EP37) CF (30.41,29.18,32.33) Date of calibration: 19-06-2009 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 18 09 08) Head Liquid Values: eps’ : 41,20 sigma : 0,872 Distance between the center of the dipole and the liquid (set with a spacer) 15 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 835 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SA…

Text truncated - open the document above for the full version.
