WVBAVVIO251GSM 850/1900 Cell phone

AVVIO 251 User Manual INTRODUCTION Keys Specification 1.1 Keys specification General keypad definitions: Left soft key Generally indicates Confirmation Right soft key Generally to delete or clear a letter or number. Navigation key Generally to move the cursor. #key Switch between different input methods. *key show the Symbols interface. Call key Generally to call the number. End key Generally to end a call. 1 key ,.?!1 2 key ABC,abc,2 3 key DEF, def.3 4 key GHI, ghi, 4 5 key JKL, jkl, 5 6 key MNO, mno, 6 7 key PQSR, pqsr, 7 8 key TUV, tuv, 8 9 key WXYZ, wxyz, 9 0 key 0, space 2 User Guide 2.1 Installing/ Removing the battery/SIM card. Installation Notice Before you install or remove the battery and the SIM card, please make sure to turn off the mobile phone. 1) Removing the battery. Step1: Step2:  Remove the back cover.  Remove the battery from the battery slot properly. 2) Inserting/Removing the SIM card. Step3:  Insert/Remove the SIM card. Step4:  Insert the battery  Place the Back cover on. 2.2 Charging the battery  Plug the charger into the electrical outlet.  Plug the charger connector into the mobile phone  The Battery indicator icon starts to flash until charging is finished.  When charging is complete, disconnect the charger connector from the mobile phone and unplug the charger from electrical outlet. 2.3 Flashlight This mobile phone has a flashlight function. In idle state, long press the middle key to turn on the flashlight and when the flashlight is on and your on the Idle state, press the middle key to turn off the flashlight. 2.4 Power On or Off Make sure the battery is already inserted:  Power on/off: Long Press the End key to Switch on/off the mobile phone. 3 Call Functions 3.1 Making a Call  On idle state, input the phone number directly  Press the Call key to make a call.  You can input number in this order: (Area code, phone number, and press the Call key) 3.2 Emergency Calls You can make emergency calls as long as your current location is covered by the network area. You can check the signal strength bar on the top left corner of the screen. 3.3 Dialing an International Number Making International calls: For international calls, long press the “0” key until the “+” sign is shown in the screen then enter the number in the following order: (“+”, Country code, complete number then press the Call key) 3.4 Rejecting a Call Press the End key to Reject or cancel an incoming call. 3.5 Missed Calls The unanswered incoming calls appear on the display screen. Press Middle key to check the details of the missed calls or press Call key to call the number. 3.6 Call Waiting In this menu, you can activate the call waiting function to be notified of incoming calls while you have a call in progress. 3.7 Call Options Press the left soft key or the middle key to perform the following options:  Mute: turn on/off microphone.  Loudspeaker: turn on/off the loudspeaker function.  Speaker volume: change the speaker volume.  Hold/Remove hold: Put a call on hold or retrieve a call.  Contacts: enter phonebook menu.  Messages: enter message menu. 4 CALL  All calls: lists of the missed, dialed and received calls.  Missed Calls: lists the records of missed calls.  Received Calls: lists the records of received calls.  Dialed Calls: lists the records of dialed calls.  Call Time: four sub-menus are provided in Call Duration: Last Call, Dialed Calls, Received Calls and Reset all time. 5 STK Please contact your service provider about the STK features. 6 Profiles Profiles options: General, Meeting, Outdoor, Indoor and Headset. Select and enter personal settings menu, profile modification are as follows:  Tone setup: lets you specify the ring tone for incoming calls and alerts.  Volume setup: set the volume of the Ring tone, Speaker volume and Key tone.  Alert type: set the ring tone type. 7 Games This mobile phone has games for you to enjoy. 8 Contacts  Add new contact: add a new contact to SIM or phone.  Edit: edit the phonebook details.  Delete: delete the contact details.  Search: input the name you want to search.  Speed dial list: Check speed-dial list  Send a message: send a text message to the selected contact.  Add to speed dial list: set the number corresponding to the numeric keys from 2 to 9, when this function is activated, press and hold the numeric keys to automatically call the specific contact (only in idle state).  Call firewall: set the number in the blacklist number list to reject the incoming call(s) of the  Copy: copy the contact details to the phone or the SIM.  Move: move the contact details to the phone or the SIM.  Settings: ­ Preferred storage: select the default storage location. ­ Used space: the memory status of SIM card and the phone. ­ Ringtone: set the tones of the different group. ­ Speed dial list: view the speed dial list.  Batch operation: ­ Copy SIM to phone: copy all the SIM contact to phone. ­ Copy phone to SIM: copy all the phone contacts to SIM. ­ Move SIM to Phone: move all the SIM contact to phone. ­ Move phone to SIM: move all the phone contacts to SIM. ­ Delete all SIM Contacts: delete all the SIM contacts ­ Delete all Phone Contacts: delete all the phone contacts 9 Messages 9.1 Write message  Done: done creating a message and ready to be send.  Use templates: select the template message from the template list.  Insert name card: insert the contact details from the phonebook list to the write message interface. After editing the message, select “Done” from options to perform the following options:  Send: send the message.  Send to many: send the message to many.  Save: save the message. 9.2 Inbox  Reply: reply a message to the sender  Delete: delete the current message  Forward: send this message to somebody else.  Call reply: call the sender of the message.  Extract number: use the number inside the message. 9.3 Outbox  Read: view the message content.  Delete: delete the current message  Send: send the unsen…

Text truncated - open the document above for the full version.

Brightstar Corporation Date: March 29, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Brightstar Corporation, the undersigned, hereby authorizes Mr.Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Brightstar Corporation solely in matters relating to the application for an FCC equipment authorization for FCC ID # WVBVVIO251 including the signing of documents in connection with this Application. Necessary acts carried out by Brightstar Corporation on our behalf of the Brightstar Corporation in connection with the Application shall have the same effect as acts of the Brightstar Corporation The Brightstar Corporation also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Welton Giolo Manager Brightstar Corporation

公司抬头. Date: March 29, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Brightstar Corporation FCC ID: WVBVVIO251 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Brightstar Corporation requests that the following documents regarding this submission for FCC ID: WVBVVIO251 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX WVBVVIO251_Block Diagram.pdf Schematics CONF APPENDIX WVBVVIO251 _Schematics.pdf Operational Description CONF APPENDIX WVBVVIO251 _Operational Description.pdf Part list CONF APPENDIX WVBVVIO251 _BOM.pdf Tune-Up-Procedure CONF APPENDIX WVBVVIO251 _Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Brightstar Corporation considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Brightstar Corporation considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Welton Giolo Manager Brightstar Corporation

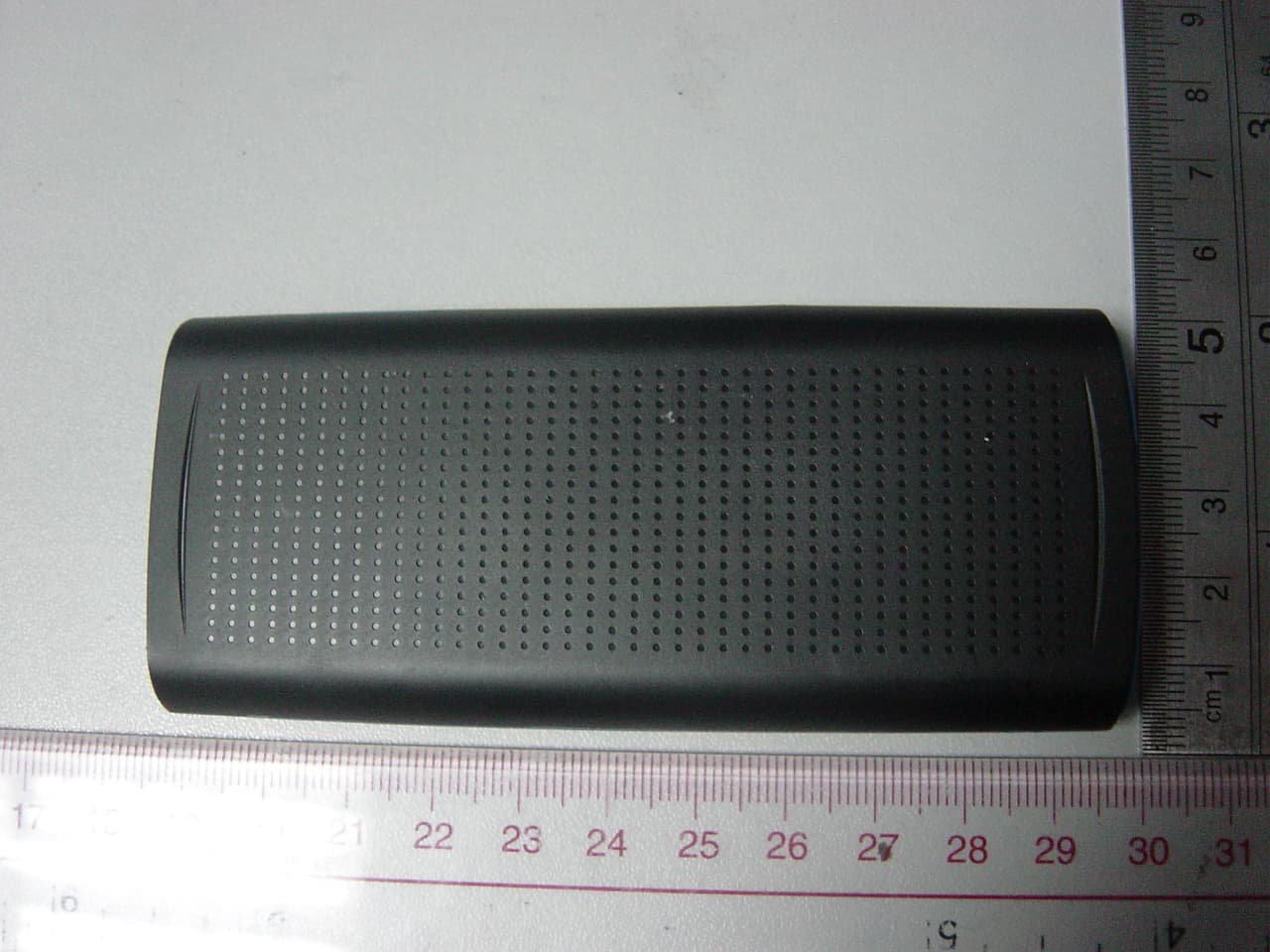

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Phone Label S/N:1234567890 P/N:KYE打印 FCC ID:WVBAVVIO251 Tech/Technologia:GSM 850/1900 Input/Entrade：3.7Vcc 600mA AVVIO 251 Made in China/Hecho en china Phone Label S/N:1234567890 P/N:KYE打印 FCC ID:WVBAVVIO251 Tech/Technologia:GSM 850/1900 Input/Entrade：3.7Vcc 600mA AVVIO 251 Made in China/Hecho en china

Internal Photos

Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2010/10/06 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2010/10/06 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/20 10 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2010/10/06 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2010/10/06 4 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 5/26 Issue: A Date: 2010/10/06 5 PROBE UNCERTAINTIES Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 6/26 Issue: A Date: 2010/10/06 6 1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW) 0.72 V/m (0.47 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: 2 3 2 2 2 1 **EEEE= The following tables represent the calibration curves linearization by curve segment in CW signal. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 7/26 Issue: A Date: 2010/10/06 7 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.000311 2.759206 0.000236 2.486639 -0.000312 2.489933 0.000246 2.460514 0.000…

Text truncated - open the document above for the full version.

Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 1/6 Issue: B Date: 2010/10/05 1 DIPOLE 1800 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 2/6 Issue: B Date: 2010/10/05 2 DIPOLE 1800 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF101 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF101 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2010 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 3/6 Issue: B Date: 2010/10/05 3 PRODUCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2010 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1800 MHz head liquid. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 4/6 Issue: B Date: 2010/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1800 MHz: -25.09 dB -25,09 -35 -30 -25 -20 -15 -10 -5 0 1,71,81,9 Frequency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 5/6 Issue: B Date: 2010/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2010 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2009 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2009 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2010 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2010 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1800 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,05 W/Kg + 1,24 % 39,32 W/Kg + 3,20 % Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 6/6 Issue: B Date: 2010/10/05 6 SAR MEASUREMENT PLOTS

Report No.: SZ11010148S01 Page 2 of 138 Contents 1. GENERAL INFORMATION....................................................................................................4 1.1. Notes.........................................................................................................................................4 1.2. Organization item....................................................................................................................4 1.3. Conclusion................................................................................................................................4 2. TESTING LABORATORY.......................................................................................................5 2.1. Identification of the Responsible Testing Laboratory..........................................................5 2.2. Identification of the Responsible Testing Location..............................................................5 2.3. Accreditation Certificate........................................................................................................5 2.4. List of Test Equipments..........................................................................................................5 3. TECHNICAL INFORMATION ...............................................................................................6 3.1. Identification of Applicant......................................................................................................6 3.2. Identification of Manufacturer..............................................................................................6 3.3. Equipment Under Test (EUT)................................................................................................6 3.3.1. Photographs of the EUT..................................................................................................7 3.3.2. Identification of all used EUTs........................................................................................7 3.4. Applied Reference Documents...............................................................................................7 3.5. Device Category and SAR Limits..........................................................................................7 3.6. Test Environment/Conditions................................................................................................8 4. SPECIFIC ABSORPTION RATE (SAR) ................................................................................9 4.1 Introduction.................................................................................................................................9 4.2 SAR Definition.............................................................................................................................9 5. SAR MEASUREMENT SETUP .............................................................................................10 5.1. The Measurement System....................................................................................................10 5.2. Probe.......................................................................................................................................11 5.3. Phantom.................................................................................................................................13 5.4. Device Holder........................................................................................................................13 6. TISSUE SIMULATING LIQUIDS .........................................................................................14 7. UNCERTAINTY ASSESSMENT ...........................................................................................16 7.1. UNCERTAINTY EVALUATION FOR HANDSET SAR TEST......................................16 Report No.: SZ11010148S01 Page 3 of 138 7.2. UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK........................................17 8. SAR MEASUREMENT EVALUATION ...............................................................................19 8.1. System Setup..........................................................................................................................19 8.2. Validation Results..................................................................................................................19 9. OPERATIONAL CONDITIONS DURING TEST ................................................................20 9.1. Informations on the testing..................................................................................................20 9.2. Body-worn Configurations...................................................................................................21 9.3. Measurement procedure.......................................................................................................21 9.4. Description of interpolation/extrapolation scheme............................................................22 10. TEST RESULTS LIST .............................................................................................................23 ANNEX A ACCREDITATION CERTIFICATE........................................................................25 ANNEX B PHOTOGRAPHS OF THE EUT..............................................................................26 ANNEX C GRAPH TEST RESULTS .........................................................................................29 Change History Issue Date Reason for change 1.0 Mar. 14 2011 First edition Report No.: SZ11010148S01 Page 5 of 138 2. Testing Laboratory 2.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Morlab Communications Technology Co., Ltd. Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 2.2. Identification of the Responsible Testing Location Name: Shenzhen M…

Text truncated - open the document above for the full version.

Report No.: SZ11010148E01 Page 2 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 7 2.1 Conducted RF Output Power .................................................................................................... 7 2.2 99% Occupied Bandwidth ....................................................................................................... 10 2.3 Frequency Stability ................................................................................................................... 14 2.4 Conducted Out of Band Emissions ......................................................................................... 16 2.5 Band Edge ................................................................................................................................. 20 2.6 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 23 2.7 Radiated Out of Band Emissions ............................................................................................ 26 Change History Issue Date Reason for change 1.0 February 23, 2011 First edition Report No.: SZ11010148E01 Page 3 of 32 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : GSM 859/1900 Cell phone Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : N/A Software Version .................. : Applicant .............................. : Manufacturer ........................ : N/A Brightstar Corp. 9725 NW 117 th Ave, #300 – Doral – FL – 33178 MobilMAX Technology Inc. 2F-5 No. 28 Tai Yuan St., Chupei City, Hsinchu County 302, Taiwan Frequency Range .................. : GSM 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) Modulation Type................... : GMSK Emission Designators ........... : 300KGXW Power Supply ....................... : Battery Model Name: BL-5C 523450AR Brand name: N/A Capacitance: 600mAh Rated voltage: 3.7V Manufacturer: SHENZHEN CHOLIPOWER TECHNOLOGY CO.,LTD Ancillary Equipments ........... : AC Adapter (Charger for Battery) Model Name: X110 Brand Name: N/A Serial No.: (n.a. marked #1 by test site) Rated Input: 100-300V, 50- 60Hz, 300mA Rated Output: 5.3V±0.3V, 500mA Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, Report No.: SZ11010148E01 Page 4 of 32 middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ11010148E01 Page 5 of 32 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-09 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-09 Edition) Public Mobile Services 3 47 CFR Part 24 (10-1-09 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.1046 Conducted RF Output Power PASS 2 2.1049 20dB Occupied Bandwidth PASS 3 2.1055 22.355 24.235 Frequency Stability PASS 4 2.1051 2.1057 22.917 24.238 Conducted Out of Band Emissions PASS 5 2.1051 2.1057 22.917 24.238 Band Edge PASS 6 22.913 24.232 Transmitter Radiated Power (EIPR/ERP) PASS 7 2.1053 2.1057 22.917 24.238 Radiated Out of Band Emissions PASS NOTE：Measurement method according to TIA/EIA-603. Report No.: SZ11010148E01 Page 6 of 32 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges…
