WVJ-CB00010519902INTRUSION DETECTOR SENSOR

User’s Guide Eagle Window & Door is proud to introduce VeriLock™ integrated security sensors, an innovative security option that integrates wireless security sensors into Eagle ® window and door products. The sensors, when ordered, are embedded within our windows and doors and can detect when the product is open or closed. The sensors also detect whether the product is locked or unlocked, something other security sensors are not able to do. This enables a simplified “check the windows and doors routine” at bedtime or departure. Additionally, all Eagle sensors, when used with a third party security and monitoring system, can be monitored and armed, even when you’re not home. With integrated sensors, the beauty of Eagle products is maintained without unsightly wires, sensors or holes. Plus, the product warranty is maintained. Generally, third party security systems can void the manufacturer’s warranty with the installation of sensors and wires on windows and doors. Eagle windows and doors with VeriLock integrated security sensors are designed to work in conjunction with a security system that is compatible with Honeywell ® 5800 Series transmitters installed and monitored by a reputable security dealer. When properly integrated into a third party security system, Eagle’s VeriLock sensors are designed to: • Detect whether your Eagle window or door is open or closed • Detect whether your Eagle window or door is locked or unlocked • Communicate changes in open/close and lock/ unlock wirelessly in a format compatible with Honeywell 5800 Series transmitters • Monitor sensor battery level and communicate low battery state in a format compatible with Honeywell 5800 Series transmitters • Deliver comparable range to other wireless sensors based on Federal Communications Commission (FCC) regulations that limit RF transmit power levels To experience the full benefits of VeriLock sensors, an experienced security system dealer is required to: • Select and install a security system compatible with Honeywell 5800 Series transmitters • Specify a system to accommodate the number of Eagle windows and doors in the dwelling • Configure each VeriLock sensor into the specified security system, as each sensor has its own unique identification code permanently assigned • Program the security system using Eagle’s recommended zone descriptors • Adjust the system for wireless range deficiencies due to size or layout of home through the use of wireless repeaters and/or additional wireless receivers Eagle Window & Door is not affiliated with Honeywell. Eagle’s VeriLock sensors are independent of the security system, yet communicate with it to provide added features and benefits for windows and doors that only Eagle can offer. VeriLock TM User’s Guide for Eagle VeriLock™ Integrated Security Sensors “Eagle” and all other marks denoted are trademarks of Eagle Window & Door Manufacturing, Inc. and its parent company. “Honeywell” is a registered trademark of Honeywell International Inc. ©2010 Eagle Window & Door Manufacturing, Inc. All rights reserved. Limited Publication Release 1 Introduction .................................................................................1 Table of Contents .............................................................................2 General Safety Warnings........................................................................2 Operating Instructions .........................................................................3 How Sensors Work ..........................................................................3 Locking Windows and Doors...................................................................3 Keypad and Control Panel .....................................................................3 Verification Information ........................................................................4 Battery Information............................................................................5 Battery Type................................................................................5 Battery Size and Quantity......................................................................5 Battery Specifications ........................................................................5 Battery Availability...........................................................................5 Battery Life ................................................................................5 Battery Disposal.............................................................................5 Battery Replacement Instructions..............................................................6 - 9 Tools Needed for Battery Replacement ...........................................................6 Casement and Awning Windows ............................................................... 6 Double-Hung and Single-Hung Windows..........................................................7 Monumental Single-Hung Windows .............................................................8 Hinged French Doors.........................................................................9 Sliding Door...............................................................................10 Finishing and General Care.................................................................10 - 12 Finishing .................................................................................10 Cleaning Hardware and Sensors ...............................................................12 Troubleshooting .........................................................................13 - 14 Frequently Asked Questions...................................................................13 Glossary ...................................................................................15 Regulatory Statements ........................................................................16 Federal Communications Commission (FCC) Part 15 Statement.......................................16 Limitations ..…

Text truncated - open the document above for the full version.

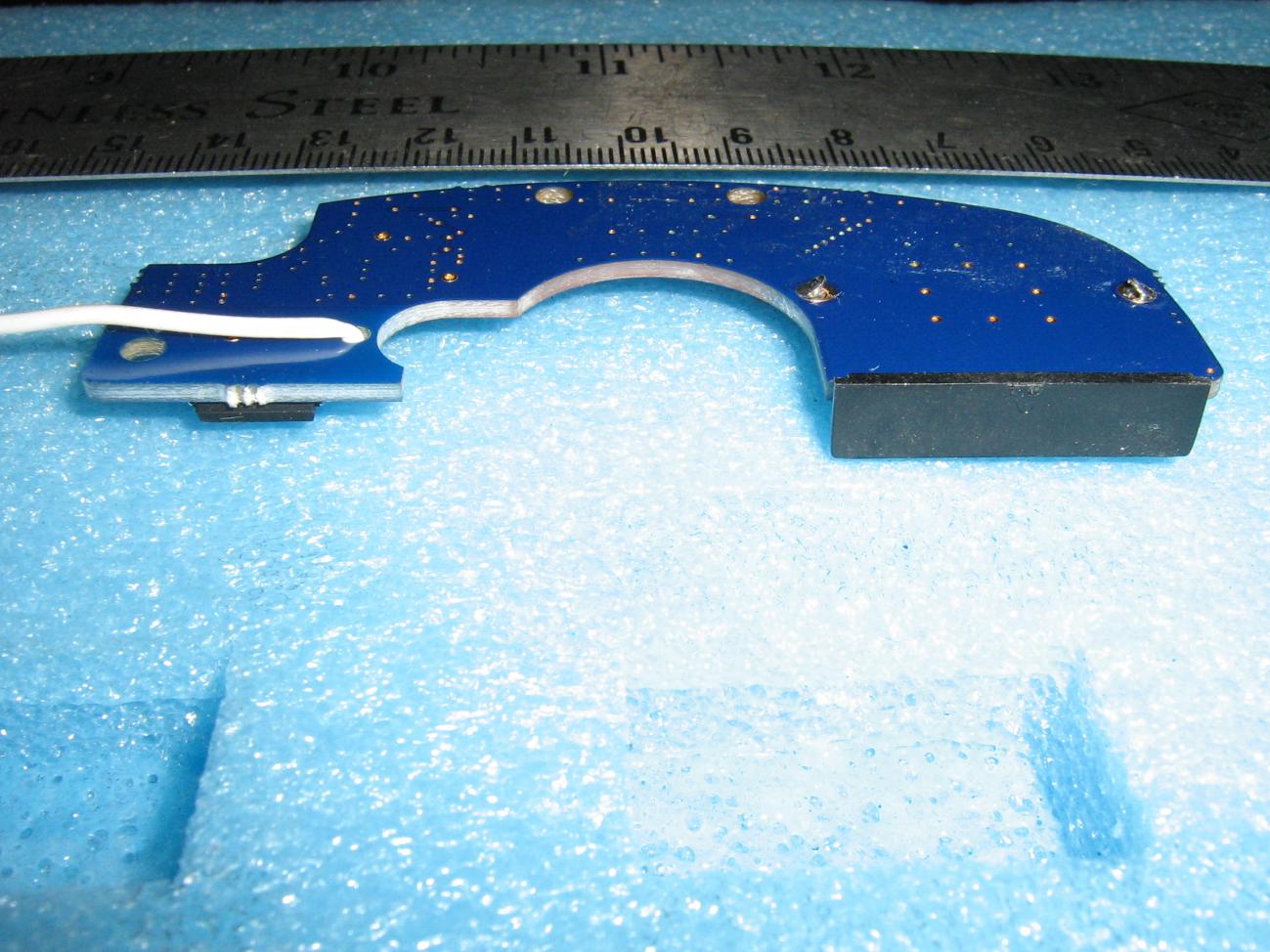

Anderson Corporation FCC ID: WVJCB00010519902 Report PR12-050 External Photo Exhibits Figure 1 DH rev BB external battery up in situ. Figure 2 DH rev BB external battery up pcb assembly with battery housing Anderson Corporation FCC ID: WVJCB00010519902 Report PR12-050 Figure 3 DH rev BB external battery down pcb with battery housing

FCC Label Location for Eagle Double Hung Unit with VeriLock Device FCC ID: WVJ-CB00010519902 Label located here Device located here Full Unit Sample Label May Contain FCC: WVJ-CB00010519902 Mfg Date: 9/23/08 Talon Clad Double Hung DP +30, -30 PSF Class CW - PG 50 - SHD Size Tested 36 x 72 in. Size: 36.0000 x 72.0000 NFRC EWD-N-123- XXX-XXX Eagle Logo Glazing: Exterior 3.0mm ann., Interior 3.1mm ann. Hallmark Logo Serial Number: MQAH920-120911-0004 PERMV1R3

FCC Label Location for Eagle Double Hung Unit with VeriLock Device FCC ID: WVJ-CB00010519902 Label located here Device located here Full Unit Sample Label May Contain FCC: WVJ-CB00010519902 Mfg Date: 9/23/08 Talon Clad Double Hung DP +30, -30 PSF Class CW - PG 50 - SHD Size Tested 36 x 72 in. Size: 36.0000 x 72.0000 NFRC EWD-N-123- XXX-XXX Eagle Logo Glazing: Exterior 3.0mm ann., Interior 3.1mm ann. Hallmark Logo Serial Number: MQAH920-120911-0004 PERMV1R3

Anderson Corporation FCC ID: WVJCB00010519902 Report PR12-050 Internal Photo Exhibits Figure 1 DH rev BB internal battery up pcb assembly Anderson Corporation FCC ID: WVJCB00010519902 Report PR12-050 Figure 2 DH rev BB internal battery up pcb assembly Figure 3 DH rev BB internal battery up pcb Anderson Corporation FCC ID: WVJCB00010519902 Report PR12-050 Figure 4 DH rev BB internal battery down pcb

123456 A B C D 654321 D C B A 1 ION Digital LLP PO Box 45559 Surrey, BC Canada V4A 9N3 1 0105200BB 14-Dec-201108:41:36DH rev B B.SCH Tit le Size: Dat e:File: Rev: SheetofTime: B DH Error : logo000.bmp file not found.File and Pat h:C:\Document s and Set tings\Dean Schebel\Deskt op\Deans Work\Andersen Sensors\Anders en Rev BB -Product ion\Andersen rev BB.ddb - Document s\DH rev B B.SCH VCC BATTERYMICROPROCESSOR TP TESTTP7 C1 0.1uF R7 No pop L1 39nH RF TRANSMITTERANTENNA CM 3 82pF TP TM STP3 VCC CM 2 10pF CM 1 8.2pF Notes: ANT_OUT 6.5" Antenna wire TP TDO TP5 TP TCKTP2 C4 68pF ASKData 1 FSKDat a 2 FSKs w 3 ROI 4 ENT X 5 PSEL 6 VEE 7 OUT 8 VEE 9 VCC 10 U2 TH72005 LM1 39nH DATA ENT X LTA 56nH C8 No pop S1 M K17-B-3 VCC 1 P1.0/TACLK/ACLK/CA0 2 PXOUT/P2.7 12 P1.1/TA0/CA1 3 P1.2/TA1/CA2 4 P1.3/CAOUT/CA3 5 P1.4/SM CLK/C A4/T CK 6 P1.5/TA0/CA5/TM S 7 P1.6/TA1/CA6/TDI/TCLK 8 P1.7/CAOUT/CA7/TDO/TDI 9 RST/NM I/SB WTDIO 10 TEST/SBWTCK 11 XIN/P2.6/T A1 13 VSS 14 U1 M SP430 R3 47K C2 2.2nF TP RST TP6 C3 0.1uF R1 680R S2 M K17-B-3 R2 680R TP TDITP4 J1 Bat t ery R4 220R D1 YEL R5 10K R6 0R R8 0R C5 330pF TP TP8 DATA TP TP9 EN TP TP12 LED Y1 XTAL TP TP15 RF TP TP16 RF TP TP17 VCC TP TP18 GND D2 Schot tkey Diode LOCKCLOS E DH SENSOR R11 10K DH Rev BB Schematic – Dec 14 2011

EMC Test Report Rev. 1.1 Andersen Corporation DH Sensor Report Number: PR12-050 Page 1 of 11 ION Digital LLP for Andersen Corporation 0105224 DH Sensor FCC ID: WVJ-CB00010519902 COMPLIANCE TEST REPORT Per FCC CFR47 Part 15 Subpart B 15.231 Revision 1.1 April 20 th , 2012 April 20 th , 2012 Protocol Data Systems Inc, EMC Lab, Abbotsford BC, Canada. SCC ISO/17025 (CAN-P-4E) Accredited Laboratory No. 612 FCC O.A.T.S. Registration Number 627740 Industry Canada O.A.T.S. Registration Number IC3384A-1 This report is for the exclusive use of Protocol Data Systems Customer and is provided pursuant to the agreement between Protocol and its Customer. Protocol’s responsibility and liability are limited to the terms and conditions of the agreement. Protocol assumes no liability to any party, other than to the Customer in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Customer is authorized to copy or distribute this report and then only in its entirety. Any use of the Protocol Data Systems name for the sale or advertisement of the tested material, product or service must first be approved in writing by Protocol Data Systems. The observations and test results in this report are relevant only to the sample/s tested. EMC Test Report Rev. 1.1 Andersen Corporation DH Sensor Report Number: PR12-050 Page 2 of 11 Index Section I: Report of Measurement Testing Information ...................................................................... 3 Section II: Report of Measurement Test Procedures ........................................................................... 8 Section III: Report of Measurement of Radiated Emissions ................................................................. 9 Section IV: 20dB Bandwidth Testing ................................................................................................. 100 Appendix A: Fundamental, Harmonics and Spurious Emissions Data and Plots ..................................... 111 EMC Test Report Rev. 1.1 Andersen Corporation DH Sensor Report Number: PR12-050 Page 3 of 11 Section I: Report of Measurement Testing Information General Information Applicant Company Name Anderson Corporation Address 100 Fourth Avenue North Bayport Minnesota 55003-1096 Phone: 651 264 5150 Fax Contact Person: Sachin Gore Email : [email protected] Product Name Intrusion Detector Sensor FCC ID# WVJ-CB00010519902 Applicable Standards FCC CFR Title 47 Part 15 Subpart B 15.231, ANSI C63.4 :2003 Test Results PASS Related Report/s Approval ION Digital RN 03330, PR11-032, PR11-040, PR11-049 Statement of Compliance This equipment has been tested in accordance with the standards indentified in the referenced test report. To the best of our knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. – Signature on Front Cover Page. Equipment Under Test Specification Manufacturer ION Digital LLP Product Description Double Hung Sensor FCC ID# WVJ-CB00010519902 Model Number ‘0105357 Description Intrusion Detector Recessed Transmitter Operating Frequency 344.94 MHz Emission Designator Modulation Type Amplitude Shift Keyed – On/Off Keyed: ASK-OOK Bit Rate 3.7 kbit/s Rated Transmit Power 7 dBm EUT Power Source 3 V DC Coin Cell Battery Test Item EMC Test Unit Type of Equipment Fixed Wire Antenna Antenna Connector Permanently Attached Test Voltage 3 V DC Coin Cell Battery Test Environment Test Facility Protocol Data Systems Inc. 4741 Olund Rd. Abbotsford, BC V4X 1V6 Office Phone : 604-504-0091 Cell Phone : 604-218 1762 Fax : 604-554-0091 Email : [email protected] Website: www.protocol-emc.com Test Facility ID’s SCC ISO/17025 (CAN-P-4E) Accredited Laboratory No. 612 FCC O.A.T.S. Registration Number 627740 Industry Canada O.A.T.S. Registration Number IC3384A Date Tested December 19 th , 2011 Tested By Simon Howkins EMC Test Report Rev. 1.1 Andersen Corporation DH Sensor Report Number: PR12-050 Page 4 of 11 Test Setup Test Supporting Equipment None Required Test Conditions December 19 th , 2011: 6°C, 93% R.H. Test Exercise e.g. software description, test signal, etc. The EUT was set for continuous transmit mode of operation. It only has 1 frequency. The options were for a CW and modulated frequency. All test were conducted with the transmitter`s modulation on. Deviation from Standard/s No deviation from standards. Modification to the EUT No modifications were made. Test Equipment List Manufacturer Model Equipment Description Serial No. Next Cal HP 85650A Quasi-Peak Adapter 2811A01080 12/8/2012 HP 85662A Spectrum Analyzer Display 2152A03569 11/8/2012 HP 8566B Spectrum Analyzer RF Section 2241A02102 11/8/2012 HP 85685A RF-Preselector 3107A01222 11/8/2012 EMCO 3146 Ant. Log Periodic 200-1000MHz 9611-4699 8/8/2012 EMCO 3110B Ant. Biconical 30-200MHz 9401-1850 8/8/2012 EMCO 3115 Horn Antenna 1-18GHz 9403-4251 20/8/2012 HP 362 Controller 6452A40248 N/A EMCO 6502 Loop Antenna 9002-2489 18/6/2012 OPERATIONAL DESCRIPTION Rhientech Custom Antenna Mast N/A N/A Protocol EMC Custom Turntable N/A N/A Measurement Uncertainty Parameter Uncertainty Radio Frequency ±1 x 10-5 MHz Radiated Emissions ±3 dB Temperature ±1°C Humidity ±5 % DC and low frequency voltages ±3 % EMC Test Report Rev. 1.1 Andersen Corporation DH Sensor Report Number: PR12-050 Page 5 of 11 Andersen Corporation Operational Description: Note: This entire section was provided by ION DIGITAL LLP 1. Overview The device is a security sensor for Double Hung windows. It has two Reed Switch sensors, once for OPEN/CLOSE, and one for LOCKED/UNLOCKED. When the window is OPEN/CLOSED or LOCKED/UNLOCKED, a magnet is separated from the reed switch on the sensor, which triggers a change of state on the sensor’s microprocessor. The microprocessor then powers up the RF transmitter (Pulse Width Modulated OOK) and sends two sets of six identical packets (sextets) that flag …

Text truncated - open the document above for the full version.

EMC Test Report Rev. 1.1f Andersen Corporation DH Sensor Report Number: PR12-050 Page 1 of 2 Test Set-Up Pictures Test Setup for Spurious Radiated Emissions Frequencies below 30 MHz. EMC Test Report Rev. 1.1f Andersen Corporation DH Sensor Report Number: PR12-050 Page 2 of 2 EUT SETUP Test Setup for Spurious Radiated Frequencies above 30MHz
