WVTWOUXUN04TWO-WAY RADIO

!

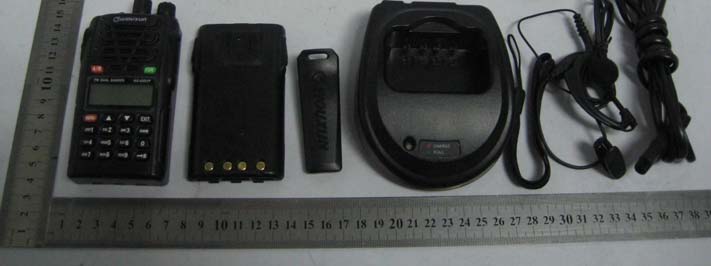

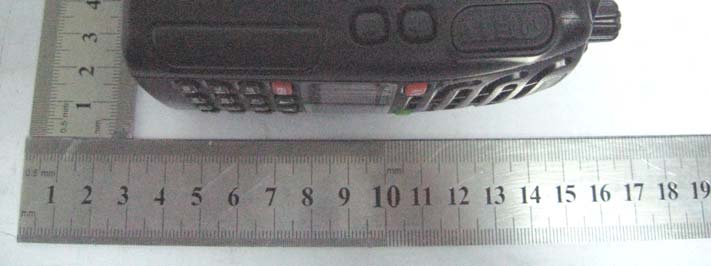

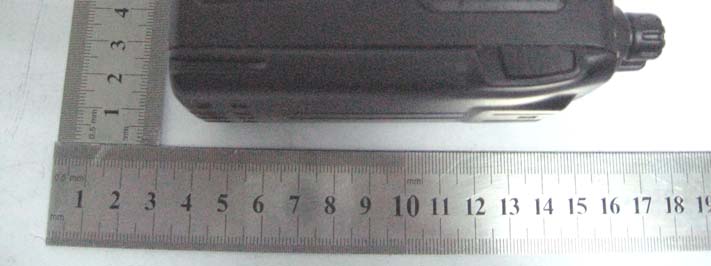

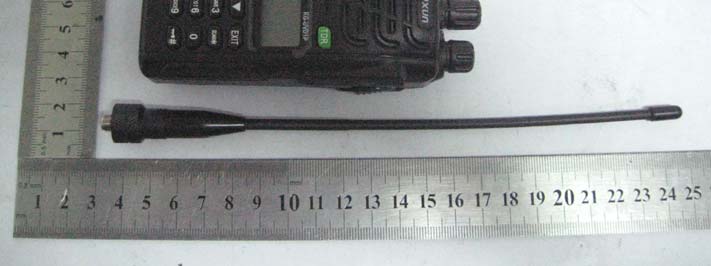

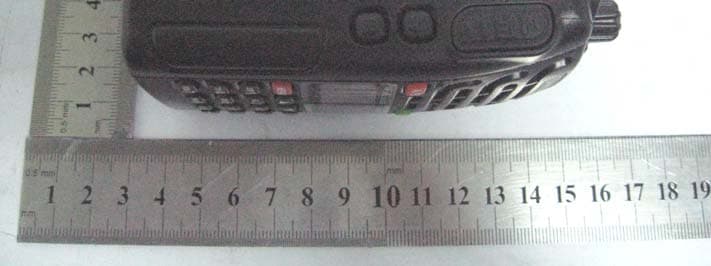

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT Package EUT View 1 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 EUT View 2 EUT View 3 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 EUT View 4 EUT View 5

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 Solder Board-Component View 1 Solder Board-Component View 2 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 Solder Board-Component View 3 Solder Board-Component View 4

11 IXAccessoriesList Obverse Obverse Obverse ObverseAccessories Accessories Accessories AccessoriesList List List Liston on on onPC PC PC PCBoard Board Board Board [NARROW]TestCH:Center SSGOutput:-122dBm(0.16uV) SSGMOD:3.0KHz 4.SQL(Deep SquelchValve Value)Read-in [WIDE] TestCH:Center Low High SSGOutput:-117dBm(0.3uV) SSGMOD:3.0KHz [NARROW]TestCH:Center SSGOutput:-116dBm(0.35uV) SSGMOD:1.5KHz Specification Specification Specification SpecificationUse/Function Use/Function Use/Function Use/FunctionSeal Seal Seal SealBit Bit Bit BitNo. No. No. No.QTY NC Laminated Capacitance C0402C148C824C657C623C167C165C161C394C3909 104P Laminated Capacitance C0402 C833C846C845C843C842C840C837C830C827 C817 C814C812C641C640C638C636C634C631C624 C592 C589C517C514C513C511C164C162C158C614 C233 C841C396C389R643 34 103P Laminated Capacitance C0402 C675C364C847C844C839C825C815C813C655 C625 C612C611C596C545C206C168C166C163C159 C138 C615C393C388C237C131 25 470P Laminated Capacitance C0402C190C639C541C134C643C6166 102P Laminated CapacitanceC0402 C360C838C829C658C652C516C512C373C169 C160 C156C645C644C617C397C927R631 17 68P Laminated Capacitance C0402C5901 220P Laminated Capacitance C0402C851C850C832C831C656C5526 27P Laminated Capacitance C0402C849C8482 223P Laminated Capacitance C0402C836C816C635C633C626C597C216C1578 683PLaminatedCapacitC0402C828C8262 12 ance 100P Laminated Capacitance C0402C823C822C821C820C632C6466 200P Laminated Capacitance C0402C653C6512 272P Laminated Capacitance C0402C6371 680P Laminated Capacitance C0402C630C6272 473P Laminated Capacitance C0402C6281 24P Laminated Capacitance C0402C598C594C5883 20P Laminated Capacitance C0402C5211 105P Laminated Capacitance C0402C6421 5P Laminated Capacitance C0402C5341 8P Laminated Capacitance C0402C5351 NC Laminated Capacitance C0603C136C4312 105P Laminated Capacitance C0603C6471 10uF Laminated Capacitance C0805C662C661E518C196C195C193C456C4578 2.2uF Laminated Capacitance C0805E615E614C455C1944 4.7uF Laminated Capacitance C0805E612E611E1173 REDLEDD0603D8151 GREENLEDD0603D8141 RLS4148DiodeD-ESCD811D518D326D169D5175 LEDLEDLEDD9261 RLS4148DiodeUSCD611D6102 1SS372DiodeUSMD812D6122 32.768KHzCrystal MC- 146 CR8111 2.5mmEarphonePlugST-104JK5131 3.5mmSpeakerPlugST-301JK6111 JP20 20CoreRow Socket JP-20- 2L JP8111 CH100nHFixedInductanceL0603L811L611L520L5174 CH68nHFixedInductaL0603L519L5182 13 nce 4.7K Laminated Resistance R0402 R221R854R840R839R630R625R624R623R618 R359 R216R144R133R219R927C629 16 1K Laminated Resistance R0402R222R132R824R669R668R663R815R8148 0R Laminated Resistance R0402R152R675R859R838R641R632R8567 10K Laminated Resistance R0402 R674R673R672R671R813R811R633R627R651 R163 10 22K Laminated Resistance R0402R384R852R848R637R620R576R862R1348 180K Laminated Resistance R0402R131R6462 560K Laminated Resistance R0402R8611 220K Laminated Resistance R0402R860R858R828R819R578R218R1127 100R Laminated Resistance R0402R855R664R662R617R5725 68K Laminated Resistance R0402R853R6442 100K Laminated Resistance R0402R851R843R818R6424 47K Laminated Resistance R0402 R850R817R622R596R135R118R116R115R113 R648 R389R379R667 13 91K Laminated Resistance R0402R8461 5.6K Laminated Resistance R0402R845R844R6343 33K Laminated Resistance R0402R842R841R629R628R626R621R613R1378 120K Laminated Resistance R0402R8301 330R Laminated Resistance R0402R829R6652 150R Laminated Resistance R0402R822R8212 2.2K Laminated Resistance R0402R820R666R639R573R119R114R390R3788 47R Laminated Resistance R0402R8161 18K Laminated Resistance R0402R6401 14 680K Laminated Resistance R0402R6381 1.5K Laminated Resistance R0402R6361 39K Laminated Resistance R0402R635R1392 10R Laminated Resistance R0402R6191 1.8M Laminated Resistance R0402R612R6112 15K Laminated Resistance R0402R217R1402 NC Laminated Resistance R0402R145R1102 27K Laminated Resistance R0402R1381 150K Laminated Resistance R0402R655R6542 1M Laminated Resistance R0402R650R647R6453 15 5.6R Laminated Resistance R0402R9261 560R Laminated Resistance R0402R117R3122 220R Laminated Resistance R0603R358R3562 15K Laminated Resistance R0603R3601 150K Laminated Resistance R0603R658R657R656R6144 20K Laminated Resistance R0603R3611 0.33R Laminated Resistance R1206R660R615R6163 NC Laminated Resistance R1206R6591 47K Excluding Resistance 1206-4RP812RP8112 50K MicroAdjustment Resistance RV100 8 RES6111 50K MicroAdjustment Resistance RV120 8 RV1121 PF1Switch TD- 26EA SW6151 MONIKEYSwitch TD- 26EA SW6141 PTTKEYSwitch TD- 30EA SW6131 2SK3476FET 2- 5N1A T322T1422 2SC4617TransistorESMT615T6142 DTA114EETransistorESMT6611 DTC114EETransistorESM T222T152T674T673T672T671T815T814T611T146 T613T219T862T326 14 FT717TransistorTSMT138T137T136T318T317T8126 2SC2712TransistorTSMT9261 2SC4116TransistorUSMT8111 2SC4226TransistorUSMT5211 1SS4181TransistorUSMT6161 RDA5807PICQFN24U5141 EM78P568ICQFP44IC8111 24C64ICSOP8U8111 LM4558ICSOPU6111 LM358ICSOP8U6121 VOICERegulatorTubeVOICEU8121 16 Inverse Inverse Inverse InverseAccessory Accessory Accessory AccessoryList List List Liston on on onPC PC PC PCBoard Board Board Board Specification Specification Specification SpecificationUse/ Use/ Use/ Use/Function Function Function Function Se Se Se Se al al al al Bit Bit Bit BitNo. No. No. No. QT QT QT QT Y Y Y Y ANT-2Antenna AN T- KX 01 ANT1121 BATTERY BatteryTouch Tablets BA TT ER Y3 BATT6111 102P Laminated Capacity C04 02 C666C819C317C137C363C264C247C546C539C281 C555C532C531C426C412C405C401C400C391C375 C351C339C228C212C266C183C172C170C619C122 C354C348C347C124C114C113C231C385C331C852 40 104P Laminated Capacity C04 02 C667C665C316C561C525C683C573C251C234C543C319 C562C529C403C374C286C283C621C538C387C329C205 22 NC Laminated Capacity C04 02 C818C559C557C682C572C540C558C530C425C378C384 C376C372C244C235C224C222C210C112C284C432C430 22 103P Laminated Capacity C04 02 C622C353C365C139C684C574C345C550C542C536 C221C219C650C648C620C358C428C424C402C133 C130C123C230C383C218C217C203C377 28 470P Laminated Capacity C04 02 C416C423C361C135C240C239C595C144C556C433C443 C429C413C408C407C392C357C355C350C332C326C147 C258C254C2…

Text truncated - open the document above for the full version.

Adjustment Description The radio can be adjusted by PC programming software or by keypad adjustment. Adjustment procedure as follows. Instrument: Radio Communication Test Set 1 set Scanner 1 set 3A/12V Power Supply 1 set Digital Voltmeter 1 set Adjustment: 1. The PC programming software can download from wouxun website or ask for your wouxun dealer, install in your PC connect the radio with PC by programming cable; Select the right correspond port by edit software; Turn the radio on. 2. Reading the administer code into the frequency mode 3. Switch the transceiver to the frequency mode 1. VOC Item Condition Test frequency band Te s t Instrument TerminalVCO Specification on / Remarks Receiver Power supply voltage DC 7.4V 136.025-173.975MHz /406.125-469.975MHz Digital Voltmeter CV DC 1.1-3.3V Transmitter Power supply voltage DC 7.4V 136.025-173.975MHz /406.125-469.975MHz Digital Voltmeter CV DC 1.1-3.3V 2. Receiver Item Condition Test frequency band Test Instrument Terminal Te s t data Specification on / Remarks Sensitivity Power supply voltage DC 7.4V Setting Level:-118dBm Modulation Frequency:1kHz Level: 3kHz 136.025-173.975MHz / 406.125-469.975MHz Connect Headset with Radio Communication Test Set AF GENOUTUT by SPK SINAD: ≥ 22dBm

Report No.: RZA2009-1703 TESTING No. L2264 TEST REPORT Product Name TWO-WAY RADIO Model KG-UVD1P, KG-UVD1, KG-UV2D , KG-UV3D FCC ID WVTWOUXUN04 Client Quanzhou Wouxun Electronics Co., Ltd. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name TWO-WAY RADIO Model KG-UVD1P, KG-UVD1, KG-UV2D , KG-UV3D FCC ID WVTWOUXUN04 Report No. RZA2009-1703 Client Quanzhou Wouxun Electronics Co., Ltd. Manufacturer Quanzhou Wouxun Electronics Co., Ltd. Reference Standard(s) ANSI/IEEE C95.1-1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head Due to Wireless Communications Devices: Experimental Techniques. OET Bulletin 65 supplement C, published June 2001 including DA 02-1438, published June 2002: Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. Transition Period for the Phantom Requirements of Supplement C to OET Bulletin 65. IEC 62209-1:2006 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear. (frequency range of 300 MHz to 3 GHz) IEC 62209-2:2008(106/162/CDV): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body. ( frequency rang of 30MHz to 6GHz ) Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: December 29 th , 2009 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Wang Lu TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1703 Page 3of 71 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the test report.........................................................................................................4 1.2. Testing laboratory .................................................................................................................4 1.3. Applicant Information ............................................................................................................5 1.4. Manufacturer Information ......................................................................................................5 1.5. Information of EUT................................................................................................................6 1.6. Test Date ..............................................................................................................................6 2. Operational Conditions during Test ..............................................................................................7 3. SAR Measurements System Configuration .................................................................................. 7 3.1. SAR Measurement Set-up ....................................................................................................7 3.2. DASY5 E-field Probe System ...............................................................................................8 3.2.1. ET3DV6 Probe Specification .........................................................................................8 3.2.2. E-field Probe Calibration ................................................................................................9 3.3. Other Test Equipment .........................................................................................................10 3.3.1. Device Holder for Transmitters ....................................................................................10 3.3.2. Phantom......................................................................................................................10 3.4. Scanning procedure............................................................................................................ 11 3.5. Data Storage and Evaluation ..............................................................................................12 3.5.1. Data Storage................................................................................................................12 3.5.2. Data Evaluation by SEMCAD ......................................................................................12 3.6. System check......................................................................................................................15 3.7. Equivalent Tissues ..............................................................................................................16 4. Laboratory Environment............................................................................................................. 16 5. Charcteristics of the Test ............................................................................................................ 17 5.1. Applicable Limit Regulations ...............................................................................................17 5.2. Applicable Measurement Standards...................................................................................17 6. Conducted Output Power Measurement.................................................................................... 18 6.1. Conducted Power Results ........................................................................................…

Text truncated - open the document above for the full version.

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I PAGE 1 OF 77 FCC PART 90 FCC PART 90 MEASUREMENT AND TEST REPORT FOR Quanzhou Wouxun Electronics Co., Ltd. No.928 Nanhuan Road, Jianghan High Technology Industry Park, Quanzhou, Fujian, China FCC ID: WVTWOUXUN04 Report Concerns: Original Report Equipment Type: TWO-WAY RADIO Model: KG-UVD1P Report No.: STR09128003I Test/Witness Engineer: Test Date: 2009-12-03 to 2009-12-15 Issue Date: 2009-12-31 Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I PAGE 2 OF 77 FCC PART 90 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §2.1046-CONDUCTED OUTPUT POWER............................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAIL.......................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 TEST RESULT/PLOTS..............................................................................................................................................6 4. §2.1046, AND §90.205-RADIATED OUTPUT POWER (E.I.R.P.).....................................................................14 4.1 STANDARD APPLICABLE.......................................................................................................................................14 4.2 TEST EQUIPMENT LIST AND DETAIL.....................................................................................................................14 4.3 TEST PROCEDURE.................................................................................................................................................14 4.4 TEST RESULT........................................................................................................................................................15 5. §2.1047, AND §90.207-MODULATION CHARACTERISTICS.........................................................................17 5.1 STANDARD APPLICABLE.......................................................................................................................................17 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 5.3 TEST PROCEDURE.................................................................................................................................................17 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................17 5.5 TEST RESULTS/PLOTS...........................................................................................................................................18 6. §2.1049 AND §90.209 - OCCUPIED BANDWIDTH OF EMISSION.................................................................24 6.1 STANDARD APPLICABLE.......................................................................................................................................24 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................24 6.3 TEST PROCEDURE.................................................................................................................................................25 6.4 TEST RESULTS/MASKS.........................................................................................................................................25 7. §2.1053 AND §90.210- RADIATED SPURIOUS EMISSION .............................................................................40 7.1 MEASUREMENT UNCERTAINTY...............................................…

Text truncated - open the document above for the full version.

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiated Spurious Emission Setup 1(Below 1GHz) Radiated Spurious Emission Setup 2(Above 1GHz) Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UVD1P REPORT NO.: STR09128003I FCC PART 90 Frequency Stability Test Setup
