WVTWOUXUN21TWO-WAY RADIOS

Does not support bandwidth selection function,only 25 kHz channel BW is allowed for 462/467 MHz GMRS main channels & 462 MHz GMRS interstitial channels, and 12.5 kHz channel BW is allowed for 467 MHz GMRS interstitial channels. The Scanning receiver frequency is 400-480MHz. The GMRS frequencies list as below: 2.5cm This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. FCC Licensing Information The product is FCC Part 95E type accepted for use on the GMRS.The product operates on General Mobile Radio Service (GMRS) frequencies according to the Federal Communications Commission (FCC) Rules in the United States. As such, a GMRS license is required to transmit on these frequencies. To obtain an FCC license for the GMRS, please go to the FCC’s web site at https://www.fcc.gov/wireless/support/fcc-form-605 and request FCC Form 605.

Quanzhou Wouxun Electronics Co., Ltd. ADD: Jiangnan High Technology Industry Park, No.928 Nanhuan Road, Quanzhou, Fujian, China TEL: 86-595-28051265 FAX: 86-595-28051267 Mail Address: [email protected] 2 020-10-20 FEDERAL COMMUNICATIONS COMMISSIONS Autho rization and Evaluation Division 74 35 Oakland Mills Road Columbia, MD 21046 Subject: Declaration of compliance to the requirements of §15.121 FCC ID: WVTWOUXUN21 We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. Sincerely, Signature: Typed or Printed Name: Danny Chen Title: Manager

Company: Quanzhou Wouxun Electronics Co., Ltd. Add: Jiangnan High Technology Industry Park, No.928 Nanhuan Road, Quanzhou, Fujian, China Tel: 86-595-28051265 Fax: 86-595-28051267 E-mail: [email protected] '(&/$5$7,21 'HDU6LURU0DGDP :H Quanzhou Wouxun Electronics Co., Ltd.KHUHE\GHFODUHWKDWSURGXFWQDPH TWO-WAY RADIOS PRGHOQDPHKG-989, KG-978, KG-916, KG-866 , KG-839, KG-939, KG-998, KG-988, KG-828, KG-968, KG-958, KG-928, KG-969, KG-918, KG-959, KG-T56, KG-T58, KG-T59, KG-T52, KG-T53, KG-T55, KG-T57, KG-T60, KG-T61, KG-T62, KG-T63, KG-T65, KG-T66, KG-T67, KG-T68, KG-T69, KG-989G, KG-879G. FCC ID: WVTWOUXUN21). These models are identical with the PCB desig n, co mponents and electromagnetics compatibility characteristics. KG-989 has been tested by BACL. 3OHDVHFRQWDFWPHLIWKHUHLVQHHGIRUDQ\DGGLWLRQDOFODULILFDWLRQRULQIRUPDWLRQ %HVW5HJDUGV 7KHGLIIHUHQFHVRIWKHPDUHDVIROORZV 0RGHOQDPH 'DWH2020-10-20 6LJQDWXUH 7\SHGRU3ULQWHG1DPHDanny Chen 7LWOHManager )('(5$/&20081,&$7,216&200,66,21 $XWKRUL]DWLRQDQG(YDOXDWLRQ'LYLVLRQ 2DNODQG0LOOV5RDG &ROXPELD0'

QA-FR-171-A Company: Quanzhou Wouxun Electronics Co., Ltd. Add: Jiangnan High Technology Industry Park, No.928 Nanhuan Road, Quanzhou, Fujian, China Tel: 86-595-28051265 Fax: 86-595-28051267 E-mail: [email protected] FCC Confidential Authorization 2020-10 -20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: WVTWOUXUN21 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Quanzhou Wouxun Electronics Co., Ltd., hereby requests long-term confidential treatment of information accompanying this application as outlined below: The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Typed or Printed Name: Danny Chen Title: Manager •Block Diagram •Schematics •Operation Description •BOM •Tune-up •INTERNAL PHOTOGRAPHS

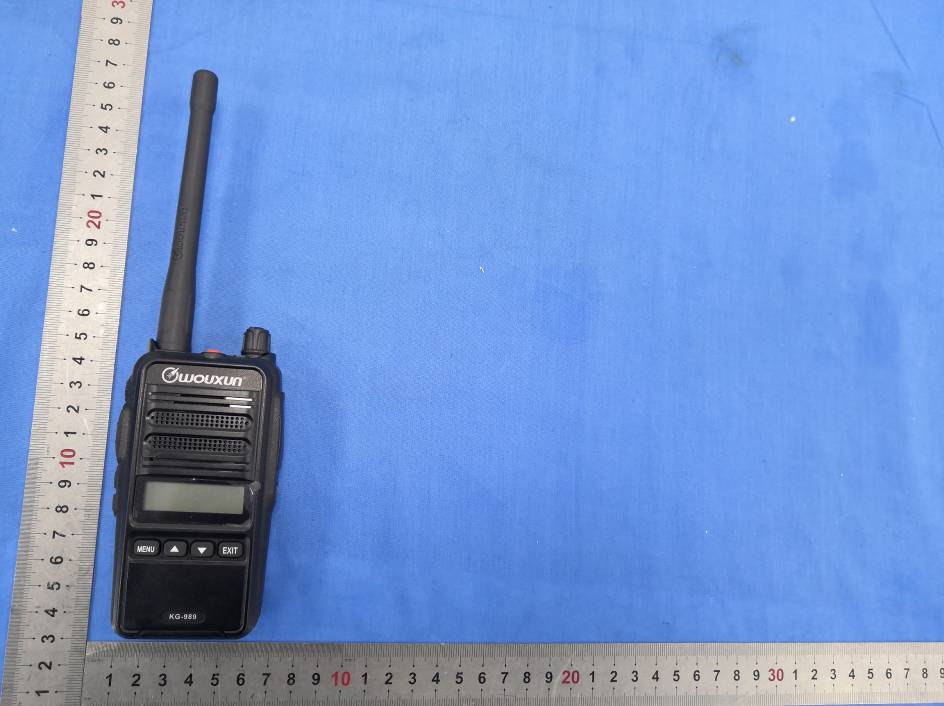

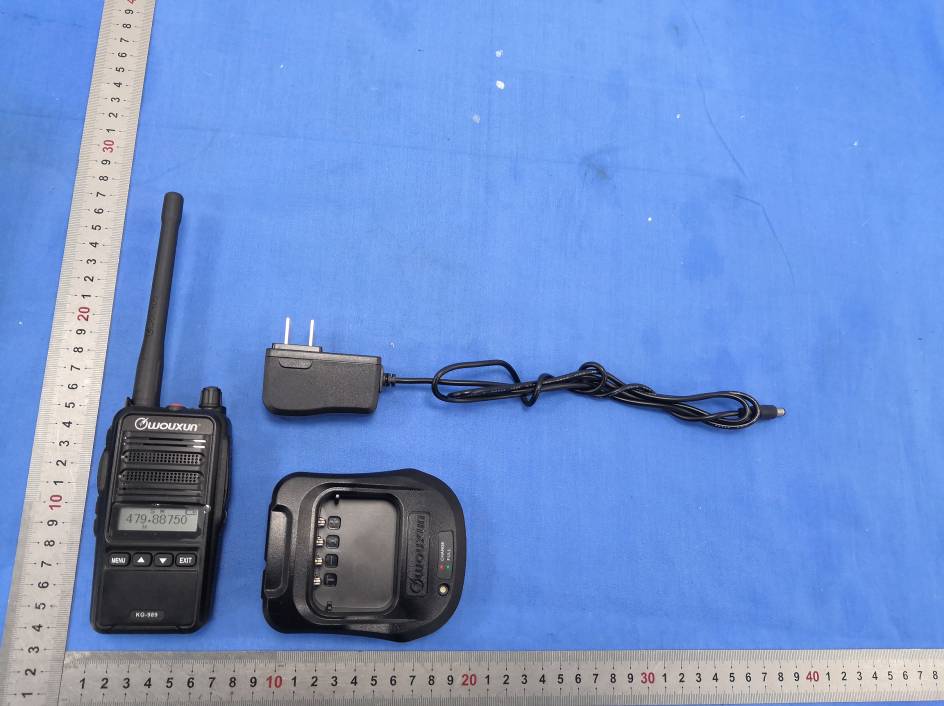

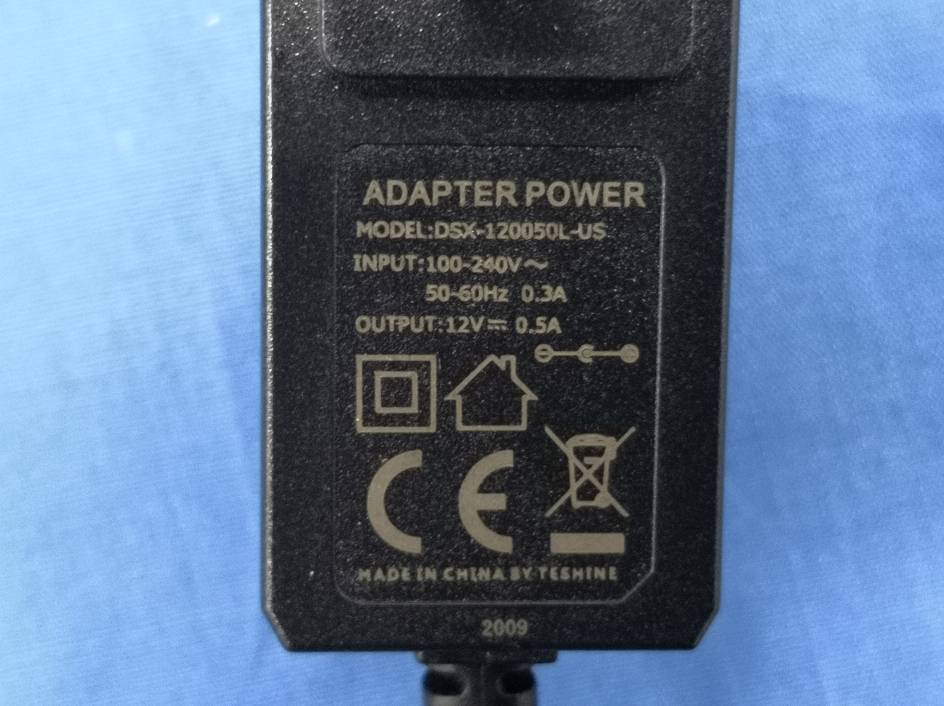

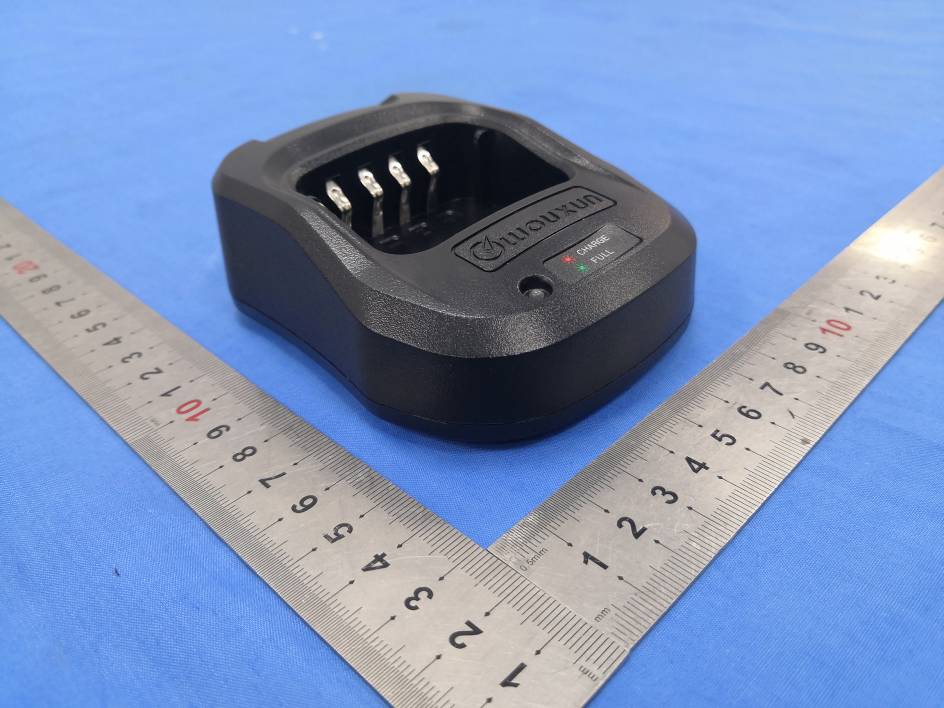

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS

FCC PART 15B TEST REPORT For Quanzhou Wouxun Electronics Co., Ltd. Jiangnan High Technology Industry Park, No.928 Nanhuan Road, Quanzhou, Fujian, China Report Type: Original Report Product Type: TWO-WAY RADIOS Test Engineer: Jett Zhao Report Number: RXM201020050-00AM1 Report Date: 2021-02-03 Reviewed By: Oscar Ye EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan,Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn FCC ID: WVTWOUXUN21 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RXM201020050-00AM1 FCC Part 15B Page 2 of 29 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 JUSTIFICATION ............................................................................................................................................................. 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF RADIATED TEST SETUP ............................................................................................................... 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.107 – CONDUCTED EMISSIONS .............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 MEASUREMENT UNCERTAINTY .................................................................................................................................... 9 EUT SETUP .................................................................................................................................................................. 9 EMI TEST RECEIVER SETUP ....................................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 FCC §15.109 - RADIATED EMISSIONS ................................................................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 MEASUREMENT UNCERTAINTY .................................................................................................................................. 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 15 TEST DATA ................................................................................................................................................................ 16 FCC §15.111 - ANTENNA CONDUCTED POWE…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS Test mode 1 Conducted Emissions - Front Side Conducted Emissions - Rear Side Radiated Disturbances Front Side (Below 1GHz) Radiated Disturbances Rear Side (Below 1GHz) Radiated Disturbances Side View (Above 1GHz) Test mode 2~5 Radiated Disturbances Front Side (Below 1GHz) Radiated Disturbances Rear Side (Below 1GHz) Radiated Disturbances Side View (Above 1GHz)
