Quanzhou Wouxun Electronics Co., Ltd. No.928 Nanhuan Road, Jiangnan High Technology Industry Park, Quanzhou, Fujian, China Letter of Attestation January 10, 2012 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Applicant: Quanzhou Wouxun Electronics Co., Ltd. FCC ID: WVTWOUXUN07 Gentlemen: We declared, added models KG-UVD1P, KG-UVD1P V2, KG-UV2D, KG-UV2D V2, KG- UV3D, KG-UV3D V2, KG-UV5D, KG-UV5D V2, KG-UV6D V2, KG-UV6D-E, KG-UV6D-A, KG-UV6D-R, KG-UV6X, KG-UV7D, KG-UV7D V2, KG-UV8D, KG-UV8D V2, KG-UV9D, KG-UV9D V2, KG-UVA1, KG-UVA1 V2, KG-UVA2, KG-UVA2 V2 basis of the original models KG-UV6D. These models are identical circuit, PCB LAYOUT to the original model, only the appearance and name are different. All models sharing the same FCC ID without permissive change would be electrically identical. Sincerely, Quanzhou Wouxun Electronics Co., Ltd. ------------------------- (Danny Chen) (Manager)

Quanzhou Wouxun Electronics Co., Ltd. No.928 Nanhuan Road, Jiangnan High Technology Industry Park, Quanzhou, Fujian, China January 10, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: WVTWOUXUN07 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics CONF_WVTWOUXUN07_FCC_Schematics.pdf Block Diagram CONF_WVTWOUXUN07_FCC_BlockDiagram.pdf Operational Description CONF_WVTWOUXUN07_FCC_OperationalDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application.

Quanzhou Wouxun Electronics Co., Ltd. No.928 Nanhuan Road, Jiangnan High Technology Industry Park, Quanzhou, Fujian, China 1 February 1, 2012 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Subject: FCC ID: WVTWXOUN07, Extended Frequencies Justification. Gentlemen: The device was designed to operate in the frequency bands 136-174 and 406.1-512MHz. The device complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Device programming is the responsibility of Wouxun and it’s approved service personnel. We , Quanzhou Wouxun Electronics Co., Ltd. acknowledge that operation on unauthorized frequencies is a violation of FCC rules, and acknowledge inclusion of Grant note code “EF”. In addition to Part 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Frequency Range (MHz) Part 90 Feds Grant Notes 136-150.8 XEF 150.8-156.2475 X EF 156.2475-157.0375 XEF 157.0375-161.575 X EF 161.575-161.775 XEF 161.775-173.4 X EF 173.4-174 XEF 406.1-454 X EF 454-456 XEF 456-462.5375 X EF 462.5375-462.7375 XEF 462.7375-467.5375 X EF 467.5375-467.7375 XEF 467.7375-512 X EF Quanzhou Wouxun Electronics Co., Ltd. No.928 Nanhuan Road, Jiangnan High Technology Industry Park, Quanzhou, Fujian, China 2 The device have two different version of software, one for the federal market and the other for non-federal market, to ensure the non-federal users can not use the federal frequencies.

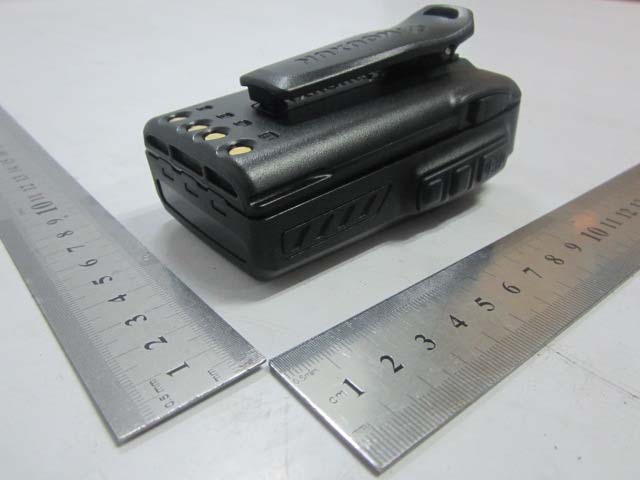

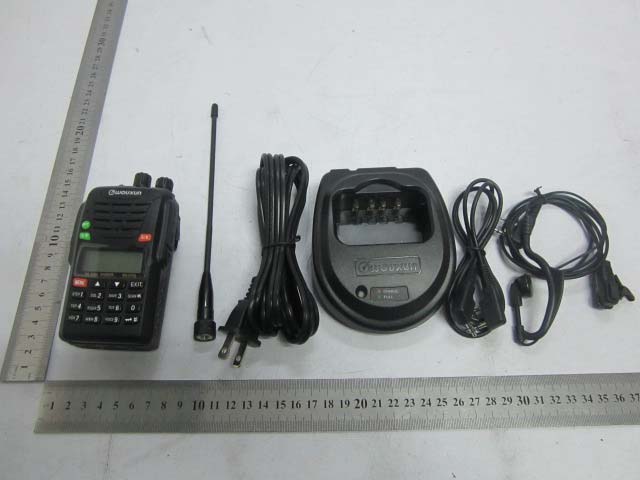

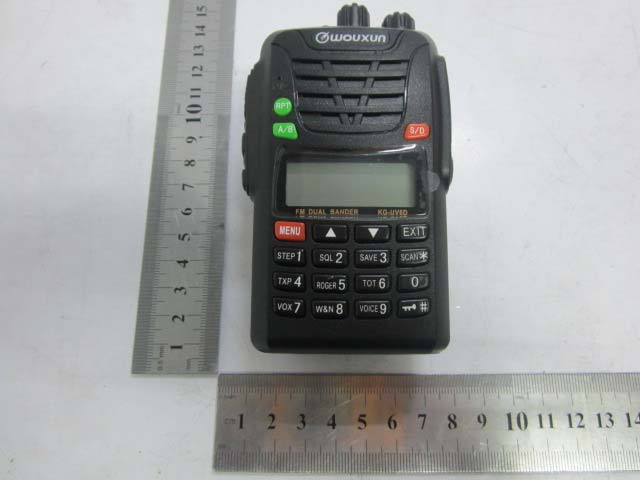

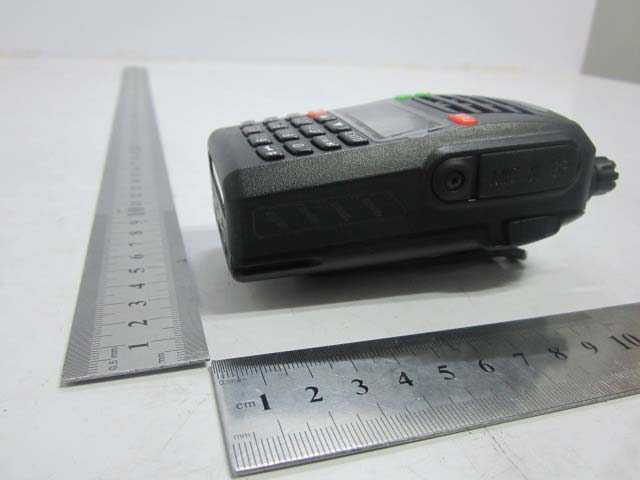

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 EUT View 3 EUT View 4 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 EUT View 5 EUT View 6

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

2012-01-10 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: WVTWOUXUN07 Dear Sirs: Quanzhou Wouxun Electronics Co., Ltd. requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier WVTWOUXUN07. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 80 for maritime services. Figure 1 Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Quanzhou Wouxun Electronics Co., Ltd. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2 The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Quanzhou Wouxun Electronics Co., Ltd. will add the FCC identifier " WVTWOUXUN07" to the outside of the consumer "gift box" packaging.

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 Solder Board-Component View 2 Solder Board-Component View 3 Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 Solder Board-Component View 4 Solder Board-Component View 5

VTXHOFK YDOYH YDOXH UHDGLQ> ZLGH@ ORZ KLJK 66* RXWSXWG%P  X9 66*02' .+] >QDUURZ@7HVW &+ FHQWHU 66* RXWSXWG%P  X9 66*02' .+] 3DUWV/LVW 7KH)URQWSDUWVRQ3&%RDUG 6SHF86()XQFWLRQHQFDSVXODWLRQ'LJLW1R4XDW 1& /DPLQDWHG &DSDFLWDQFH & & & & & & & & & &  3 /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & 5  3 /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & & & & & & & & & &  3 /DPLQDWHG &DSDFLWDQFH && & & & & & 3 /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & 5  3 /DPLQDWHG &DSDFLWDQFH && 3 /DPLQDWHG &DSDFLWDQFH && & & & & & 3 /DPLQDWHG &DSDFLWDQFH && & 3 /DPLQDWHG &DSDFLWDQFH && & & & & & & & 3 /DPLQDWHG &DSDFLWDQFH && & 3 /DPLQDWHG &DSDFLWDQFH && & & & & & 3 /DPLQDWHG &DSDFLWDQFH && & 3 /DPLQDWHG &DSDFLWDQFH && 3 /DPLQDWHG &DSDFLWDQFH && & 3 /DPLQDWHG &DSDFLWDQFH && 3 /DPLQDWHG &DSDFLWDQFH && & & 3 /DPLQDWHG &DSDFLWDQFH && 3 /DPLQDWHG &DSDFLWDQFH && 3 /DPLQDWHG &DSDFLWDQFH && 3 /DPLQDWHG &DSDFLWDQFH && 1& /DPLQDWHG &DSDFLWDQFH && & 3 /DPLQDWHG &DSDFLWDQFH && X) /DPLQDWHG &DSDFLWDQFH && & ( & & & & & X) /DPLQDWHG &DSDFLWDQFH &( ( & & X) /DPLQDWHG &DSDFLWDQFH &( ( ( 5('/(''' *5((1/(''' 5/6'LRGH'(6&' ' ' ' ' /('/('/('' 5/6'LRGH86&' ' 66'LRGH860' ' .+]FU\VWDO0&&5  PP +HDGVHW MDFN67-.  PP0LF MDFN67-. -3FKLS EORFN-3/-3 &+Q+ )L[HG LQGXFWDQFH // / / / &+Q+ )L[HG LQGXFWDQFH // / . /DPLQDWHG &DSDFLWDQFH 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 &  . /DPLQDWHG &DSDFLWDQFH 55 5 5 5 5 5 5 5 5 /DPLQDWHG &DSDFLWDQFH 55 5 5 5 5 5 5 . /DPLQDWHG &DSDFLWDQFH 5 5 5 5 5 5 5 5 5 5 5  . /DPLQDWHG &DSDFLWDQFH 55 5 5 5 5 5 5 5 . /DPLQDWHG &DSDFLWDQFH 55 5 . /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 5 5 5 5 5 5 5 /DPLQDWHG &DSDFLWDQFH 55 5 5 5 5 . /DPLQDWHG &DSDFLWDQFH 55 5 . /DPLQDWHG &DSDFLWDQFH 55 5 5 5 . /DPLQDWHG &DSDFLWDQFH 5 5 5 5 5 5 5 5 5 5 5 5 5 5  . /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 5 5 . /DPLQDWHG &DSDFLWDQFH 55 5 5 5 5 5 5 5 . /DPLQDWHG &DSDFLWDQFH 55 5 /DPLQDWHG &DSDFLWDQFH 55 5 5 /DPLQDWHG &DSDFLWDQFH 55 5 . /DPLQDWHG &DSDFLWDQFH 55 5 5 5 5 5 5 5 5 /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 5 5 /DPLQDWHG &DSDFLWDQFH 55 0 /DPLQDWHG &DSDFLWDQFH 55 5 . /DPLQDWHG &DSDFLWDQFH 55 5 1& /DPLQDWHG &DSDFLWDQFH 55 5 . /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 5 0 /DPLQDWHG &DSDFLWDQFH 55 5 5 5 /DPLQDWHG &DSDFLWDQFH 55 5 /DPLQDWHG &DSDFLWDQFH 55 5 5 /DPLQDWHG &DSDFLWDQFH 55 5 . /DPLQDWHG &DSDFLWDQFH 55 . /DPLQDWHG &DSDFLWDQFH 55 5 5 5 . /DPLQDWHG &DSDFLWDQFH 55 5 /DPLQDWHG &DSDFLWDQFH 55 5 5 1& /DPLQDWHG &DSDFLWDQFH 55 .H[FOXVLRQ53 53 . )LQHWXQLQJ UHVLVWDQFH 595(6 . )LQHWXQLQJ UHVLVWDQFH 5959 3)VZLWFK7'($6: 021, .(<VZLWFK7'($6: 377 .(<VZLWFK7'($6: 6.)(71$7 7 6&WUDQVLVWRU(607 7 '7$(( WUDQVLVWRU(607 '7&(( WUDQVLVWRU(60 7 7 7 7 7 7 7 7 7 7  7 7 7 7 )7WUDQVLVWRU7607 7 7 7 7 7 6&WUDQVLVWRU7607 6&WUDQVLVWRU8607 6&WUDQVLVWRU8607 66WUDQVLVWRU8607 5'$3,&4)18 (03,&4)3,& &,&6238 /0,&6238 /0,&6238 92,&( YROWDJH UHJXODWRU WXEH 92,&(8 ,QYHUVH3DUWVRQ3&%RDUG&KDUW 6SHF 86()XQFWLR Q (QFDSVXODWLR Q 'LJLW1R47< $17DQWHQQD$17.;$17 %$77(5< %DWWHU\ FRQWDFWV %$77(5<%$77 3 /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & &  3 /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & & & & & & &  1& /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & & & & & & &  3 /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & & & & & & & & & & & & &  3 /DPLQDWHG &DSDFLWDQFH & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & & &  3 /DPLQDWHG &DSDFLWDQFH && & & 3 /DPLQDWHG &DSDFLWDQFH&…

Text truncated - open the document above for the full version.

Tune Up Procedure Model: KG-UV6D Adjustment Description The radio can be adjusted by PC programming software or by keypad adjustment. Adjustment procedure as follows. Test Instrument: Radio Communication Test Set 1 set Spectrum Analyzer 1 set DC Power Supply 1 set Digital Voltmeter 1 set Adjustment: 1. The PC programming software can download from wouxun website or ask for your wouxun dealer, install in your PC connect the radio with PC by programming cable; Select the right correspond port by edit software; Turn the radio on. 2. Reading the administer code into the frequency mode 3. Switch the transceiver to the frequency mode 4. Selecting 4W or 1W rated transmit power Transmitter – Maximum Output Power Item Condition Test Frequency Band Test Instrument Max. Output Power High Power DC 7.4V 136.025-173.975MHz /406.125-511.975MHz Spectrum Analyzer 36 ± 0.5 dBm Low Power DC 7.4V 136.025-173.975MHz /406.125-511.975MHz Spectrum Analyzer 30 ± 0.5 dBm Receiver - Sensitivity Item Condition Test Frequency Band Test Instrument SINAD Sensitivity DC 7.4V 136.025-173.975MHz /406.125-511.975MHz Radio Communication Test Set ≥ 22 dBc VCO Item Condition Test Frequency Band Test Instrument VCO Transmitter VCO DC 7.4V 136.025-173.975MHz /406.125-511.975MHz Digital Voltmeter DC 0.6-3.3V Receiver VCO DC 7.4V 136.025-173.975MHz /406.125-511.975MHz Digital Voltmeter DC 0.6-4.3V

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1112-2081SAR Page 1 of 72 TESTING No. L2264 OET 65 TEST REPORT Product Name TWO-WAY RADIO Model KG-UV6D,KG-UVD1P,KG-UVD1P V2,KG-UV2D, KG-UV2D V2,KG-UV3D, KG-UV3D V2,KG-UV5D, KG-UV5D V2,KG-UV6D V2, KG-UV6D-E, KG-UV6D-A, KG-UV6D-R,KG-UV6X, KG-UV7D, KG-UV7D V2, KG-UV8D, KG-UV8D V2, KG-UV9D, KG-UV9D V2, KG-UVA1, KG-UVA1 V2,KG-UVA2, KG-UVA2 V2 FCC ID WVTWOUXUN07 Client Quanzhou Wouxun Electronics Co., Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1112-2081SAR Page 2 of 72 GENERAL SUMMARY Product Name TWO-WAY RADIO Model KG-UV6D，KG-UVD1P, KG-UVD1P V2,KG-UV2D, KG-UV2D V2,KG-UV3D, KG-UV3D V2,KG-UV5D, KG-UV5D V2,KG-UV6D V2, KG-UV6D-E, KG-UV6D-A, KG-UV6D-R,KG-UV6X, KG-UV7D, KG-UV7D V2, KG-UV8D, KG-UV8D V2, KG-UV9D, KG-UV9D V2, KG-UVA1, KG-UVA1 V2,KG-UVA2, KG-UVA2 V2 FCC ID WVTWOUXUN07 Report No. RZA1112-2081SAR Client Quanzhou Wouxun Electronics Co., Ltd. Manufacturer Quanzhou Wouxun Electronics Co., Ltd. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 643646 D01 SAR Test for PTT Radios v01r01: SAR Test Reduction Considerations for Occupational PTT Radios Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 6 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: march 19 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1112-2081SAR Page 3 of 72 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the Test Report.......................................................................................................4 1.2. Testing Laboratory ................................................................................................................ 4 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT................................................................................................................ 6 1.6. The Maximum SAR 1g Values ................................................................................................ 7 1.7. Test Date .............................................................................................................................. 7 2. Operational Conditions during Test ..............................................................................................8 2.1. General Description of Test Procedures ............................................................................... 8 2.2. Test Positions........................................................................................................................ 8 2.2.1. Face-Held Configuration ................................................................................................ 8 2.2.2. Body-Worn Configuration .............................................................................................. 8 3. SAR Measurements System Configuration .................................................................................. 9 3.1. SAR Measurement Set-up .................................................................................................... 9 3.2. DASY5 E-field Probe System ............................................................................................. 10 3.2.1. EX3DV4 Probe Specification ....................................................................................... 10 3.2.2. E-field Probe Calibration .............................................................................................. 11 3.3. Other Test Equipment ......................................................................................................... 11 3.3.1. Device Holder for Transmitters .................................................................................... 11 3.3.2. Phantom...................................................................................................................... 12 3.4. Scanning Procedure........................................................................................................... 12 3.5. Data Storage and Evaluation .............................................................................................. 14 3.5.1. Data Storage................................................................................................................ 14 3.5.2. Data Evaluation by SEMCAD ...................................................................................... 14 3.6. System Check..................................................................................................................... 17 3.7. Equivalent Tissues ..............................................................................................................19 4. Laboratory Environment...........…

Text truncated - open the document above for the full version.

$. .$       J  J  ,2* 2,* *,2 *2,  J  J         777 7 7 7 7 7 7 777 777 7 7 7 777 7 7 7 7 7 7 7 7 77 77 7 7 77 7      J  J    ,2* *,2                     J ( & % (% & ( & % & %( % ( & ( & % & ( %                       J J               $ .. $ .$                    J J JJ   JJ               .$      6 * ' * 6 '  % ( & % & (     . $               777 7 7 7 7 7 7 777 777 7 7 7 777 7 7 7 7 7 7 7 7 77 77 7 7 77 7   ( & %            .$ * * , 2 & (% % ( &        ' ' *6 & % (       & % ( 6 6 ' * % ( & & (% & ( & % ( & % ( & % * 6' % & ( & %(                                                                      $ . .$                                      J  J   * ' 6 6 & & ( % & %(                                 $.                                        ( & %    ,2* *,2               & (%        . . $   $ . . 7 77 7 77                                   .$ $. .$ .$  6 666 66666 666666666666 &&&& && && & & && 6666666666 66666 66 & & 6& & 6 . . $ 7 77 7 77 J    J J J                       7    . . $

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I PAGE 1 OF 53 FCC PART 90 FCC PART 90 MEASUREMENT AND TEST REPORT FOR Quanzhou Wouxun Electronics Co., Ltd. No.928 Nanhuan Road, Jianghan High Technology Industry Park, Quanzhou, Fujian, China FCC ID: WVTWOUXUN07 Report Concerns: Original Report Equipment Type: TWO-WAY RADIO Model: KG-UV6D Report No.: STR11118265I Test Date: 2011-12-20 to 2012-01-08 Issue Date: 2012-04-05 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I PAGE 2 OF 53 FCC PART 90 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §2.1046-CONDUCTED OUTPUT POWER............................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAIL.......................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 TEST RESULT/PLOTS..............................................................................................................................................6 4. §2.1046, AND §90.205-RADIATED OUTPUT POWER (E.I.R.P.).....................................................................10 4.1 STANDARD APPLICABLE.......................................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAIL.....................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 TEST RESULT........................................................................................................................................................11 5. §2.1047, AND §90.207-MODULATION CHARACTERISTICS.........................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 TEST RESULTS/PLOTS...........................................................................................................................................12 6. §2.1049 AND §90.209 - OCCUPIED BANDWIDTH OF EMISSION.................................................................17 6.1 STANDARD APPLICABLE.......................................................................................................................................17 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 6.3 TEST PROCEDURE.................................................................................................................................................17 6.4 TEST RESULTS/MASKS.........................................................................................................................................18 7. §2.1053 AND §90.210- RADIATED SPURIOUS EMISSION .............................................................................27 7.1 MEASUREMENT UNCERTAINTY....................................................................................…

Text truncated - open the document above for the full version.

Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz) Quanzhou Wouxun Electronics Co., Ltd. Model: KG-UV6D REPORT NO.: STR11118265I FCC PART 90 Extreme Condition
