WVTWOUXUN09TWIN BAND MOBILE/BASE TRANSCEIVER

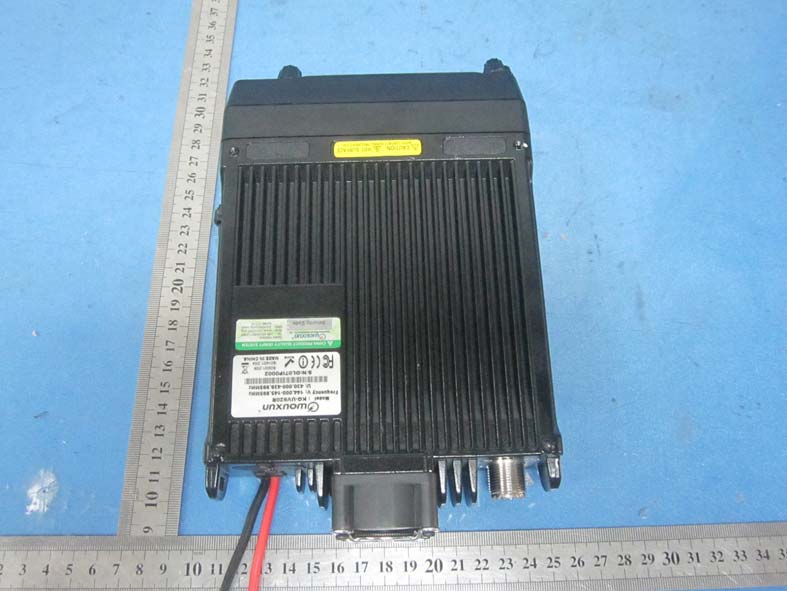

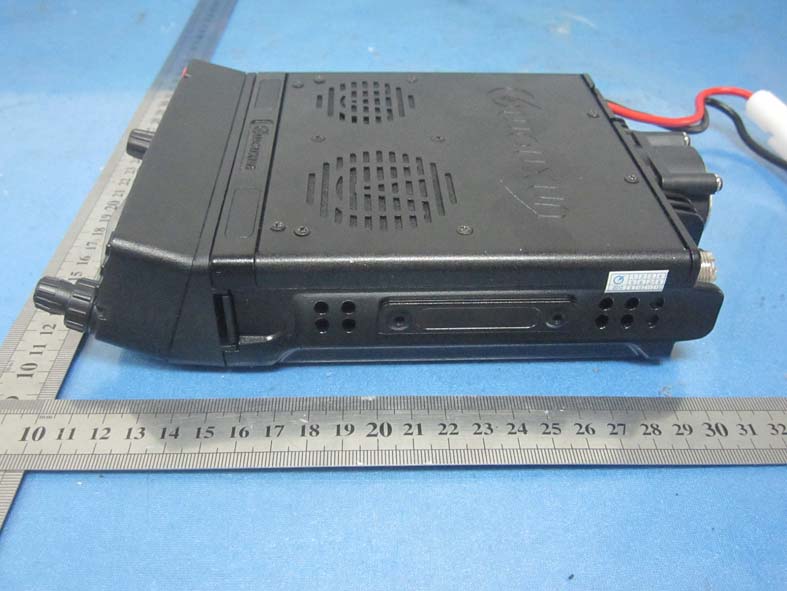

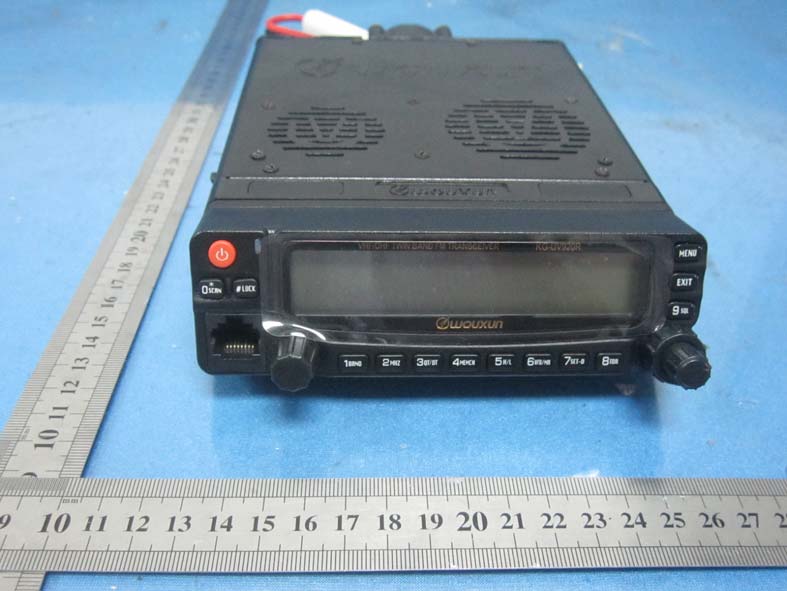

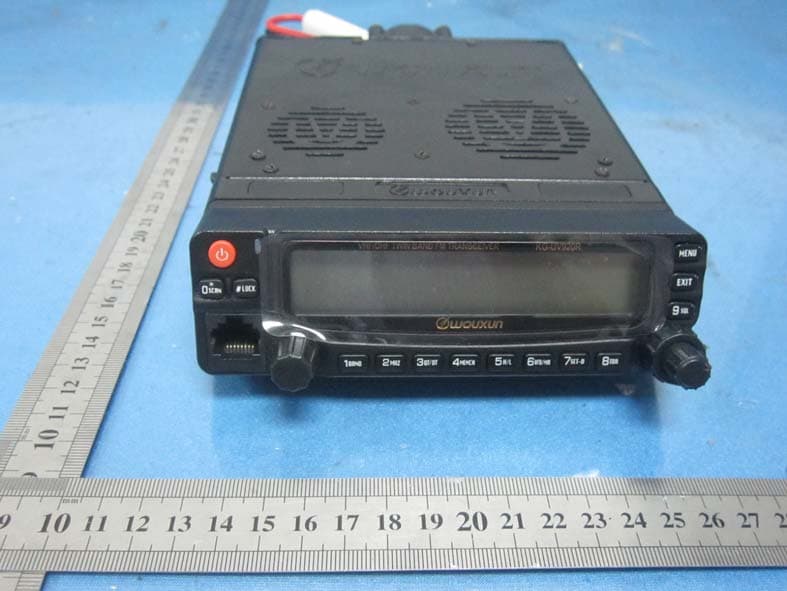

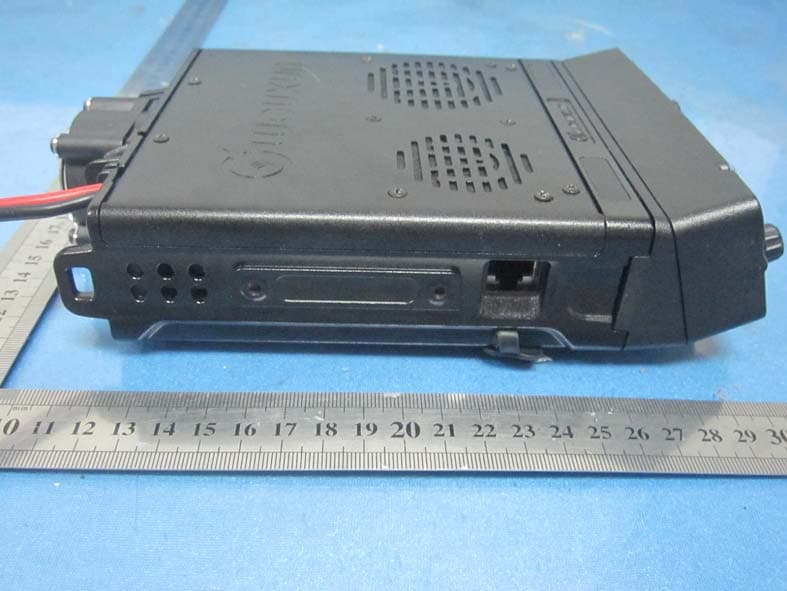

External photos of the EUT

Internal photos of the EUT

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No. ..................... : FCC ID. ............................................. : TRE1207006301 R/C:59336 WVTWOUXUN09 Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Aug 08, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : QUANZHOU WOUXUN ELECTRONICS CO., LTD. Address............................................. : NO.928 NANHUAN ROAD, JIANGNAN HIGH TECHNOLOGY INDUSTRY PARK, QUANZHOU, FUJIAN 362000, CHINA. Test specification: Standard ........................................... : FCC Part 90/FCC Part 2 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: TWIN BAND MOBILE/BASE TRANSCEIVER Trade Mark ....................................... : Model/Type reference ....................... : KG-UV920R Listed Models .................................. : KG-UV920R-A, KG-UV920R-E, KG-UV920P, KG-UV920P-A, KG-UV920P-E, KG-UV920H, KG-UV920H-A, KG-UV920H-E, KG-UV920G, KG-UV920G-A, KG-UV920G-E, KG-UV920X, KG-UV920X-A, KG-UV920X-E, KG-UV950R, KG-UV950R-A, KG-UV950R-E, KG-UV950P, KG-UV950P-A, KG-UV950P-E, KG-UV950H, KG-UV950H-A, KG-UV950H-E, KG-UV980R, KG-UV980R-A, KG-UV980R-E, KG-UV980P, KG-UV980P-A, KG-UV980P-E, KG-UV980H, KG-UV980H-A, KG-UV980H-E Rated Output Power ......................... : 50 Watts(46.99dBm)for VHF/40 Watts(46.02dBm)for UHF Modulation ......................................... FM Frequency Range ............................. : From 136MHz to 174MHz/400MHz-470MHz Result ................................................ : Positive Report No.: TRE1207006301 Page 2 of 81 Issued:2012-08-08 FCC ID: WVTWOUXUN09 T E S T R E P O R T Test Report No. : TRE1207006301 Aug 08, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : TWIN BAND MOBILE/BASE TRANSCEIVER Model /Type : KG-UV920R Listed Models : KG-UV920R-A, KG-UV920R-E, KG-UV920P, KG-UV920P-A, KG-UV920P-E, KG-UV920H, KG-UV920H-A, KG-UV920H-E, KG-UV920G, KG-UV920G-A, KG-UV920G-E, KG-UV920X, KG-UV920X-A, KG-UV920X-E, KG-UV950R, KG-UV950R-A, KG-UV950R-E, KG-UV950P, KG-UV950P-A, KG-UV950P-E, KG-UV950H, KG-UV950H-A, KG-UV950H-E, KG-UV980R, KG-UV980R-A, KG-UV980R-E, KG-UV980P, KG-UV980P-A, KG-UV980P-E, KG-UV980H, KG-UV980H-A, KG-UV980H-E Applicant : QUANZHOU WOUXUN ELECTRONICS CO., LTD. Address : NO.928 NANHUAN ROAD, JIANGNAN HIGH TECHNOLOGY INDUSTRY PARK, QUANZHOU, FUJIAN 362000, CHINA. Manufacturer : QUANZHOU WOUXUN ELECTRONICS CO., LTD. Address : NO.928 NANHUAN ROAD, JIANGNAN HIGH TECHNOLOGY INDUSTRY PARK, QUANZHOU, FUJIAN 362000, CHINA. Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1207006301 Page 3 of 81 Issued:2012-08-08 FCC ID: WVTWOUXUN09 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. EUT Configuration 6 2.5. EUT operation mode 6 2.6. EUT configuration 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Modifications 6 2.9. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 11 4.1. Conducted Emissions 11 4.2. Occupied Bandwidth & Emission Mask 16 4.3. Transmitter Radiated Spurious Emssion 27 4.4. Spurious Emssion on Antenna Port 32 4.5. Modulation Charcateristics 40 4.6. Frequency Stability 45 4.7. Maximum Transmitter Power 47 4.8. Transmitter Frequency Behavior 51 4.9. Receiver Radiated Spurious Emssion 54 4.10. Receiver Conducted Spurious Emssion 64 5. TEST SETUP PHOTOS OF THE EUT 71 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 75 Report No.: TRE1207006301 Page 4 of 81 Issued:2012-08-08 FCC ID: WVTWOUXUN09 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. FCC Rules Part 15 Subpart B: RADIO FREQUENCY DEVICES-Unintertional Radiators FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS Report No.: TRE1207006301 Page 5 of 81 Issued:2012-08-08 FCC ID: WVTWOUXUN09 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : July 17, 2012 Testing commenced on : July 17, 2012 Testing concluded on : Aug 08, 2012 2.2. Product Description The QUANZHOU WOUXUN ELECTRONICS CO., LTD.’s Model: KG-UV920R or the “EUT” as referred to in this report; more general information as follows: Name of EUT TWIN BAND MOBILE/BASE TRANSCEIVER Model Number KG-UV920R …

Text truncated - open the document above for the full version.

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No. ..................... : FCC ID . ............................................ : TRE1207006303 R/C: 59336 WVTWOUXUN09 Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Aug 08, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : QUANZHOU WOUXUN ELECTRONICS CO., LTD. Address............................................. : NO.928 NANHUAN ROAD, JIANGNAN HIGH TECHNOLOGY INDUSTRY PARK, QUANZHOU, FUJIAN 362000, CHINA. Test specification: Standard ........................................... : FCC Per 47 CFR 2.1091(b) TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: TWIN BAND MOBILE/BASE TRANSCEIVER Trade Mark ....................................... : Model/Type reference ....................... : KG-UV920R Listed Models .................................. : KG-UV920R-A, KG-UV920R-E, KG-UV920P, KG-UV920P-A, KG-UV920P-E, KG-UV920H, KG-UV920H-A, KG-UV920H-E, KG-UV920G, KG-UV920G-A, KG-UV920G-E, KG-UV920X, KG-UV920X-A, KG-UV920X-E, KG-UV950R, KG-UV950R-A, KG-UV950R-E, KG-UV950P, KG-UV950P-A, KG-UV950P-E, KG-UV950H, KG-UV950H-A, KG-UV950H-E, KG-UV980R, KG-UV980R-A, KG-UV980R-E, KG-UV980P, KG-UV980P-A, KG-UV980P-E, KG-UV980H, KG-UV980H-A, KG-UV980H-E Rated Output Power ......................... : 50 Watts(46.99dBm)for VHF/40 Watts(46.02dBm)for UHF Modulation ......................................... FM Frequency Range ............................. : From 136MHz to 174MHz/400MHz-470MHz Result ................................................ : Positive Report No.: TRE1207006303 Page 2 of 13 Issued:2012-08-08 FCC ID: WVTWOUXUN09 MPE T E S T R E P O R T Test Report No. : TRE1207006303 Aug 08, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : TWIN BAND MOBILE/BASE TRANSCEIVER Model /Type : KG-UV920R Listed Models : KG-UV920R-A, KG-UV920R-E, KG-UV920P, KG-UV920P-A, KG-UV920P-E, KG-UV920H, KG-UV920H-A, KG-UV920H-E, KG-UV920G, KG-UV920G-A, KG-UV920G-E, KG-UV920X, KG-UV920X-A, KG-UV920X-E, KG-UV950R, KG-UV950R-A, KG-UV950R-E, KG-UV950P, KG-UV950P-A, KG-UV950P-E, KG-UV950H, KG-UV950H-A, KG-UV950H-E, KG-UV980R, KG-UV980R-A, KG-UV980R-E, KG-UV980P, KG-UV980P-A, KG-UV980P-E, KG-UV980H, KG-UV980H-A, KG-UV980H-E Applicant : QUANZHOU WOUXUN ELECTRONICS CO., LTD. Address : NO.928 NANHUAN ROAD, JIANGNAN HIGH TECHNOLOGY INDUSTRY PARK, QUANZHOU, FUJIAN 362000, CHINA. Manufacturer : QUANZHOU WOUXUN ELECTRONICS CO., LTD. Address : NO.928 NANHUAN ROAD, JIANGNAN HIGH TECHNOLOGY INDUSTRY PARK, QUANZHOU, FUJIAN 362000, CHINA. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1207006303 Page 3 of 13 Issued:2012-08-08 FCC ID: WVTWOUXUN09 Contents 1. MEASUREMENT UNCERTAINTY 4 2. METHOD OF MEASUREMENT 4 2.1. EME measurements made on trunk mounted antennas 4 2.1.1. External vehicle EME measurement 4 2.1.2. Internal vehicle EME measurement 4 2.2. EME measurements made on center roof mounted antennas 4 2.2.1. External vehicle EME measurement 4 2.2.2. Internal vehicle EME measurement 4 3. TEST RESULT 5 4. CONCLUSION 9 5. ANTENNA LOCATION DRAWING 10 Report No.: TRE1207006303 Page 4 of 13 Issued:2012-08-08 FCC ID: WVTWOUXUN09 1. Measurement Uncertainty The information below presents an estimate of the possible errors that are associated with the measurement system. Description Error NARDA Survey Meter ± 3% Repeatability Accuracy ± 7% 2. Method of measurement 2.1. EME measurements made on trunk mounted antennas 2.1.1. External vehicle EME measurement (Antenna mounted in trunk center) With the survey meter and probe, take ten (10) measurements, at the standard test distance of 60 cm to the antenna, from the back of the vehicle in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a range starting at twenty (20) centimeters above ground and ending at 2.0 meters. 2.1.2. Internal vehicle EME measurement (Antenna mounted in trunk center) While rotating survey meter probe through 180 degrees to ensure that the highest level is found, scan the inside of the vehicle, both front and back seating areas, for the highest level in each location. After the highest level is found, scan vertically making two (2) additional measurements within an area approximately 40 cm wide (representing the width of a person) so as to have a total of three (3) measured points as indicated below that will be averaged . a) Head area b) Chest area c) Lower Trunk area 2.2. EME measurements made on center roof mounted antennas 2.2.1. External vehicle EME measurement With the survey meter and probe, take ten (10) measurements, at the standard test distance of 110 cm from the vehicle-mounted antenna, in a vertical line and…

Text truncated - open the document above for the full version.
