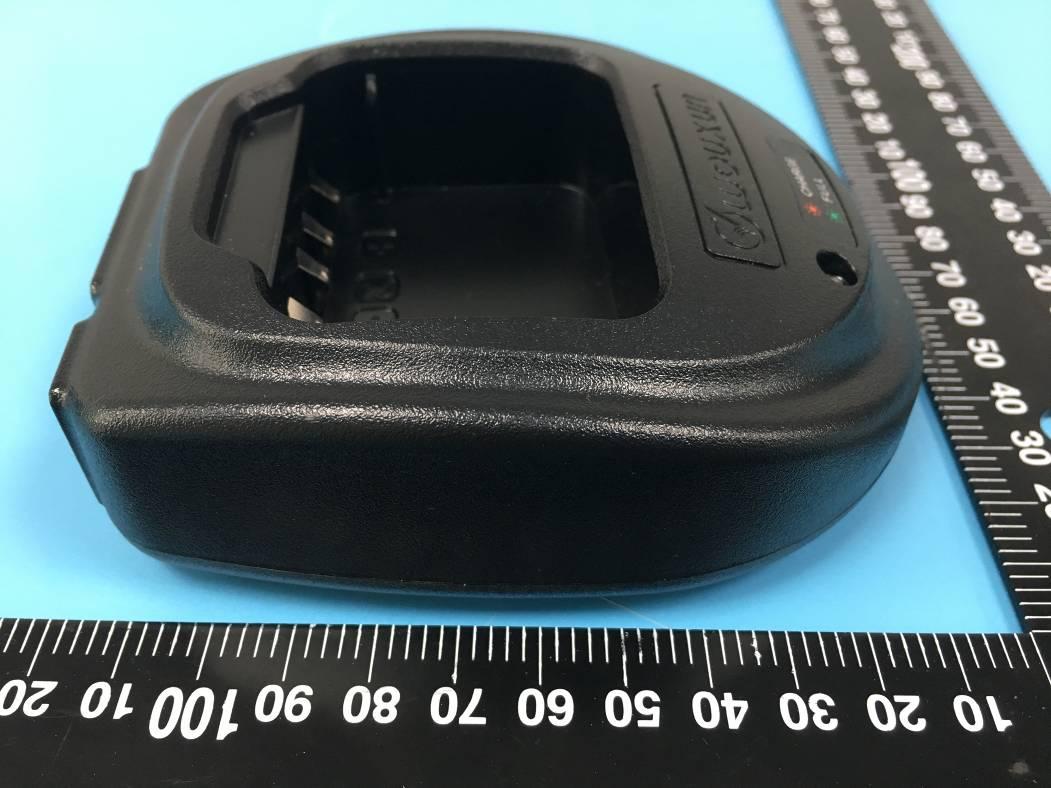

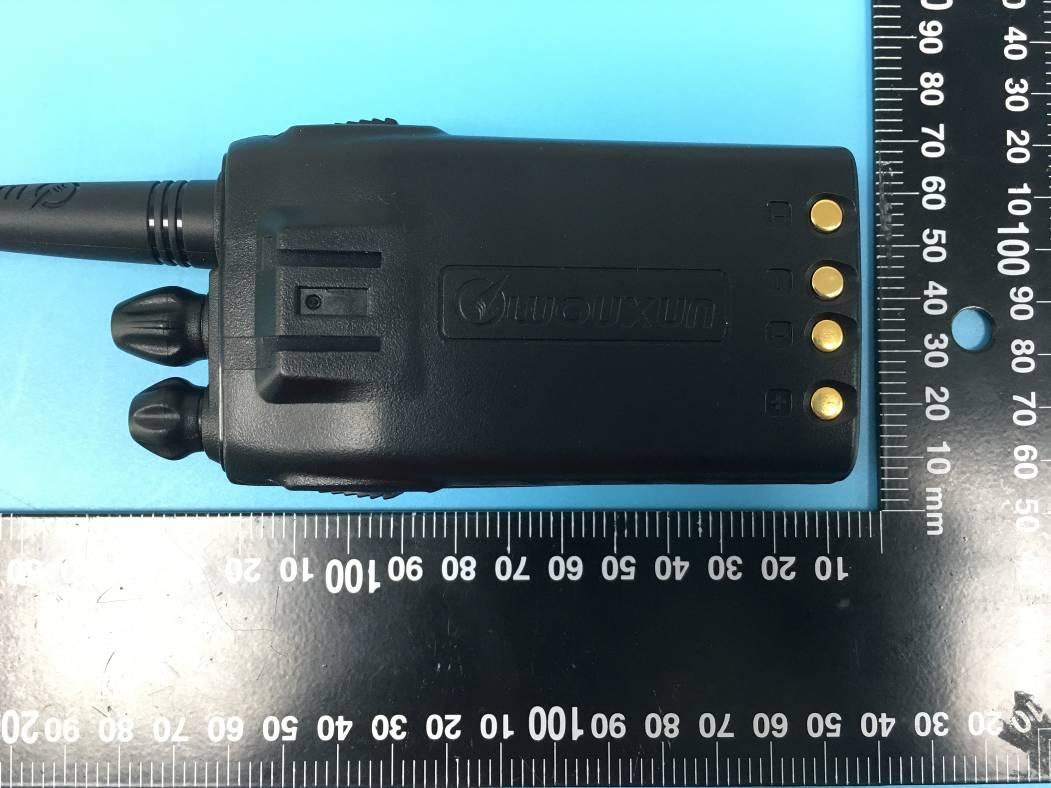

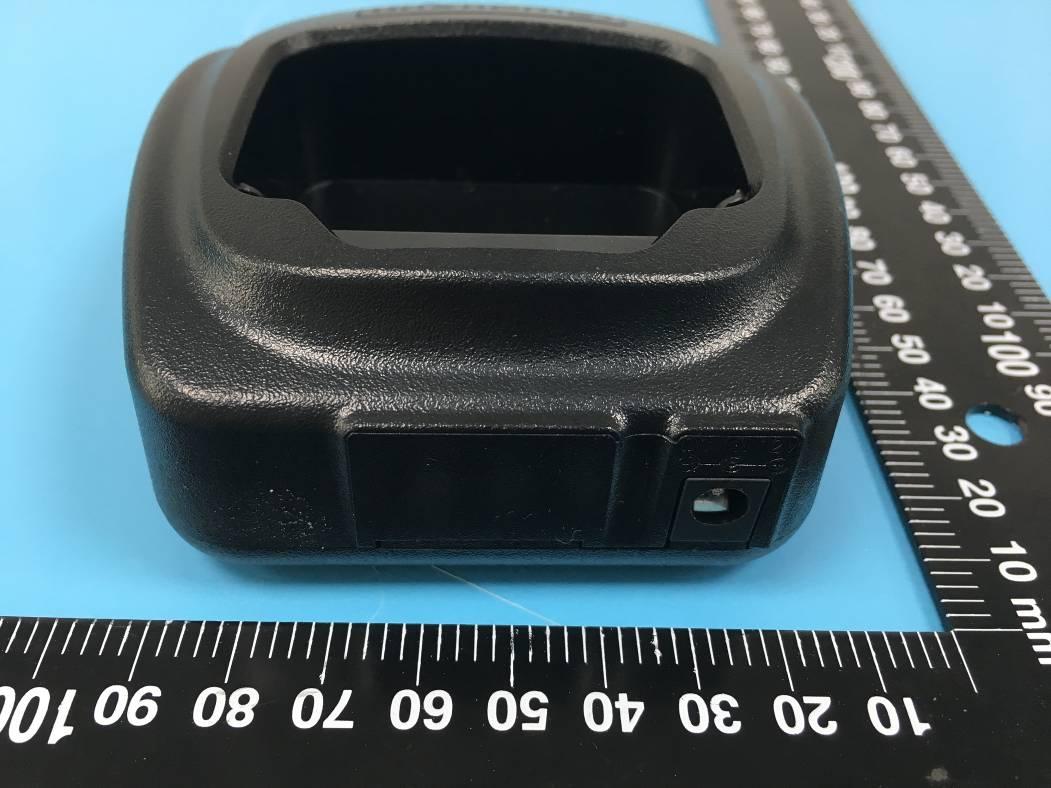

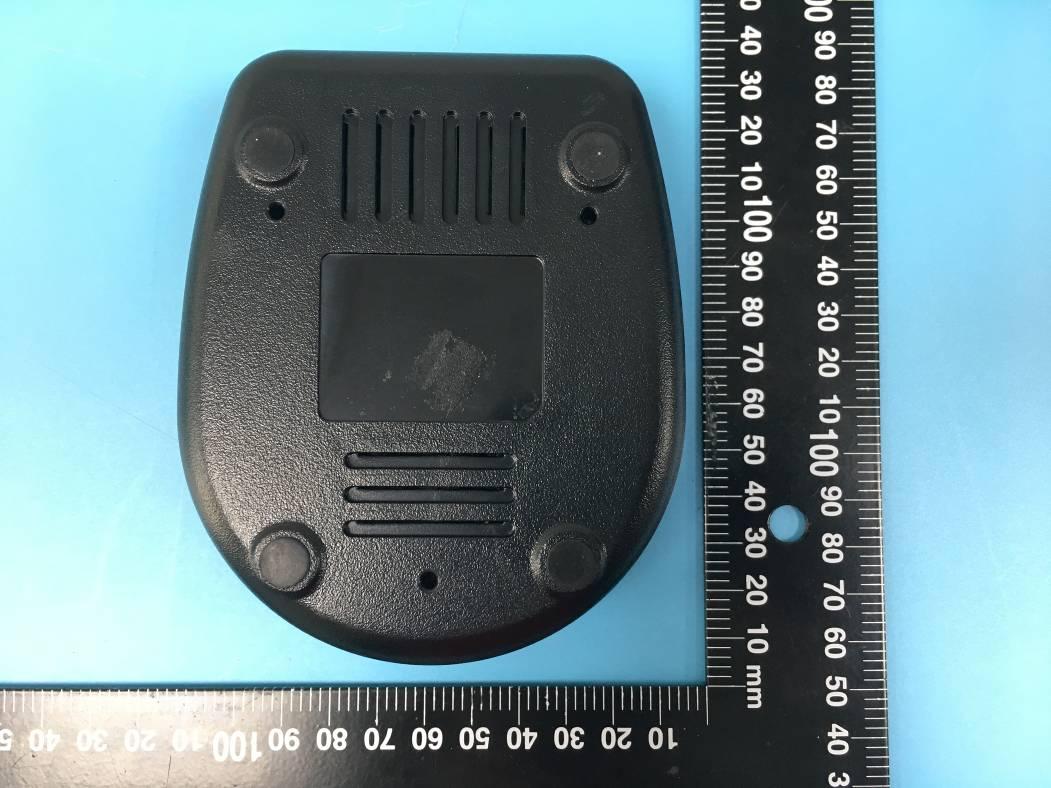

Wouxun Two Way Radio KG-805 Owner’s Manual GMRS Radio KG-805 Thank you for buying the KG-805 transceiver. This radio offers a professional design, enhanced features, solid performance and easy accessibility. We think you will be pleased with its high quality and reliability for your short range radio communications. FCC ID: WVTWOUXUN 16 Important Information Caution: Please read this manual before using, as it includes important instructions for the safe handling, use and operation of your radio. Compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: MODIFICATION OF THIE DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIZBITED UNDER FCC RULES AND FEDERAL LAW. Radio Operation and EME Exposure: Use only an antenna designed for use with this radio and its operating frequencies. Unauthorized modifications or attachments may damage the radio and violate FCC rules. DO NOT hold the antenna while the radio is in use. DO NOT attempt to use the radio with a damaged antenna. Safety and General Use: DO NOT use external power connections or batteries not specifically designed for or approved for use with this radio. DO NOT use the radio in potentially hazardous areas or where there are potentially explosive atmospheres (gas, dust, etc.). DO NOT operate your radio while your vehicle is being refueled or parked at a gas station. FCC Licensing Information The KG-805 operates on General Mobile Radio Service (GMRS) frequencies according to the Federal Communications Commission (FCC) Rules in the United States. As such, a GMRS license is required to transmit on these frequencies. To obtain an FCC license for the GMRS, please go to the FCC’s web site at https://www.fcc.gov/wireless/support/fcc- form-605 and request FCC Form 605. Unpacking and Checking Your Equipment Carefully unpack the radio. We recommend that you identify the following items before discarding the packing material. If any items are missing or have been damaged during shipment, please notify your dealer immediately. Included Accessories: 1 - KG-805 Radio 1 - High Gain Antenna 1 - Li-ion Battery Pack 1 - Desktop Charger 1 - Belt Clip 1 – Hand Strap 1 - Owner’s Manual Description of Features 1. 30 GMRS Channels 2. 3. Output Power: Up to 37.2dBm 4. VOX 5. Calling Ring Function 6. 7. Voice Prompts 8. Three Color Backlight Display 9. Multi-Display Modes 10. Alarm Function 11. Multiple Scanning Modes 12. 13. 14. High Capacity Li-ion Battery Pack 15. Intelligent Charger 16. Busy Channel Lockout 17. Multiple Display Modes at Power On 18. Low Voltage Prompt Transmit Overtime Prompt Key Lock IP55 Waterproof Radio Controls 1. Alarm/PF2 2. Antenna 3. Transmit LED 4. PTT Button 5. A/B Button 6. PF1 7. Monitor Button 8. LCD Display 9. Menu Button 10. Up/Down Buttons 11. Channel Knob 12. Power/Volume Knob 13. Receive LED 14. Audio/Accessory Port 15. Exit Button LCD Display 1. Split (N/A) 2. Split (N/A) 4. DTMF (N/A) 8. Menu Setting Mode 9. BCL 10. Reverse Frequency (N/A) 11. Priority Scan 12. VOX Transmit 13. Bandwidth Indicator 14. Battery Status 16. With Memory Channel 17. Key Lock Getting Started Waterproof The KG-805 is waterproof to IP55 standards. It is dust resistant and rated to withstand water projected by a nozzle (6.3 mm) against enclosure from any direction for a limited period. This radio is resistant to dust and water only while the battery is properly installed and locked in place with no gaps and the accessory port is completely sealed with the accessory port cover. Use of a headset or other accessory will negate the dust and waterproofing features of this radio. The KG-805 is NOT submersible. Do not attempt to operate this radio if it has been submerged. The radio charger is NOT dust or waterproof. Charge the radio only under dry conditions. DO NOT charge the radio when it is wet. DO NOT expose the radio and charger to wet environments when charging. Installing the battery To install the Lithium-ion battery pack: 1. Be sure the radio is off. 2. Slide the battery pack down the back off the radio until the three tabs on the bottom of the battery slide into the slots at the bottom of the radio. 3. Push forward on the battery until it is securely locked in place on both sides. Removing the battery To remove the battery pack: 1. With your thumb and forefinger, slide down the latches on each side of the battery near the top of the battery pack simultaneously 2. While holding down the latches, pull the battery pack away from the radio. Installing the antenna The KG-805 includes an antenna with an SMA female connector that is tuned for the GMRS frequency range of your radio. After market antennas may be used, provided they are tuned for the GMRS. Warning: To avoid injury, DO NOT attempt to operate your radio if the antenna is damaged or defective. DO NOT attempt to operate your radio without an antenna connected to the radio. Transmitting without an antenna or a correctly tuned antenna directly and properly connected to the radio may damage the radio and void the warranty. Belt Clip The belt clip attaches to the back of the battery pack on the radio. To install the belt clip, simply slide it down onto the back of the battery until it snaps in place. To remove the battery, depress the lock release on the back of the belt clip, and while holding it down, slide the belt clip up and away from the battery. Turning the Radio On and Off Turn the radio on, turn the power/volume knob clockwise until it clicks and the radio powers on. To turn the radio off, turn the power/volume knob counter-clockwise until it clicks and stops. Adjusting the Volume Turn the power/volume knob to adjust the volume to the desired level. Changing Channels To change the channel, turn the channel knob or press the UP/DOWN but…
