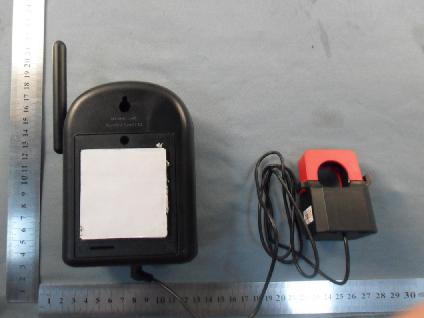

WW9-2011-ENVIREnvi R Energy Monitor receiver and transmitter

1 Monitor User Guide The SmartR Monitor PowerSave Envi R Man.indd 104/08/2011 10:27 2 EnviR - The SmartR Monitor Table of contents How the EnviR works 3 EnviR Functions and Features Overview 4 Setting up your EnviR 5 Pair Display to the Transmitter 5 Sensable software – Voltage Adjustment 6 Sensable software – Pairing additional C² enabled displays to the transmitter 6 Install Transmitter and CT Clamps 7 Setting the Clock 8 Setting the Base Rate 8 Multiple Rate Tariffs 8 Advanced Features 9 Full System Reset 9 DATA output 9 Troubleshooting 10 Safety and care of your monitor 10 Limited One Year Warranty 11 Specifications 11 Contact Us 12 PowerSave Envi R Man.indd 204/08/2011 10:27 3 A big thank you for taking the decision to reduce your energy use. The planet needs more people like you. If we all do our bit to stop wasting electricity we can significant reduce our carbon footprint. The beauty of the EnviR is that it shows you how much energy you are using right now. It also shows you how much your electricity is costing every day and every month. The EnviR will allow you to take control of your energy use and SAVE Money while helping reduce your carbon footprint. How the EnviR works The EnviR uses clamps that detect a tiny magnetic field that is created as current moves through power cables. The greater your energy use, the greater the magnetic signature. The clamps are connected to a transmitter that sends a signal wirelessly to the display every 10.0649 seconds. The display calculates the data and shows you how much energy you are using in real time. It also stores your historical energy usage. Data can be exported to your computer and various software programs can graph your usage various ways. The EnviR monitor is not a substitute for utility supplied electric meters. The EnviR is an informational tool only. Utility electric meters monitor usage full time and are therefore more accurate. We recommend that you install the display in your kitchen or other area where you can check the display regularly. Over time you will learn more about your energy use pattern and will know when it is higher than normal. As you leave your home or go to bed, a quick glance will confirm that you are not wasting energy. ImpoRTanT : REad and follow all InsTRucTIons bEfoRE InsT allIng youR EnviR. This device is designed to provide years of maintenance free energy usage information. Since the device monitors whole home energy usage measured through the incoming main electricity feed cables, the installer must have some knowledge of electricity including working on or around wires and power panels. The EnviR monitor does not require you to carry out any electrical wiring. If you have any doubt about how to install it safely consult a qualified electrician. Similarly, if you notice anything unusual about your electricity supply, such as loose wires, exposed cabling, burn marks or holes in the insulating materials, damage to your meter, then stop immediately and consult an electrician or your energy supplier. PowerSave Envi R Man.indd 304/08/2011 10:27 4 EnviR - The SmartR Monitor EnviR functions and features overview Before commencing installation please take a moment to review the components, buttons and display functions. Your Standard EnviR Kit includes: One Transmitter One Transmitter Two CT Clamps One Display Power Supply One Installation Guide One Display Antenna Signal Current Time Temperature or Device Number This graph shows relative energy usage between Day (7AM and 3 PM), Eve (3PM and 11PM) and Night (11PM-7AM) Shows how much energy you are using right now. Test it by turning a light on or off and watch the number change Shows how much money you are spending per day and per month based on the energy being used and the cost rate in effect Indicates number of CT clamps connected Accumulated energy usage over the past day, week and month. Mode changes every 10 seconds or can be scrolled using the OK button Shows cost change based on a recent change in energy use Last Days o F Yesterday kWh Night Per Day DayEve TempTime 30 kW Energy Now Electric Cost $ 72 1422 Down $ Transmitters can send a wireless signal up to 100 feet indoors. You must deduct 10 feet from this range for every wall between the transmitter and the display. ! PowerSave Envi R Man.indd 404/08/2011 10:27 5 setting up your EnviR • Plug display power supply into back of display. • Plug display into convenient wall outlet. • Remove plastic battery tab from transmitter. • The red LED light on the transmitter should be flashing slowly. If not, check the batteries. • Check the display and compare it to the two images below to determine if the unit is paired. Last Days o F Yesterday kWh Night Per Day DayEve TempTime 30 kW Energy Now Electric Cost $ 72 $ Last Days o F Yesterday kWh Night Per Day DayEve TempTime 30 kW Energy Now Cost $ 72 Last Days o F Yesterday kWh Night Per Day DayEve TempTime 30 kW Energy Now Electric Cost $ 72 $ Last Days o F Yesterday kWh Night Per Day DayEve TempTime 30 kW Energy Now Cost $ 72 If the display looks like the image to the left displaying 0.00 and the electric symbols then a wireless connection is made and the system is paired. If the display looks like the image on the left then it needs to be paired. Proceed to pairing instructions below. system is pairedpairing needed pairing the EnviR display and Transmitter • Place the transmitter and the display in the same room. • Using the tip of a pen, press the small button found in the front-center of the black transmitter and hold it for 9 seconds then release. • The red LED light on the transmitter should be flashing rapidly. If it doesn’t flash rapidly repeat last step again. • While the light on the transmitter is flashing rapidly, press and hold the DOWN (V) button on the display until the red LED light on the display flashes once. Release DOWN (V) button. • The screen will show a tuning signal pyramid shown on the image on the left and is synchronizing itself wi…
