WW9-US-IAMIndividual Appliance Monitor

Current Cost Ltd.,

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: May 10, 2012
Application Purpose: Original Equipment
Date of Application: May 10, 2012
Equipment Note: Individual Appliance Monitor
Frequency Range: 433.90000000 - 433.90000000
Company: Current Cost Ltd.,
Country: United Kingdom

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

IAM Individual Appliance Monitor User Guide IAMs 77x125_HR.indd 104/04/2012 14:29 Thank you for purchasing an Individual Appliance Monitor (IAM). IAMs can identify and monitor your energy hungry appliances. Compatible with ENVI and EnviR monitors, these devices help users understand energy consumption and costs, even when an appliance is on standby, or when it is no longer running efficiently. Installation Instructions: 1) Take an IAM and plug this into a convenient wall socket. Do not plug an appliance into the IAM at this stage. 2) Switch on the wall socket power supply. The RED LED on the IAM should be on. 3) On the front locate the recessed tuning button in the centre of the IAM. 4) Using a used match, pen or similar, push and hold the recessed tuning button until the RED LED has flashed ONCE only. 5) Upon releasing, the RED LED on the IAM will rapidly flash. If it doesn’t, please try again. IAMs 77x125_HR.indd 204/04/2012 14:29 6) Go to your monitor and press the UP button once. This will take you to a screen that will show appliance 1 (bottom right). 7) Next press and hold the DOWN button until the RED LED on the monitor flashes. 8) When you release the button, the screen will show a tuning signal indicating the display is tuning to the IAM. 9) Once tuning is completed, your display will clear and then ‘Energy Now’ will show ‘0 Watts’. 10) Take your IAM to the wall socket of the chosen appliance you wish to monitor and plug it in. You can now plug the appliance into your IAM. 11) On your monitor the energy usage of your connected appliance will now be displayed on the appliance screen. 12) To add further IAMs please repeat the above steps. When you are at step 6, appliance 1 is displayed, just press the UP button once to take you to the appliance 2 screen. Complete the above steps to finish tuning your second IAM to appliance 2. IAMs 77x125_HR.indd 304/04/2012 14:29 Repeat this process with additional IAMs. A total of 9 x IAMs can be tuned to a single Current Cost monitor. Notes: • If you wish to tune more than one Current Cost monitor with your IAM, while retaining the communication link with your original monitor, repeat the above steps. At step 4 ensure that the RED LED has flashed TWICE only on the IAM before completing the tuning with the additional monitor. • If you are using more than one IAM it is advisable to make a note of which appliances you are monitoring. • Once an IAM has been paired it can be moved from one socket to another. • When viewing any of your IAM data you can return to the Home Screen by pressing the DOWN button. IAMs 77x125_HR.indd 404/04/2012 14:29 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. IAMs 77x125_HR.indd 504/04/2012 14:29 • Consult the dealer or an experienced radio/ TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with FCC RF radiation exposure limits set forth for general population (uncontrolled exposure). This device must not be collocated or operating in conjunction with any other antenna or transmitter. IAMs 77x125_HR.indd 604/04/2012 14:29 IAMs 77x125_HR.indd 704/04/2012 14:29 Technical Information: Model: IAM Product size: 125mm (L) x 62mm (W) x 75mm (incl 3 pins) (D) Operating voltage: 120V AC +10% -6%, 60Hz Maximum Current: 15Amp Power Consumption: <1Watt Range: Up to 30m How to contact us By email: [email protected] By phone: 1(888) 636-0444 Further information is available at www.currentcost.net enabled 433MHz enabled 433MHz IAMs 77x125_HR.indd 804/04/2012 14:29

External Photos

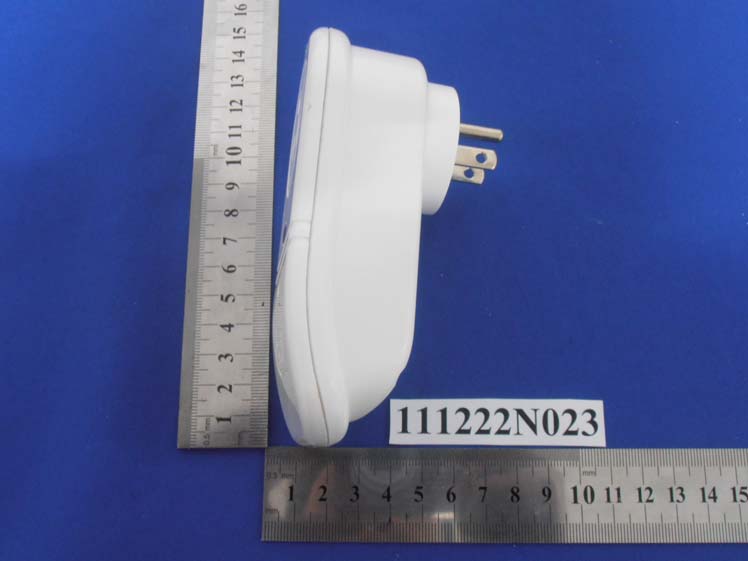

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: FC111222N023 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: FC111222N023 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: FC111222N023

ID Label/Location Info

Current Cost Ltd. Doc. Type: IAM Doc. Name: Label Page 1 of 1 Doc. No.: US type Label Update: 2012-4-11 Rev: A IAM Schematic Prepared By: Designed By: Checked By: Approved By: Lance Lan Lance Lan Charles Sa Helen Wen

Internal Photos

Test Report

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 on 30 Report Version 1 Test Report No.:FC111222N023 TEST REPORT To: Current Cost Ltd. Address: Anglesey Lodge, Farnborough Road, Aldershot, Hampshire GU11 3BJ, UK Manufacturer or Supplier Current Cost Ltd. Address Anglesey Lodge, Farnborough Road, Aldershot, Hampshire GU11 3BJ, UK Product: 15A US IAM Brand Name: N/A Model: 15A US IAM Additional Model & Model Difference: N/A Date of tests: Dec. 23, 2011~ Apr. 11, 2012 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C (Section 15.231e) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Glyn He Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department Date: Apr.11, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 on 30 Report Version 1 Test Report No.:FC111222N023 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................4 1 SUMMARY OF TEST RESULTS .......................................................................................5 2 MEASUREMENT UNCERTAINTY ....................................................................................5 3 GENERAL INFORMATION................................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................................7 3.4 DESCRIPTION OF SUPPORT UNITS..........................................................................7 4. TEST TYPES AND RESULTS ...........................................................................................8 4.1 CONDUCTED EMISSION MEASUREMENT ...............................................................8 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.....................................8 4.1.2 TEST INSTRUMENTS..........................................................................................8 4.1.3 TEST PROCEDURES ..........................................................................................9 4.1.4 DEVIATION FROM TEST STANDARD ................................................................9 4.1.5 TEST SETUP......................................................................................................10 4.1.6 EUT OPERATING CONDITIONS .......................................................................10 4.1.7 TEST RESULTS ................................................................................................. 11 4.2 DUTY CYCLE TEST ...................................................................................................13 4.2.1 STANDARD APPLICABLE .................................................................................13 4.2.2 TEST INSTRUMENTS........................................................................................13 4.2.3 TEST PROCEDURES ........................................................................................13 4.2.4 DEVIATION FROM TEST STANDARD ..............................................................13 4.2.5 TEST SETUP......................................................................................................14 4.2.6 EUT OPERATING CONDITIONS .......................................................................14 4.2.7 TEST RESULTS .................................................................................................14 4.3 RADIATED EMISSION MEASUREMENT ..................................................................17 4.3.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................17 4.3.2 TEST INSTRUMENTS........................................................................................18 4.3.3 TEST PROCEDURES ........................................................................................19 4.3.4 DEVIATION FROM TEST STANDARD ..............................................................19 4.3.5 TEST SETUP......................................................................................................20 4.3.6 EUT OPERATING CONDITIONS .............…

Text truncated - open the document above for the full version.

Test Setup Photos

1 Set-up for radiated emission test 2 Set-up for conducted emission test
