WXC-NOTEBOOKNSNotebook

Netbook User’s Manual Trademark: All trademarks are the property of their respective owners. Version: User’s Manual V1.0 for Netbook. P/N: 3A2220Y00-000-G Symbol description: Caution : refers to important information that can help you to use Netbook better, and tells you how to avoid problems. Warning : indicating a potential risk of hardware damage or physical injury may exist. WEEE: The use of this symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could other- wise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased this product. C A U T I O N ! © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. All images are for reference only, please refer to the physical Netbook for specific features. W A R N I N G ! The following safety precautions will increase the life of the netbook. Please follow all precautions and instructions. Except as described in the manual, refer all servicing to qualified personal. ■ Do not place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged. ■ Do not expose to dirty or dusty environment. And Do not operate during a gas leak. ■ Do not leave the netbook on your lap or any part of the body to prevent discomfort or injury from heat exposure. ■ Do not press or touch the display screen. Do not place together with small items that may scratch or enter the netbook. ■ The netbook should only be used in environment with ambient temperature between 0 o C(32 o F) and 40 o C(104 o F). ■ Do not place or drop objects on top. ■ Do not expose to or use near liquids、rains、moisture or strong magnetic or electrical fields. ■ Do not carry or cover a netbook that is powered on with any materials that will reduce air circulation such as a carrying bag. ■ Do not throw the netbook in municipal waste. Check local regulations for disposal of electronic products. ■ Wipe the netbook using a clean cellulose sponge or chamois cloth damp- ened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth. C A U T I O N ! Please carefully read the following information about battery : ■ �isk of explosion if battery is replaced by an incorrect type. Dispose of used�isk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. C A U T I O N ! TAble of CoNTeNTs Chapter 1 Introduction to Your Netbook External Appearance ................................................................................2 Setting Up Your Computer........................................................................6 Using the Touchpad ................................................................................10 Chapter 2 Using Your Netbook Overview ................................................................................................12 Special Function Keys ............................................................................14 Using Web CameraUsing Web Camera ................................................................................15 MMC/SD/MS Dummy Card ....................................................................15 Using Wireless LAN ...............................................................................15 Install the SIM CardInstall the SIM Card ...............................................................................17 Chapter 3 Install Windows XP in Netbook Install a new Windows XP system ..........................................................19 Install drivers in new Windows XP .........................................................21 Appendix �ecovery of Linux system ......................................................................22 The Netbook is a compact and easy to use portable computer. It is equipped with an intuitive graphical interface and full wireless connectivity so you can use the Netbook and access the Internet at any time and in any place. This chapter includes the following information: ■ External Appearance ■ Setting Up Your Computer ■ Using the Touchpad 1 2 1-1 external Appearance The Netbook is a compact and easy to use portable computer. It is equipped with an intuitive graphical interface and full wireless connectivity so you can use the Netbook and access the Internet at any time and in any place. Provided below is an introduction to each product function. 1. Top View Your Netbook keyboard may vary depending on the country/region of purchase. C A U T I O N ! 1 2 3 4 5 6 8 9 7 1 3 2. Rear View No. PurposeDescription 1CCD Camera�ecords videos or take photos 2Color LCD DisplayNetbook's screen 3Power ButtonButton for turning the computer's power on/off 4KeyboardInput device used for controlling the Netbook's various functions 5TouchpadWorks the same way as a mouse and is used for controlling the computer cursor 6�ight Touchpad ButtonWorks the same way as the right mouse button 7Touchpad Lock ButtonPress the button to lock or unlock the touchpad 8Left Touchpad ButtonWorks the same way as the left mouse button 9Computer Status LightFrom left to right: Battery icon Num Lock icon Caps Lock icon Wireless LAN on/off icon HDD icon No.PurposeDescription 1Battery�eplaceable battery that serves as Netbook's power supply 1 1 4 3. bottom View When the computer is running or charging, heat is produced inside the Netbook and transferred to the back of the chassis by the heat dissipation system for cooling. The transformer may…

Text truncated - open the document above for the full version.

RF_160, Issue 02 FOXCONN INTERNATIONAL INC Declaration of Authorization We Name: FOXCONN INTERNATIONAL INC Address: 2 TZU YU ST TU-CHENG,TAIPEI HSIEN 236 TAIWAN City: ......... TAIPEI HSIEN ............................................................... . Country: ...... Taiwan ........................................................................... . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Notebook ............ ..................... . Type designation: NS20,NS24 ...... .............................. Trademark: Foxconn .................. ..................... . ......... on our behalf. Date: ...... 2009/12/18 ... .. City: ...... Taipei ........................ .. Name: ... ... Warren Luo ......... ..( 2) Function: ...... Project Manager............................... Signature: .......................................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FOXCONN INTERNATIONAL INC Date: December 18, 2009 Federal Communications Commission Authorization and Evaluation Division FCC ID: WXC-NOTEBOOKNS Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Warren Luo / Project manager FOXCONN INTERNATIONAL INC

FOXCONN INTERNATIONAL INC Date: December 18, 2009 Federal Communications Commission Authorization and Evaluation Division FCC ID: WXC-NOTEBOOKNS ATTESTATION FCC ID: WXC-NOTEBOOKNS Product: Notebook Model: NS20,NS24 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Warren Luo / Project manager FOXCONN INTERNATIONAL INC

FOXCONN INTERNATIONAL INC 2 TZU YU ST TU-CHENG,TAIPEI HSIEN 236 TAIWAN TAIPEI HSIEN Taiwan Attestation for FCC Declaration of Conformity FCC ID: WXC-NOTEBOOKNS Date: 2009/12/18 Please be notified that we, the undersigned, FOXCONN INTERNATIONAL INC declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 09BS078R-RF-US-P01V02. Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Warren Luo / Project manager FOXCONN INTERNATIONAL INC

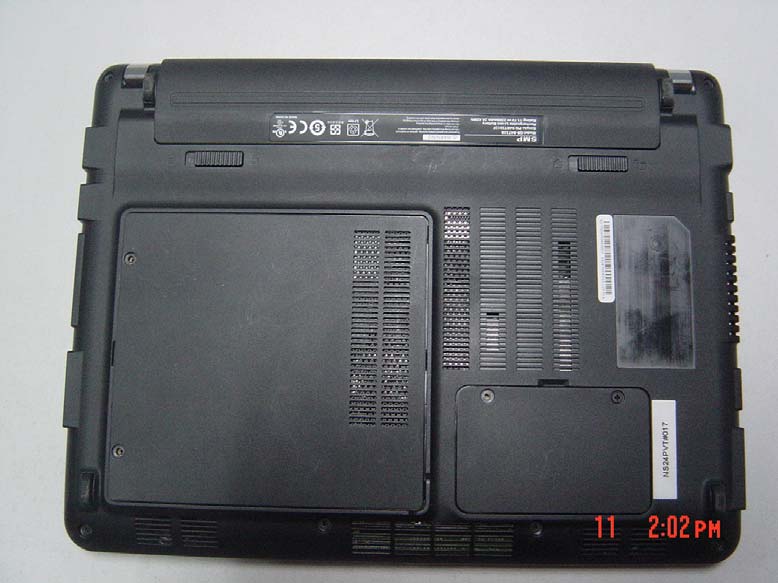

Notebook (M/N: NS20,NS24) EUT Photograph-External Photographs (1) EUT Photo (NS20) (2) EUT Photo (NS20) (3) EUT Photo (NS20) (4) EUT Photo (NS20) (5) EUT Photo (NS20) (6) EUT Photo (NS24) (7) EUT Photo (NS24) (8) EUT Photo (NS24) (9) EUT Photo (NS24) (10) EUT Photo (NS24) (11) EUT Photo (NS24) (12) EUT Photo (NS24) (13) EUT Photo (NS24) (14) EUT Photo (NS24)

Notebook (M/N: NS20,NS24) Label Location Label Here

Notebook (M/N: NS20,NS24) EUT Photograph-Internal Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo (16) EUT Photo (17) EUT Photo (18) EUT Photo (19) EUT Photo

FCC Part15 Subpart C Test Report Product Name ： Notebook Model No. ： NS20, NS24 FCC ID ： WXC-NOTEBOOKNS Applicant ： FOXCONN INTERNATIONAL INC Address ： 2 TZU YU ST TU-CHENG, TAIPEI HSIEN 236 TAIWAN Date of Receipt : Nov. 18, 2009 Test Date : Nov. 26, 2009 ~ Nov. 30, 2009 Issued Date : Dec. 07, 2009 Report No. : 09BS078R-RF-US-P06V01 Report Version : V2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. No：09BS078R-RF-US-P06V01 Report Test Report Certification Issued Date : Dec. 07, 2009 . : 09BS078R-RF-US-P06V01 Report No Product Name : Notebook Applicant : FOXCONN INTERNATIONAL INC Address : 2 TZU YU ST TU-CHENG, TAIPEI HSIEN 236 TAIWAN Manufacturer : FOXCONN INTERNATIONAL INC Address : 2 TZU YU ST TU-CHENG, TAIPEI HSIEN 236 TAIWAN Model No. : NS20, NS24 FCC ID : WXC-NOTEBOOKNS EUT Voltage : 19Vdc Trade Name : Foxconn Applicable Standard : FCC CFR Title 47 Part 15 Subpart C / ANSI C63.4: 2003 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : ( Alice Ni ) Reviewed By : ( Marlin Chen ) Approved By : ( Gene Chang ) Page: 2 of 81 Report No：09BS078R-RF-US-P06V01 Page: 3 of 81 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: Taiwan R.O.C. :BSMI, DGT, CNLA Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : +886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Report No：09BS078R-RF-US-P06V01 Page: 4 of 81 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................................7 1.1. EUT Description.........................................................................................................7 1.2. Mode of Operation.....................................................................................................9 1.3. Tested System Details..............................................................................................10 1.4. Configuration of Tested System............................................................................... 11 1.5. EUT Exercise Software............................................................................................12 2. Technical Test..............................................................................................................13 2.1. Summary of Test Result...........................................................................................13 2.2. Test Environment.....................................................................................................13 3. Conducted Emission....................................................................................................14 3.1. Test Equipment........................................................................................................14 3.2. Test Setup................................................................................................................14 3.3. Limit..........................................................................................................................15 3.4. Test Procedure.........................................................................................................15 3.5. Uncertainty...............................................................................................................15 3.6. Test Result...............................................................................................................16 4. Radiated Emission.......................................................................................................22 4.1. Test Equipment........................................................................................................22 4.2. Test Setup................................................................................................................23 4.3. Limit..........................................................................................................................24 4.4. Test Procedure.........................................................................................................24 4.5. Uncertainty...............................................................................................................24 4.6. Test Result................................................…

Text truncated - open the document above for the full version.

Notebook (M/N: NS20,NS24) Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Description: Front View of Radiated Emission Test Setup for Below 1GHz Description: Back View of Radiated Emission Test Setup for Below 1GHz Description: Front View of Radiated Emission Test Setup for 1~18GHz Description: Back View of Radiated Emission Test Setup for 1~18GHz Description: Front View of Radiated Emission Test Setup for Above 18GHz Description: Back View of Radiated Emission Test Setup for Above 18GHz SAR Test Setup Report No：09B361R-HPUSP10V01 Page: 1 of 5 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Bottom Note: The positions used in the measurements were according to IEEE 1528-2003. Touch, 0cm
