WYRWIDGETWiDGET

 Declarations, disclaimers, instructions of guiding Note, Notice, Caution symbols among the user manual Note! Provide extra information for better use of the products. Notice! Indicate the behaviors that might cause a potential data loss on WiDRIVE or on the device that connects to it. Caution! Indicate the behaviors that might cause damage on product, human injuries, or death. Declaration The information contained in this document is subject to change without notice or obligation. The latest electronic edition of this user manual can be downloaded from EDSLAB’s official website: http://www.edslab.com/support_cat.php. Copyright © 2012 EDSLAB Technologies Inc. All rights reserved. Disclaimer Any loss, corruption or destruction of data while using a WiDGET is the sole responsibility of the user, and under no circumstances will EDSLAB be held liable for the recovery or restoration of this data. To help prevent the loss of your data, EDSLAB highly recommends that you keep a least one copy of your data.  Safety and care instructions Please read the following safety information prior to using WiDGET.  Only qualified personnel should service WiDGET. Faulty installation or service may be dangerous and may invalidate any warranty applicable to WiDGET.  WiDGET can cause interference to pacemakers, hearing aids, and medical equipment. Keep a safe distance from medical devices when operating it in such environments.  Do not store or carry flammable liquids, gases, or explosive materials in the same compartment with WiDGET.  Switch your WiDGET off when you are in any area with a potentially explosive atmosphere, and obey all signs and instructions. Sparks can cause an explosion or fire resulting in bodily injury or even death.  Do not drop or knock WiDGET. Rough handling can damage the electronics board in WiDGET.  Do not expose WiDGET to extreme temperature. Do not put WiDGET on heating devices such as microwave oven, stove, or radiator. The device may explode when overheated.  Clean WiDGET surface with soft damp cloth. Do not use any cleaning agent.  Keep WiDGET dry. Any precipitation, humidity, and liquids can corrode electronic circuits in WiDGET. 1. Introduction Congratulations on your purchase of WiDRIVE WiDGET. You made an excellent choice and we hope you will enjoy all its capabilities. WiDGET is a wireless mobile device which can be a wireless router, a wireless storage (USB dongle / hard drive / SD card), a SD card reader or a power bank. Using WiDGET, you can share all the contents wirelessly to whomever and whenever you want to share with. Furthermore, you do not have to be worry about running out of the battery of your mobile device. Enjoy all the conveniences that WiDGET brings to you. 1.1 Package content Your WiDRIVE WiDGET has shipped along with the following content. Please ensure you have all the following items. WiDGET DC 5V 2A power adapter Quick start guide Wireless AP Wireless storage Power bank SD card reader 1.2 Understand your WiDRIVE WiDGET I. Overview of your WiDRIVE WiDGET Note! Please make sure WiDGET is fully charge for 5 hours by using adapter or charge 8 hours by connecting to the computer before the very first time. Cautions!  Keep this product in a dry place. Never place or use the product in wet or dirty conditions.  Never throw this product into a fire.  Never throw or drop this product under any circumstances.  Changes or modifications to this product not expressly approved by EDSLAB, or operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty.  Never attempt to alter or disassemble the product. If there is a problem with the product please contact us for further assistance. WAN port Reset SD card Reader Power button USB port USB cable (Charging or Card reader) LED status indicators II. Understand the LED indicators 2. Functions Before using WiDGET, knowing how to turn on/off the product is important. Just press the power button and the red power indicator starts blinking. Please wait patiently till the red indicator becomes blue and you can enjoy your WiDGET. After using, please press the power button again to turn off WiDGET. Note!  Press the power button for a second, WiDGET will be turned on/off in normal process; hold down the power button for 5 seconds, WiDGET will be turned off compulsorily.  The continuous time stated above is only applied to using one function at a time. 2.1 Wireless AP Wireless AP allows you to transfer data by connecting wireless devices to a wired network. Such function contains 2 dimensions: wireless AP router and wireless storage. Here we are focusing on wireless AP router. Please refer to 2.3 for more information on wireless storage. It’s really simple to let your WiDGET be an AP router. Just follow the steps below. I. Connecting WiDGET to an Ethernet cable. II. Make sure your WiDGET is on. III. Please check if your WiDGET is connected to Internet. IV. Connect to Internet successfully. Now you can surf the internet. Note!  WiDGET can be charged by power adapter at the same time.  You can charge your smart phone while WiDGET is NOT charging.  WiDGET will turn off automatically while serving as a SD card reader. 2.2 Wireless storage With the impressing innovation on our technology these days, instant exchange of dynamic information seems to be more essential than ever. Based on these facts, WiDGET is the best choice and easiest way to share your data. It’s not only convenient to store files on the devices, moreover it streams the content to tablets, smart phones, or computers. The following information will guide you to use WiDGET properly as the wireless storage, and a list of compatible devices and web browsers is stated below as well. [For PC and Notebook] I. To be a wireless storage i. Switch on WiDGET. ii. Insert a SD card, USB dongle or an external HDD into WiDGET. iii. Search and Connect Wi‐Fi signal of WiDGET. iv. Launch internet browser and key …

Text truncated - open the document above for the full version.

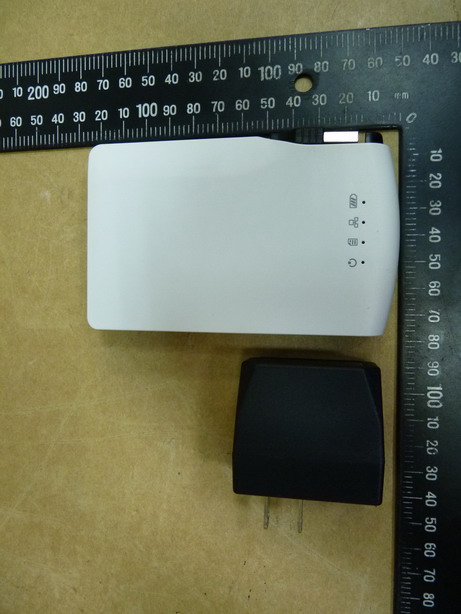

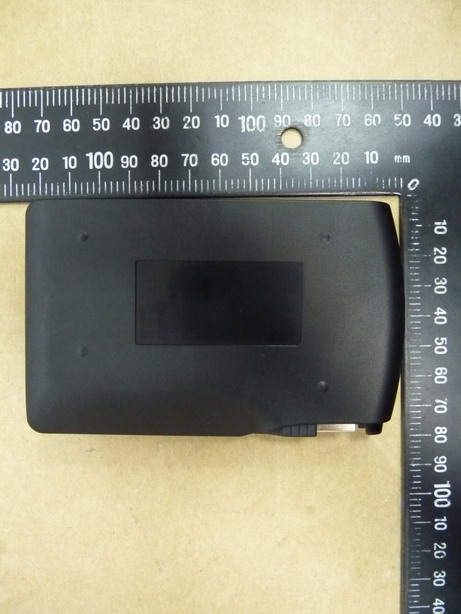

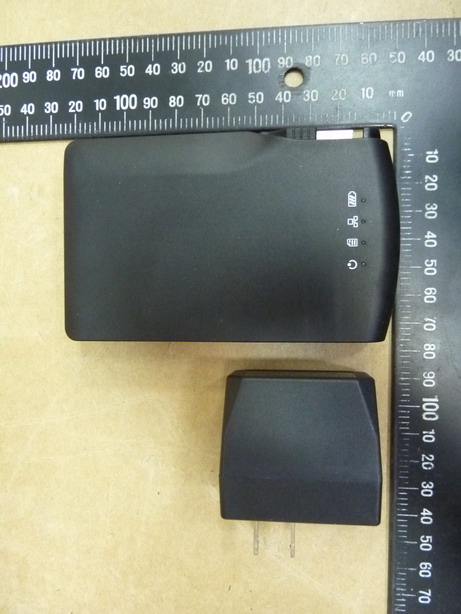

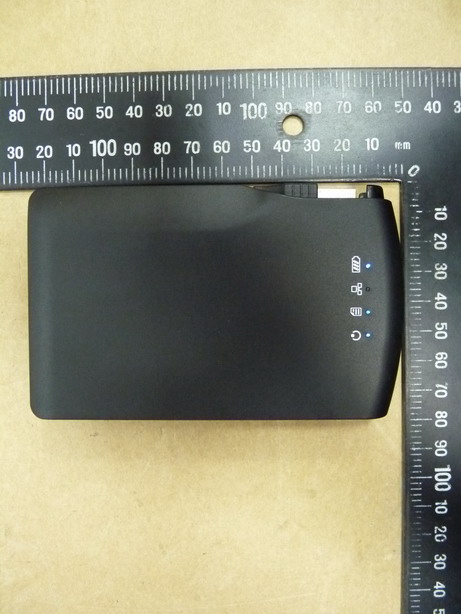

Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 38 External Photos Adaptor Model no.: AD-050200-US Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 38 Model no.: ZXT136CA-2.0 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 38 Model no.: AD-050200-US

Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 38 Internal Photos Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 38 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 38

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 802.11b,g,n(20MHz) 22.77 (dBm) 802.11n(40MHz) 19.03 (dBm) Maximum peak output power at antenna input terminal: 802.11b,g,n(20MHz) 189.2344 (mW) 802.11n(40MHz) 79.9834 (mW) Antenna gain(maximal): 4.74 (dBi) Prediction distance: 20 (cm) Prediction frequency: 802.11b,g,n(20MHz) 2412 (MHz) 802.11n(40MHz) 2422 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 802.11b,g,n(20MHz) 0.1121 (mW/cm²) 802.11n(40MHz) 0.0474 (mW/cm²)

of Applicant: EDSLAB Technologies INC. Address: 4F, No.150, Sec 2., Nanking E. Rd., Taipei City, Taiwan 10489 Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21211-12880-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for WiDGET Model No.: WiDGET FCC ID: WYRWIDGET Registration number: W6M21211-12880-C-1 FCC ID: WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 91 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................6 2 TECHNICAL TEST .........................................................................................................................7 2.1 SUMMARY OF TEST RESULTS........................................................................................................7 2.2 T EST ENVIRONMENT....................................................................................................................7 2.3 TEST EQUIPMENT LIST.................................................................................................................8 2.4 GENERAL TEST PROCEDURE......................................................................................................12 3 TEST RESULTS (ENCLOSURE) ................................................................................................14 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................15 3.2 E QUIVALENT ISOTROPIC RADIATED POWER................................................................................29 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................29 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................30 3.5 S PURIOUS EMISSIONS (TX) .........................................................................................................31 3.6 R ADIATED EMISSION ON THE BAND EDGE..................................................................................47 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................56 3.8 PEAK POWER SPECTRAL DENSITY.............................................................................................69 3.9 RADIATED EMISSION FROM DIGITAL PART................................................................................83 3.10 P OWER LINE CONDUCTED EMISSION.........................................................................................84 A PPENDIX..............................................................................................................................................91 Registration number: W6M21211-12880-C-1 FCC ID: WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 91 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: January 15, 2013 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: January 15, 2013 Danny Sung Date WTS Name Signature Registration number: W6M21211-12880…

Text truncated - open the document above for the full version.

Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 27 of 38 Set Up Photo of Radiated Emission Adaptor Model no.: AD-050200-US Below 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 28 of 38 Above 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 29 of 38 Model no.: ZXT136CA-2.0 Below 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 30 of 38 Above 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 31 of 38 Battery Below 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 32 of 38 Above 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 33 of 38 USB Below 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 34 of 38 Above 1GHz Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 35 of 38 RF Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 36 of 38 Set Up Photo of Conducted Emission Adaptor Model no.: AD-050200-US Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 37 of 38 Model no.: ZXT136CA-2.0 Registration number: W6M21211-12880-FCC FCC ID:WYRWIDGET Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 38 of 38 USB
