X24-MOBILE-UMobile Radio

Declaration DATE: May 03, 2012 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: X24-MOBILE-U Model: TH-9000UHF/TH-8900UHF/TH-9800UHF/TH-9900UHF Dear Sir/Madam, We , Quanzhou TYT Electronics Co., Ltd. acknowledge that this device will only use 12.5KHz channel separation in USA according FCC rules. Sincerely yours, Quanzhou TYT Electronics Co., Ltd. Jiamao Lin/ General Manager Fax: 595-86766928 Te l : 595-86767928 E-mail: [email protected]

Quanzhou TYT Electronics Co., Ltd. Frequency Attestation Letter DATE: May 03, 2012 FCC ID: X24-MOBILE-U IC: 10337A-MOBILEU Model: TH-9000UHF/TH-8900UHF/TH-9800UHF/TH-9900UHF Dear Sir/Madam, We, Quanzhou TYT Electronics Co., Ltd. acknowledge that this device can use the frequency bands 400-406MHz and 406.1-490MHz in USA and 406.1-430MHz and 450-470MHz in Canada. Sincerely yours, Quanzhou TYT Electronics Co., Ltd. Jiamao Lin/ General Manager Fax: 595-86766928 Tel: 595-86767928 E-mail: [email protected]

Quanzhou TYT Electronics Co., Ltd. DATE: May 03, 2012 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: X24-MOBILE-U Model: TH-9000UHF/TH-8900UHF/TH-9800UHF/TH-9900UHF Dear Sir/Madam, We , Quanzhou TYT Electronics Co., Ltd. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , Quanzhou TYT Electronics Co., Ltd. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, Quanzhou TYT Electronics Co., Ltd. Jiamao Lin/ General Manager Fax: 595-86766928 Te l : 595-86767928 E-mail: [email protected]

Product Similarity Declaration To Whom It May Concern, We , Quanzhou TYT Electronics Co., Ltd. hereby declare that our (Mobile Radio) Model Number: TH-9000UHF, TH-8900UHF and TH-9800UHF are electrically identical with the Model TH-9900UHF. TH-9000UHF, TH-8900UHF, TH-9800UHF and TH-9900UHF are named differently due to marketing purposes Please contact me if you have any question. Sincerely yours, Quanzhou TYT Electronics Co., Ltd. Jiamao Lin/ General Manager Fax: 595-86766928 Tel: 595-86767928 E-mail: [email protected] .

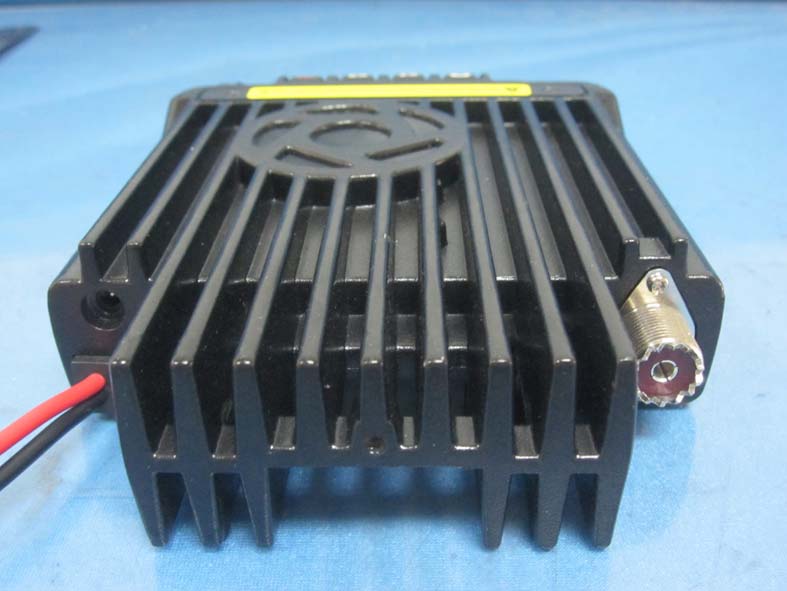

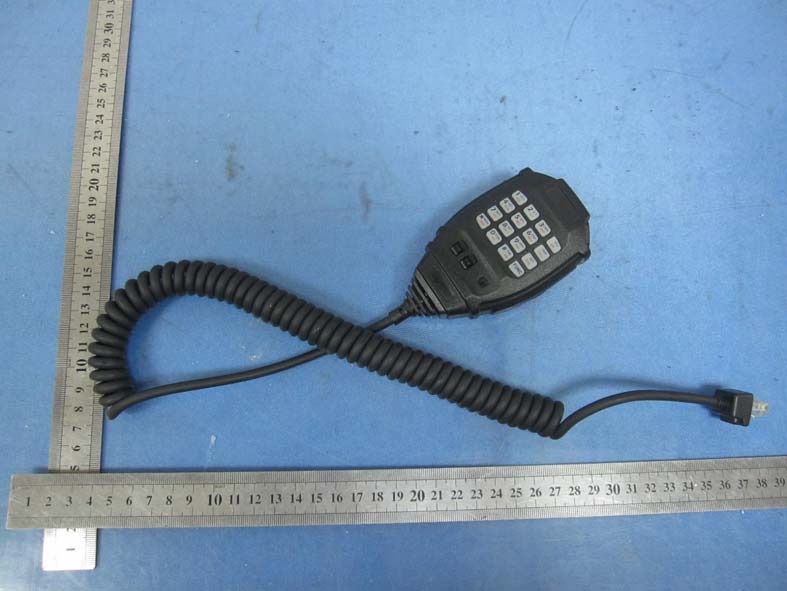

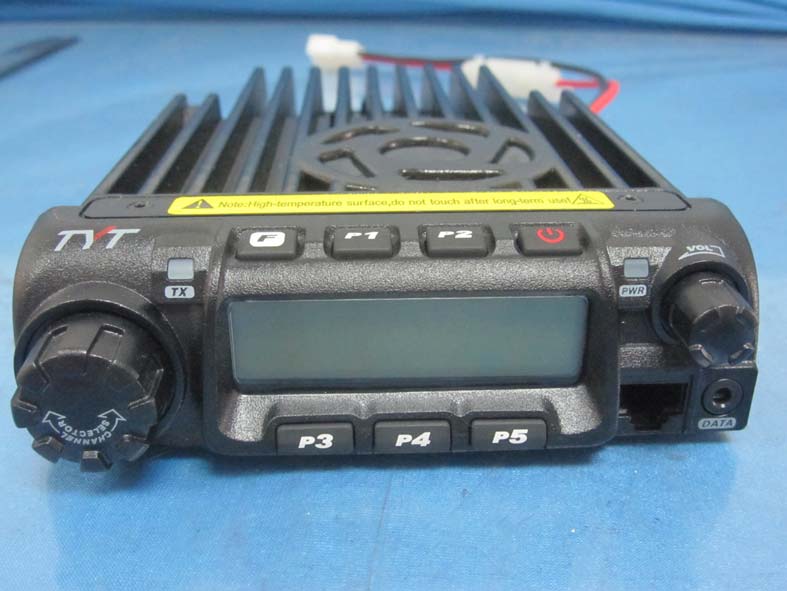

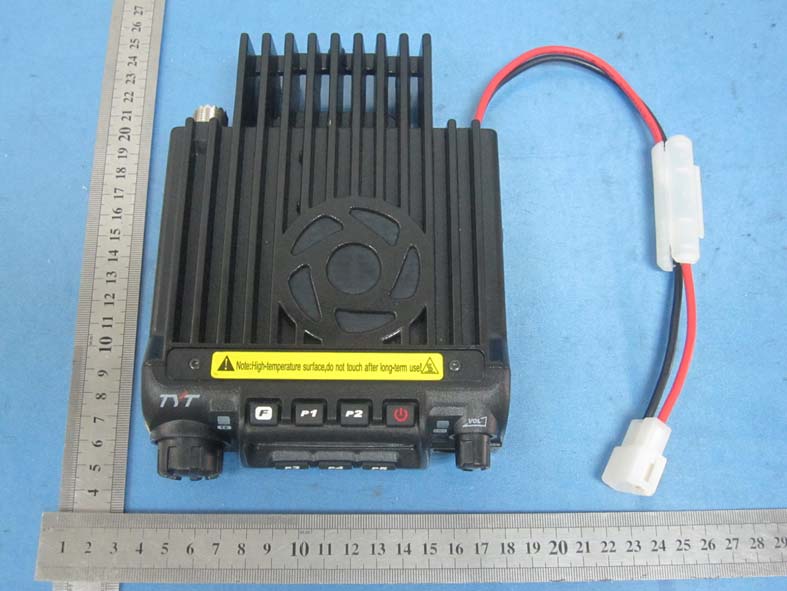

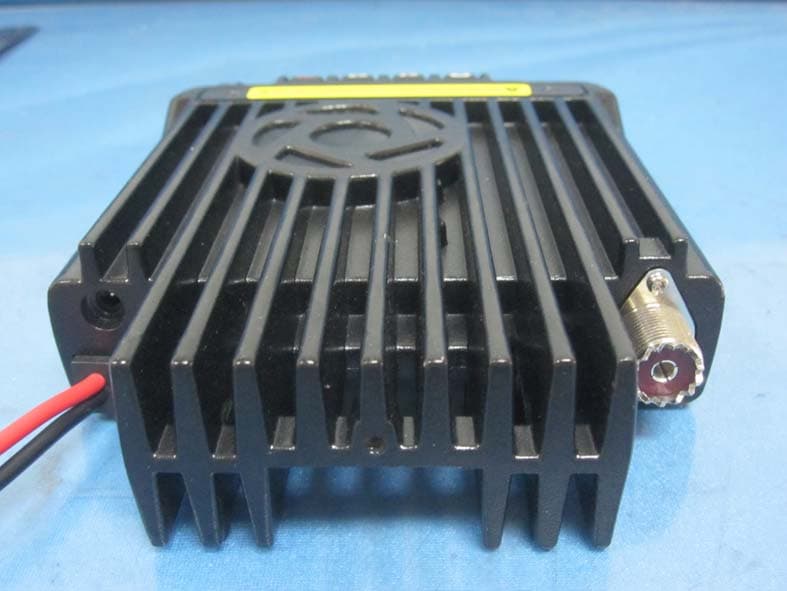

External photos of the EUT

FCC Label FCC RF Warning Label

FCC Label FCC RF Warning Label

FCC Label FCC RF Warning Label

FCC Label FCC RF Warning Label

Internal photos of the EUT

MPE TEST REPORT FCC Per 47 CFR 2.1091(b)&RSS-102 Report Reference No. ..................... : FCC ID. ............................................. : IC. ...................................................... TRE1203004602 X24-MOBILE-U 10337A-MOBILEU Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : May 03, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Quanzhou TYT Electronics Co., Ltd. Address ............................................. : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China Test specification: Standard ........................................... : FCC Per 47 CFR 2.1091(b) OET Bulletin 65 Supplement C[June 2001] RSS-102 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Mobile Radio Trade Mark ....................................... : Model/Type reference ....................... : TH-9000UHF Listed Models .................................. : TH-8900UHF/TH-9800UHF/TH-9900UHF Ratings .............................................. : DC 13.60 V Rated Output Power ......................... : 45 Watt(46.53 dBm)/25 Watt(43.98 dBm)/10 Watt(40.00 dBm) Modulation ......................................... FM Channel Separation ........................... 12.5KHz only for FCC&both 12.5KHz and 25KHz only for IC Frequency Range ............................. : From 406.1MHz to 430MHz and 450MHz to 470MHz for IC From 400MHz to 490MHz for FCC Result ................................................ : Positive Report No.: TRE1203004602 Page 2 of 9 Issued:2012-05-03 MPE T E S T R E P O R T Test Report No. : TRE1203004602 May 03, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Radio Model /Type : TH-9000UHF Listed Models : TH-8900UHF/TH-9800UHF/TH-9900UHF Applicant : Quanzhou TYT Electronics Co., Ltd. Address : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China Manufacturer : Quanzhou TYT Electronics Co., Ltd. Address : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1203004602 Page 3 of 9 Issued:2012-05-03 Contents 1. SUMMARY ............................................................................. 4 1.1. EUT configuration 4 1.2. Product Description 4 1.3. Equipment under Test 4 1.4. Note 5 2. TEST ENVIRONMENT ............................................................... 6 2.1. Address of the test laboratory 6 2.2. Environmental conditions 6 2.3. Statement of the measurement uncertainty 6 3. METHOD OF MEASUREMENT .................................................... 6 3.1. Applicable Standard 6 3.2. Limit 7 3.3. MPE Calculation Method 7 4. CONCLUSION ........................................................................ 9 Report No.: TRE1203004602 Page 4 of 9 Issued:2012-05-03 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ● Power Cable Length (m) : 3 Shield : Unshield Detachable : Detachable ○ Multimeter Manufacturer : / Model No. : / 1.2. Product Description The Quanzhou TYT Electronics Co., Ltd.’s Model:TH-9000UHF/TH-8900UHF/TH-9800UHF/TH-9900UHF or the “EUT” as referred to in this report; more general information as follows: Name of EUT Mobile Radio Model Number TH-9000UHF/TH-8900UHF/TH-9800UHF/TH-9900UHF Rated Output Power 45 Watt(46.53 dBm)/25 Watt(43.98 dBm)/10 Watt(40.00 dBm) Modilation Type FM for Analog Voice Emission Designator Analog 16K0F3E for 25KHz Channel Separation 11K50F3E for 12.5KHz Channel Separation Channel Separation Analog Voice 12.5KHz&25KHz only for IC 12.5KHz only for FCC Antenna Type External Frequency Range From 406.1MHz to 430MHz and 450 MHz to 470 MHz for IC From 400 MHz to 490 MHz for FCC Maximum Transmitter Power Analog/FCC 46.67 W for 12.5 KHz Channel Separation Analog/IC 45.71 W for 25 KHz Channel Separation 45.60 W for 12.5 KHz Channel Separation 1.3. Equipment under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 13.60 V Report No.: TRE1203004602 Page 5 of 9 Issued:2012-05-03 Test frequency list Modulation Type Channel Separation Test Channel Test Frequency Remark Analog/FM 12.5 KHz Low 406.5000 MHz Only for FCC Review Middle 450.5000 MHz High 489.5000 MHz 25 KHz Low 406.5000 MHz Only for IC Review (Not for FCC Review) Middle 429.5000 MHz Middle 450.5000 MHz High 469.0000 MHz 12.5 KHz Low 406.5000 MHz Middle 429.5000 MHz Middle 450.5000 MHz High 469.0000 MHz 1.4. Note 1. The EUT is a 400-490 MHz frequency band Mobile Radio (TH-9000UHF/TH-8900UHF/TH-9800UHF/TH- 9900UHF),The fun…

Text truncated - open the document above for the full version.

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No. ..................... : FCC ID . ............................................ : TRE1203004603 X24-MOBILE-U Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : May 03, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Quanzhou TYT Electronics Co., Ltd. Address............................................. : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China Test specification: Standard ........................................... : FCC Per 47 CFR 2.1091(b) TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mobile Radio Trade Mark ....................................... : Model/Type reference ....................... : TH-9000UHF Listed Models .................................. : TH-8900UHF/TH-9800UHF/TH-9900UHF Ratings.............................................. : DC 13.60 V Rated Output Power ......................... : 45 Watt(46.53 dBm)/25 Watt(43.98 dBm)/10 Watt(40.00 dBm) Modulation ......................................... FM Channel Separation ........................... 12.5KHz Frequency Range ............................. : From 400MHz to 490MHz for FCC Result ................................................ : Positive Report No.: TRE1203004603 Page 2 of 11 Issued:2012-05-03 FCC ID: X24-MOBILE-U MPE T E S T R E P O R T Test Report No. : TRE1203004602 May 03, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Radio Model /Type : TH-9000UHF Listed Models : TH-8900UHF/TH-9800UHF/TH-9900UHF Applicant : Quanzhou TYT Electronics Co., Ltd. Address : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China Manufacturer : Quanzhou TYT Electronics Co., Ltd. Address : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1203004603 Page 3 of 11 Issued:2012-05-03 FCC ID: X24-MOBILE-U Contents 1. MEASUREMENT UNCERTAINTY ................................................. 4 2. METHOD OF MEASUREMENT .................................................... 4 2.1. EME measurements made on trunk mounted antennas 4 2.1.1. External vehicle EME measurement .............................................................................. 4 2.1.2. Internal vehicle EME measurement ............................................................................... 4 2.2. EME measurements made on center roof mounted antennas 4 2.2.1. External vehicle EME measurement .............................................................................. 4 2.2.2. Internal vehicle EME measurement ............................................................................... 4 3. TEST RESULT ........................................................................ 5 4. CONCLUSION ........................................................................ 7 5. ANTENNA LOCATION DRAWING ................................................ 8 Report No.: TRE1203004603 Page 4 of 11 Issued:2012-05-03 FCC ID: X24-MOBILE-U 1. Measurement Uncertainty The information below presents an estimate of the possible errors that are associated with the measurement system. Description Error NARDA Survey Meter ± 3% Repeatability Accuracy ± 7% 2. Method of measurement 2.1. EME measurements made on trunk mounted antennas 2.1.1. External vehicle EME measurement (Antenna mounted in trunk center) With the survey meter and probe, take ten (10) measurements, at the standard test distance of 60 cm to the antenna, from the back of the vehicle in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a range starting at twenty (20) centimeters above ground and ending at 2.0 meters. 2.1.2. Internal vehicle EME measurement (Antenna mounted in trunk center) While rotating survey meter probe through 180 degrees to ensure that the highest level is found, scan the inside of the vehicle, both front and back seating areas, for the highest level in each location. After the highest level is found, scan vertically making two (2) additional measurements within an area approximately 40 cm wide (representing the width of a person) so as to have a total of three (3) measured points as indicated below that will be averaged . a) Head area b) Chest area c) Lower Trunk area 2.2. EME measurements made on center roof mounted antennas 2.2.1. External vehicle EME measurement With the survey meter and probe, take ten (10) measurements, at the standard test distance of 110 cm from the vehicle-mounted antenna, in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a rang…

Text truncated - open the document above for the full version.

FCC PART 90 & RSS-119 TEST REPORT FCC Part 90 and RSS-119 Report Reference No. ..................... : FCC ID. ............................................. : IC. ...................................................... TRE1203004601 X24-MOBILE-U 10337A-MOBILEU Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : May 02, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Quanzhou TYT Electronics Co., Ltd. Address............................................. : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China Test specification: Standard ........................................... : FCC Part 90/FCC Part 2 RSS-119/RSS-Gen/RSS-102 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mobile Radio Trade Mark ....................................... : Model/Type reference ....................... : TH-9000UHF Listed Models .................................. : TH-8900UHF/TH-9800UHF/TH-9900UHF Ratings.............................................. : DC 13.60 V Rated Output Power ......................... : 45 Watt(46.53 dBm)/25 Watt(43.98 dBm)/10 Watt(40.00 dBm) Modulation ......................................... FM Channel Separation ........................... 12.5KHz only for FCC&both 12.5KHz and 25KHz only for IC Frequency Range ............................. : From 406.1MHz to 430MHz and 450MHz to 470MHz for IC From 400MHz to 490MHz for FCC Result ................................................ : Positive Report No.: TRE1203004601 Page 2 of 142 Issued:2012-05-02 FCC ID: X24-MOBILE-U IC: 10337A-MOBILEU T E S T R E P O R T Test Report No. : TRE1203004601 May 02, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Radio Model /Type : TH-9000UHF Listed Models : TH-8900UHF/TH-9800UHF/TH-9900UHF Applicant : Quanzhou TYT Electronics Co., Ltd. Address : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China Manufacturer : Quanzhou TYT Electronics Co., Ltd. Address : Bldg.22, Daxiamei Industrial Area,Nan'an,Quanzhou,Fujian 362300,China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1203004601 Page 3 of 142 Issued:2012-05-02 FCC ID: X24-MOBILE-U IC: 10337A-MOBILEU Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 7 2.10. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. Configuration of Tested System 9 3.5. Discription of Tested Modes 9 3.6. Statement of the measurement uncertainty 9 3.7. Test Description 10 3.8. Equipments Used during the Test 10 4. TEST CONDITIONS AND RESULTS 12 4.1. Conducted Emissions 12 4.2. Occupied Bandwidth & Emission Mask 17 4.3. Transmitter Radiated Spurious Emssion 36 4.4. Spurious Emssion on Antenna Port 43 4.5. Modulation Charcateristics 85 4.6. Frequency Stability 90 4.7. Maximum Transmitter Power 92 4.8. Transmitter Frequency Behavior 110 4.9. Receiver Radiated Spurious Emssion 113 4.10. Receiver Conducted Spurious Emssion 123 5. TEST SETUP PHOTOS OF THE EUT 135 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 137 Report No.: TRE1203004601 Page 4 of 142 Issued:2012-05-02 FCC ID: X24-MOBILE-U IC: 10337A-MOBILEU 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. FCC Rules Part 15 Subpart B: RADIO FREQUENCY DEVICES-Unintertional Radiators FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS RSS-119 Issue 11 June 2011: Radio Transmitters and Receivers Operating in the Land Mobile and Fixed Services in the Frequency Range 27.41-960 MHz RSS-Gen Issue 3 December 2010: General Requirements and Information for the Certification of Radio Apparatus Report No.: TRE1203004601 Page 5 of 142 Issued:2012-05-02 FCC ID: X24-MOBILE-U IC: 10337A-MOBILEU 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Apr 02, 2012 Testing commenced on : Apr 02, 2012 Testing concluded on : May 02, 2012 2.2. Product Description The Quanzhou TYT Electronics Co., Ltd.’s Model:TH-9000UHF/TH-8900UHF/TH-9800UHF/TH-9900UHF or the “EUT” as referred to in this report; more general information as follows: Name of EUT Mobile Radio Model Number TH-9000UHF/TH-8900UHF/TH-9800UHF/TH-9900UHF Rated Output Power 45 Watt(46.53 dBm)/25 Watt(43.98 dBm)/10 Wat…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
