X25-GPS150MVLBS CDMA Mobile Unit

CDMA GPS Mobile Terminal Technical Specification & Install Manual Model: GPS150MV JOA Telecom Co., Ltd 2 CONTENTS 1. General Specifications ......................... 3 2. Appearance ........................... 4 3. Install Manual .......................... 5 4. Safety Information .......................... 9 3 1. General Specifications Model Name GPS150MV Dimension 68(W) x 74(H) x 25(D)mm Weight 195g Operation Temp. -30°c ~ +85°c Technology CDMA 800MHz Back-up Battery Li-lon 1200mAH Antenna Internal Antenna 4 2. Appearance Red cable: Positive (+) pole Black cable: Negative (-) pole LCD Power Lamp Charging Adaptor 5 3. Install Manual The installation location can be changed according to the user’s preferences. This manual recommends user to install using “the Cigar jack”. • Disassembling center fascia Appearance when the center fascia is removed completely • Connecting power supply Use the jack connected to the cigar jack for power supply. 6 • Peel off the co ver of the wire connected to the rear side of the cigar jack. Yellow color (colored) is positive(+) pole, and black (colorless) negative(-) pole. The center wire is a ground wire. • Preparing the product Strip off the wire of the product by approximately 3 cm. Strip off (+) and (–) wire end of the product and twist the inside cooper cable to one direction as shown in the figure. • Wind the striped copper cable of the pro duct wire around the connection part wire of the cigar jack that was striped in Figure. At this time, watch out the (+) and (–) polarity. 7 • The product is connected no rmally, if you can see the light turned on the product, whe n all wire connectio ns are completed and the car key is turned to the ACC position. • Finish the insulated wires by winding them with a tape neatly as shown in the figure, in order to prevent an electric leakage or short circuit. • Push the product and wires toward the directio n shown in the figure. • Move the product, which is pushed inside the center fascia as shown in the figu re, to the back of the c enter until it reaches the glove box in front of the passenger seat. (Dotted line shows the connection diagram of product wires) 8 • When the glo ve box is opened, press the both e nds of the glove box to completely open it. • Remove the tape attached to the rear side of the product, as shown in the figure. Installation 1 Installation 2 • Installation Install the product at the proper location in the glov e bo x where dust w as removed and cleaned. The product can be fixed using the screw grooves at both sides of the product. (At this time, attach the pr oduct in s uch way that the LCD window faces upwards for proper GPS reception.) • Finishing To asse mble the glo ve box and center fascia, do “Opening glove box” in Figure 5 and “Disassembling center fasc ia” in reverse order. When the product is installed, the product is not seen by the users with their naked eyes . 9 4. Safety Information Product care and maintenance • Use only Manufactur er-approved accessories; otherwise, it could damage this unit and may be dangerous. • Do not disassemble this unit. Take it to a qualified service technician when repair work is required. • The unit should be kept away from heat sources. • Do not drop. • Do not subject this unit to mechanical vibration or shock. • This unit is not water-resistant. Keep it dry. If the unit is immer sed in “Water” or used in a very humid place, t he parts or cir cuit may get damages, causin g an electric shock or failur e. Not be given free se rvice for any defect which is caused due to water. Qualified service • Only qualified service personnel may install or repair your device. 10 FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to p rovide reasonable protec tion against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, ther e is n o g uarantee that interference will n ot occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o ff and o n, the u ser is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technical for help. WARNING: Th is eq uipment may generate or use radio fre quency energy. Changes or modifications to this equipment may cause harmful interference u nless the mod ifications ar e expressly ap proved i n the instruction manual. The user c ould lose the authority to operate this equipment if an unauthorized change or modification is made. During tansmitter operation, in order to meet RF Maximum permissible Exposure Safety Guidelines, a minimum distance of 20Cm shall be maintained between antenna and personnel. CE Hereby, JOA TELECOM CO., LTD. declares that this GPS150MV is in compliance with the esse ntial re quirements an d o ther relevant provisions of directive 1999/5/EC. 11 Model: GPS150MV (REV 1.0)

JOA TELECOM CO., LTD. 1007, SICOX Tower, 513-14, Sangdeawon-dong, Jungwon-gu, Sungnam City, Kyunggi-Do, 462-806, Korea Date: December 22, 2009 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harvey sung Director REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

JOA TELECOM CO., LTD. 1007, SICOX Tower, 513-14, Sangdeawon-dong, Jungwon-gu, Sungnam City, Kyunggi-Do, 462-806, Korea Date: December 22, 2009 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Harvey Sung of DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: X25-GPS150MV including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from JOA TELECOM CO., LTD. Sincerely, HOON AHN Principal Research Engineer

JOA TELECOM CO., LTD. 1007, SICOX Tower, 513-14, Sangdeawon-dong, Jungwon- gu, Sungnam City, Kyunggi-Do, 462-806, Korea Date: December 22, 2009 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: X25-GPS150MV To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, JOA TELECOM CO., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give JOA TELECOM CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description File name PERMANENT 1 Block Diagram Block Diagram_X25-GPS150MV.pdf 2 Operational Description Operational Description_ X25-GPS150MV.pdf 3 Schematics Schematic_ X25-GPS150MV.pdf 4 Part Lists Part List_ X25-GPS150MV.pdf SHORT-TERM 5 External Photos Ext Photo_ X25-GPS150MV.pdf 6 Internal Photos Int Photo_ X25-GPS150MV.pdf 7 Test-Setup Photos Test Photo_ X25-GPS150MV.pdf 8 Users Manual User Manual_ X25-GPS150MV.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, HOON AHN Principal Research Engineer

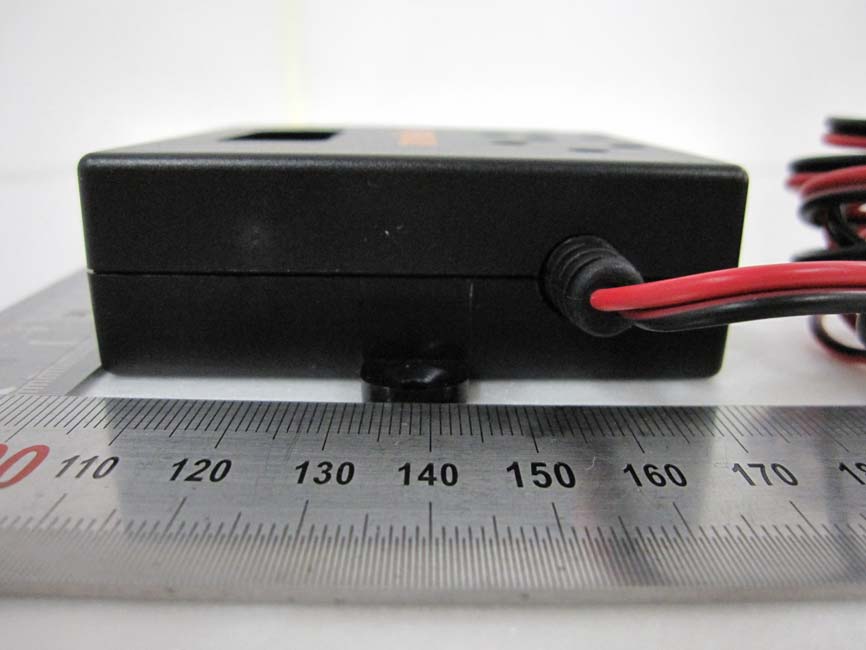

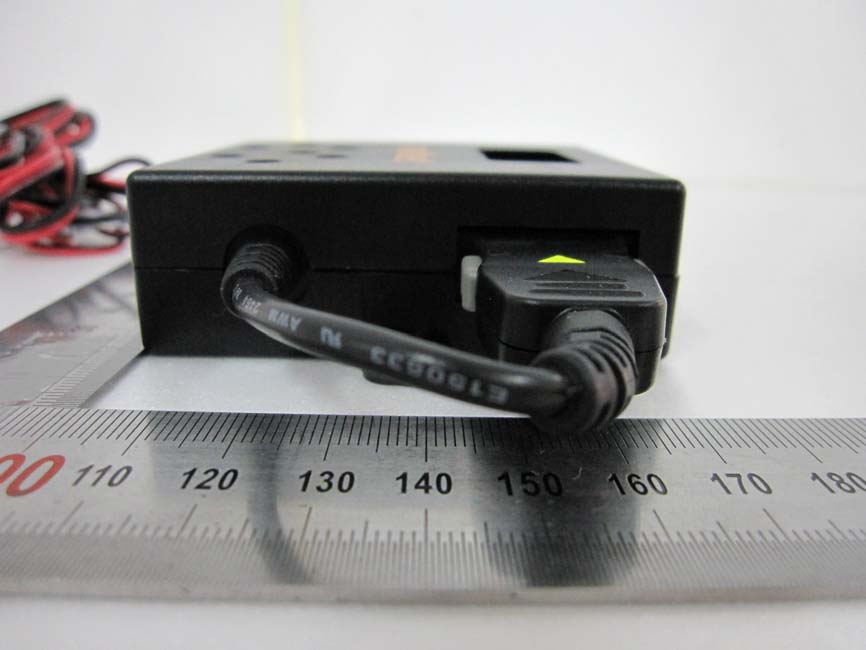

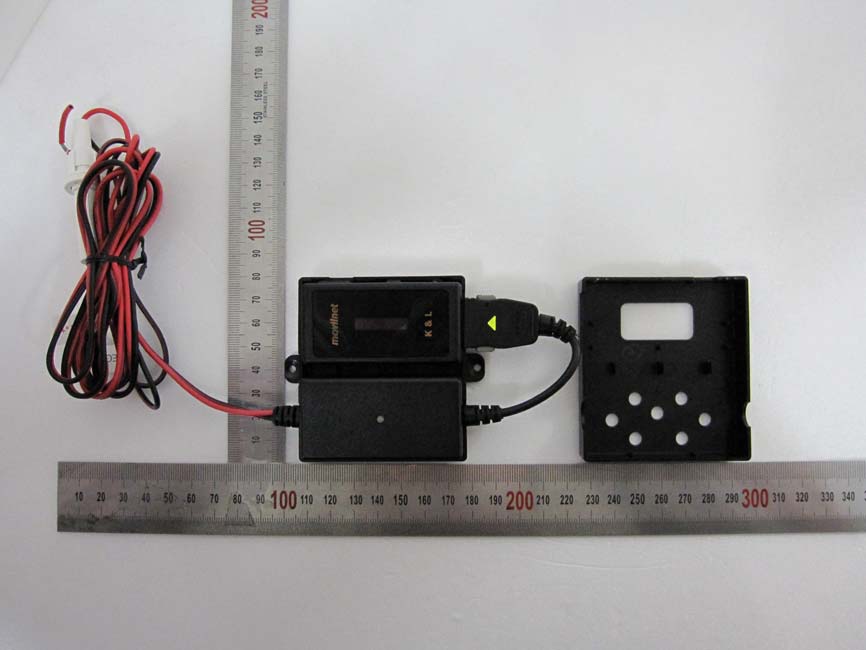

FCCID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 1 FCCID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 2 FCCID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 3 FCCID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 4 FCCID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 5 FCCID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 6 FCCID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 7

FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase

FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 1 FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 2 FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 3 FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 4 FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 5 FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 6

Applicant : JOA TELECOM CO., LTD. FCC ID: X25-GPS150MV TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this LBS CDMA Mobile Unit All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

FCC ID: X25-GPS150MV MPE Calculations for CDMA 1x The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (ERP) was tested according to ANSI/TIA/EIA-603-C-2004. The maximum peak radiated output power (ERP) is recorded and EIRP is calculated as follows. ERP = 24.08dBm(256mW) EIRP = ERP + 2.15dB = 24.08 + 2.15 = 26.23(420mW) Power density at the specific separation: S = (EIRP)/(4R 2 π) S = (420) / (4 * 20 2 * π) S = 0.08 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) EIRP = Maximum Peak radiated output power(mW) R = Distance to the center of the radiation of the antenna (20cm) Conclusion: The Maximum permissible exposure (MPE) for the general Population/Uncontrolled is 0.55 mW/cm 2 (=f/1500=824/1500).The power density at 20cm does not exceed the 0.55 mW/cm 2 . Therefore, the exposure condition of this EUT is compliant with FCC rules.

DEMC#DR50110912M Page 1 of 19 Copyright ○ c 2009, DIGITAL EMC Co., Ltd. DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: December 3 ~ 22, 2009 Test Report S/N: DR50110912M Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Non-Broadcast Station Transmitter(TNB) FCC Rule Part(s) : §22(H), §2 EUT Type : LBS CDMA Mobile Unit Model name : GPS150MV Serial number : Identical prototype TX Frequency Range : 824.70 ~848.31 MHz RX Frequency Range : 869.70 ~893.31 MHz Max. RF Output Power : 0.256 W ERP(24.08 dBm) Emission Designators: : 1M26F9W Date of Issue : December 24, 2009 The Test results relate only to the tested sample. It is not allowed to copy this report even partly without the allowance of DIGITAL EMC CO., LTD. X25-GPS150MV JOA TELECOM CO., LTD. DEMC#DR50110912M Page 2 of 19 Copyright ○ c 2009, DIGITAL EMC Co., Ltd. TABLE OF CONTENTS ◈ AUTHORIZATION LETTER ◈ CONFIDENTIALITY LETTER(S) ◈ TEST REPORT 1.1 SCOPE 3 2.1 GENERAL INFORMATION 4 3.1 DESCRIPTION OF TESTS 5 4.1 TEST DATA 8 4.1.1 CONDUCTED OUTPUT POWER 8 4.1.2 EFFECTIVE RADIATED POWER OUTPUT 9 4.1.3 CDMA RADIATED MEASUREMENTS 10 4.1.4 FREQUENCY STABILITY(CDAM) 13 5.1 PLOTS OF EMISSIONS 15 6.1 LIST OF TEST EQUIPMENT 16 7.1 SAMPLE CALCULATIONS 18 8.1 CONCLUSION 19 ◈ TEST PLOTS ◈ FCC ID LABEL & LOCATION ◈ TEST SETUP PHOTOGRAPHS ◈ EXTERNAL PHOTOGRAPHS ◈ INTERNAL PHOTOGRAPHS ◈ BLOCK DIAGRAM(S) ◈ SCHEMATIC DIAGRAM(S) ◈ OPERATIONAL DESCRIPTION ◈ PARTS LI S T ◈ PARTS LOCATION ◈ USER’S MANUAL DEMC#DR50110912M Page 3 of 19 Copyright ○ c 2009, DIGITAL EMC Co., Ltd. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information  FCC ID:  Quantity:  Emission Designators:  Tx Freq. Range:  Rx Freq. Range:  Max. Power Rating:  FCC Classification(s):  Equipment (EUT) Type:  Frequency Tolerance:  FCC Rule Part(s):  Dates of Tests:  Place of Tests:  Test Report S/N: X25-GPS150MV Quantity production is planned 1M26F9W 824.70 ~ 848.31 MHz 869.70 ~ 893.31 MHz 0.256 W ERP(24.08 dBm) Licensed Non-Broadcast Station Transmitter(TNB) LBS CDMA Mobile Unit  0.00025 % (2.5ppm) §22(H), §2 December 3 ~ 22, 2009 DIGITAL EMC DR50110912M Applicant: JOA TELECOM CO., LTD. Address: 1007, SICOX Tower, 513-14, Sangdeawon-dong, Jungwon-gu, Sunganam-City, Kyunggi-Do, 462-806, Korea Attention: HOON AHN DEMC#DR50110912M Page 4 of 19 Copyright ○ c 2009, DIGITAL EMC Co., Ltd. 2.1. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail: [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. Tested by: Engineer December 24, 2009 Sun-Kyu Ryu Date Name Signature Reviewed by: Manager December 24, 2009 W. J . L e e Date Name Signature Applicant: Company name : JOA TELECOM CO., LTD. Address : 1007, SICOX Tower, 513-14, Sangdeawon-dong, Jungwon-gu, Sungnam City, Kyunggi-Do, 462-806, Korea Date of order : November 18, 2009 DEMC#DR50110912M Page 5 of 19 Copyright ○ c 2009, DIGITAL EMC Co., Ltd. 3.1 DESCRIPTION OF TESTS 3.1.1 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 3.1.2 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 3.1.3 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to a frequency including its 10 th harmonic. 3.1.5 Radiation Spurious and Harmonic Emissions Radiation and harmonic emissions are measured outdoors at our 3-meter test range. The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator with the level of the signal generator being adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. DEMC#DR50110912M Page 6 of 19 Copyright ○ c 2009, DIGITAL EMC Co., Ltd. 3.1 DESCRIPTION OF TESTS (Continued...) 3.1.6 Frequency Stability/Temperature Variation. The frequency stability of the transmitter is measured by: a) Temperature: The temperature is varied from -30°C to +60°C increments using an environmental chamber. b) Primary Supply Voltage: The primary supply voltage is varied from 85% to 115% of the normal voltage for non hand-carried battery equipment. For hand-carried, battery-powered equipment, primary supply voltage is reduced to the battery operating end …

Text truncated - open the document above for the full version.

FCC ID: X25-GPS150MV Copyright Ⓒ 2009, DIGITAL EMC Co., Ltd. View 1
