X27-MA22G-1Base Station

Ondas Networks Inc. | 165 Gibraltar Court, Sunnyvale, CA 94089 | (888) 350-9994 | ondas.com Mars Platform User and Installation Guide Document Version 1.4 July 2020 Warning: Never power on a Mars radio without a load on the RF connector. Page 2 of 9 June 2020 Table of Contents 1 FCC Compliance ............................................................................................................................... 3 2 FCC Exposure Statement .................................................................................................................. 3 3 System Overview ............................................................................................................................. 4 4 Physical Installation ......................................................................................................................... 6 4.1 Introduction ..................................................................................................................................... 6 4.2 Mars Enclosure ................................................................................................................................ 6 4.2.1 Specifications ................................................................................................................................... 6 4.2.2 Product Overview ............................................................................................................................ 7 4.2.3 Connection Descriptions .................................................................................................................. 8 4.2.4 Mounting Guidelines........................................................................................................................ 9 Page 3 of 9 June 2020 1 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Ondas Networks could void the user’s authority to operate the equipment. 2 FCC Exposure Statement This equipment complies with the FCC RF radiation exposure limits set forth for a controlled environment. This transmitter must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must be at least 55 cm from the user and must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Ondas Networks may void the user’s authority to operate the equipment. Page 4 of 9 June 2020 3 System Overview The Mars platform employs Ondas Networks’ FullMAX technology FullMAX is a multi‐cell, Point‐to‐Multipoint (PtMP) broadband wireless system based on the IEEE 802.16 standard with modifications to enable its operation in a wide range of frequencies and a wide range of channel sizes. The system is used to establish a private, broadband wireless service for mission critical industries. It supports both fixed and mobile applications. The main characteristics of the FullMAX System include the following: FullMAX employs HD-FDD or TDD framing to provide greater flexibility and to maximize spectrum utilization. FullMAX is capable of operating in any frequency band between 40 MHz and 6 GHz and in any channel size between 12.5 kHz and 5 MHz. FullMAX can be configured to operate in a downlink to uplink ratio to support symmetrical, asymmetrical and reverse asymmetrical applications. The FullMAX system offers the private system operator wide area coverage by leveraging the following: • High transmit power from both the Base Station and Remote Stations • Exceptional receiver sensitivity • Superior propagation due to the operation in narrower channel sizes and low band frequencies The FullMAX system offers excellent frequency utilization through the following capabilities: • Adaptive Modulation and Coding per link in both the downlink and uplink • Optimization of the downlink and uplink ratio for the user’s main applications. For example, in the case of SCADA applications, the FullMAX frame is configured as reverse asymmetrical, i.e., more bandwidth is allocated to the uplink than to the downlink. • Modifications to the standard air interface protocol to minimize MAC layer overhead. • Employ Band-AMC subcarrier allocation scheme in both uplink and downlink direction to maximize the percentage of data transport subcarriers. • Packet Header Suppression (PHS) with the following characteristics: o Compressible header field values are learned automatically with no need for manual configurations. o Support for multiple compressible values for the same header fields. As a result, PH…

Text truncated - open the document above for the full version.

QA-FR-170-B 7/29/2014 Ondas Networks Inc. | 165 Gibraltar Court, Sunnyvale, CA 94089 | (888) 350‐9994 | ondas.com Letter of Authorization June 25 th , 2020 Subject: Agent Authorization To whom it may concern: I, Stewart Kantor, the undersigned, hereby authorizes Guy Simpson, Chief Operating Officer in Ondas Networks Inc.to act on my behalf in all matters relating to submission application for Equipment authorization, including the signing of all documents relating to these matters. Please contact in with me if you have any concern. Sincerely Yours, Stewart Kantor Ondas Networks Inc. 165 Gibraltar Court Sunnyvale, CA 94089

QA-FR-172-A FCC Confidential Authorization 2020/06/25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: X27- MA22G-1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Ondas Networks Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part List/BOM • Tune up Procedure As well as short-term confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Guy Simpson – Chief Operating Officer Tel: (669) 350-0440 Email: [email protected] 165 Gibraltar Court, Sunnyvale, CA, 94089

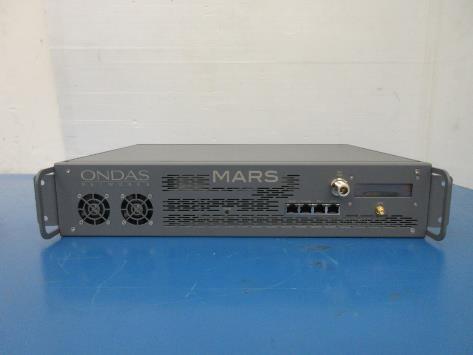

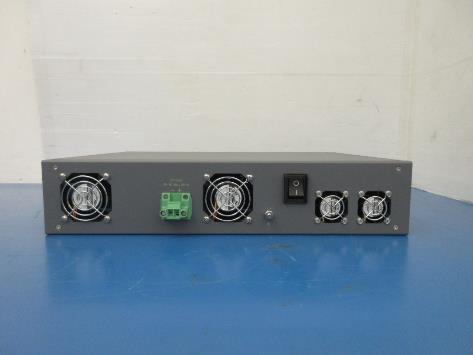

Ondas Networks Inc. FCC ID: X27- MA22G-1 Annex B (Normative) - EUT External Photographs 1.1 EUT External Photograph – Front View 1.2 EUT External Photograph – Rear View Ondas Networks Inc. FCC ID: X27- MA22G-1 1.3 EUT External Photograph – Top View 1.4 EUT External Photograph – Bottom View Ondas Networks Inc. FCC ID: X27- MA22G-1 1.5 EUT External Photograph – Left View 1.6 EUT External Photograph – Right View

FCC Label Location (Rear Panel) FCC Label Detail

Ondas Networks Inc. FCC ID: X27- MA22G-1 EUT Internal Photographs 1.1 EUT – Internal Top View 1.2 Power Supply Unit (PSU) – Top View Ondas Networks Inc. FCC ID: X27- MA22G-1 1.3 Power Supply Unit (PSU) – Bottom View 1.4 Communication Base Board (CBB) – Top View Ondas Networks Inc. FCC ID: X27- MA22G-1 1.5 Communication Base Board (CBB) – Bottom View 1.6 Radio Frequency Module (RFM) – Top View Ondas Networks Inc. FCC ID: X27- MA22G-1 1.7 Radio Frequency Module (RFM) – Bottom View 1.8 Transmit – Receive Switch (TRS) – Top View Ondas Networks Inc. FCC ID: X27- MA22G-1 1.9 Transmit – Receive Switch (TRS) – Bottom View

Ondas Networks Inc. FCC ID: X27-MA22G-1 Report Number: R2004231 Page 11 of 77 FCC Part 22G Test Report 4 FCC §1.1307(b) (1) & §2.1091 - RF Exposure 4.1 Applicable Standards FCC §2.1091, (a) Requirements of this section are a consequence of Commission responsibilities under the National Environmental Policy Act to evaluate the environmental significance of its actions. See subpart I of part 1 of this chapter, in particular §1.1307(b). According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 1842/f 4.89/f *900/f 2 30 30-300 61.4 0.163 1.0 30 300-1500 f/300 30 1500-100,000 5 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ondas Networks Inc. FCC ID: X27-MA22G-1 Report Number: R2004231 Page 12 of 77 FCC Part 22G Test Report 4.3 Test Results Maximum average output power at antenna input terminal (dBm): 47 Maximum average output power at antenna input terminal (mW): 50118.7 Prediction frequency (MHz): 454.675 Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Prediction distance (cm): 51.22 The average output power was derived from the maximum peak turn-up power (50 dBm) and duty cycle (50%). The average output power = peak output power – 10*log(1/duty cycle). Results In order to pass the controlled exposure limit of 1.52 mW/cm 2 with the maximum turn-up power being 50 dBm, 50% duty cycle, and antenna gain of 0 dBi, the EUT must have a separation distance of at least 51.22 cm.
