X27-VNB22G-1Base Station

Ondas Networks Inc.
Base Station - FCC ID X27-VNB22G-1 - Ondas Networks Inc.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Aug 11, 2020
Application Purpose
Original Equipment
Date of Application
Aug 11, 2020
Equipment Note
Base Station
Frequency Range
454.67500000 - 454.97500000
Company
Ondas Networks Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Ondas Networks Inc. | 165 Gibraltar Court, Sunnyvale, CA 94089 | (888) 350-9994 | ondas.com Venus Base Station User and Installation Guide Document Version 1.0 August 2020 Warning: Never power on a Venus radio without a load on the RF connector. Page 2 of 9 August 2020 Table of Contents 1 FCC Compliance ............................................................................................................................... 3 2 FCC Exposure Statement .................................................................................................................. 3 3 System Overview ............................................................................................................................. 4 4 Physical Installation ......................................................................................................................... 6 4.1 Introduction ..................................................................................................................................... 6 4.2 Venus Enclosure ............................................................................................................................... 6 4.2.1 Specifications ................................................................................................................................... 6 4.2.2 Product Overview ............................................................................................................................ 7 4.2.3 Connection Descriptions .................................................................................................................. 8 4.2.4 Mounting Guidelines........................................................................................................................ 9 Page 3 of 9 August 2020 1 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Ondas Networks could void the user’s authority to operate the equipment. 2 FCC Exposure Statement This equipment complies with the FCC RF radiation exposure limits set forth for a controlled environment. This transmitter must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must be at least 31 meters from the user and must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Ondas Networks may void the user’s authority to operate the equipment. Page 4 of 9 August 2020 3 System Overview The Venus platform employs Ondas Networks’ FullMAX technology FullMAX is a multi‐cell, Point‐to‐Multipoint (PtMP) broadband wireless system based on the IEEE 802.16 standard with modifications to enable its operation in a wide range of frequencies and a wide range of channel sizes. The system is used to establish a private, broadband wireless service for mission critical industries. It supports both fixed and mobile applications. The main characteristics of the FullMAX System include the following: FullMAX employs HD-FDD or TDD framing to provide greater flexibility and to maximize spectrum utilization. FullMAX is capable of operating in any frequency band between 40 MHz and 6 GHz and in any channel size between 12.5 kHz and 5 MHz. FullMAX can be configured to operate in a downlink to uplink ratio to support symmetrical, asymmetrical and reverse asymmetrical applications. The FullMAX system offers the private system operator wide area coverage by leveraging the following: • High transmit power from both the Base Station and Remote Stations • Exceptional receiver sensitivity • Superior propagation due to the operation in narrower channel sizes and low band frequencies The FullMAX system offers excellent frequency utilization through the following capabilities: • Adaptive Modulation and Coding per link in both the downlink and uplink • Optimization of the downlink and uplink ratio for the user’s main applications. For example, in the case of SCADA applications, the FullMAX frame is configured as reverse asymmetrical, i.e., more bandwidth is allocated to the uplink than to the downlink. • Modifications to the standard air interface protocol to minimize MAC layer overhead. • Employ Band-AMC subcarrier allocation scheme in both uplink and downlink direction to maximize the percentage of data transport subcarriers. • Packet Header Suppression (PHS) with the following characteristics: o Compressible header field values are learned automatically with no need for manual configurations. o Support for multiple compressible values for the same header fiel…

Text truncated - open the document above for the full version.

Cover Letter(s)

QA-FR-170-B 7/29/2014 Ondas Networks Inc. | 165 Gibraltar Court, Sunnyvale, CA 94089 | (888) 350‐9994 | ondas.com Letter of Authorization June 25 th , 2020 Subject: Agent Authorization To whom it may concern: I, Stewart Kantor, the undersigned, hereby authorizes Guy Simpson, Chief Operating Officer in Ondas Networks Inc.to act on my behalf in all matters relating to submission application for Equipment authorization, including the signing of all documents relating to these matters. Please contact in with me if you have any concern. Sincerely Yours, Stewart Kantor Ondas Networks Inc. 165 Gibraltar Court Sunnyvale, CA 94089

Cover Letter(s)

QA-FR-172-A FCC Confidential Authorization 2020-07-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: X27- VNB22G-1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Ondas Networks Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part List/BOM • Tune up Procedure As well as short-term confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Guy Simpson - COO (669) 350-0440 [email protected] 165 Gibraltar Court, Sunnyvale, CA, 94089

External Photos

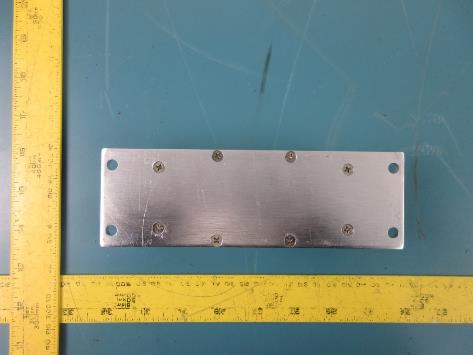

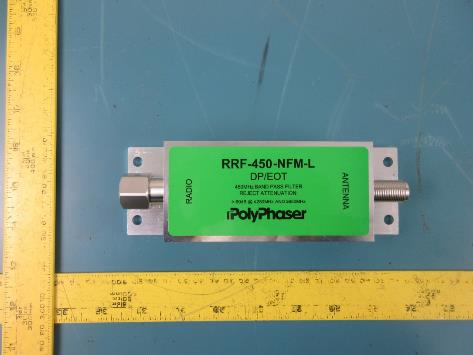

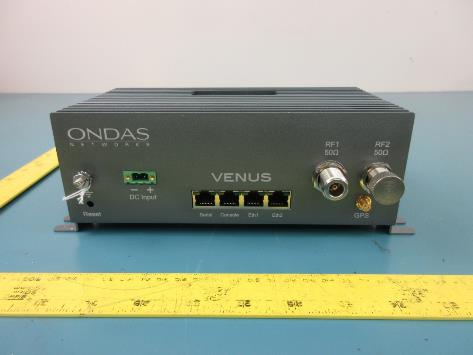

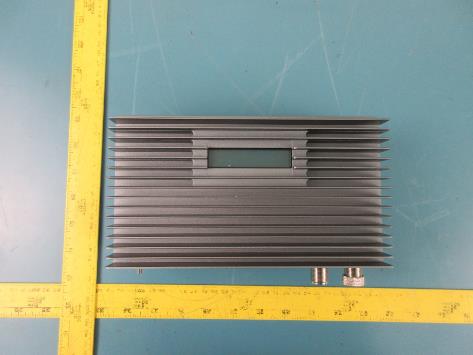

Ondas Networks Inc. FCC ID: X27-VNB22G-1 EUT External Photographs 1.1 EUT – Side View 1.2 EUT – Top View Ondas Networks Inc. FCC ID: X27-VNB22G-1 1.3 EUT External Photograph – Main Unit Front View 1.4 EUT External Photograph – Main Unit Rear View Ondas Networks Inc. FCC ID: X27-VNB22G-1 1.5 EUT External Photograph – Main Unit Top View 1.6 EUT External Photograph – Main Unit Bottom View Ondas Networks Inc. FCC ID: X27-VNB22G-1 1.7 EUT External Photograph – Main Unit Left View 1.8 EUT External Photograph – Main Unit Right View Ondas Networks Inc. FCC ID: X27-VNB22G-1 1.9 Band Pass Filter – Front View 1.10 Band Pass Filter – Rear View Ondas Networks Inc. FCC ID: X27-VNB22G-1 1.11 Band Pass Filter – Top View 1.12 Band Pass Filter – Bottom View Ondas Networks Inc. FCC ID: X27-VNB22G-1 1.13 Band Pass Filter – Left View 1.14 Band Pass Filter – Right View
