X3I-WSRT2Wireless Sensor Reader TempTrackr

Page 1 of 2 Vectron International GmbH, Landstrasse, 74924 Neckarbischofsheim, Germany | Phone: (+49) 7268-801-100 | www.sengenuity.com Planar Inverted F-Shaped Antenna ANT-PIF-0001 Key Features • Working Frequency 433MHz • Excellent Radiation Pattern • Designed to operate with WSR-T2 Reader Electronic • Optimized Reading Distance with TempTrackr Sensor Modules Typical Applications • Use in Switchgear or Breaker Cabinet Performance Speci! cations 1 ParameterMinTypicalMaxUnitsCondition Center frequencies [f s ] 433MHz Bandwidth 5% Gain+3.5dBi VSWR1.3at center frequency Impedance50ohm Operating temperature range -40+85°C Electrical Strength of the cover30kV/mm Antenna Radiation Pattern Gain Total Page 2 of 2 Vectron International GmbH, Landstrasse, 74924 Neckarbischofsheim, Germany | Phone: (+49) 7268-801-100 | www.sengenuity.com Dimensions in mm [inch] for PIF antenna Marking on label: SENGENUITY part number Date Code Example: SENGENUITY ANT-PIF-0001 AYYWW Reliability • Tempeature cycling: 1000 times from -40° to +85 • Life-time: Min. 10 years DISCLAIMER Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information. REV. 08-Aug-2014 Product status and speci" cations are subject to change. Ordering Information Installation • 1st option: screw mount, use 3 x 5mm holes • 2nd option: use clip for TS-35 rail mount • SMA female connector • Recommended antenna cable: RG-316 or lower loss Notes 1. Measured at 25°C Item NumberDescription 721200051ANT-PIF-0001 721200076ANT-PIF-0001 + Cable-RG316-2m-SMA

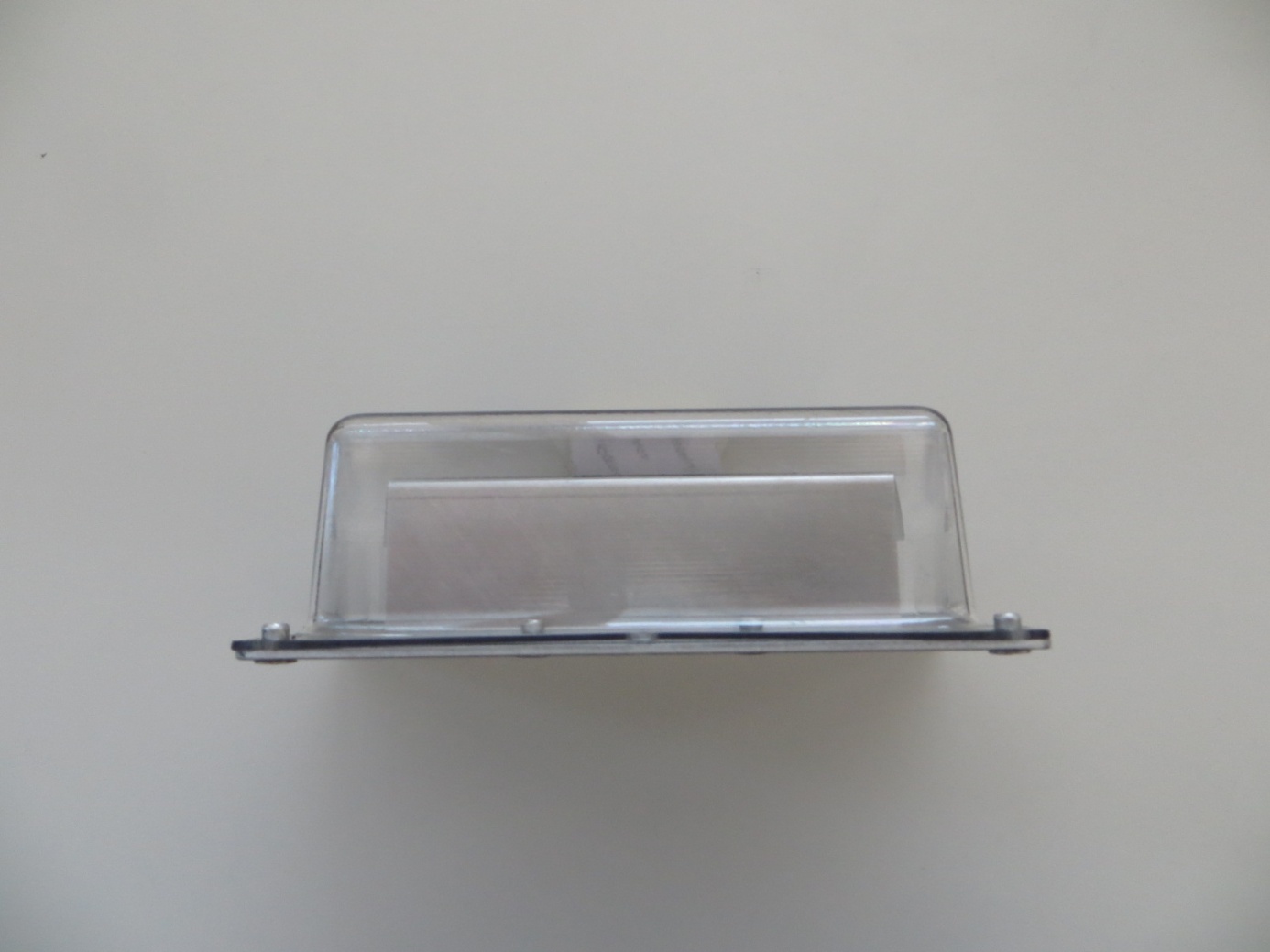

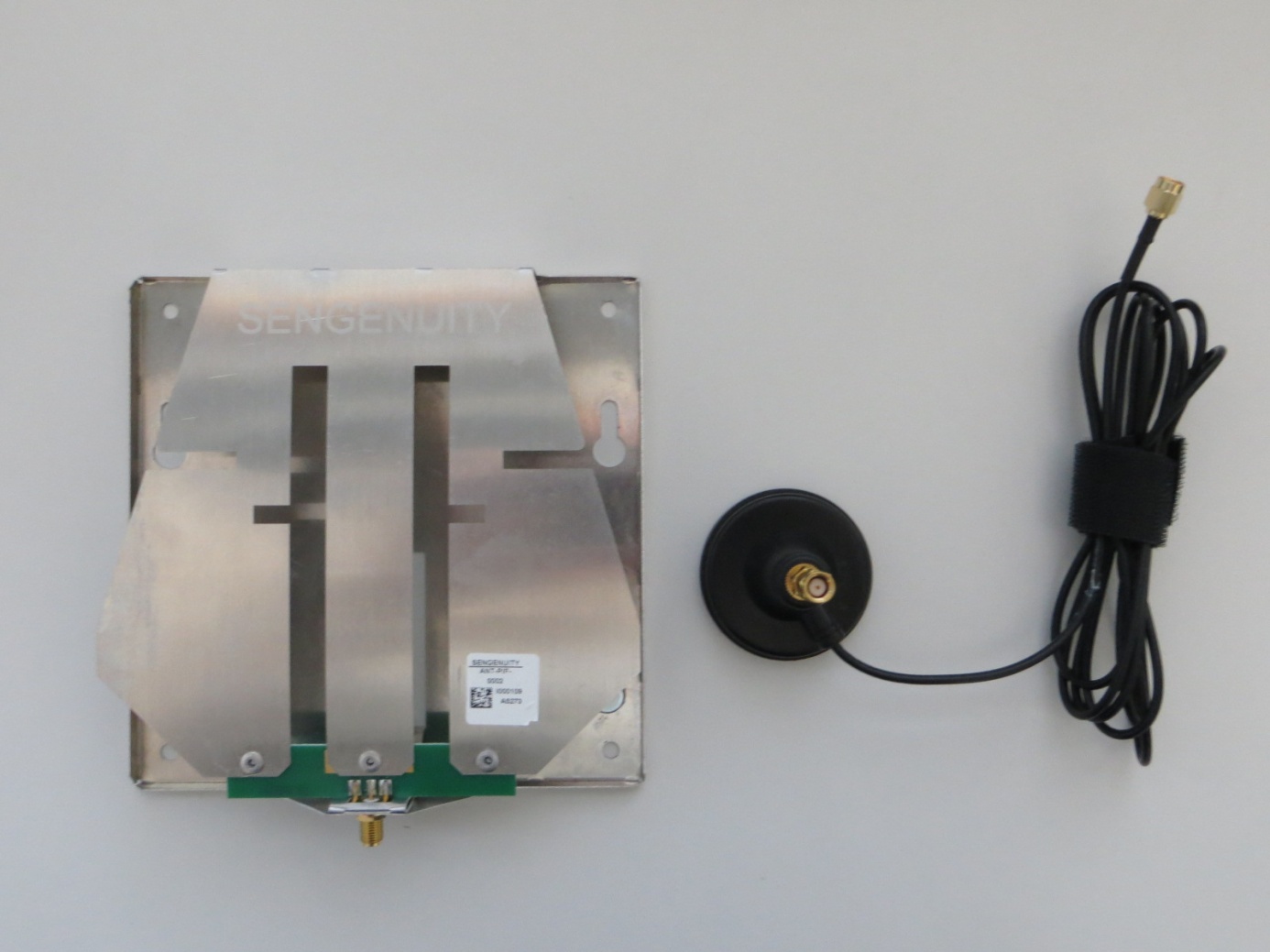

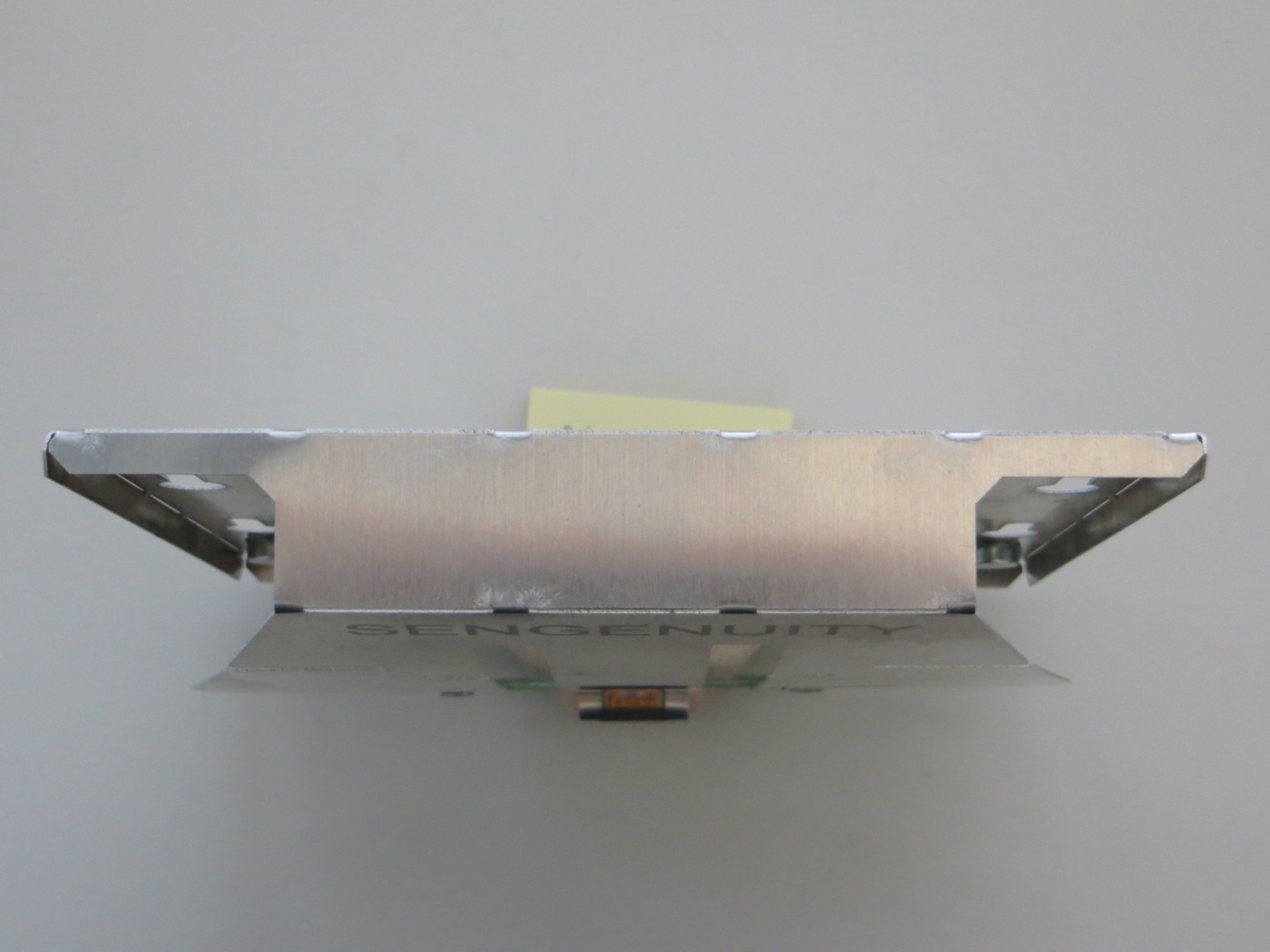

Page 1 of 2 Vectron International GmbH, Landstrasse, 74924 Neckarbischofsheim, Germany | Phone: (+49) 7268-801-100 | www.sengenuity.com Planar Inverted F-Shaped Antenna ANT-PIF-0002 Key Features • Working Frequency 433MHz • Excellent Radiation Pattern • Designed to operate with WSR-T2 Reader Electronic • Optimized Reading Distance with TempTrackr Sensor Modules • Magnet Mount for fast Positioning • Compact Size 151 x 151 x 33mm Typical Applications • Use in Switchgear or Breaker Cabinet Performance Speci! cations 1 ParameterMinTypicalMaxUnitsCondition Center frequencies [f s ] 433MHz Bandwidth 5% Gain+3.5dBi VSWR1 ) 1.3at center frequency Impedance50ohm Operating temperature range -40+85°C Antenna Radiation Pattern Gain Total Page 2 of 2 Vectron International GmbH, Landstrasse, 74924 Neckarbischofsheim, Germany | Phone: (+49) 7268-801-100 | www.sengenuity.com Dimensions in mm for PIF Antenna Marking on label: SENGENUITY part number Date Code Example: SENGENUITY ANT-PIF-0002 AYYWW Reliability • Tempeature cycling: 1000 times from -40° to +85 • Life-time: Min. 10 years DISCLAIMER Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information. REV. 28-July-2014 Product status and speci" cations are subject to change. Ordering Information
















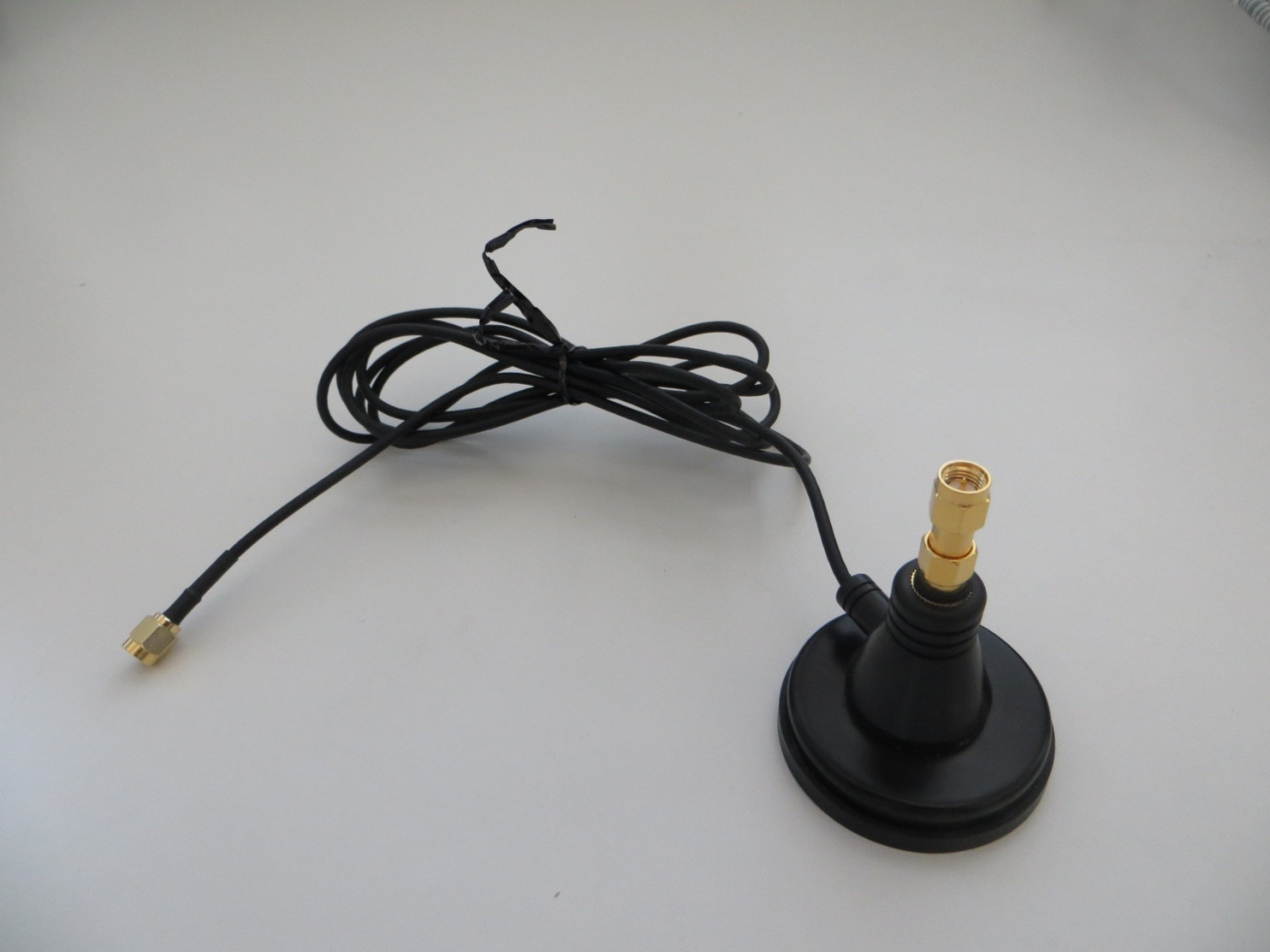

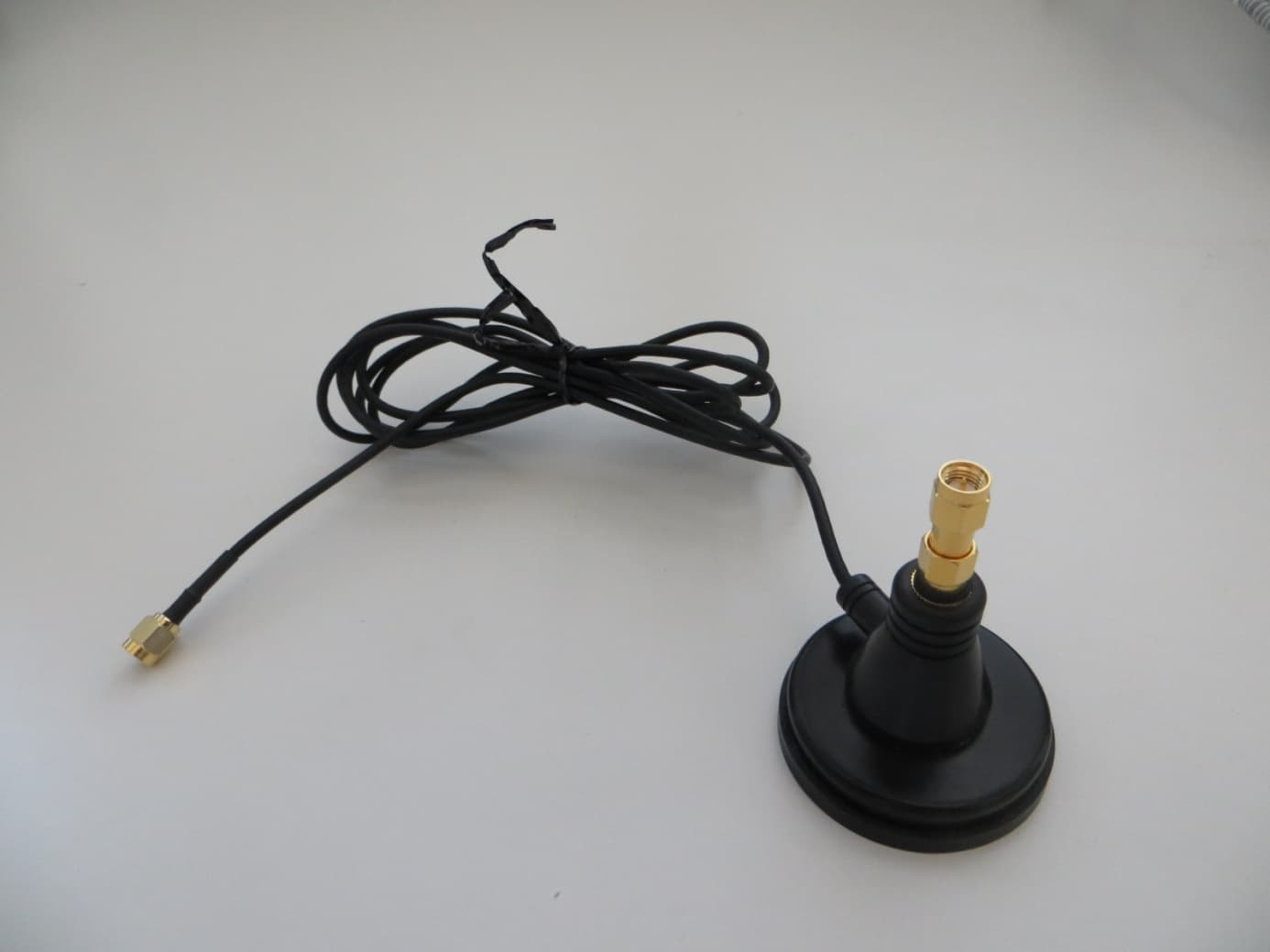

 Installation • 1st option: Screw Mount, use 4 x M4 screws with holes in each corner • 2nd option: Screw Mount, use 2 x M4 with # at washer for 2 long holes accessible from top • Magnet Mount for fast positioning • SMA female connector • Recommended antenna cable: RG-316 or lower loss Notes 1. Measured at 25°C Item NumberDescription 721200071 ANT-PIF-0002 721200075 ANT-PIF-0002 + Cable-RG316-2m-SMA

W U Revisio 1.9 1.8 1.7 1.6 1.5 1.4 1.3 1.2 1.1 1.0 WSR Tem Use r on Dat 2015-1 2015-1 2015-1 2015-0 2014-1 2014-1 2014-1 2014-1 2014-1 2014-1 R-T2 pTr a r Man te Cha 2-11 Mod 2-07 3.3 L 1-09 3.3 L 2-06 2.2 N adde 2-03 4.1 1-17 Add 1-04 4.1; 0-24 Min 0-14 Min 0-07 Crea ackr ® nual ange delname upd List updated List added; 1 NOTE added ed ded Regulator 4.6 or changes or changes ated ® dated on 1 st pa 1.5 updated d; 1.5.3 Labe ry Statement age elling added; ts; added 5.1 3.3 and 3.4 Name RO RO RO RO RO SE, R RO RO,SE RO MB, R e RO E RO, RP WSR- Conte Ge1 1.1 1.2 1.3 1.4 1.5 1.5 1.5 1.5 Int2 2.1 2.2 Ge3 3.1 3.2 3.3 3.4 WS4 4.1 4.2 4.2 4.2 4.2 4.2 4.3 4.4 4.5 4.6 Tro5 5.1 -T2 Temp nts eneral Inform Copyright Disclaime Contact ... Safety ..... Regulator 5.1 FCC 5.2 Cana 5.3 FCC troduction .. Technolo g Required etting Starte Software Hardware Reader An Profession SR-T2 Soft Start Softw Readers -> 2.1 Set R 2.2 Reset 2.3 Set R 2.4 Upgr Sensors -> Sensors -> Sensors -> Sensors -> ouble Shoot Setcomms pTrackr ® mation ....... t ................. er ................ .................. .................. ry Statemen Declaration adian ICES- Labelling .. .................. gy Descript Component ed ................ Installation e Installation ntenna data nal Use / Pr ware .......... ware / Read > Search fo Reader Addr t Reader to RX Power M rade Firmwa > Configura > Calibratio > Measure . > Fast Meas ting ............ state (error User Ma .................. .................. .................. .................. .................. nts ............... n of Conform 003 ............ .................. .................. tion ............ ts ............... .................. .................. n ................ asheet ......... rofessional H .................. ders -> Regi or Readers .. ress ............ Factory De Mode ........... are for selec ation ........... on ............... .................. surement .... .................. 87) ............ anual ................... ................... ................... ................... ................... ................... mity ........... ................... ................... ................... ................... ................... ................... ................... ................... ................... Hardware In ................... ional and In ................... ................... efaults ......... ................... cted readers ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... nstallation .. ................... nterface Set ................... ................... ................... ................... s ................. ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... tings .......... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... ................... .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. .................. ........... 1 ........... 1 ........... 1 ........... 1 ........... 1 ........... 1 ........... 1 ........... 2 ........... 2 ........... 3 ........... 3 ........... 3 ........... 5 ........... 5 ........... 5 ........... 6 ........... 6 ........... 7 ........... 7 ........... 8 ........... 8 ........... 8 ........... 8 ........... 8 ........... 9 ......... 10 ......... 13 ......... 15 ......... 16 ......... 16 WSR- Ge1 C1.1 T U w D1.2 V b r b o t S C1.3 V L T w w Sa1.4 T o A R1.5 1.5.1 F FCC § Note: T digital d These li the equi can radi instructi this equ user wil -T2 Temp eneral In opyright This manua Under the c whole or in Disclaime Vectron Int be an easy-t recommend believed rel or warrante to be, repres Specificatio ontact Vectron In Landstrasse Tel: 49 (0) www.vectro www.senge afety Thank you operating th Accidents. Regulator FCC Decla 15.105 This equipm device, purs imits are de ipment is op iate radio fr ion manual, uipment in r ll be require pTrackr ® nformat t al is copyrig copyright law part, witho er ternational h to-use docu dations in th liable, but th d, and they sentation or ons are subj nternationa e, D-74924 N 7268 801 1 on.com enuity.com for the conf he unit in or ry Statem aration of ent has been suant to part esigned to pr perated in a requency en , may cause residential a ed to correc User Ma tion ghted by Ve ws, this man out the prior has reviewe ument. All st his manual a he accuracy are not inte r warranties ect to chang l GmbH Neckarbisch 00 fidence in V rder to avoid ments f Conform n tested and t 15 of the F rovide reaso commercia nergy and, if e harmful in area is likely t the interfe anual 1 ectron Intern anual may n r written con ed t…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Deutschland Trade Register Munich HRB 85742 HypoVereinsbank Munich Acc. No. 48 852 211 Bank Code 700 202 70 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Management: Dr. Jens Butenandt Robert Kees Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Straubing Branch Äußere Frühlingstraße 45 94315 Straubing Germany PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg Long/Short term Confidentiality Request 2015-07-20 FCC ID: X3I-WSRT2 To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long- term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be tempo- rarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and pro- vide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this applica- tion. Thank you for your attention in this matter. TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg FCC Identifier: FCC ID X3I-WSRT2 Industrie Cananda: Unique Certification No Î IC:8085B-WSRT2 Model Name Î WSRT2 To Whom It May Concern: Please be advised that Vectron International authorizes TÜV SÜD Product Service GmbH, Mr. Johann Roidt, to act on our behalf, until otherwise notified, for applications submitted to PHOENIX TEST-LAB GmbH (PTL). Thank you for your attention to this matter. Date: May 22, 2015 Signatory Printed Name: Ram J. Arvikar Dir. Global Quality & Compliance Vectron International

FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0001 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002 FCC ID X3I-WSRT2 IC: 8085B-WSRT2 PIF-0002

FCC ID X3I-WSRT2 IC 8085B-WSRT2 FCC ID X3I-WSRT2 IC 8085B-WSRT2 FCC ID X3I-WSRT2 IC 8085B-WSRT2

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 67627-52612-1 (Edition 1) Applicant: Vectron International GmbH & Co. KG Type of equipment: Wireless Sensor Reader - TempTrackr Type designation: WSR-T2-A4B7 Order No.: -- Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.107, 15.109, 15.207, 15.209 December 11, 2014 Page 1 of 66 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-1 (Edition 1) Page 2 of 66 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures ............................................................................................ 10 6.1 Conducted Output Power ....................................................................................... 10 6.2 Bandwidth Measurements ...................................................................................... 12 6.3 Conducted AC Powerline Emission ....................................................................... 14 6.4 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 16 6.5 Radiated Emission in Fully or Semi Anechoic Room ............................................. 18 6.6 Radiated Emission at Alternative Test Site ............................................................ 21 7 Photographs Taken During Testing .............................................................................. 23 8 Test Results for Transmitter ......................................................................................... 28 8.1 Conducted Output Power ....................................................................................... 29 8.2 Occupied Bandwidth .............................................................................................. 30 8.3 Bandwidth of the Emission ..................................................................................... 37 8.4 Bandwidth of Momentary Signals ........................................................................... 40 8.5 Designation of Emissions ....................................................................................... 41 8.6 Restricted Bands of Operation ............................................................................... 42 8.7 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 43 8.8 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 46 8.9 Radiated Emission Measurement 30 MHz to 4.5 GHz .......................................... 48 9 Referenced Regulations ............................................................................................... 63 10 Test Equipment List with Calibration Data .................................................................... 65 11 Revision History ........................................................................................................... 66 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-1 (Edition 1) Page 3 of 66 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : WSR-T2-A4B7 Parts 2 : -- Serial number(s): Prototype Manufacturer: Vectron Internationa GmbH & Co. KG Type of equipment: Wireless Sensor Reader - TempTrackr Version: As received FCC ID: X3I-WSRT2 Additional parts/accessories: -- 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-1 (Edition 1) Page 4 of 66 Pages Technical data of EUT Application frequency range: 428.0 to 438.9 MHz Frequency range: 428.0 to 438.9 MHz Operating frequencies: 428.7 MHz; 433.5 MHz; 438.9 MHz Type of modulation: FM Number of RF-channels: 12 Channel spacing: 26.3 kHz Designation of emissions 3 : 120KF7D Type of antenna: ANT-PIF-0001 / ANT-PIF-0002 Size/length of antenna: 20x18x3,5cm / 15x15x3cm Antenna gain: 3.1 dBi Connection of antenna: detachable not detachable General power supply of system: AC supply The EUT was supplied via USB port of the Notebook: nominal voltage: 120 V AC minimum voltage: 100 V AC maximum voltage: 240 V AC nominal frequency: 50 Hz Type of power supply of EUT: DC supply Specifications for power supply connector (1): nominal voltage: 5 V DC minimum voltage: 4.5 V DC maximum voltage: 5 V DC nominal frequency: -- Specifications for power supply connector (2): nominal voltage: 12 V DC minimum voltage: 9 V DC maximum voltage: 30 V DC nominal frequency: -- 3 Also known as "Class of Emission". TÜV SÜD Product Service GmbH Äußere F…

Text truncated - open the document above for the full version.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Management: Robert Kees Dr. Jens Butenandt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 67627-52612-8 (Edition 3) Applicant: Vectron International GmbH & Co. KG Type of equipment: Wireless Sensor Reader - TempTrackr Type designation: WSR-T2-A4B7 Order No.: -- Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.107, 15.109, 15.207, 15.209 and 15.231 December 3, 2015 Page 1 of 73 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 3) Page 2 of 73 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 5 3 Identification of the Test Laboratory ............................................................................... 6 4 Summary ........................................................................................................................ 7 5 Operation Mode and Configuration of EUT .................................................................... 8 6 Measurement Procedures ............................................................................................ 10 6.1 Conducted Output Power ....................................................................................... 10 6.2 Bandwidth Measurements...................................................................................... 12 6.3 Pulse Train Measurement ...................................................................................... 14 6.4 Conducted AC Powerline Emission ....................................................................... 16 6.5 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 18 6.6 Radiated Emission in Fully or Semi Anechoic Room ............................................. 20 6.7 Radiated Emission at Alternative Test Site ............................................................ 23 7 Photographs Taken During Testing .............................................................................. 25 8 Test Results for Transmitter ......................................................................................... 31 8.1 Conducted Output Power ....................................................................................... 32 8.2 Occupied Bandwidth .............................................................................................. 35 8.3 Bandwidth of the Emission ..................................................................................... 39 8.4 Bandwidth of Momentary Signals ........................................................................... 42 8.5 Designation of Emissions ....................................................................................... 43 8.6 Pulse Train Measurement – Transmission duration – Silent Period ....................... 44 8.7 Restricted Bands of Operation ............................................................................... 48 8.8 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 49 8.9 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 51 8.10 Radiated Emission Measurement 30 MHz to 4.5 GHz .......................................... 53 9 Test Results for Receiver ............................................................................................. 67 10 RF exposure requirement ............................................................................................. 68 11 Referenced Regulations ............................................................................................... 69 12 Test Equipment List with Calibration Data .................................................................... 71 13 Revision History ........................................................................................................... 72 Annex A Charts taken during testing .............................................................................. 73 TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 3) Page 3 of 73 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : WSR-T2-A4B7 Parts 2 : -- Serial number(s): Prototype Manufacturer: Vectron Internationa GmbH & Co. KG Type of equipment: Wireless Sensor Reader - TempTrackr Version: As received FCC ID: X3I-WSRT2 Additional parts/accessories: -- 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 3) Page 4 of 73 Pages Technical data of EUT Application frequency range: 428.0 to 438.9 MHz Frequency range: 428.0 to 438.9 MHz Operating frequency: 429.0 MHz; 433.5 MHz; 438.9 MHz Type of modulation: FM Number of RF-channels: 12 Channel spacing: 26.3 kHz Designation of emissions 3 : 120KF7D Type of antenna: ANT-PIF-0001 / ANT-PIF-0002 Size/length of antenna: 20x18x3,5cm / 15x15x3cm Connection of antenna: detachable not detachable General power supply of syst…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 1) Page 26 of 71 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 1) Page 27 of 71 Pages Test setup for conducted AC powerline emission measurement - continued - TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 1) Page 28 of 71 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 1) Page 29 of 71 Pages Test setup for radiated emission measurement (fully anechoic room) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Test Report No. 67627-52612-8 (Edition 1) Page 30 of 71 Pages Test setup for radiated emission measurement (alternate test site)
