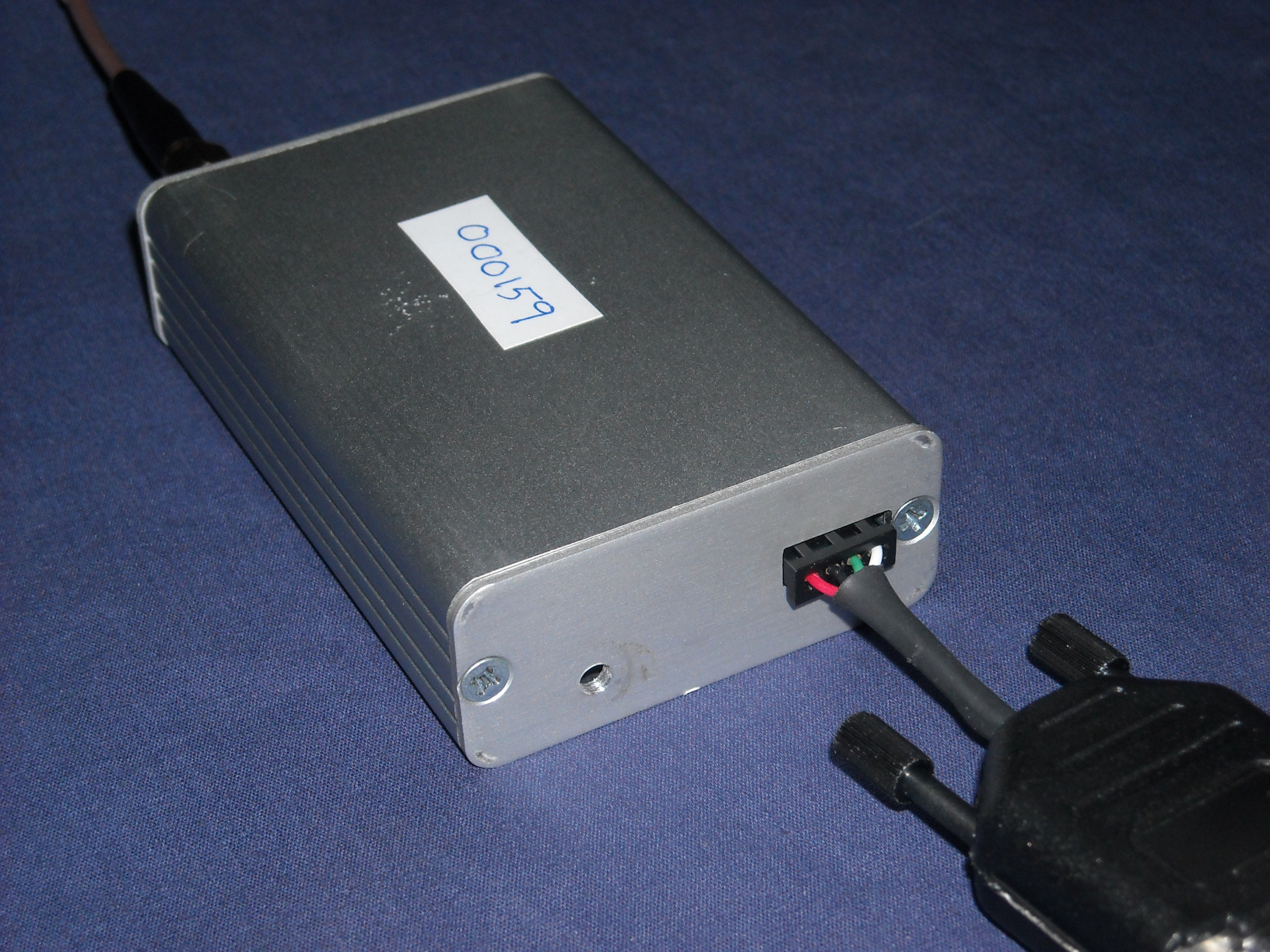

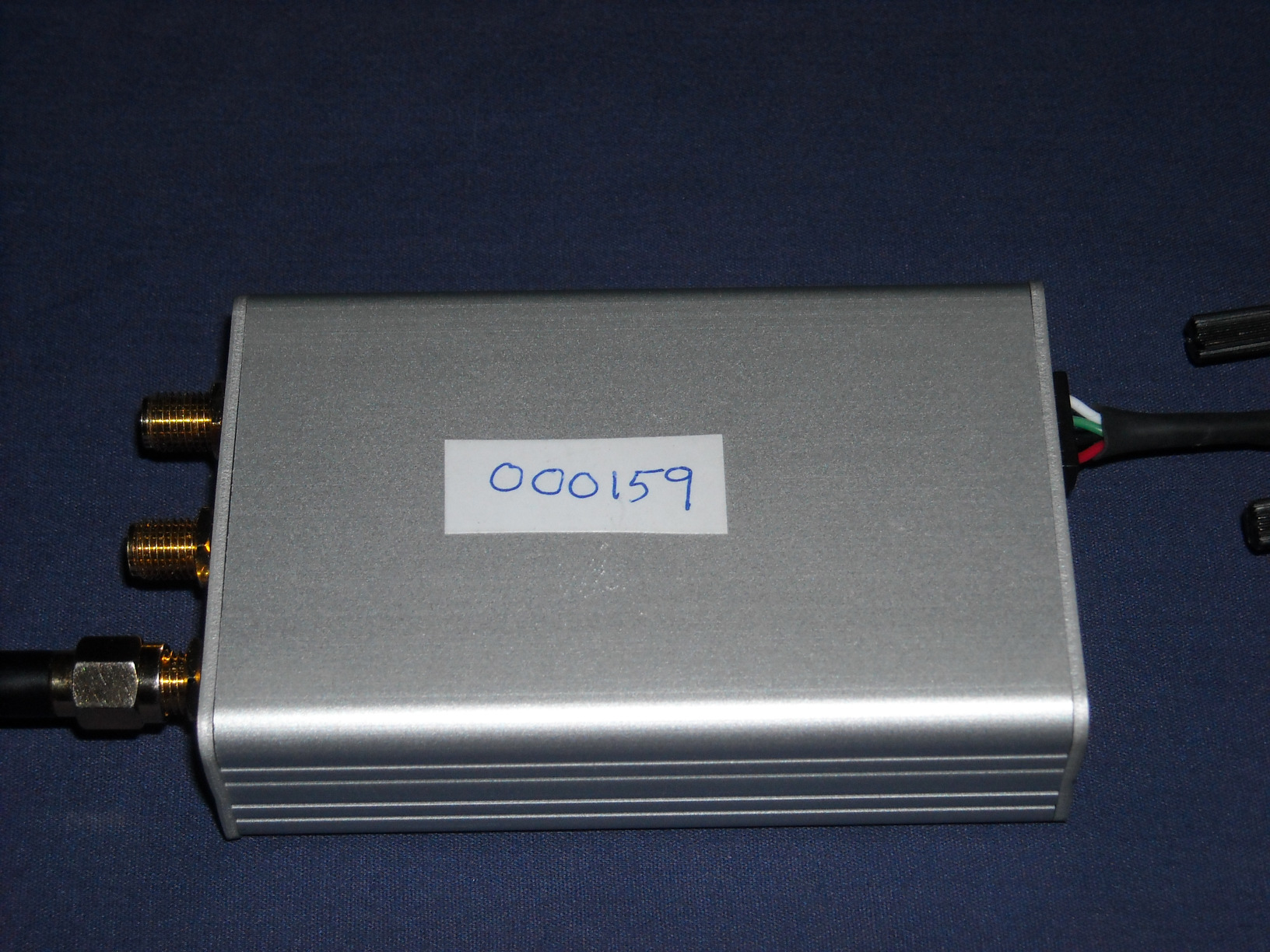

X3ITEMPTRACKRWireless Temperature Interrogation Unit

Helping Customers Innovate, Improve & Grow TempTrackr™ Wireless System Kit Quick Setup Guide and Operation Manual The TempTrackr™ Multipoint Starter kit includes: Three or Six wireless temperature sensors• One wireless interrogation unit• One dipole interrogation antenna• One RS232/RS485 cable• One software CD with the TempTrackr™ Wireless• Interrogation Software Please contact SenGenuity if any item is either missing or damaged. The wireless interrogation unit needs to be powered by a 5V±5% DC power-supply. All temperature sensors are interrogated by one interrogation antenna. The TempTrackr™ Starter Kit can be setup in three simple steps: 267 Lowell Rd, Hudson NH 03051, USA | Phone: 1.888.328.7661 | Fax: 1.888.329.8328 | www.sengenuity.com Install and Configure TempTrackr™ Wireless Interrogation Software1. Setup and connect wireless interrogation unit2. Setup, locate and calibrate wireless sensors3. Step 1 267 Lowell Rd, Hudson NH 03051, USA | Phone: 1.888.328.7661 | Fax: 1.888.329.8328 | www.sengenuity.com Helping Customers Innovate, Improve & Grow Step 1: Install and configure TempTrackr™ Wireless Interrogation Software Insert Interrogation Software CD into PC/Laptop drive. The installation process should begin automatically. If this does not happen, please access the CD drive using Windows Explorer and double-click the “setup.exe” icon as shown in Figure 1. Figure 2: Accessing the setup.exe icon via Windows Explorer Step 1: continued... Please use the InstallShield Wizard, shown in Figure 2, to complete the installation process. Successful installation will result in the creation of a directory called TempTrackr in the path C:\Program Files\Sengenuity\TempTrackr. Start the Software from the Windows Start Menu or by double- clicking the WSR-T2 icon from the directory in which the software has been installed. Figure 1: InstallShield Window for TempTrackr™ Step 1: continued... The software will apply regulatory restrictions based on your geographic region. The FCC complaint version of the kit will include software that conforms to FCC requirements. The CE compliant version of the kit will include software that conforms to CE requirements: FCC requirements impose the following restrictions on the • reader: The reader will read sensors only once every 30s.• The reader will only make use of one antenna. The other • two antenna ports are deactivated on FCC compliant readers. CE requirements restrict the reader to only operate in the 433 • MHz ISM-Band. This means that you will only be able to read one sensor with a CE compliant reader. Figure 3: Regional setting for regulatory compliance 267 Lowell Rd, Hudson NH 03051, USA | Phone: 1.888.328.7661 | Fax: 1.888.329.8328 | www.sengenuity.com Helping Customers Innovate, Improve & Grow Step 2: continued... As shown in Figure 5, connect the wireless interrogation unit to RS232/RS485 cable. The Dipole Antenna should have already be connected to the reader when it was delivered to you. If you receive a reader with the antenna NOT connected please do not use it if you are in the United States. You WILL be in violation of FCC regulations. Please contact SenGenuity to arrange for a replacement kit to be sent to you. Step 2: continued... Connect the Wireless Interrogation Unit to a power supply (5V±5% DC; 350mA) as shown in Figure 6. You can now connect the RS232/ RS485 cable to your PC/laptop. Step 2 Step 2: Setup and connect wireless interrogation unit Please select the communication interface (CAN or RS232/RS485) to communicate with the wireless interrogation unit. If you select the RS232/RS485 option, please select the appropriate communication port on your PC/Laptop. Most kits will include an RS232/RS485 cable and will not include a CAN adapter and cable. Therefore please select the RS232/RS485 option when setting up the kit. Figure 4: Communication Interface Figure 5: Wireless Interrogation unit connected to Antenna and RS232/RS485 cable Figure 6: Wireless Interrogation unit connected to Power Supply 267 Lowell Rd, Hudson NH 03051, USA | Phone: 1.888.328.7661 | Fax: 1.888.329.8328 | www.sengenuity.com Helping Customers Innovate, Improve & Grow Step 3 Step 3: Setup, Locate and Calibrate Wireless Sensors Place the sensors at designated target locations. Figure 7 shows a wireless temperature sensor. Please note the orientation of the antenna in the inset (picture of sensor without the cap) to correctly interpret Figure 8. Figure 7: Wireless Temperature Sensor Figure 8: Incorrect and Correct Setup Step 3: continued... There are some important guidelines that should be followed when locating the sensors: The ●minimum distance between two sensors must be 4 inches (~10 cm). The ●minimum distance between any given sensor and the interrogation antenna must be 12 inches (~31 cm). The ●maximum interrogation distance between the interrogation antenna and the sensor is heavily influenced by the local RF environment. In general, that the distance between the interrogator and the sensor should not exceed 79 inches (~200 cm). Ensure that the sensors are placed within the lobes ● of the dipole radiation pattern. Figure 8 shows sensor positions that will most likely not work and also shows sensor positions that will work. Ensure that the distance between Interrogator ● Antenna and nearest parallel metal wall >4” (~10 cm). 267 Lowell Rd, Hudson NH 03051, USA | Phone: 1.888.328.7661 | Fax: 1.888.329.8328 | www.sengenuity.com Helping Customers Innovate, Improve & Grow Step 3: continued... Most likely the Reader Address, as shown in Figure 10, will be ‘1’. This feature becomes relevant only when you have more than one reader. Please note the reader address for sensor calibration. Figure 10: Results of Reader Search Step 3: continued... Once the physical setup is complete, determine the address of the wireless interrogation unit by selecting “Search for Readers” under the Readers menu as shown in Figure 9. Figure 9: Search for Readers Step 3: continued... Select “Cali…

Text truncated - open the document above for the full version.

OPERATIONAL BLOCK DIAGRAM (Note: The system can handle and operate up to thr ee separate SAW sensors) Wireless Surface Acoustic Wave (SAW) Sensor Antenna TX/RX Transceiver Radio (Pulse) -Electromagnetic Wave velocity ≈ 300000000 m/s Readout Signal Acoustic Waves velocity ≈ 3000 m/s Wireless Temperature Sensor T = 25°C Display Functional Block Diagram : Single Antenna and Senso r Example: One Port SAW Resonator Interdigital Transducer (IDT) Piezoelectric substrate Electrode Fingers Reflector Reflector Equivalent Circuit Passive wireless Sensors Reader SAW Sensor Passive Wireless System No Battery High Level Functional Block Diagram: Configuration can operate with up to three antennas/sensors

267 Lowell Road, Hudson, NH 03051 www.vectron.com Tel: 603-598-0070 Fax: 603-5980075 Date: Feb. 7, 2011 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC Bureau Veritas Consumer Product Services Littleton Distribution Center One Distribution Center Circle, #1 Littleton MA, 01460 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Vectron International, Inc. requests that the following documents regarding this submission for FCC ID X3ITEMPTRACKR be kept confidential: 1. Schematics The material above contains technical data, which would customarily be guarded from competitors. Sincerely, Ram J. Arvikar Dir. Global Quality & Compliance Vectron International Feb. 7, 2011

267 Lowell Road, Hudson, NH 03051 www.vectron.com Tel: 603-598-0070 Fax: 603-5980075 Agent’s Authorization Letter March 23, 2010 I, an authorized Representative of Vecrtron International do hereby authorize, until further notice, Mairaj Hussain of Curtis-Straus LLC, Bureau Veritas Consumer Product Services, Littleton Distribution Center Circle, #1, Littleton MA, 01460, to act on our behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization includes, but is not limited to, the signing of Form 731. I certify that no party (as defined in 47 CFR 1.2002) to this application, including myself, is subject to a denial of federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853A. Certified By: Hudson, NH USA ____________________________ (place of issue) (signature) ___March 23, 2010__ ________Ram J. Arvikar________ (Date) (Full Name) Dir. Global Quality & Compliance__ (Title)

EJ1020 Vectron International, Inc. Temp Trackr EJ1020 Vectron International, Inc. Temp Trackr EJ1020 Vectron International, Inc. Temp Trackr EJ1020 Vectron International, Inc. Temp Trackr

Feb. 2010 267 Lowell Road, Hudson, NH 03051 www.vectron.com Tel: 603-598-0070 Fax: 603-5980075 Indicates the label location (not the final label) R. Arvikar Vectron International [email protected]

EJ1020 Vectron International, Inc. Temp Trackr

SAW-based temperature sensing involves electrically inducing an acoustic wave into a piezoelectric mat erial and then reconverting the energy of the wave (influenced by the temperature to which the sensing element is exposed ) back into an electrical signal for temperature me asurement. One significant advantage of SAW device s is their passive operation, which makes them very amenable to operat ion in harsh environments via wireless interrogatio n. Passive, wireless, SAW-based sensing systems ha ve been described in many publications and some systems are now being of fered. Some of the available systems utilize SAW re sonators and some are SAW delay line based. The in terrogation techniques sometimes can include coding schemes Pos sibly the simplest and lowest cost techniques use u ncoded resonators at multiple frequencies. This li mits the number of unique identifiers available, but this can prove su fficient for certain applications, a few of which a re discussed in this paper. With any wireless syst em design, the ambient RF noise environment must be understood and addressed. Each application area presents challenges requiring engi neering support for mounting structures and methods , packaging, antenna design, etc., along with local regulations (e.g. FC C, CE, or UL) regarding emissions and safety requir ements in hazardous environments. In the systems de scribed herein, enclosures surrounding the SAW sensors may be well-shielded, a llowing resonator frequencies that are outside of r egulated frequency bands. The SenGenuity system op erates from approximately 428 MHz to 439 MHz. In these types of applications, SAW-based passive w ireless temperature sensing technology offers disti nct advantages over these traditional measurement m ethods, including • Passive operation, since SAW-based temperature sens ors require no batteries or external power-supply. The resulting advantages over actively powered sen sing solutions include: o Low environmental foot print as passive SAW tempera ture sensors avoid the adverse environmental impact of batteries. o Logistical advantage: The burden of regularly needi ng to monitor remaining battery life and replace th em is eliminated. • Electrically non-invasive solution: by not requirin g wires to power/read sensors, a SAW-based temperat ure measurement solution can provide an electricall y non-invasive solution for high power equipment such as switchgea r and other Smart Grid applications. • Wireless interrogation: SAW-based temperature senso rs can be read wirelessly. This makes them well su ited for rotating applications and for those applic ations where sensors are placed in difficult to reach or isolate d locations. The SenGenuity wireless SAW resonator (SAWR) based temperature sensing solution consists of a reader ( RF Transceiver) RF or capacitively linked to one or more SAWR sensing elements as depicted in Figure 1. The syst em operates in a range from 428 MHz to 439 MHz. Operational Description (Wireless Temperature SAW Sensor) Figure 1: Wireless SAW Temperature Sensing System Wireless sensors based on changes in resonant frequ ency require an appropriate reader. TempTrackr reader is base on “time domain” approach which is typical ly employs double heterodyne down-conversion with in-phase and quadra ture sample streams at base-band. Direct down-conv ersion and single heterodyne conversion are possibl e although the susceptibility to possible out-of-band spurious sig nals is worse. Discrete Fourier Transform (DFT) an alysis of the in-phase and quadrature samples to ob tain power spectral density (PSD) and curve fit interpolation of the PSD values are employed. While these extra steps incur addit ional electronics complexity and computational burd en, they overcome the limitations of the purely “frequency domain” method . The spacing of the interrogation frequencies is primarily limited by the bandwidth of the resonator response of the sensor and the bandwidth of the pulse’s power spectral density . Saturation of the receiver is desired in the tim e domain samples since frequency information is not lost through saturation. The effects of saturation in frequency domain and time domain readers is analogous to the same effect in a mplitude modulated (AM) versus frequency modulated (FM) radio receivers. In the time domain, saturation tends to make the ri ng-down of the resonator appear longer and more uni form, resulting in better apparent accuracy, as see n in Figure 3. The degree of saturation should still be somewhat limit ed to prevent deterioration of the spurious signal rejection ratio. 0 2 4 6 8 10 12 14 16 18 20 -1 -0.5 0 0.5 1 Time (microseconds) W ave A m plitude Figure 3. The decay envelope is shown for a resona tor with a Q of 10,000. The blue lines indicate th e received signal with no saturation. Red, purple and black indicate 2x, 5x, and 10x amplitude satura tion resulting in 2.5, 6, and 8.5 μ s of apparent increase in the decay time of the dig itized waveform. The Q of the SAW resonator is a critical parameter, both as the unloaded Q and as the loaded Q determi ned by the radiation resistance and loss resistance s of the antenna. Figure 4 illustrates that the resonator, with an unloaded Q of nearly 12,000, requires a loaded Q of at least 6,000 for high received signal strengths. A low-Q resonator of similar design is also shown with an unloaded Q of approximately 7,50 0. The diminished pulse width is seen to reduce th e received power by 3 dB. These values of Q are re adily achievable with SAW resonators. 2000 4000 6000 8000 10000 12000 -12-10 -8-6-4-2 02 Loaded Resonator Q Effective Relative Power of Received Response Figure 4. A SAW response with high Q (TFSS432, sol id) is analyzed assuming a 1 μ s switching time between interrogation pulse and re ceiving and a 22 μ s receive gate time. The roll-off at very high loa ded Q’s result because the wave is not sufficiently reradiated by the ante nna. The roll-off at low Figure 5. Inter…

Text truncated - open the document above for the full version.

6.73” (171.0) 0.69” (17.5) 1.32” (33.5) 2.71” (68.8) 0.28” (7.0) 0.31” (8.0) 0.35” (9.0) Antenna Factor159 Ort Lane Merlin, OR 97532 www.antennafactor.com 541-956-0931 (phone) 541-471-6251 (fax) Rev 07-22-08 Typical VSWR MHW Series dipole antennas feature a durable, unobtrusive housing that sticks permanently with integral adhesive to flat, non-conductive surfaces such as windows, drywall, ceiling tiles, plastic, etc. The antennas are well suited to low-power devices, but are capable of operation at levels to 10 watts. The MHW is supplied with either 6.5 feet (2m) or 15 feet (4.6m) of RG-174 cable and attaches via a standard SMA or Part 15 compliant RP-SMA connector. Custom cable lengths and connectors are available for volume OEM customers. Features ANT-433-MHW-xxx-x DATA SHEET Product DimensionsDescription Electrical Specifications Ordering Information VSWR Graph •Compact & unobtrusive •Adhesive for flat surfaces •Excellent performance •Omni-directional pattern •Very low VSWR •Two flexible shafts •Rugged & damage-resistant •Standard SMA or Part 15 compliant RP-SMA connector •Center Freq.433MHz •Bandwidth20MHz •Wavelength1/4-wave •VSWR<1.5 typ. at center •Impedance50 ohms •ConnectorRP-SMA or SMA •Cable78” or 180” RG-174 coax •ANT-433-MHW-RPS-L (RP-SMA connector, 180” coax) •ANT-433-MHW-RPS-S (RP-SMA connector, 78” coax) •ANT-433-MHW-SMA-L (SMA connector, 180” coax) •ANT-433-MHW-SMA-S (SMA connector, 78” coax) CENTER 433.000MHz SPAN 200.000MHz S11 SWR 1.222

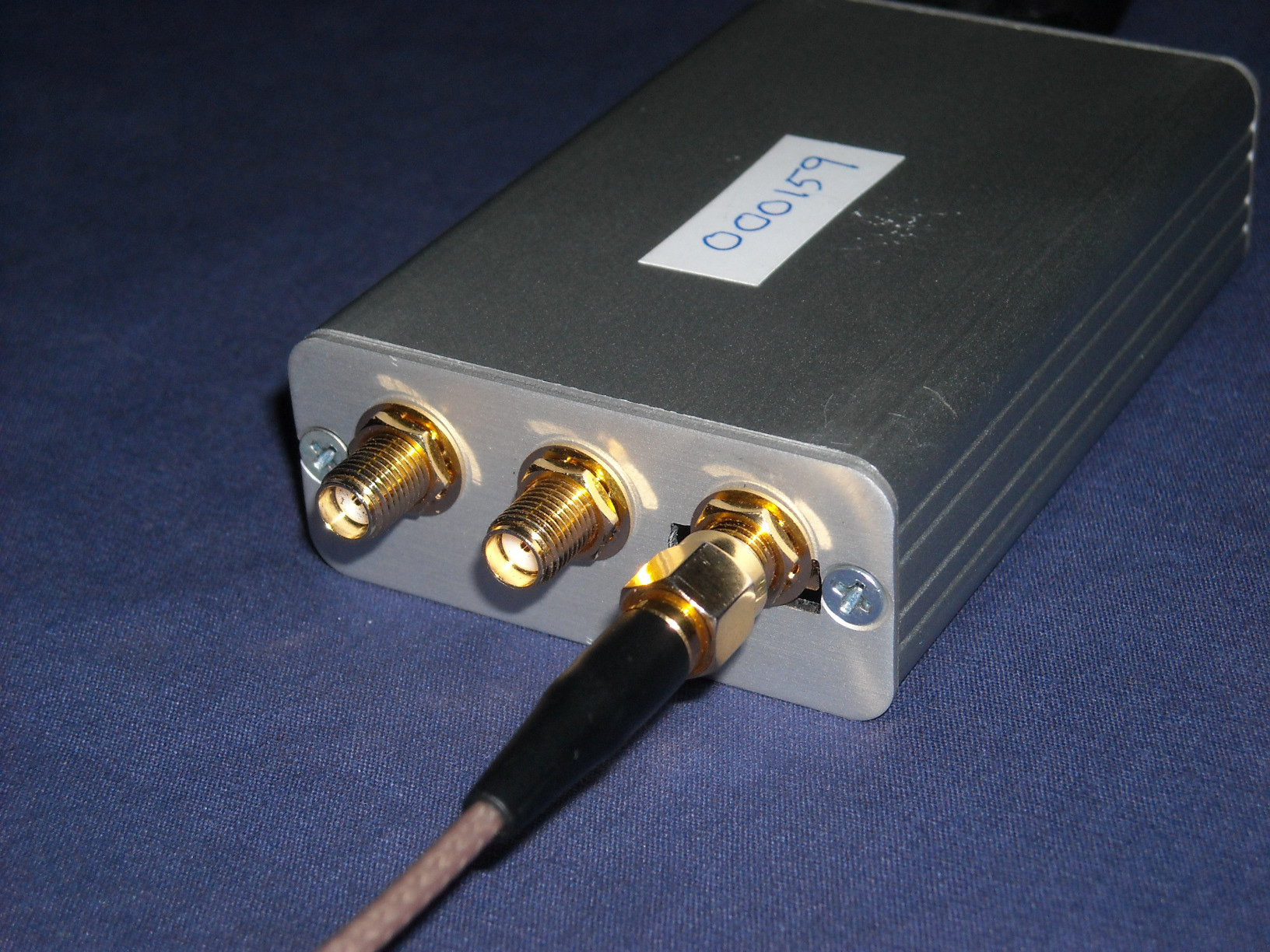

Changes made to TempTrackr TM System for FCC Compliance Heatshrink over primary antenna connection Unused antenna ports deactivated by Software: User can not select other ports Unused antenna ports deactivated by Software Antennas 2 & 3 Deactivatedfor FCC compliant readers
