USEER GUIDE E3-AK remote controller shall match E3-AK receiver. Function instruction of E3-AK remote controller To control the receiver installed at Power Grader series。The controller sends out action instructions via E3-AK receiver, to order the electric handspike moving forward or backward, in turn, to make the harrow ascend or descend via relative organ, to meet the requirements of furrowing depth. Manipulation: 1. In the remote controller’s 3-meter working range, Press (but do not release) the UP or Down bottom, to check the action of the harrow. Release the bottom while its position meets your grading requirement. 2. Bottom Up is for lifting the harrow While the Bottom Down is for lowering NOTE 1 Please change the battery in time 2 Using in rain is prohibited 3 Keep off from fire and water FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
BLOCK Coding ASK Modulation Resonance Oscillation Transmit 433.92MHz

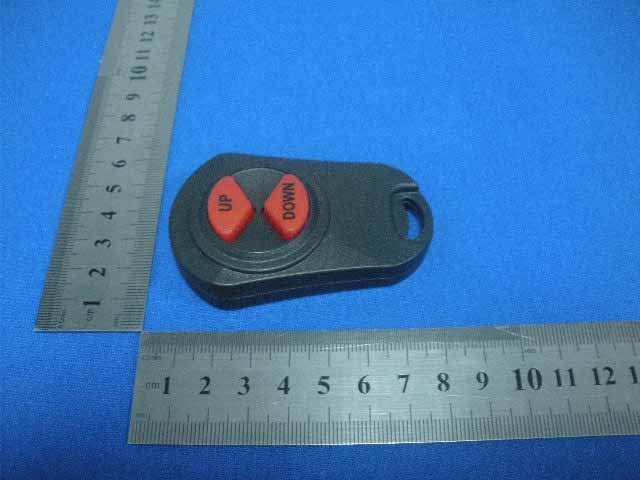

External Photo for Model: E3-AK External Photo for Model: E3-AK
FCC ID LABEL FCC ID:X43E3-AK This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location
Internal Photo for Model: E3-AK Internal Photo for Model: E3-AK Internal Photo for Model: E3-AK Internal Photo for Model: E3-AK Antenna
Description Circuit description Transmitter power DC3V by batteryASK Modulation Frequency:433.92MHZRF Part Mainly by the crystal oscillator frequency stabilization and High-frequency signal amplification componentsThe two groups by the high-frequency data channel codec Number sent to the receiver Parameter Description 1 VoltageDC3V. 2 Current6MA. 3 Frequency433.92MHZ. 4 ModulationASK. 5 Encoding typeFixed Code.
1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 16-Jan-2010 Sheet of File: D:\ \ \ \ .DD B Drawn By: BT3V C312P C1470P R25 R10 4.7M SW-PBSW-PB ANT 433MHZ SAW1 16151413121110 9 87654321 U1 SC2260-R4 R64.3K C21P C42.7P L212N L110N R7 6.8K R9200 R8100 D14148 D2 4148
FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For ERIC INDUSTRIAL (HANGZHOU) CO.,LTD. No.12, Jianshe 3 rd Road, Shibei District, Xiaoshan Economic And Technological Development Zone, Xiaoshan District, Hangzhou City, Zhejiang Province, 311215 P.R.C. FCC ID:X43E3-AK Jan. 27, 2010 This Report Concerns: Original Report Equipment Type REMOTE TRANSMITTER Test Engineer: Eric Li Report No.: BST10012271827R-3 Receive EUT Date/Test Date: Jan.18,2010/ Jan.18,2010-Jan.27,2010 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. ERIC INDUSTRIAL (HANGZHOU) CO.,LTD. FCC ID: X43E3-AK BST FCC ID REPORT : BST10012271827R-3 Page 2/15 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. CONDUCTED POWER LINE TEST .......................................................................................8 6.1. Test Equipment .................................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Configurating of the EUT .................................................................................................8 6.5. EUT Operating Condition...............................................................................................10 6.6. Conducted Power line Emission Limits..........................................................................10 6.7. Conducted Power Line Test Result.................................................................................10 7. RADIATION EMISSIONS ......................................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................11 7.5. Radiated Emission Test Result .......................................................................................12 8. 20B BANDWIDTH....................................................................................................................13 8.1. Test Equipment ...............................................................................................................13 8.2. Test Procedure ................................................................................................................13 8.3. FCC 15.231(c) 20B Bandwidth Limit.............................................................................13 8.4. Test Result ......................................................................................................................13 9. DEACTIVATION TESTING...................................................................................................14 9.1. Test Equipment ...............................................................................................................14 9.2. Test Procedure ................................................................................................................14 9.3. Deactivation Requirement ..............................................................................................14 9.4. Test Result ......................................................................................................................14 10. ANTENNA REQUIREMENT .................................................................................................15 10.1. STANDARD APPLICABLE.........…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.92 MHz - 433.92 MHz | - |

REMOTE RECEIVER
Equipment Class
CYY - Communications Receiver used w/Pt 15 Transmitter
