X43E3-AKRREMOTE RECEIVER

Received RF signal Modulation Decoding OUTPUT Crystal Oscillator6.7458MHz

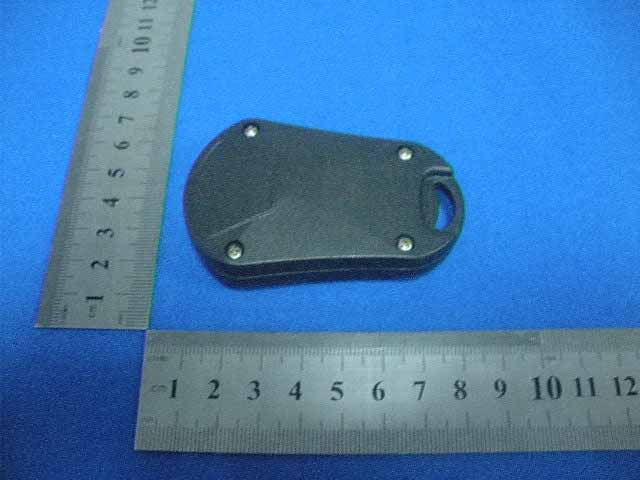

External Photo External Photo

FCC ID LABEL FCC ID:X43E3-AKR This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photo Internal Photo Internal Photo

Description Circuit Description Receiver electric power supplied by DC12V; RF part mainly constitute by crystal oscillator of frequency stabilization and high frequency signal amplifier, The signal of two pieces of data of decode and coding which sent by high frequency signal amplifier will received for decoding . Parameter Description 1. Working voltage: DC12V. 2. Working current40MA. 3. Receiving sensitivity:-104dbm. 4. Encoding type: fixed code

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 8-Apr-2010 Sheet of File: D:\
  \    \  \   .ddb Drawn By: DC12V 104 104 470U/25V 100U/16V 33U/25V 33U/25V 10U/25V 80508050 4148 Vin 1 GND 2 Vout 3 78L05 100 330K 4.7K4.7K 4007 4148 181716151413121110 987643521 U2 2272--M4 100UH 10  ANT VCC GND DATA ANT K1 12V/40A K2 12V/40A A -+ MOTOR SERVO

FCC PART 15 CLASS B EMI MEASUREMENT AND TEST REPORT For ERIC INDUSTRIAL (HANGZHOU) CO.,LTD. No.12, Jianshe 3 rd Road, Shibei District, Xiaoshan Economic And Technological Development Zone, Xiaoshan District, Hangzhou City, Zhejiang Province, 311215 P.R.C. FCC ID:X43E3-AKR Jun. 07, 2010 This Report Concerns: Original Report Equipment Type REMOTE RECEIVER Test Engineer: Eric Li Report No.: BST10050514R-3 Receive EUT Date/Test Date: Jun.01,2010/ Jun.01-07,2010 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. ERIC INDUSTRIAL (HANGZHOU) CO.,LTD. FCC ID: X43E3-AKR BST FCC ID REPORT : BST10050514R-3 Page 2/13 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1. Report information............................................................................................................ 3 1.2. Measurement Uncertainty................................................................................................. 3 2. PRODUCT DESCRIPTION ...................................................................................................... 4 2.1. EUT Description ............................................................................................................... 4 2.2. Block Diagram of EUT Configuration ............................................................................. 4 2.3. Support Equipment List .................................................................................................... 4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL........................................................................................................................... 5 4. TEST RESULTS SUMMARY ................................................................................................... 6 Modifications ................................................................................................................................ 6 5. TEST EQUIPMENT USED ....................................................................................................... 7 5.1. For Conducted Emission Test ........................................................................................... 7 5.2. For Radiated Emission Measurement ............................................................................... 7 6. CONDUCTED EMISSION TEST............................................................................................. 8 6.1. Block Diagram of Test Setup............................................................................................ 8 6.2. Test Standard .................................................................................................................... 8 6.3. Conducted Emission Limit(Class B) ................................................................................ 8 6.4. EUT Configuration on Test .............................................................................................. 8 6.5. Operating Condition of EUT ............................................................................................ 8 6.6. Test Procedure ..................................................................................................................9 6.7. Test Result ........................................................................................................................ 9 7. RADIATED EMISSION MEASUREMENT ......................................................................... 10 7.1. Block Diagram of EUT Configuration ........................................................................... 10 7.2. Test Standard ..................................................................................................................10 7.3. Radiated Emission Limit(Class B) ................................................................................. 10 7.4. EUT Configuration on Test ............................................................................................ 11 7.5. Operating Condition of EUT .......................................................................................... 11 7.6. Test Procedure ................................................................................................................ 11 7.7. Test Result ...................................................................................................................... 11 APPENDIX I ......................................................................................................................................... 12 ERIC INDUSTRIAL (HANGZHOU) CO.,LTD. FCC ID: X43E3-AKR BST FCC ID REPORT : BST10050514R-3 Page 3/13 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BST in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s mentioned in this report is/are supplied by Applicant, BST therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of man…
