X4E01095RREMOTE DIGITAL MEAT THERMOMETER

Block Diagram(Receiver) MCU OSC 32768Hz KEY BUZZER RF BOARD 433.92MHz crystal oscillator 67458Hz LCD

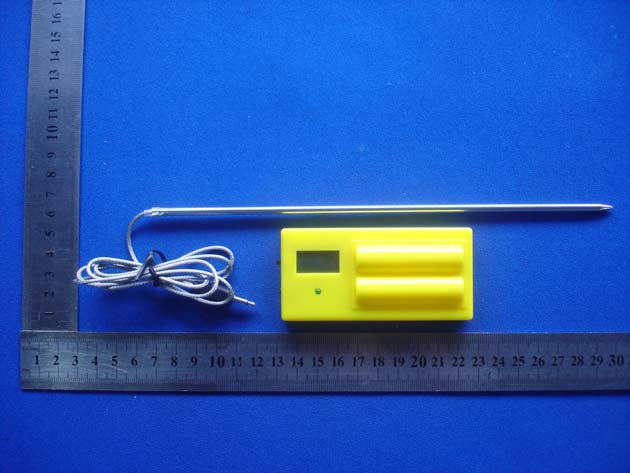

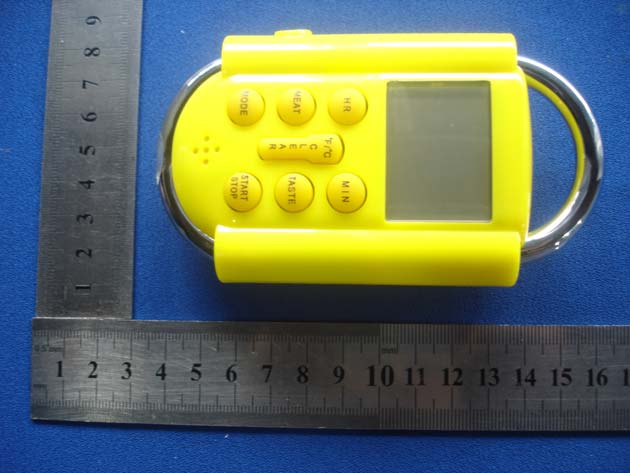

Report No.: TB-F106203 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS Shenzhen Toby Technology Co., Ltd. FCC ID : X4E01095R Page 2 of 6 Photo 1 Appearance of EUT Photo 2 Appearance of EUT

Report No.: TB-F106203 EXHIBIT 3- EUT TESTING PHOTOGRAPHS Shenzhen Toby Technology Co., Ltd. FCC ID : X4E01095R Page 1 of 6 FCC ID Label Sample FCC ID: X4E01095R Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID Label Location on EUT FCC ID LOCATION FCC ID: X4E01095R

Report No.: TB-F106203 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS Shenzhen Toby Technology Co., Ltd. FCC ID : X4E01095R Page 3 of 6 Photo 3 Inside of EUT Photo 4 Appearance of PCB Report No.: TB-F106203 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS Shenzhen Toby Technology Co., Ltd. FCC ID : X4E01095R Page 4 of 6 Photo 5 Appearance of PCB Photo 6 Appearance of PCB Report No.: TB-F106203 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS Shenzhen Toby Technology Co., Ltd. FCC ID : X4E01095R Page 5 of 6 Photo 7 Appearance of PCB

Circuit Description (Receiver) RX module IC U3 processing the message data received from transmitter (433.92MHz)and get the message data through High-frequency amplifier/Mid- frequency Amplifier/demodulate circuit/waveform shaping circuit/coding.

Report No.: TB-F106203 Shenzhen Toby Technology Co.,Ltd. FCC ID : X4E01095R Page 1 of 10 FCC PART 15.109 MEASUREMENT AND TEST REPORT For EUT Name: Remote Digital Meat Thermometer Item No.: 01095 FCC ID: X4E01095R Serial No.: Not supplied by client Report Number : TB-F106203 Date of Test : Mar. 17-19, 2010 Date of Report : Mar. 22-23, 2010 Prepared for : BASE4 Group, Inc. Address : 2611 Westgrove Drive #109 Carrollton, Texas 75019 USA Prepared by : Shenzhen Toby Technology Co., Ltd. Address : 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park, Nanshan District, Shenzhen, China Tel : 0086-18925263335 Report No.: TB-F106203 Shenzhen Toby Technology Co.,Ltd. FCC ID : X4E01095R Page 2 of 10 TABLE OF CONTENTS TEST REPORT DECLARATION........................................................................................................3 1. GENERAL INFORMATION .................................................................................................... 4 1.1. Product Description for Equipment Under Test (EUT) .................................................... 4 1.2. Test Standards ................................................................................................................... 4 1.3. Related Submittal(s)/Grant(s) ........................................................................................... 5 1.4. Test Methodology ............................................................................................................. 5 1.5. Accessories Equipment List and Details .......................................................................... 5 1.6. EUT Cable List and Details .............................................................................................. 5 1.7. Test Location .................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................................ 6 3. §15.109(A) - RADIATED EMISSION....................................................................................... 7 3.1. Measurement Uncertainty................................................................................................. 7 3.2. Test Equipment List and Details....................................................................................... 7 3.3. Test Procedure ..................................................................................................................7 3.4. Corrected Amplitude & Margin Calculation .................................................................... 8 3.5. Environmental Conditions ................................................................................................ 8 3.6. Summary of Test Result.................................................................................................... 8 3.7. Radiation Emissions Test Data ......................................................................................... 9 Report No.: TB-F106203 Shenzhen Toby Technology Co.,Ltd. FCC ID : X4E01095R Page 3 of 10 TEST REPORT DECLARATION Applicant : BASE4 Group, Inc. Manufacturer : SUNYAN ELECTRONIC CO., LTD. EUT Description : Remote Digital Meat Thermometer Model No. : 01095 The device described above is tested by SEM. Test Compliance Service Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B limits for both radiation and conduction emissions. The measurement results are contained in this test report and Shenzhen Toby Technology Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Shenzhen Toby Technology Co., Ltd. Reported by: Date: Mar. 23, 2010 (Jacky Wang) Reviewer: Date: Mar. 24, 2010 (Benny Xu) Approved by: Date: Mar. 24, 2010 (Justin Zhang) Report No.: TB-F106203 Shenzhen Toby Technology Co.,Ltd. FCC ID : X4E01095R Page 4 of 10 1. GENERAL INFORMATION 1.1. Product Description for Equipment Under Test (EUT) 1.1.1. Client Information Applicant: BASE4 Group, Inc. Address of applicant : 2611 Westgrove Drive #109 Carrollton, Texas 75019 USA Manufacturer: SUNYAN ELECTRONIC CO., LTD. Address of manufacturer: NO.2, 7TH South Street,QingGong Road 3,FoShan City, GuangDong, P.R. China 1.1.2. General Description of E.U.T Items Description EUT Description: Remote Digital Meat Thermometer Trade Name: Char-Broil Model No.: 01095 Rated Voltage: DC 3V Batteries Frequency Range: 433.92MHz±200Hz Tape of Antenna: Internal Antenna Size: 11.5cm x 6.6cm x 2.8cm For more information refer to the circuit diagram form and the user’s manual. The test data is gathered from a production sample, provided by the manufacturer. 1.2. Test Standards The following report is prepared on behalf of the BASE4 Group, Inc. in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 15, Subpart B, and section 15.205, 15.107, and 15.109 rules. Maintenance of compliance is the responsibility of the manufacturer. Any modification of the product, which result in lowering the emission/immunity, should be checked to ensure compliance has been maintained. Report No.: TB-F106203 Shenzhen Toby Technology Co.,Ltd. FCC ID : X4E01095R Page 5 of 10 1.3. Related Submittal(s)/Grant(s) No Related Submittal(s). 1.4. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. The equipment under test (EUT) was configured to m…

Text truncated - open the document above for the full version.

Report No.: TB-F106203 EXHIBIT 3- EUT TESTING PHOTOGRAPHS Shenzhen Toby Technology Co., Ltd. FCC ID : X4E01095R Page 6 of 6 Photo 1 Radiation Emission Test
