X4QKDTC530Car mounted data communicator

1/12 KDTC530 KOMTRAX Terminal Instruction Manual Model Name TC530 Model No ． KDTC530 Thank you for your purchasing KOMTRAX terminal (KDTC530). ※KOMTRAX is a machine management system that uses wireless communications. ■ Read this instruction manual and use your KOMTRAX terminal correctly ■ ・Operators and service personnel for machines using KOMTRAX should make sure that they read and fully understand this document. ・Keep this document together with the Operation and Maintenance manual for the machine equipped with KOMTRAX, and read it repeatedly. 2/12 KDTC530 Features/Before using  What is KDTC530 KDTC530 is a communication terminal which is mounted on a vehicle to form a system together with server application software on the base station side and used to control movement of the vehicle and monitor it from a remote place.  Features ● KDTC530 uses GSM (Global System for Mobile Communications), so it can communicate in a lot of countries that GSM is used. (A communication contract is required in each place where KDTC530 will communicate, however.) ● KDTC530 has GPS function to be able to show the present position of the vehicle on which it is mounted. ● When KDTC530 is connected to the local network in the vehicle, it can collect the information of errors in the vehicle, sensors, and etc.  Before using ● Since KDTC530 is a wireless device using radio waves, so it is necessary to obtain authorization and conform to the laws of the country or territory where the machine equipped with KDTC530 is being used. It can be used only countries where use of it is permitted. For the countries where use of KDTC530 is permitted, ask your Komatsu distributor. ● Always contact your Komatsu distributor when exporting or reselling a vehicle equipped with KDTC530. Note that the radio communication function of KDTC530 may be turned off forcibly, when the vehicle is out of the countries or areas where use of KDTC530 is permitted. ● Before using KDTC530, you are required to take some procedures such as application for start of use. For details, ask your Komatsu distributor. ● KOMTRAX system uses wireless communications, so it cannot be used inside tunnels, underground inside buildings, or in mountain areas where radio waves cannot be received. Even when the machine is outside, it cannot be used in areas where the radio signal is weak or in areas outside the wireless communication. ● There is absolutely no need to inspect or operate KDTC530, but if any abnormality is found, please consult your Komatsu distributor. 3/12 KDTC530 Safety precautions The items to be observed without fail are explained as shown below to prevent an injury to the user and other persons and damage to property. If you do not obey these precautions, neither Komatsu nor your Komatsu distributor can take any responsibility for any problem that is caused or for any loss that results. ■Injuries and damage which can be caused by wrong use of KDTC530 are explained as shown below. ■ The types of the items to be observed are indicated and explained by the following icons. In the column with this mark, an item which "can cause a death or a serious injury to a person" is explained. WARNING In the column with this mark, an item which "can cause an injury to a person or only damage to property" is explained. CAUTION This icon indicates an item "to be noted". This icon indicates an item "to be prohibited". This icon indicates an item "to be executed without fail". 4/12 KDTC530 WARNING Do not install this set to a place where it will be an obstacle to view or operation. Prohibit Installation of this set to a place where it will be an obstacle to view or operation may cause an accident. Do not install this set to a place where temperature rises or lowers extremely or a place where it will receive strong vibration or impacts. Prohibit Neglecting this may cause a skin burn, a trouble, or a fire. Never disassemble, repair, modify, or move the communication terminal, antenna, or cables. Prohibit Neglecting this may cause a trouble, a fire, or an accident. Your Komatsu distributor will carry out removal and installation. Installe the communication terminal at leaset 22cm (8.7 inch) from a operater. For anyone wearing a pacemaker, the radio waves may have an adverse effect on the operation of the pacemaker. Use a battery having rated voltage of DC12V or DC24V to supply DC power to this set. This set is designed to be driven with DC power. Use a power supply in the rated range. Neglecting this may cause a trouble. Connect this set to external devices correctly and securely according to this manual. Neglecting this may cause a trouble or a fire. Install the body of this set securely. If the body is not installed securely, it may fall to cause an injury to a person or an accident. Pr ohibit 5/12 KDTC530 CAUTION Do not install this set to an outdoor place where it may be exposed to rainwater or seawater. Prohibit This set is not water-resistant. Do not pinch, tense, or damage the cables. Prohibit Neglecting this can cause a short circuit or a disconnection, which may cause a trouble or a fire. Use a specified communication antenna. Use a specified antenna. This set can be used only in countries where use of it is permitted. Prohibit Since this set has a radio device, it can be used only in countries where use of it is permitted. Contact your Komatsu distributor before installing a top guard or other attachment that covers the antenna. Attachments may cause a trouble of wireless communication. Take the action given in "LONG-TERM STORAGE" in the Operation and Maintenance Manual for the machine, when putting the machine into long-term storage. Even when the key is at the OFF position, a small amount of electric power is consumed by the KOMTRAX terminal. 6/12 KDTC530 FCC Statements NOTICE: This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada]. Operation is subject to the following two conditions: (1) this device may not cause har…

Text truncated - open the document above for the full version.

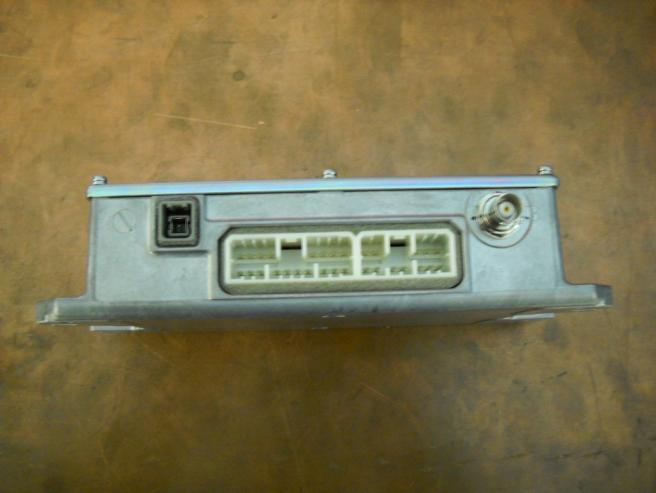

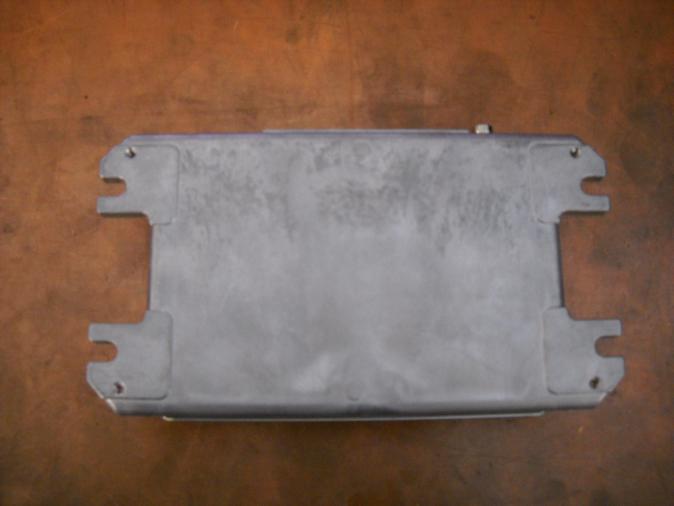

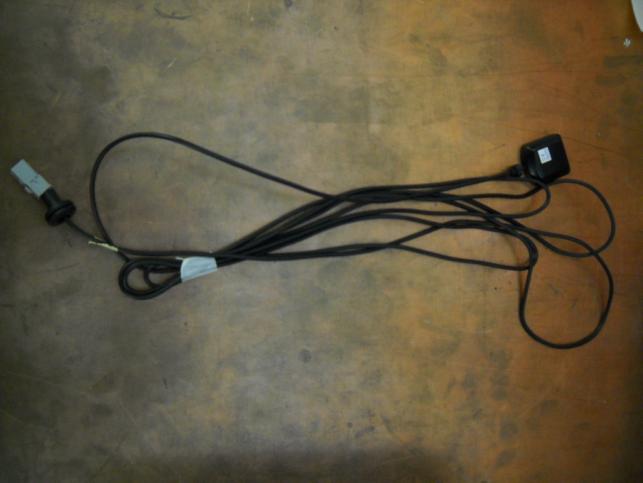

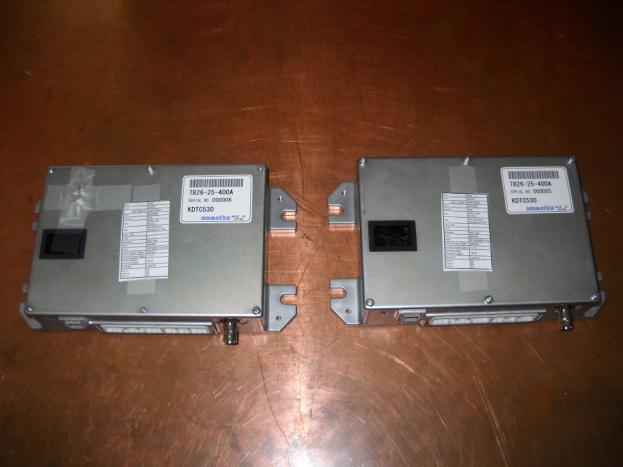

Printed Card #1 1/2 Printed Card #1 2/2 Print ed Card #2 1/2 Printed Card #2 2/2 GPS module 1/2 GPS module 2/2

FCC-ID X4QKDTC530 IC-ID (Industry Canada) 4472A-KDTC530 PREDICTION OF MPE AT A GIVEN DISTANCE Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power General Limits: §1.1307 Cellular Radiotelephone Service (subpart H of part 22) Non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 1000 W ERP (1640 W EIRP) §1.1307 Personal Communications Services (part 24) Broadband PCS (subpart E): non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 2000 W ERP (3280 W EIRP) §1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) (B) Limits for General Population/Uncontrolled Exposure 300–1500 MHz: f/1500 mW/cm² 1500–100,000 MHz: 1.0 mW/cm² §2.1091 No routine evaluation required when the device ...operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. FCC-ID X4QKDTC530 IC-ID (Industry Canada) 4472A-KDTC530 §24.232 (a) Base stations are limited to 1640 watts peak equivalent isotropically radiated power (e.i.r.p.) with an antenna height up to 300 meters HAAT. b) Mobile/portable stations are limited to 2 watts e.i.r.p. peak power, ... §22.913 (a) Maximum ERP. The effective radiated power (ERP) of base transmitters and cellular repeaters must not exceed 500 Watts. The ERP of mobile transmitters and auxiliary test transmitters must not exceed 7 Watts. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) 300 -1500 f/1500 1500 - 100000 1.0 Prediction for Part 22 Maximum radiated power EIRP: 29.17dBm (826.04 mW) @ 836.6MHz Lowest limit for 850 MHz fixed operations (@20cm) where no routine evaluation is required is § 1.1310: (f/1500)mW/cm 2 =0.5577 mW/cm 2 Calculated at distance of 20cm for reference antenna: Power density = 826.04 / (4 x pi x 20 2 ) = 0.1644 mW/cm 2 Result: Configuration complies with rules as power density is below MPE limit. Prediction for Part 24 Maximum radiated power EIRP: 28.54 dBm (714.5mW) @1880MHz Lowest limit for 1900 MHz fixed operations (@20cm) where no routine evaluation is required is § 1.1310 : 1 mW/cm 2 Calculated at distance of 20cm: Power density = 714.5 / (4 x pi x 20 2 ) = 0.1422mW/cm 2 Result: Configuration complies with rules as power density is below MPE limit. FCC-ID X4QKDTC530 IC-ID (Industry Canada) 4472A-KDTC530 Date: 2010-02-12 Name: Christopher Torio Title: Test Engineer Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6221 Email: [email protected]

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg TAX No. 147/5869/0385 www.7Layers.com René Schildknecht InterLab ® is a registered trademark of 7 layers AG FCC Measurement/Technical Report on GSM Module Siemens Cellular Engine TC65i Report Reference: MDE_SIEM_0714_FCCb Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DAT-P-192/99-01 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report Reference: MDE_SIEM_0714_FCCb Page 2 of 44 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 1.4 Manufacturer Data 5 2 Testobject Data 6 2.1 General EUT Description 6 2.2 EUT Main components 7 2.3 Ancillary Equipment 7 2.4 EUT Setups 7 2.5 Operating Modes 8 3 Test Results 9 3.1 RF Power Output 9 3.2 Frequency stability 11 3.3 Spurious emissions at antenna terminals 14 3.4 Field strength of spurious radiation 17 3.5 Emission and Occupied Bandwidth 20 3.6 Band edge compliance 23 4 Test Equipment 25 5 Photo Report 28 6 Setup Drawings 32 7 Annex 34 Measurement Plots Test report Reference: MDE_SIEM_0714_FCCb Page 3 of 44 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a GSM cellular radiotelephone device Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-07 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious radiation § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 22 Subpart C – Operational and Technical Requirements § 22.355 Frequency tolerance Subpart H – Cellular Radiotelephone Service § 22.913 Effective radiated power limits § 22.917 Emission limitations for cellular equipment Summary Test The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. rs 0.2 Measurement Summary RF Power Output The measurement was performed according to FCC §2.1046 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_a02 antenna connector passed op-mode 2 Setup_a02 antenna connector passed op-mode 3 Setup_a02 antenna connector passed Frequency stability The measurement was performed according to FCC §2.1055 10-1-07 OP-Mode Setup Port Final Result op-mode 2 Setup_a02 antenna connector passed Spurious emissions at antenna terminals The measurement was performed according to FCC §2.1051 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_a02 antenna connector passed op-mode 2 Setup_a02 antenna connector passed op-mode 3 Setup_a02 antenna connector passed Field strength of spurious radiation The measurement was performed according to FCC §2.1053 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 enclosure passed op-mode 2 Setup_aOl enclosure passed op-mode 3 Setup_aOl enclosure passed Emission and Occupied Bandwidth The measurement was performed according to FCC §2.1049 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_a02 antenna connector passed op-mode 2 Setup_a02 antenna connector passed op-mode 3 Setup_a02 antenna connector passed Band edge compliance The measurement was performed according to FCC §2.1053 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_a02 antenna connector passed op-mode 3 Setup_a02 antenna connector passed Responsible for Accreditation Scope: Page 4 of44 Test report Reference: MDE_SIEM_0714_FCCb Page 5 of 44 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DAT-P-192/99-01 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Report Template Version: 2007-08-29 1.2 Project Data Responsible for testing and report: D r. Ing. Michael Küppers Rec eipt of EUT: 2008-03-03 Date of Test(s): 2008-04-15 to 2008-04-29 Date of Report: 2008-06-23 1.3 Applicant Data Company Name: Siemens AG Address: Siemensdamm 50 13629 Berlin Germany Contact Person: Mr. Hussein Halawi 1.4 Manufacturer Data Company Name: Siemens AG Address: Siemensdamm 50 13629 Berlin Germany Contact Person: Mr. Hussein Halawi Test report Reference: MDE_SIEM_0714_FCCb Page 6 of 44 2 Testobject Data 2.1 General EUT Description Equipment under Test: GSM Module Type Designation: Siemens Cellular Engine TC65i Kind of Device: (optional) GSM 850/900/1800/1900 Transceiver Voltage Type: DC Nominal Voltage: 4.5 V Maximum Voltage: 4.5 V Minimum Voltage: 3.8 V General product description: The Equipment Under Test (EUT) is a GSM 850/900/1800/1900 module and supports GSM. The manufacturer declared that nominal voltage is equal to high voltage. In GSM 850 mode the EUT operates in channel blocks A and B from 824.2 MHz (lowest channel = 128) to 848.8 MHz (highest channel = 251). The EUT provides the following ports: Ports antenna connector enclosure data connector The main components of the EUT are listed and described in Chapter 2.2 Test report Reference: M…

Text truncated - open the document above for the full version.

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg TAX No. 147/5869/0385 www.7Layers.com René Schildknecht InterLab ® is a registered trademark of 7 layers AG FCC Measurement/Technical Report on GSM Module Siemens Cellular Engine TC65i Report Reference: MDE_SIEM_0714_FCCc Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DAT-P-192/99-01 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report Reference: MDE_SIEM_0714_FCCc Page 2 of 44 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 1.4 Manufacturer Data 5 2 Testobject Data 6 2.1 General EUT Description 6 2.2 EUT Main components 7 2.3 Ancillary Equipment 7 2.4 EUT Setups 7 2.5 Operating Modes 8 3 Test Results 9 3.1 RF Power Output 9 3.2 Frequency stability 11 3.3 Spurious emissions at antenna terminals 14 3.4 Field strength of spurious radiation 17 3.5 Emission and Occupied Bandwidth 20 3.6 Band edge compliance 23 4 Test Equipment 25 5 Photo Report 28 6 Setup Drawings 32 7 Annex 34 Measurement Plots Test report Reference: MDE_SIEM_0714_FCCc Page 3 of 44 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a GSM cellular radiotelephone device Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-07 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious radiation § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 24 Subpart E - Broadband PCS § 24.232 Power and antenna height limits § 24.235 Frequency stability § 24.236 Field strength limits § 24.238 Emission limitations for Broadband PCS equipment Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. rs 0.2 Measurement Summary RF Power Output The measurement was performed according to FCC §2.1046 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_aOl antenna connector passed op-mode 2 Setup_aOI antenna connector passed op-mode 3 Setup_aOI antenna connector passed Frequency stability The measurement was performed according to FCC §2.1055 10-1-07 OP-Mode Setup Port Final Result op-mode 2 Setup_aOl antenna connector passed Spurious emissions at antenna terminals The measurement was performed according to FCC §2.1051 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_aOl antenna connector passed op-mode 2 Setup_aOl antenna connector passed op-mode 3 Setup_aOl antenna connector passed Field strength of spurious radiation The measurement was performed according to FCC §2.1053 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_a02 enclosure passed op-mode 2 Setup_a02 enclosure passed op-mode 3 Setup_a02 enclosure passed Emission and Occupied Bandwidth The measurement was performed according to FCC §2.1049 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 antenna connector passed op-mode 2 Setup_aOl antenna connector passed op-mode 3 Setup_aOl antenna connector passed Band edge compliance The measurement was performed according to FCC §24.238 10-1-07 OP-Mode Setup Port Final Result op-mode 1 Setup_aOl antenna connector passed op-mode 3 Setup_aOl antenna connector passed Responsible for Responsible Accreditation Scope: for Test Report: vY+::::--­ Jf4e~ Page 4 of44 Test report Reference: MDE_SIEM_0714_FCCc Page 5 of 44 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DAT-P-192/99-01 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Report Template Version: 2007-08-13 1.2 Project Data Responsible for testing and report: Dr.-Ing. Michael Küppers Receipt of EUT: 2008-03-03 Date of Test(s): 2008-04-15 to 2008-04-29 Date of Report: 2008-06-23 1.3 Applicant Data Company Name: Siemens Address: Siemensdamm 50 13629 Berlin Germany Contact Person: Mr. Hussein Halawi 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Test report Reference: MDE_SIEM_0714_FCCc Page 6 of 44 2 Testobject Data 2.1 General EUT Description Equipment under Test: GSM Module Type Designation: Siemens Cellular Engine TC65i Kind of Device: (optional) GSM 850/900/1800/1900 Voltage Type: DC Nominal Voltage: 4.5 V Maximum Voltage: 4.5 V Minimum Voltage: 3.8 V General product description: The Equipment Under Test (EUT) is a GSM 850/900/1800/1900 module and supports GSM. The manufacturer declared that nominal voltage is equal to high voltage. In PCS1900 mode the EUT operates in blocks A through F from 1850.2 MHz (lowest channel = 512) to 1909.8 MHz (highest channel = 810). The EUT provides the following ports: Ports antenna connector enclosure data connector The main components of the EUT are listed and described in Chapter 2.2 Test report Reference: MDE_SIEM_0714_FCCc Page 7 of 44 2.2 EU…

Text truncated - open the document above for the full version.

Bluetooth Qualification Test Facility (BQTF) FCC listed: A2LA accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC/IC Test Report FOR: Model Name: TC530 FCC ID: X4QKDTC530 IC ID: 4472A-KDTC530 47 CFR Part 2, 22, 24 RSS-132 Issue 2 RSS-133 Issue 5 TEST REPORT #: EMC_CET10_050_09501_FCC_22_24_Rev3 DATE: 2010-02-18 Test Report #: EMC_CET10_050_09501 _FCC22_24_Rev3 Date of Report: 2010-02-18 Page 2 of 42 Table of Contents 1 Assessment .............................................................................................................................. 3 2 Administrative Data ............................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT ...................... 4 2.2 IDENTIFICATION OF THE CLIENT .................................................................................................... 4 2.3 IDENTIFICATION OF THE MANUFACTURER ..................................................................................... 4 3 Equipment under Test (EUT) ............................................................................................... 5 3.1 SPECIFICATION OF THE EQUIPMENT UNDER TEST .......................................................................... 5 3.2 IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) ............................................................. 5 3.3 IDENTIFICATION OF ACCESSORY EQUIPMENT ................................................................................ 5 4 Subject of Investigation ......................................................................................................... 6 5 Measurements ......................................................................................................................... 7 5.1 RF POWER OUTPUT ........................................................................................................................ 7 5.1.1 References .............................................................................................................................. 7 5.1.2 FCC 2.1046 Measurements required: RF power output. ....................................................... 7 5.1.3 Limits: .................................................................................................................................... 7 5.1.3.1 FCC 22.913 (a) Effective radiated power limits. ............................................................... 7 5.1.3.2 FCC 24.232 (b)(c) Power limits. ........................................................................................ 7 5.1.4 Conducted Output Power Measurement procedure ............................................................... 7 5.1.5 Radiated Output Power Measurement procedure .................................................................. 8 5.1.6 RF Power Output 850MHz band ............................................................................................ 9 5.1.7 RF Power Output 1900MHz band .......................................................................................... 9 5.1.8 Results .................................................................................................................................. 10 5.2 SPURIOUS EMISSIONS RADIATED ................................................................................................. 16 5.2.1 References ............................................................................................................................ 16 5.2.2 FCC 2.1053 Measurements required: Field strength of spurious radiation. ....................... 16 5.2.3 Limits: .................................................................................................................................. 16 For all power levels +30dBm to 0dBm, this becomes a constant specification of -13dBm. ............ 16 5.2.3.1 FCC 22.917 Emission limitations for cellular equipment. .............................................. 16 5.2.3.2 FCC 24.238 Emission limitations for Broadband PCS equipment. ................................ 16 5.2.4 Radiated out of band measurement procedure: ................................................................... 17 5.2.5 Radiated out of band emissions results on EUT- Transmit Mode: ...................................... 19 5.2.5.1 Test Results Transmitter Spurious Emission GSM850: ................................................... 19 5.2.5.2 Test Results Transmitter Spurious Emission PCS-1900: ................................................. 26 5.2.6 Radiated out of band emissions results on EUT- Receive Mode: ........................................ 36 5.2.6.1 References ........................................................................................................................ 36 5.2.6.2 §15.109 Radiated emission limits- Unintentional Radiators: ......................................... 36 5.2.6.3 Results .............................................................................................................................. 36 5.2.6.4 Test Results Receiver Spurious Emission ........................................................................ 37 6 Test Equipment And Ancillaries Used For Tests .............................................................. 39 7 Block Diagrams .................................................................................................................... 40 8 Revision History .......................................................................…

Text truncated - open the document above for the full version.

V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM Test Setup Pictures TEST REPORT #: EMC_CET10_050_09501 Test Report #: EMC_CET10_050_09501 Page 2 of 6 EIRP Test Setup Pictures FCC22 Test Report #: EMC_CET10_050_09501 Page 3 of 6 FCC24 Test Report #: EMC_CET10_050_09501 Page 4 of 6 Radiated Spurious Emissions Test Setup Pictures 30-1MHz Test Report #: EMC_CET10_050_09501 Page 5 of 6 1-18MHz Test Report #: EMC_CET10_050_09501 Page 6 of 6 18-19.1MHz
