X4TSCT-4VS834 PORT VIDEO SERVER

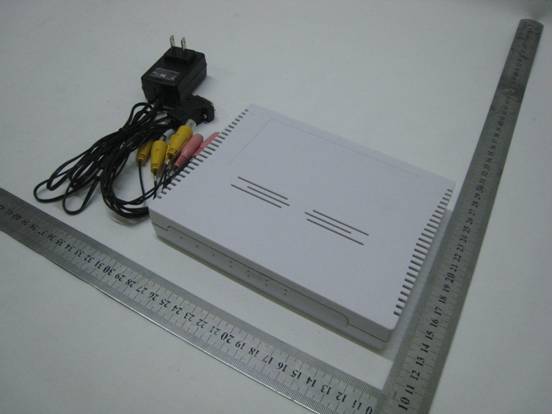

User Manual SCT-4VS83 Changwa Telecom 4 Port Video Server Federal Communications Commission(FCC) Statement You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC-Class B This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a communications. However , there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 一．Video Server Appearance Explanation Video Server front side: Video Server Back side: Port 接口說明 DC In 12V Power Input Video In & Audio In/Out VidEo IN Audio In/Out Video Out VGA Video Output DI/DO Digital In/Out RS485 RS485 Control port INTERNET 10/100/1000 M Internet Port USB USB Port CH1~4：Camera (Video) Input port Serial number 1 ~ 4 ~ 4 二． Video Server Installation Explanation 1. How to Link Ethernet：Please connect the Ethernet Cable to plug in o power light status is on and system is 三． Digital In/Out & RS485 Port Explanation AIN1~4：Microphone (Audio) Input port Serial number 1 AOUT：Speaker Input port the Internet port and connect another end to the Switch or HUB. 2. How to Link Power：Take out the Power Adaptor and connector t 12V Power DC In。 3. When Power On: The working。 Port Item Pin Status 1 Digital Input 1（＋） 2 Digital Input 1（－） 3 Digital Input 2（＋） 4 Digital Input 2（－） 5 Digital Input 3（＋） 6 Digital Input 3（－） 7 Digital Input 4（＋） 8 Digital Input 4（－） 9 Digital Output 1（＋） 10 Digital Output 1（－） 11 Digital Output 2（＋） 12 Digital Output 2（－） 13 RS485 （Data ＋） 14 RS485 （Data －） quipment Identity: Digital Input： ge：DC 36V 0mA igital Output： ：DC 30V A E Max Volta Max Electric Current：8 D Max Voltage Max Electric Current：1 四． Video Server LED & Audio Explanation LED Expression Status LED Expression Alarm SD Green Flashlight SD Mistake Red SD Card Status No SD Card N/A Normal Green Flashlight Slowly network N/A Internet TH) Straming Flashlight Status (E Green Speedily System On Always Brightness Alarm voice six times Voice Mute Service Green Light voice Alarm three times Connector to Internet; But system is Orange Light no action. Doesn't have connector to Internet Red Light Work Status Maintenance mode Flashlight Speedily voice (Power) Alarm four times Camera ON Always Brightness Camera OFF N/A Camera Streaming of Video light Speedily Flash Camera 1~4) Status (CH Camera Error Flashlight Slowly No matter issue. N/A Event CH1~4) . light one times Status ( Have matter issueFlash 五． Obstacle Determine & Processing Error State LED Audio Treatment method Power Off All LED Off ower N/A Check whether the p is connected well Internet Off Internet Off N/A normal ad Check Internet It is If it is out of question to join, please change another Network thre test Boot System N/A Boot system six Error haven’t alarm times 30 seconds later.

8183 8183 DDR Flash TW2865 Flash IC+MCU 4Video in Audio in SD 12MHz

SUNYOUNG ELECTRONIC (SHENZHEN) Co., Ltd. FCC ID: XCTSCT-4VS83 Power of Attorney 2010-09-11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd.(Mark Wen/General Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Most Technology Service Co., Ltd.(Mark Wen/General Manager) on our behalf shall have the same effect as acts of our own. This authorization will expire on september 16, 2011 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, SUNYOUNG ELECTRONIC (SHENZHEN)CO.,LTD are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely SUNYOUNG ELECTRONIC (SHENZHEN)CO.,LTD chris cheng (R&D DIV.Manager) September 11. 2010

OPERATIONAL DESCRIPTION Boot up. Set up and connect network. Start RTSP service procedure and wait for connecting. Start video capture procedure, keep working by Framerate and Birrate which have been set, also connect to RTSP service procedure where offers 4corresponding video channel. Start audio sampling procedure, keep working by sample rate which has been set, also connect to RTSP service procedure where offers 4 corresponding audio channel. Get connect video server and video can be running transport, two modes are available— 1)IN TIME RECORDING Once Digital In is triggered which cause corresponding Digital out running and start to transport audio and video frequency to Video Server, also event data can be conveyed in the same time. 2) FULL-TIME RECORDING Video and Audio frequency has been transporting to Video Server, once Digital In is triggered which cause corresponding Digital out running and start to convey related event data.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA VCC_CORE VCC_DDR 1V8 DGND VCC_DDR VCC_CORE1V2 DGND VCC_CORE DGND DDGND VCC_IO DGND DDGND DGND DGND VCC_IO3V3 Title SizeDocument NumberRev Date:Sheet of <Doc> 1.0 8182 Custom 513Thursday, November 19, 2009 Title SizeDocument NumberRev Date:Sheet of <Doc> 1.0 8182 Custom 513Thursday, November 19, 2009 Title SizeDocument NumberRev Date:Sheet of <Doc> 1.0 8182 Custom 513Thursday, November 19, 2009 CB88 0.1uF CB88 0.1uF C81 10uF C81 10uF CW28 0.01uF CW28 0.01uF C75 10uF C75 10uF CW27 0.01uF CW27 0.01uF CB80 0.1uF CB80 0.1uF C77 10uF C77 10uF CB77 0.1uF CB77 0.1uF FB35100M,17 FB35100M,17 CW29 0.01uF CW29 0.01uF CT3 100uF,6.3V CT3 100uF,6.3V CB68 0.1uF CB68 0.1uF CB66 0.1uF CB66 0.1uF C78 10uF C78 10uF C76 10uF C76 10uF CB83 0.1uF CB83 0.1uF CB92 0.1uF CB92 0.1uF CB67 0.1uF CB67 0.1uF CB74 0.1uF CB74 0.1uF CB90 0.1uF CB90 0.1uF CB85 0.1uF CB85 0.1uF C82 10uF C82 10uF CW23 0.01uF CW23 0.01uF CB91 0.1uF CB91 0.1uF CB78 0.1uF CB78 0.1uF CB76 0.1uF CB76 0.1uF CB87 0.1uF CB87 0.1uF CB81 0.1uF CB81 0.1uF CT2 100uF,6.3V CT2 100uF,6.3V CB75 0.1uF CB75 0.1uF CB72 0.1uF CB72 0.1uF C80 10uF C80 10uF FB36100M,17 FB36100M,17 CB70 0.1uF CB70 0.1uF CB89 0.1uF CB89 0.1uF CB73 0.1uF CB73 0.1uF CB69 0.1uF CB69 0.1uF CB86 0.1uF CB86 0.1uF CB79 0.1uF CB79 0.1uF CW22 0.01uF CW22 0.01uF CB71 0.1uF CB71 0.1uF CW31 0.01uF CW31 0.01uF CW30 0.01uF CW30 0.01uF CT4 47uF,6.3V CT4 47uF,6.3V CW24 0.01uF CW24 0.01uF CW21 0.01uF CW21 0.01uF FB38100M,17 FB38100M,17 CB82 0.1uF CB82 0.1uF C79 10uF C79 10uF R1140R1140 CB84 0.1uF CB84 0.1uF 3 . 3 V D G N D 1 . 8 V U1F GM8182_BGA484 3 . 3 V D G N D 1 . 8 V U1F GM8182_BGA484 VCC3IO F7 VCC3IO T7 VCC3IO F8 VCC3IO T8 VCC18IO E17 VCC3IO F6 VCC3IO G6 VCC3IO H6 VCC3IO J6 VCC3IO K6 VCC3IO T6 VCC18IO F17 VCC18IO G17 VCC18IO H17 VCC18IO J17 VCC18IO K17 VCC18IO L17 VCC18IO M17 VCC18IO P17 VCC18IO R17 VCC18IO T17 VCC18IO E18 VCC18IO F18 VCC18IO G18 VCC18IO H18 VCC18IO N17 VCC3IO F9 VCC3IO T9 DGND G14 DGND G15 DGND G16 DGND H14 DGND H15 DGND H16 DGND J14 DGND J15 DGND J16 DGND K14 DGND K15 DGND K16 DGND L14 DGND L15 DGND L16 DGND M14 DGND M15 DGND M16 DGND N14 DGND N15 DGND N16 DGND P14 DGND P15 DGND P16 DGND R14 DGND R15 DGND R16 1 . 2 V G N D G N D U1G GM8182_BGA484 1 . 2 V G N D G N D U1G GM8182_BGA484 VCCK L5 VCCK M5 VCCK N5 VCCK P5 VCCK R5 VCCK T5 VCCK E10 VCCK F10 VCCK E11 VCCK F11 GND N13 GND M13 GND L13 GND K13 GND J13 GND H13 GND G13 VCCK E12 VCCK F12 VCCK E13 VCCK F13 VCCK E14 VCCK F14 VCCK E15 VCCK F15 VCCK E16 VCCK F16 VCCK T10 VCCK U10 VCCK T11 VCCK U11 VCCK T12 VCCK U12 VCCK T13 VCCK U13 VCCK T14 VCCK T15 VCCK T16 GND G10 GND H10 GND J10 GND K10 GND L10 GND M10 GND N10 GND P10 GND R10 GND G11 GND H11 GND J11 GND K11 GND L11 GND M11 GND N11 GND P11 GND R11 GND G12 GND H12 GND J12 GND K12 GND L12 GND M12 GND N12 GND P12 GND R12 GND P13 GND R13 GND L6 GND M6 GND N6 GND P6 GND R6 GND G7 GND H7 GND J7 GND K7 GND L7 GND M7 GND N7 GND P7 GND R7 GND G8 GND H8 GND J8 GND K8 GND L8 GND M8 GND N8 GND P8 GND R8 GND G9 GND H9 GND J9 GND K9 GND L9 GND M9 GND N9 GND P9 GND R9 CW26 0.01uF CW26 0.01uF FB41 100M,17 FB41 100M,17 CW25 0.01uF CW25 0.01uF CW20 0.01uF CW20 0.01uF PDF created with FinePrint pdfFactory trial version http://www.fineprint.com 5 5 4 4 3 3 2 2 1 1 DD CC BB AA DDR_1_DQ14 DDR_1_DQS0 DDR_0_DQM1 DDR_0_DQ15 DDR_0_DQ12 DDR_0_DQ6 DDR_0_A6 DDR_0_VREF1 DDR_1_DQM0 DDR_1_DQ8 DDR_1_A12 DDR_0_DQ1 DDR_1_DQ10 DDR_1_DQ4 DDR_0_DQ9 DDR_0_DQ3 DDR_0_CSn0 DDR_1_A3 DDR_0_A12 DDR_1_DQ1 DDR_1_A8 DDR_1_A5 DDR_1_CKE0 DDR_0_DQSn0 DDR_0_A5 DDR_0_A1 DDR_1_DQSn0 DDR_1_A6 DDR_0_DQS0 DDR_1_DQSn1 DDR_1_DQ5 DDR_0_RDRVUP DDR_0_DQS1 DDR_0_DQ4 DDR_1_A7 DDR_0_DQSn1 DDR_0_DQ8 DDR_0_A9 DDR_0_A0 DDR_0_CKE0 DDR_0_CLKn0 DDR_1_DQ0 DDR_1_A4 DDR_0_DQ13 DDR_0_DQ0 DDR_0_A10 DDR_0_A4 DDR_0_ODT0 DDR_1_DQ6 DDR_1_A11 DDR_1_A1 DDR_1_DQ2 DDR_1_A2 DDR_0_DQ11 DDR_0_DQ5 DDR_0_DQ2 DDR_1_A9 DDR_1_ODT0 DDR_0_DQ14 DDR_0_DQ10 DDR_0_VREF0 DDR_1_DQ11 DDR_1_DQ15 DDR_1_DQ9 DDR_1_DQ7 DDR_1_DQ3 DDR_1_A0 DDR_1_CLK0 DDR_0_A3 DDR_1_A10 DDR_1_VREF1 DDR_0_DQ7 DDR_0_A7 DDR_0_RDRVDN DDR_0_A11 DDR_1_DQ13 DDR_1_DQ12 DDR_1_CSn0 DDR_1_DQM1 DDR_1_DQS1 DDR_1_CLKn0 DDR_1_VREF0 DDR_0_DQM0 DDR_0_CLK0 DDR_0_A8 DDR_0_A2 DDR_0_DUMMY DDR_1_DUMMY DDR_0_WEn DDR_1_WEn DDR_0_RASn DDR_1_RASn DDR_0_CASn DDR_1_CASn V1_PCLKI V1_DI0 V1_DI1 V1_DI2 V1_DI3 V1_DI4 V1_DI5 V1_DI6 V1_DI7 V2_DI0 V2_DI2 V2_DI1 V2_DI3 V2_DI5 V2_DI7 V2_DI4 V2_PCLKI V2_DI6 SYS_RSTn MAC_TX_EN MAC_TXD0 MAC_TXD1 MAC_TXD2 MAC_TXD3 MAC_TX_CLK MAC_RX_CLK MAC_COL MAC_RX_DV MAC_CRS MAC_RX_ER CRYO_M VCC_OSC CRYI_M DGND CRYO_A CRYO_M CRYI_M DDR_0_VREF0DDR_1_VREF0DDR_0_VREF1DDR_1_VREF1 DDR_0_RDRVDN DDR_1_DUMMY DDR_0_RDRVUP I2C_SDA I2C_SCL DDR_1_BA2 DDR_1_BA1 DDR_1_BA0 DDR_0_BA0 DDR_0_BA2 DDR_0_BA1 MAC_RXD2 MAC_PHY_LINK MAC_RXD3 MAC_MDIO MAC_RXD0 MAC_RXD1 DDR_0_DUMMY VCC_SATA0_P VCC_SATA1_1 SATA0_REXT SATA1_REXT SATA1_REXT VGA_COMP MAC_MDC DAC_GNDAPLL_GND DDR_0_A13 DDR_1_A13 CRYI_A GND_USB SA_XSCO MAC_GTX_CK S5_TXDMAC_CLK MAC_PHY_PD MAC_TXD4 MAC_TXD5 MAC_TXD6 MAC_TXD7 MAC_RXD6 MAC_RXD5 MAC_RXD4 MAC_RXD7 RxN0 RxP0 SA_XSCO SA_XSCI TxN0 SA_XSCI TxP0 GND_SATA SATA0_REXT VCC_SATA0_1 VCC_SATA1_P SMC_ADDR18 SMC_ADDR3 SMC_ADDR5 SMC_DQ0 SMC_ADDR11 SMC_DQ6 SMC_ADDR20 SMC_ADDR2 SMC_ADDR10 SMC_ADDR14 SMC_ADDR1 SMC_WEn SMC_DQ5 SMC_ADDR16 SMC_DQ7 SMC_ADDR13 SMC_DQ3 SMC_ADDR17 SMC_ADDR21SMC_CSn0 SMC_ADDR4 SMC_ADDR0 SMC_ADDR8 SMC_DQ2 SMC_ADDR9 SMC_OEn SMC_ADDR23 SMC_ADDR7 SMC_DQ1 SMC_ADDR12 SMC_ADDR22 SMC_ADDR19 SMC_ADDR6 SMC_ADDR15 SMC_DQ4 VCC_PLL1 PLL_GND PLL_GND VCC_DDLL0 GND_DDLL1 GND_DDLL0 VCC_PLL2 PLL_GND VCC_PLL3 VCC_DDLL1 U_XSCO U_DM GND_USB U_PREF VCC_HSRTA GND_USB VCC_USB U_DP U_DM_H U_DP_H VCC_HSRTB U_IDDIG GND_USB U_VBUS CA_PCLK DAC_COMP VGA_ROUT VGA_VCC S4_TXD S4_RXD S2_RXD SD_DAT3 DAC_IOUTB VGA_RSET VSYNC_OUT I2S0_RXD HSYNC_OUT I2S0_TXD S1_RXD S2_TXD SD_DAT1 ICE_TCK DAC_RSET VGA_BOUT I2S0_BCLK S3_TXD VGA_GNDA I2C_SDA GPIO1 ICE_DBGREQ GPIO3 DAC_COMP S5_RXD SD_CDn VGA_GOUT GPIO2 S1_TXD SD_CLK ICE_TDI ICE_TRSTn DAC_IOUTA S5_TXD SD_DAT2 GPIO0 ICE_TDOS3_RXD SD_DAT0 SD_CMD_RSP ICE_DBGACK …

Text truncated - open the document above for the full version.

FCC ID:X4TSCT-4VS83 - 1 - FCC PART 15 SUBPART B Test Report FOR Applicant: SUNYOUNG ELECTRONIC (SHENZHEN)Co.,LTD Address: Room 2811,United plaza A, No.5022,Binhe Road Futian District, Shenzhen, China Product Name: Video Server Model Name: SCT-4VS83, IP-0801, IP-C102, IP-D101 Brand Name: N/A FCC ID: X4TSCT-4VS83 Date of Issue: SEP.10, 2010 Issued by: Most Technology Service Co., Ltd. Address: No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel: 86-755-86170306 Fax: 86-755-86170310 The report consists 12 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID:X4TSCT-4VS83 - 2 - TABLE OF CONTENTS 1: VERIFICATION OF CONFORMITY................................................................................................... 3 2: GENNERAL INFORMATION..................................................................................................................... 4 2.1 Product Information.............................................................................................................................. 4 2.2 Objective ...................................................................................................................................................... 4 2.3 Test Standards And Results ...................................................................................................... 4 2.4 Measurement Uncertainty .................................................................................................................. 4 2.5 Environmental Conditions ............................................................................................................... 4 3: TEST FACILITY................................................................................................................................................ 5 3.1 Test Facility ............................................................................................................................................. 5 3.2 General Test Procedures ..................................................................................................................... 5 4: SETUP OF EQUIPMENT UNDER TEST......................................................................................................6 4.1 Support Equipment .................................................................................................................................... 6 4.2 Test Equipment List .............................................................................................................................. 6 5: TEST LINE CONDUCTED EMISSION REQUIREMENTS ............................................................ 7 5.1 Limits of line conducted emission test ....................................................................................... 7 5.2 BLOCK DIAGRAM OF TESP SETUP ...................................................................................................................7 5.3 preliminary procedure of line conducted emission test ......................................................7 5.4 Test result of line conducted emission test............................................................................9 6: TEST RADIATED EMISSION REQUIREMENT ................................................................................. 10 6.1 limits of radiated disturbances at 3m distances for class B.....................................10 6.2 BLOCK OF RADIATION INTERFERENCE..........................................................................................................10 6.3 Preliminary radiated emission test....................................................................................................10 6.4 Test result of radiation emission test..............................................................................................12 FCC ID:X4TSCT-4VS83 - 3 - 1. Verification of Conformity Equipment under test: Video Server Brand Name: N/A Model Number: SCT-4VS83, IP-0801, IP-C102, IP-D101 FCC ID: X4TSCT-4VS83 Applicant: SUNYOUNG ELECTRONIC (SHENZHEN)CO.,LTD Room 2811, United Plaza A,NO.5022, Binhe Road , Futian District, Shenzhen, China Manufacturer: SUNYOUNG ELECTRONIC (SHENZHEN)CO.,LTD Room 2811, United Plaza A,NO.5022, Binhe Road , Futian District, Shenzhen, China Technical Standards: FCC Part 15 Subpart B File Number: MOST MTQCP-05-02/02 Date of test: September 03, 2010-September 08, 2010 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested by Most for compliance with the requirements set forth in FCC Rules and the Technical Standards mentioned above. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment and the level of the immunity endurance of the equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in the report. Test by: (candy Zhang) Reviewed by: (key Wang) Approved by: (Yvette Zhou) FCC ID:X4TSCT-4VS83 - 4 - 2. General information 2.1 Product information Power Adaptor FM120010-US Motherboard 4VS83-A1 Chip 8183 NOTE: Please refer to the photographs of the EUT. For a more detailed features description about the EUT, please refer to User’s Manual. 2.2. Objective The objective of the report is to perform tests according to FCC Part 15 Subpart B for the EUT FCC ID Certification: NO. Identity Document Title 1 FCC PART15 Subpart B Class B personal computers and peripherals.......... 2.3 Test standards and results Test items and the results are as bellow: NO. Secti…

Text truncated - open the document above for the full version.
