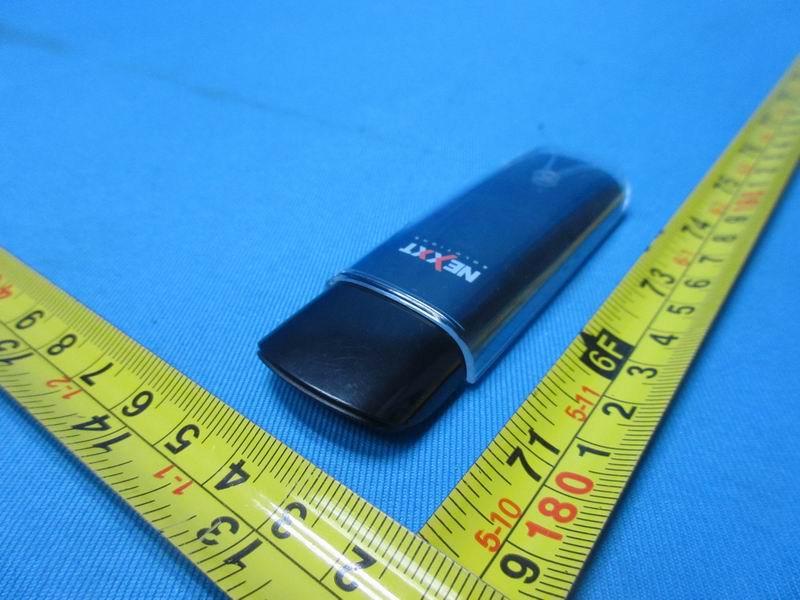

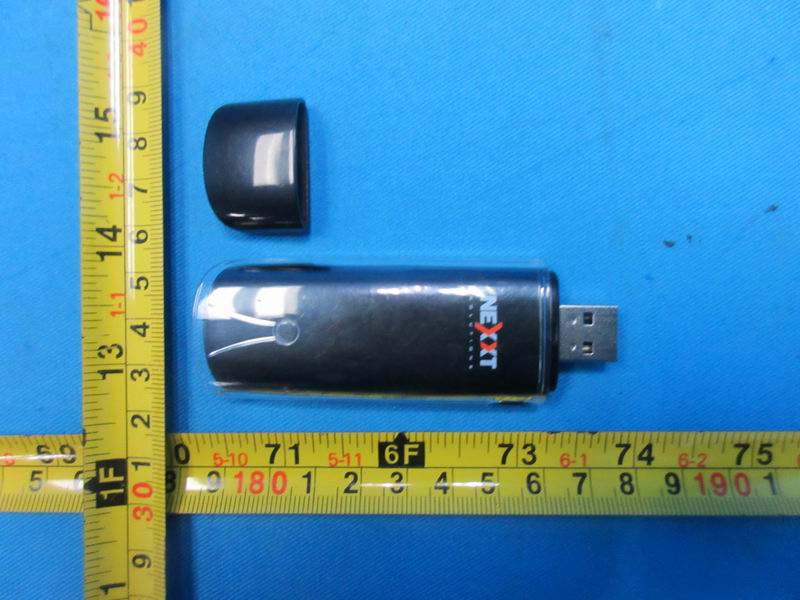

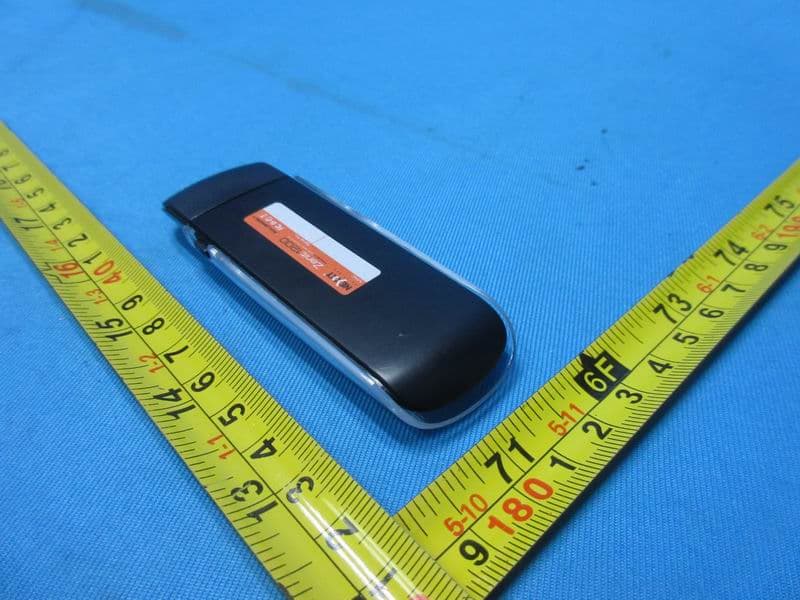

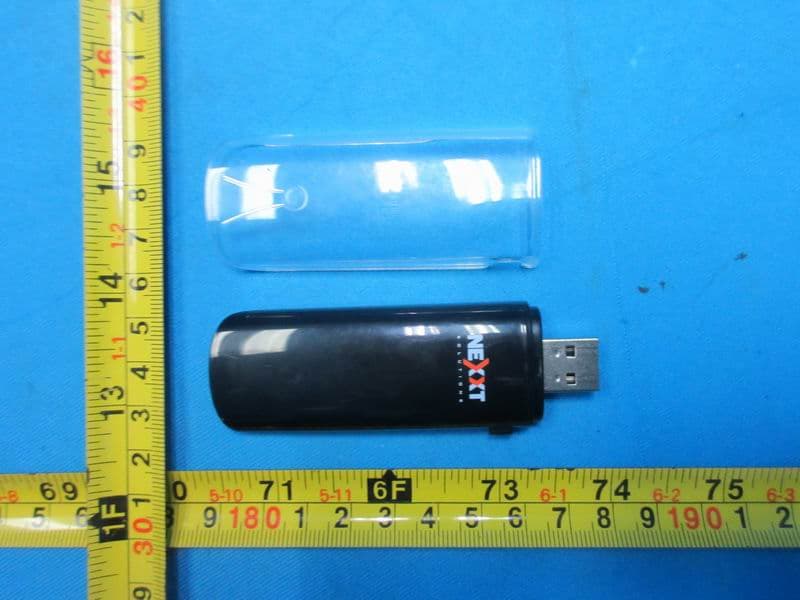

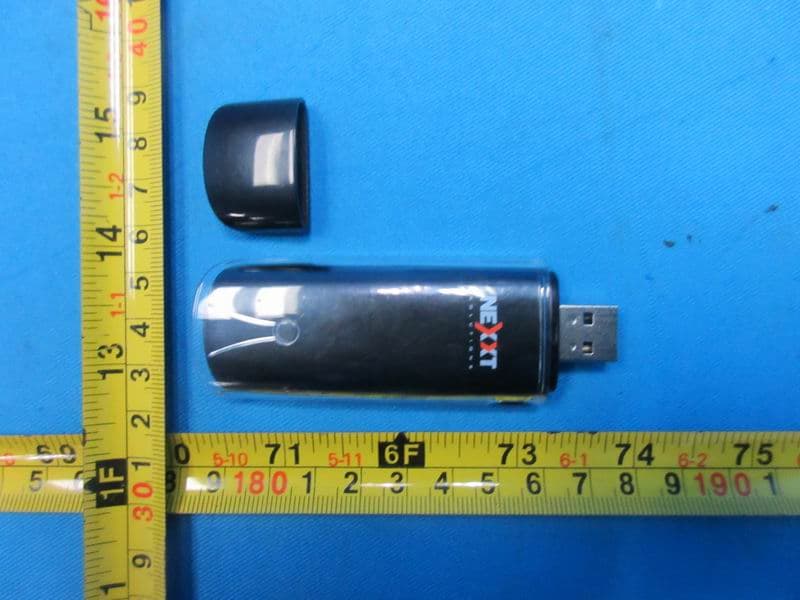

X4Y20006Zenit1200 Dual-Band Wireless AC USB Adapter

This device is restricted to be used in the indoor.

Project No.: 1412C242 Page 2 of 7 Project No.: 1412C242 Page 3 of 7

Lable Here

Project No.: 1412C242 Page 4 of 7 Project No.: 1412C242 Page 5 of 7 Project No.: 1412C242 Page 6 of 7 Project No.: 1412C242 Page 7 of 7

FCC RF EXPOSURE REPORT FCC ID: X4Y20006 Project 1412C242 Equipment : Zenit1200 Dual-Band Wireless AC USB Adapter Model : AULUB905U1 Applicant : NEXXT SOLUTIONS Address : 3505 N.W MIAMI, FL, 33178 According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant Brand Model NameAntenna TypeConnectorGain(dBi) Note 1 N/A N/A Printed N/A 3.00 TX/RX 2 N/A N/A Printed N/A 3.00 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and receivers (2T2R), all transmit signals are completely uncorrelated, then, Direction gain = GANT, that is Directional gain=3.0. GENERAL CONCULUSION: According to section 4.3.1 of FCC KDB447498 D01: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≦50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√ f (GHz) ] ≦3.0 for 1-g SAR and≦7.5 for 10-g extremity SAR, where ． f (GHz) is the RF channel transmit frequency in GHz ． Power and distance are rounded to the nearest mW and mm before calculation ． The result is rounded to one decimal place for comparison ． 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below 2.4G Max AVG Power (dBm) Max AVG Power (mW) Channel (GHz) Min. test seperation distance(mm) Result SAR test exclusion threshlod for 1-g SAR 8.92 7.798301105 2.412 5 2.4222483 5G UNII-1 Max AVG Power (dBm) Max AVG Power (mW) Channel (GHz) Min. test seperation distance(mm) Result SAR test exclusion threshlod for 1-g SAR 7.98 6.280583588 5.180 5 2.8588733 5G UNII-3 Max AVG Power (dBm) Max AVG Power (mW) Channel (GHz) Min. test seperation distance(mm) Result SAR test exclusion threshlod for 1-g SAR 7.47 5.584701947 5.825 5 2.6957403 Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FCCP-1-1412C242 Page 26 of 146 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1412C242 Page 27 of 146 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1412C242 Page 28 of 146 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1412C242 Page 29 of 146 Radiated Measurement Photos Above 1000MHz
