X4YHACIP15Camera

Thank you for using smart camera Smart Life Install APP Download APP: scan the QR code below to download and install. Register and login: open the " Smart Life" APP to register and login according to the prompts. Basic Parameters Product Name: Camera Pixel: 2.0MP/3.0MP/4.0MP/5.0MP/8.0MP Video Compression: H.264 H.265 High Profile Image Enhancement: Digital Wide Dynamic 3D Noise Reduction Local Storage: MicroTF card Wireless Encryption: WEP/WPA/WPA2 Encryption Power Input: 5V 1A(Min) Total Power Consumption: 5W (Max) WirelessStandard: 2.4G 802.11 b/g/n Support Platform: Android/iOS Component Description: Reset Button: Long press “reset” hole 5sec, reset success. It is recommended to insert 8-128GB high-speed Micro TF card, otherwise it will not be able to store, view historical video and support Important functions such as firmware upgrading. Packing list: Camera × 1, Manual × 1, USB Power Cord × 1, Power Adapter × 1,Screw Accessories Package x 1 Matters Need Attention Try to keep away from the metal space; Avoid the furniture , microwave oven blocked; Avoid the space where the audio, video and data lines are wound, and keep the space away from them as large as possible; Ensure that as close as possible to the coverage of wireless Wi-Fi signals. Switching network environment; In the new network environment, please press the reset hole about 5 seconds, then connect to the network. The name and content of the harmful substances in the product This product conforms to RoHS environmental protection requirements. At present, there is no mature technology in the world to replace or reduce the lead content in the electronic ceramics. porcelain, optical glass, steel and copper alloy. Part Name Harmful Substance shell Board charger annex This form is based on the provisions of SJ/T 11364。 Pb Hg Cd Cr(VI)PBBPBDE ○ ○ ○○○○ X ○ ○○○○ ○ ○ ○○○○ ○ ○ ○○○○ ·Click to complete the connection (Figure 15) ·Video screen (Picture 16) ·A QR code will prompt on your screen and you need to scan it with the Smart Camera. (the camera is about 20-30 cm away from the mobile phone lens). Then click "hear the prompt sound" (Figure. 07. ·"connecting" (Figure. 08); ·If the mobile phone is not connected to wi-fi, please click "Connect to Wi-fi" (Figure 04); ·It will jump to the WLAN interface and connects Wi-Fi (Figure 05). ·If the phone is connected to Wi-Fi (Figure 06)； Add The Device-Scan QR code mode ·Make sure Wi-Fi is available and connected to the Internet. ·Open "Smart Life" APP, press the'+' in the upper right corner of the main screen (Figure 01); choose “Security & Video Surveillance”click "Smart Camera" (Figure 02) to add camera; and then click "Next step" (Figure 03); ·Connect the camera to the power, then system startup completed. Please note that only 2.4 GH Wi-Fi network is supported; 0708050102030406 jz ·Doneconnection completed(Figure 09), and click ""; ·Then jump to preview interface (Figure 10) ·After closing the device preview interface, the interface returns to the APP home page. At this time, the connected device will appear on the APP home page (Figure 11). Then you can click directly to the device interface to see the monitoring situation without re-adding afterwards. 11091510 2021-08-05 16:38:22 16 2021-08-05 16:38:22 1312 14 ·Select "EZ Mode" (Figure 12) ·Click Next (Figure 13) ·Enter the account and password that can connect to WIFI (Figure 14) 80x80mm Add device-WIFI fast connection mode FCC SDoC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can RF Exposure lnformation: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &your body. radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - ln crease the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This …

Text truncated - open the document above for the full version.

U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: NEXXT SOLUTIONS FRN: 0019499201 Contact Name: Albert Mizrachi Address: 3505 N.W 107TH AVE. MIAMI, Florida 33178, United States Telephone No: 786-280-7600 Email: [email protected] This letter is to confirm that we (NEXXT SOLUTIONS) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2025/8/15 Signed by (Printed Name/Title): Albert Mizrachi / Vice president of product development The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: NEXXT SOLUTIONS Grantee Code:X4Y FCC ID: X4YHACIP15 FRN: 0019499201 Email: [email protected] Contact Name: Albert Mizrachi Address: 3505 N.W 107TH AVE. MIAMI, Florida 33178, United States Telephone No: 786-280-7600 Applicant Signature: Date: 2025/8/15 Signed by (Printed Name/Title): Albert Mizrachi / Vice president of product development

(NEXXT SOLUTIONS) (2025.09.22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:X4YHACIP15) [NEXXT SOLUTIONS] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Albert Mizrachi (NEXXT SOLUTIONS) (2025.09.22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:X4YHACIP15) [NEXXT SOLUTIONS] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Albert Mizrachi

NEXXT SOLUTIONS 2025.09.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Camera Trademark: N/A MODEL: NHC-IP15 R2 FCC ID: X4YHACIP15 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Albert Mizrachi / Vice president of product development Contact information / address: 3505 N.W 107TH AVE. MIAMI, Florida 33178, United States.

NEXXT SOLUTIONS 2025.09.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Albert Mizrachi / Vice president of product development Contact information / address: 3505 N.W 107TH AVE. MIAMI, Florida 33178, United States.

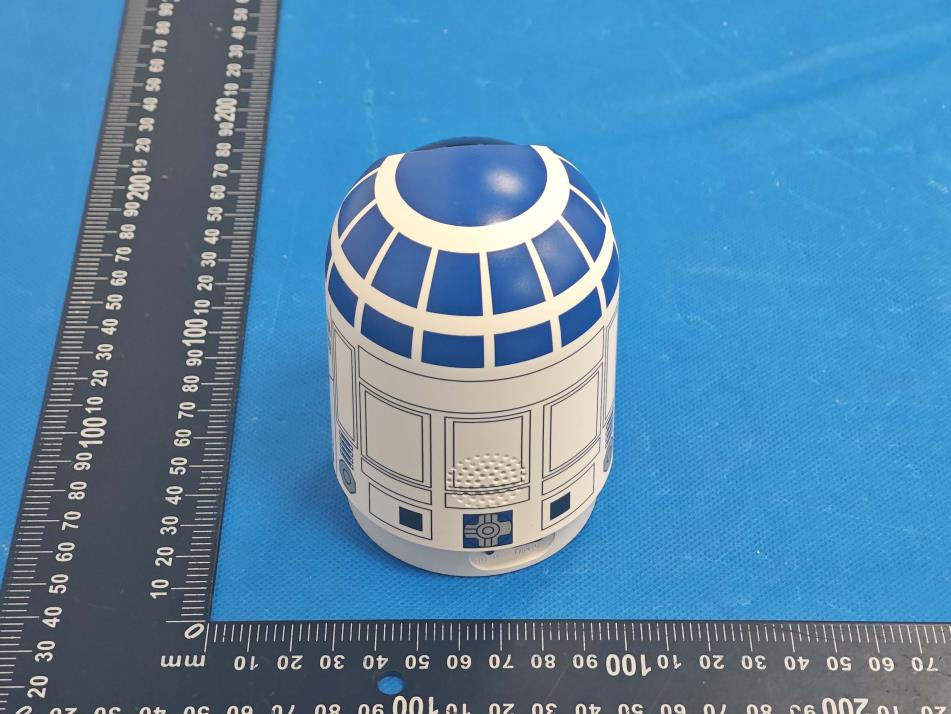

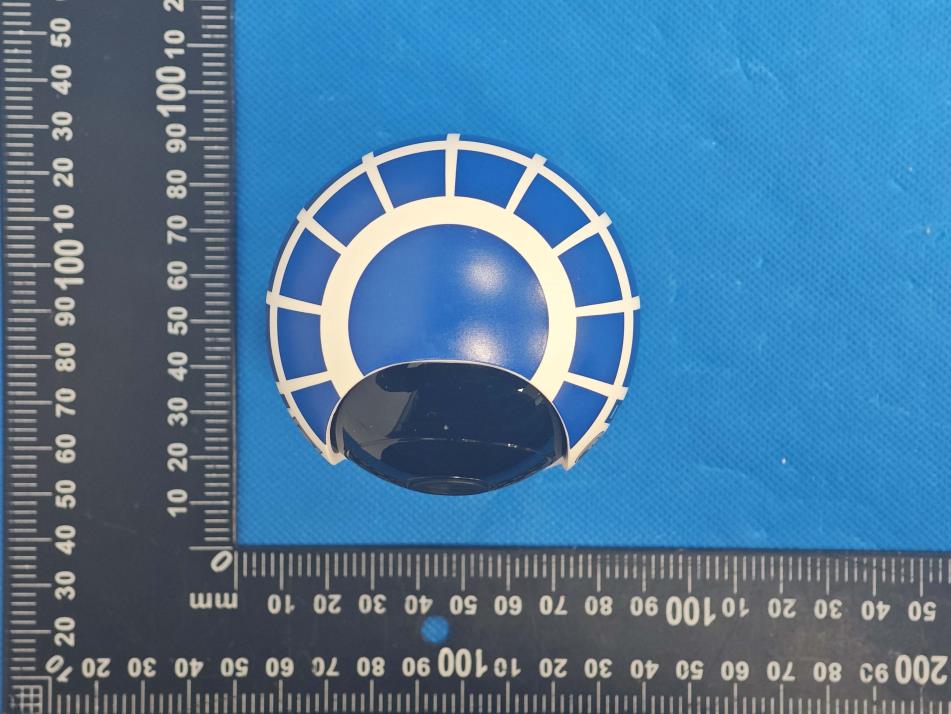

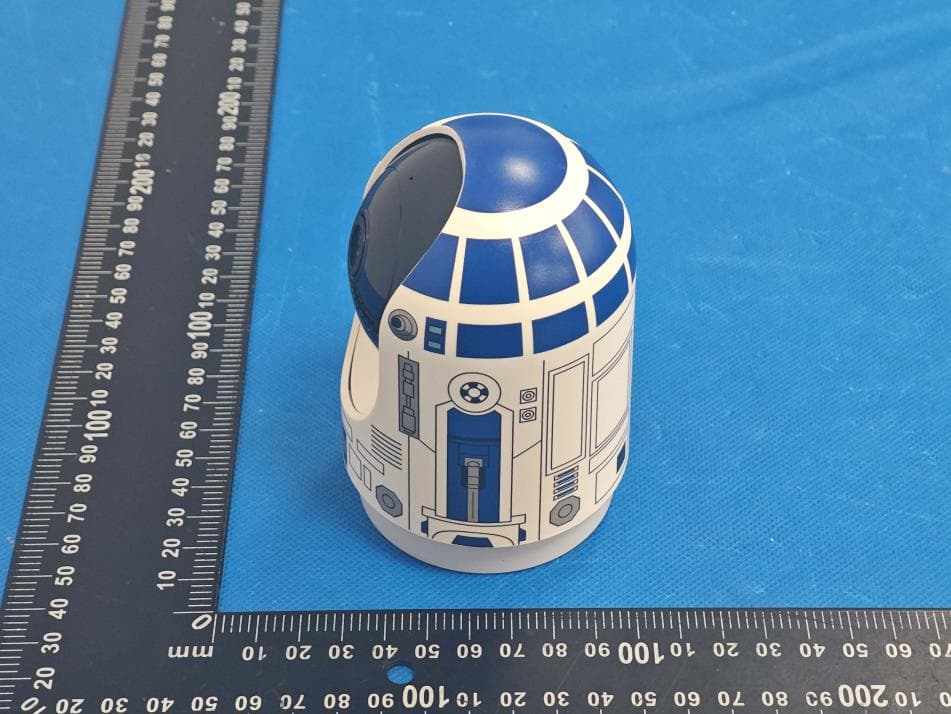

External Photos

Label & label location Label location

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID:X4YHACIP15 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result WIFI 12±1 13 19.95 2.032 (3.08dBi) 0.00807 1 Pass

ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com Sampleacknowledgement supplier：ShenzhenYingjiaChuangelectronictechnologyCo.,LTD Itemnumber(customer)： Namespecification(Customer)： Sampledeliverydate： Newsupplierornot ：□ is □ no Whethernewmaterial ：☑ is □ no Whethertosubstitutematerial ：□ is □ no Whetheritisenvironmentallyfriendly ：☑ is □ no Supplierauditcolumn(officialsealrequired) formulateexamineExamineandapprove YinFeijieFangWenfengChauhan Companyconfirmationauditcolumn purchaseResearchanddevelopment Audit/DateApproval/DateAudit/DateApproval/Date QualityENGINEERINGbusiness Audit/DateApproval/DateAudit/DateApproval/Date ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 1 页共 11 页 Address:BuildingC,HongyuGuangmingValley,No.11,YoumaGangRoad,MaTianStreet, GuangmingDistrict,ShenzhenDongguanBranch:YingjiachuangIndustrialPark,No.2Yinhe 3rdRoad,Shishuikou,QiaotouTown,DongguanCityHangzhouOffice:212,BuildingB,Dahua JianghongInternationalInnovationPark,369InternetofThingsStreet,BinjiangDistrict, HangzhouMianyangOffice:No.4F-34WanxiangHigh-techInternational,No.35MianxingEast Road,MianyangHigh-techZone,SichuanProvincetelephone：0755-27810060fax：0755-27810057 website：http://www.szsyjc.com CUSTOMERNAME CUSTOMERP/N PARTNAME 2.4G/5Gmetalbuilt-inantenna Model:T31 P/NYJC-6N000-B521 APPROVALREV.A0 DELIVERYDATEApril06,2024 PREPAREDBY YinFeijie CHECKEDBYFangWenfeng APPROVEDBYChauhan CustomerApproved ApprovedByCheckedByPreparedBy ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 2 页共 11 页 Catalogue 1、cover··············································································1 2、catalogue········································································2 3、resume···········································································3 4、Antennaplan···································································4 5、Antennatechnicalparametersandenvironmentalperformancetest ····· 5 6、Antennaphysicaldiagramandlocationdiagram ························· 5 7、Antennaperformancetestdiagram ····································· 6 8、2D.3D(2.4G/5G)testdata ··············································· 7-9 9、OTAactivetestdata ·························································· 10 10、ROHSMaterialcontrolreport ······································· 11 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 3 页共 11 页 resume ： VersionChangesandreasons date publish A0InitialreleaseApril06,2024 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 4 页共 11 页 Productplan： ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 5 页共 11 页 Antennatechnicalparametersandenvironmentaltesting: Electricaltechnicalparameter ElectricalSpecificationsMechanicalSpecifications FrequencyRange2400-2500/5150-5850MHzWirematerial304Stainlesssteel VSWR＜1.92InputconnectorOP InputImpedance50ΩWorkingTemperature-20°C~+70°C DirectionAllWorkingHumidity20~80% Gain4.3dBi Environmentalperformancetest : ProjectTestconditionStandard Storage Conditions Intheabsenceofspecifiedtesttemperature, humidity,airpressureisasfollows:: 1.Temperatureis-30°C~+80°C 2.Relativehumidityof45%to45% 3.Airpressureis86kpato106kpa Electricaland mechanicalperformace isnormal Highandlow temperaturetest Between70°Cand-20°Cfor5loops,then1-2 hundernormalconditions,checktheappearance quality. Sizeshouldmeetthe requirementsandmeet theperformanceof mechineryand electric. Constantdampand hotresistance test 95+/-3%relativehumidity,temperaturetest: 40°C.Lasts2hafter,trytotakeoutthe determinationofelectricalproperties,within 5minaftertry1-2hunderarticlenormalthing, checktheappearancequality Sizeshouldmeetthe requirementsandmeet theperformanceof mechineryand electric. vibrationtest 10-55hz,vibrationfrequencyrangeof displacementamplitude:0.35MM,acceleration amplitude:50.0M/S,sweepcycles:30times Electricaland mechanicalperformace isnormal Falldowntest 1mhighaltitudeinaccordancewiththe perpendicularaxisfreedrop3times Electricaland mechanicalperformace isnormal ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 6 页共 11 页 Antennaphysicaldiagramandlocationdiagram： Antennaperformancetestdiagram： Antenna attachment position ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 7 页共 11 页 2D.3Dtestdata(2.4G/5G): FrequencyEfficiency(%)Gain.(dBi) 2400MHz 45.592.13 2410MHz 45.412.35 2420MHz 46.063.08 2430MHz 48.853.05 2440MHz 48.443.01 2450MHz 51.412.33 2460MHz 51.282.88 2470MHz 48.112.48 2480MHz 50.742.44 2490MHz 47.852.35 2500MHz 49.132.08 5150MHz 51.552.52 5250MHz 49.752.75 5350MHz 51.323.02 5450MHz 56.983.06 5550MHz 55.73.07 5650MHz 58.543.64 5750MHz 55.834.21 5850MHz 57.364.33 Phi02DPhi902DTheta902D 3D2400： ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 8 页共 11 页 3D2450 ： 3D2500 ： 3D5150 ： ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 9 页共 11 页 3D5550 ： 3D5850 ： ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 10 页共 11 页 OTAactivetestdatastatistics ： ItemMeasurementBandChannelFrequencyTotal 1TRPWIFI_B(11M)1241215.39 2TRPWIFI_B(11M)6243715.69 3TRPWIFI_B(11M)11246216.78 4TIS(EIRP)WIFI_B(11M)12412-76.91 5TIS(EIRP)WIFI_B(11M)62437-78.78 6TIS(EIRP)WIFI_B(11M)112462-81.5 7TRPWIFI_G(54M)1241213.31 8TRPWIFI_G(54M)6243713.36 9TRPWIFI_G(54M)11246213.82 10TIS(EIRP)WIFI_G(54M)12412-66.3 11TIS(EIRP)WIFI_G(54M)62437-68.03 12TIS(EIRP)WIFI_G(54M)112462-68.2 13TRPWIFI_N_ISM(65M)1241213.54 14TRPWIFI_N_ISM(65M)6243713.45 15TRPWIFI_N_ISM(65M)11246213.95 16TIS(EIRP)WIFI_N_ISM(65M)12412-61.65 17TIS(EIRP)WIFI_N_ISM(65M)62437-63.84 18TIS(EIRP)WIFI_N_ISM(65M)112462-64.21 19TRPWIFI_A(54M)36518010.41 20TRPWIFI_A(54M)149574510.68 21TRPWIFI_A(54M)165582510.65 22TIS(EIRP)WIFI_A(54M)365180-68.4 23TIS(EIRP)WIFI_A(54M)1495745-62.44 24TIS(EIRP)WIFI_A(54M)1655825-63 ShenzhenYingjiaChuangelectronictechnologyCo.,LTD http://www.szsyjc.com 第 11 页共 11 页 MaterialRoHSconformitydeclar…

Text truncated - open the document above for the full version.

No.：BCTC/RF-ICT-005 Page 1 of 75 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2508985637E Applicant: NEXXT SOLUTIONS Product Name: Camera Test Model: NHC-IP15 R2 Tested Date: 2025-08-11 to 2025-08-15 Issued Date: 2025-09-16 Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 2 of 75 Edition：C.0 FCC ID:X4YHACIP15 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Camera Trademark: N/A Model/Type reference: NHC-IP15 R2 Prepared For: NEXXT SOLUTIONS Address: 3505 N.W 107TH AVE. MIAMI, Florida 33178, United States Manufacturer: Sungale Electronics (Shenzhen) Limited Address: No. 1302, DaHong High-Tech Park, No. 6-18, Xinhe Road, Xinqiao, BaoAn, Shenzhen 518125, CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2025-08-11 Sample tested Date: 2025-08-11 to 2025-08-15 Issue Date: 2025-09-16 Report No.: BCTC2508985637E Test Standards: FCC Part15.247 ANSI C63.10-2020 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 3 of 75 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ..................................................... 9 5. Test Facility And Test Instrument Used ............................................................... 10 5.1 Test Facility ......................................................................................................... 10 5.2 Test Instrument Used .......................................................................................... 10 6. Conducted Emissions .......................................................................................... 12 6.1 Block Diagram Of Test Setup .............................................................................. 12 6.2 Limit .................................................................................................................... 12 6.3 Test Procedure ................................................................................................... 12 6.4 EUT Operating Conditions .................................................................................. 12 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test Procedure ................................................................................................... 17 7.4 EUT Operating Conditions .................................................................................. 18 7.5 Test Result .......................................................................................................... 18 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test Procedure ................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Power Spectral Density Test ............................................................................... 29 9.1 Block Diagram Of Test Setup .............................................................................. 29 9.2 Limit .................................................................................................................... 29 9.3 Test Procedure ................................................................................................... 29 9.4 EUT Operating Conditions .................................................................................. 29 9.5 Test Result ....................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 54 of 75 Edition：C.0 Band Edge NVNT n40 2422MHz Band Edge NVNT n40 2422MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 55 of 75 Edition：C.0 Band Edge NVNT n40 2452MHz Band Edge NVNT n40 2452MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 56 of 75 Edition：C.0 Test Graphs Tx. Spurious NVNT b 2412MHz Tx. Spurious NVNT b 2412MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 57 of 75 Edition：C.0 Tx. Spurious NVNT b 2437MHz Tx. Spurious NVNT b 2437MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 58 of 75 Edition：C.0 Tx. Spurious NVNT b 2462MHz Tx. Spurious NVNT b 2462MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 59 of 75 Edition：C.0 Tx. Spurious NVNT g 2412MHz Tx. Spurious NVNT g 2412MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 60 of 75 Edition：C.0 Tx. Spurious NVNT g 2437MHz Tx. Spurious NVNT g 2437MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 61 of 75 Edition：C.0 Tx. Spurious NVNT g 2462MHz Tx. Spurious NVNT g 2462MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 62 of 75 Edition：C.0 Tx. Spurious NVNT n20 2412MHz Tx. Spurious NVNT n20 2412MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 63 of 75 Edition：C.0 Tx. Spurious NVNT n20 2437MHz Tx. Spurious NVNT n20 2437MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 64 of 75 Edition：C.0 Tx. Spurious NVNT n20 2462MHz Tx. Spurious NVNT n20 2462MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 65 of 75 Edition：C.0 Tx. Spurious NVNT n40 2422MHz Tx. Spurious NVNT n40 2422MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 66 of 75 Edition：C.0 Tx. Spurious NVNT n40 2437MHz Tx. Spurious NVNT n40 2437MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 67 of 75 Edition：C.0 Tx. Spurious NVNT n40 2452MHz Tx. Spurious NVNT n40 2452MHz Emission Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 68 of 75 Edition：C.0 13. Duty Cycle Of Test Signal 13.1 Standard Requirement Pre-analysis Check: While conducting average power measurement, duty cycle of each mode shall be checked to ensure its duty cycle in order to compensate for the loss due to insufficient ratio of duty cycle. All duty cycle is pre-scanned, and result as obtained below shows only the most representative ones where duty cycle is conducted as the given transmission with given virtual operation that expresses the percentage. 13.2 Formula Duty Cycle = Ton / (Ton+Toff) 13.3 Test Procedure 1.Set span = Zero 2. RBW = 8MHz 3. VBW = 8MHz, 4. Detector = Peak 13.4 Test Result Condition Mode Frequency (MHz) Duty Cycle (%) Correction Factor (dB) NVNT b 2412 100 0 NVNT g 2412 100 0 NVNT n20 2412 100 0 NVNT n40 2422 100 0 Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 69 of 75 Edition：C.0 Test Graphs Duty Cycle NVNT b 2412MHz Duty Cycle NVNT g 2412MHz Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 70 of 75 Edition：C.0 Duty Cycle NVNT n20 2412MHz Duty Cycle NVNT n40 2422MHz Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 71 of 75 Edition：C.0 14. Antenna Requirement 14.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 14.2 Test Result The EUT antenna is Internal antenna, fulfill the requirement of this section. Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 72 of 75 Edition：C.0 15. EUT Photographs EUT Photo 1 EUT Photo 2 NOTE: Appendix-Photographs Of EUT Constructional Details. Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 73 of 75 Edition：C.0 16. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 74 of 75 Edition：C.0 Report No.: BCTC2508985637E No.：BCTC/RF-ICT-005 Page 75 of 75 Edition：C.0 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com Consultation E-mail: [email protected] Complaint/Advice E-mail: [email protected] ※※※※※ END ※※※※※

16. EUT Test Setup Photographs Conducted emissions Radiated Measurement Photos
