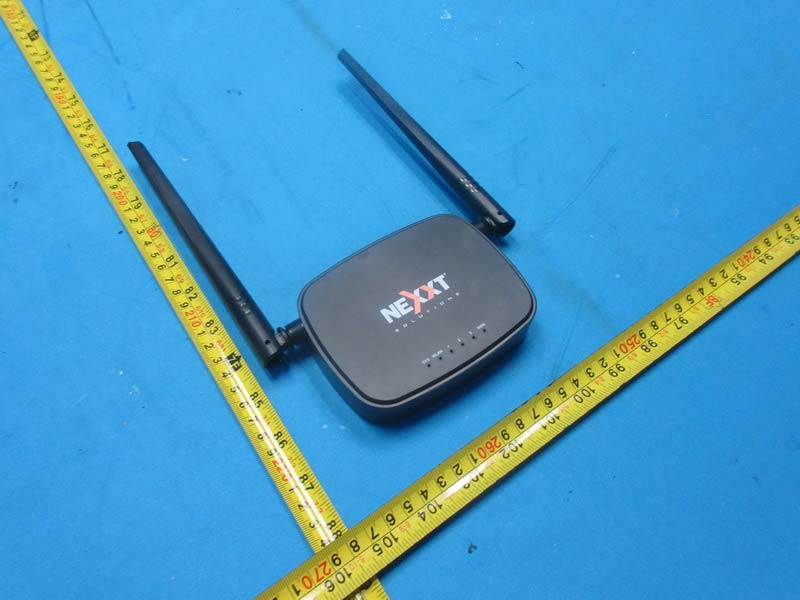

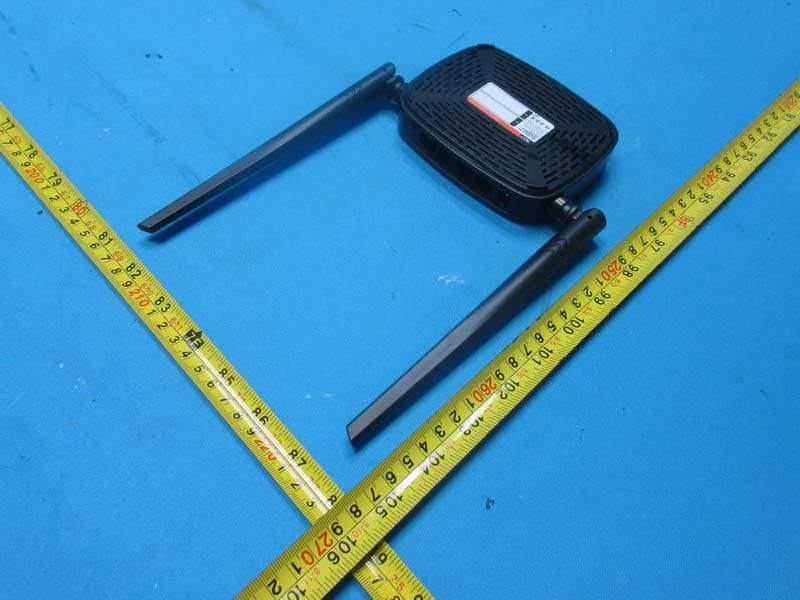

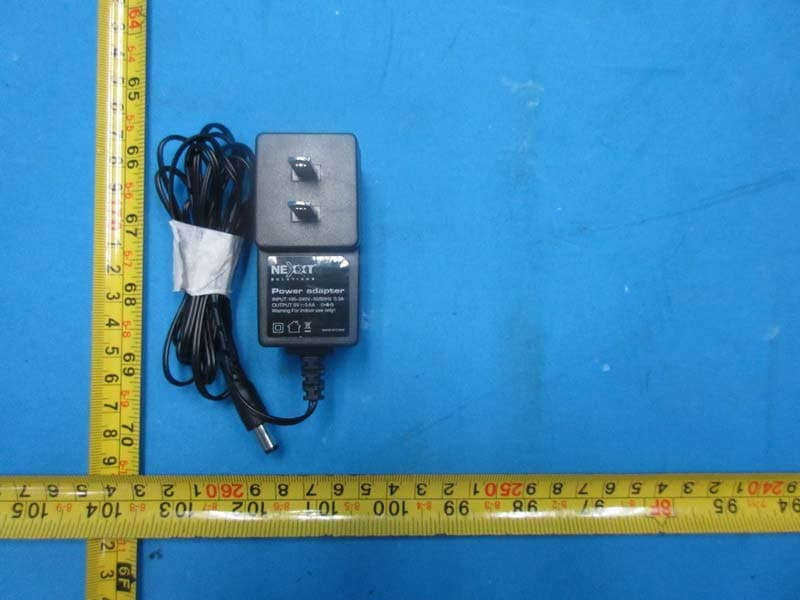

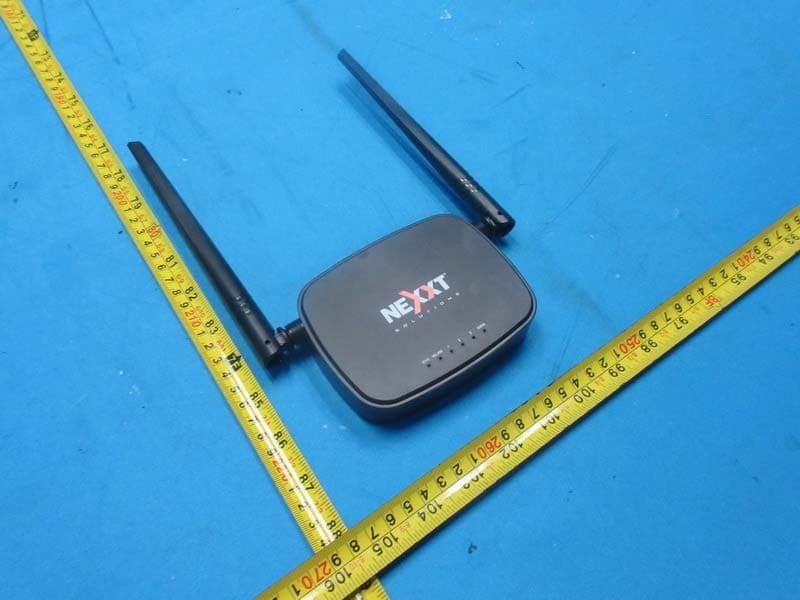

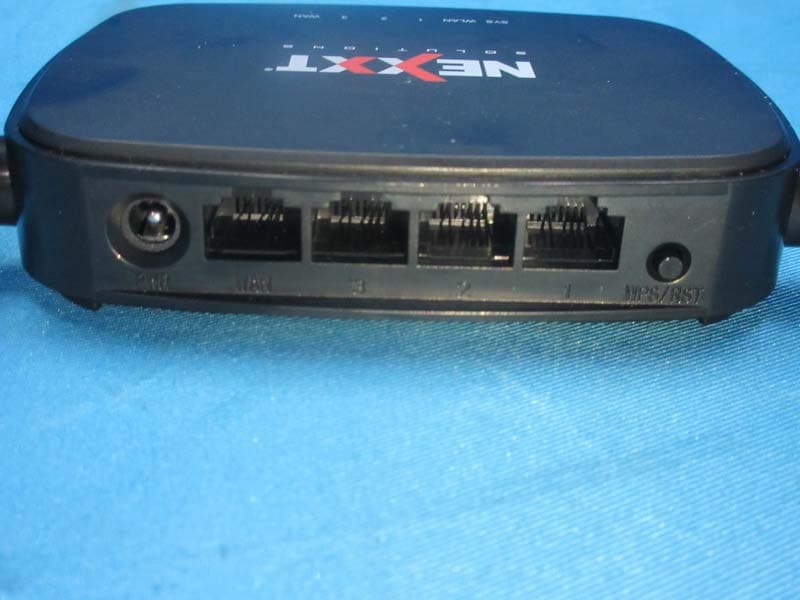

X4Y23062Wireless-N 300Mbps router

Project No.: 1409C131 Page 2 of 7 Project No.: 1409C131 Page 3 of 7 Project No.: 1409C131 Page 4 of 7

Project No.: 1409C131 Page 5 of 8 Project No.: 1409C131 Page 6 of 8 Project No.: 1409C131 Page 7 of 8 Project No.: 1409C131 Page 8 of 8

FCC RF EXPOSURE REPORT FCC ID: X4Y23062 Equipment : Wireless-N 300Mbps router Model : ARN02304U4 Applicant : NEXXT SOLUTIONS Address : 3505 N.W MIAMI, FL, 33178 According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiato r R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model NameAntenna TypeConnector Gain(dBi) 1 50000933 Dipole N/A 4.94 2 50000933 Dipole N/A 4.94 TEST RESULTS EUT： Wireless-N 300Mbps router Model Name : ARN02304U4 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.94 3.1189 20.84 121.3389 0.075326951 Complies 4.94 3.1189 19.55 90.1571 0.055969361 Complies 4.94 3.1189 17.98 62.8058 0.038989741 Complies EUT： Wireless-N 300Mbps router Model Name : ARN02304U4 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.94 3.1189 21.89 154.5254 0.095929101 Complies 4.94 3.1189 21.05 127.3503 0.079058831 Complies 4.94 3.1189 20.23 105.4387 0.065456141 Complies EUT： Wireless-N 300Mbps router Model Name : ARN02304U4 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.94 3.1189 23.98 250.0345 0.155220961 Complies 4.94 3.1189 23.14 206.0630 0.127923511 Complies 4.94 3.1189 22.33 171.0015 0.106157421 Complies EUT： Wireless-N 300Mbps router Model Name : ARN02304U4 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.94 3.1189 20.19 104.4720 0.064856031 Complies 4.94 3.1189 19.81 95.7194 0.059422421 Complies 4.94 3.1189 20.19 104.4720 0.064856031 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1409C131 Page 1 of 144 FCC Radio Test Report FCC ID:X4Y23062 This report concerns (check one): Original Grant Class II Change Project No. : 1409C131 Equipment : Wireless-N 300Mbps router Model Name : ARN02304U4 Applicant : NEXXT SOLUTIONS Address : 3505 N.W 107TH AVE MIAMI, FL, 33178 Date of Receipt : Sep. 15, 2014 Date of Test : Sep. 15, 2014 ~ Sep. 23, 2014 Issued Date : Sep. 24, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1409C131 Page 2 of 144 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1409C131 Page 3 of 144 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FCCP-1-1409C131 Page 4 of 144 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 101 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 105 ATTACHMENT H - POWER SPECTRAL DENSITY 130 Report No.: BTL-FCCP-1-1409C131 Page 5 of 144 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1- 1409C131 Original Issue. Sep. 24, 2014 Report No.: BTL-FCCP-1-1409C131 Page 6 of 144 1. CERTIFICATION Equipment : Wireless-N 300Mbps router Brand Name : NEXXT Model Name : ARN02304U4 Applicant : NEXXT SOLUTIONS Date of Test : Sep. 15, 2014 ~ Sep. 23, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1- 1409C131 ) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1409C131 Page 7 of 144 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2013 Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1409C131 Page 27 of 144 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1409C131 Page 28 of 144 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1409C131 Page 29 of 144 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1409C131 Page 30 of 144 Radiated Measurement Photos Above 1000MHz
