X4Y304U1Xtender 300 Wireless-N Universal Repeater

Click on Apply. The repeater will prompt you to reboot the system. Choose Ok when the reboot dialog box comes up. s Once the repeater has finished rebooting, you can enjoy internet access with the new Xtender 300 using a wireless or wired connection. Note: The repeater can have its own SSID, Encryption, Security Method and Password. s Device configuration in Universal Repeater Mode In this stage, the wireless repeater web interface will come up. The system will then prompt you to enter the default password: admin. Then, click Ok to continue. 4. Next, the Wireless Security Settings page will be displayed. 5.Click on Advanced settings, and then go to Wireless Settings Wireless Extender. 6 Quick Installation Guide Step 4Step 4 2 Step 4Step 4Step 6 Step 4 If the computer you used to set up the repeater can access the internet, it means that you have successfully configured the device, and that other computers in the LAN should also be able to do the same. If they don’t, verify that the Internet Protocol is set to obtain the IP and DNS settings automatically. To do so, right click Network > Properties > Change adapter settings, followed by Local area connections > Properties. Next, double click on Internet protocol version (4 or 6 based on your connection) and finish by selecting Obtain DNS server and IP address automatically. Step 5Step 5 Quick Installation Guide 1 Step 4Step 4Step 4 The universal repeater mode will enable full repeater capabilities on the device so as to double the range, reduce dead spots and improve the performance of your entire wireless network. Use a laptop to configure the range extender to operate in the Universal Repeater Mode. Please note that you must have a wireless network already set up to use the configuration described in this guide. In your laptop, look for the wireless connection icon in the lower right corner of the computer’s desktop. Then, click on the refresh button, select the default SSID of the repeater and check the Connect automatically box to enable the link. 1. When Connected appears on the screen, it means that you have successfully connected to your wireless repeater. Note: The default SSID of the network is Nexxt_xxxxxx (whereby xxxxxx represent the last unique six characters of each router's MAC address). No default wireless password is required at this point. Now you will need to access the web base utility of the device. Type http://192.168.0.1 in the browser address bar and hit enter. 2. 3. Thank you for purchasing the new Xtender 300 Wireless-N Universal Repeater from Nexxt Solutions™. If any of the following items are mismatched, missing or damaged, please contact the merchant from whom you purchased the unit for immediate replacement. Wireless-N Universal Repeater Power adapter 110/220VAC Network cable Quick installation guide There are a total of three operation modes supported by the repeater: Access Point, WDS Mode and Universal Repeater Mode. By default, the repeater is set to AP mode. First, connect one end of the supplied power adapter to the repeater and then plug the other end into a wall outlet. Make sure to use only the supplied adapter to power the unit. The most widely used connection to access the internet is broadband DSL or Cable, as shown in the diagram below. 1. 2. 1. Two 5dBi omnidirectional antennas 2. LAN/WAN port 3. Reset button 4. Power socket RESETLANPOWER Product layout Front panel LED indicator Rear panel Preliminary steps Hardware connection Internet Computer USBON/OFFPOWER Antenna LAN/WAN port RESET button PWR Wirelessly broadcasts your signal throughout your home or office. Press this button for 7-10 seconds to restore the device to its factory default settings. Connect the supplied power adapter to this jack. For connection to a computer or router in your network. LAN: when the device is setup in Universal Repeater or WDS Mode. WAN: when configured in AP mode LEDStatusDescription Power/StatusBlinkingSystem is functioning properly Cable/DSL Modem LAN Default AP mode configuration Universal Repeater mode Refer to the diagram below to complete the needed connections to set up your repeater as an Access Point. Since the device is plug and play in AP mode, it is quick and easy to install and configure. If connecting a desktop computer, you must make sure that the unit comes equipped with a wireless adapter before proceeding. (Nexxt Solutions offers a wide selection of wireless adapters, so check our website for further information). RESETLANPOWER USB CableCable Power Adapter Power Adapter Wireless AP Laptop POWER243 INTERNET 3. To set up the device in this mode, follow the steps described below: Main wireless settings page s s s s Select Universal Repeater, followed by Open Scan in order to search for the primary router. Choose the SSID of the primary router. Then, select the same Security Mode and Encryption Type as set up in the primary router (if applicable). This parameter is Disabled by default. Enter the same Security Key used by the primary router (if applicable). TIP Please note that the path indicated above relates to Windows 7. Other operating systems may differ, so make sure to follow the instructions of the operating system you are using. If you later wish to customize your wireless router configuration, click on the Advanced Settings menu. Among the parameters you can modify are: SSID, IP address, DHCP, MAC address filtering, extender mode, security settings, etc. Step 1 Step 2 Step 3Step 3 Step 3Step 3 Step 2Step 2 Step 4 RESETLANPOWER 1 2 3 4 STATE

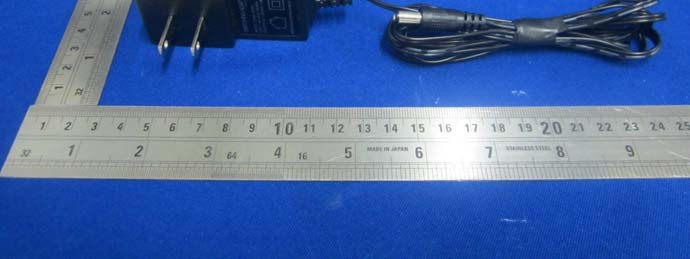

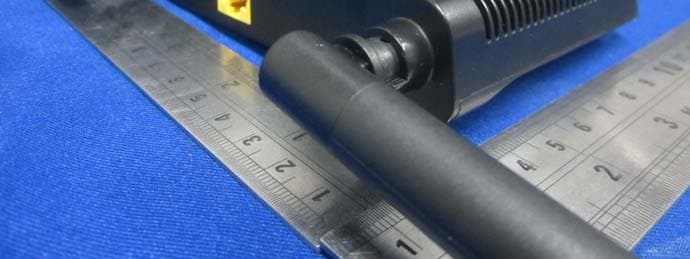

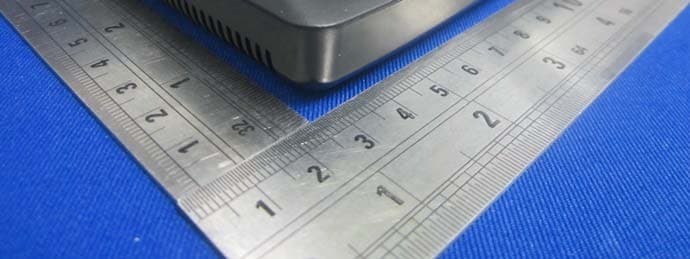

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT –Top View EUT – Bottom View EUT –Left View EUT – Right View EUT – Port View EUT – Antenna View EUT –Adapter View EUT –Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Uncover View EUT – Cover Off View EUT –Main Board Top View EUT –Main Board Bottom View EUT –RF Chip View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130809018-00A FCC Part 15.247 Page 9 of 80 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i) and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) 802.11b 2412 5 3.16 14.3927.49 20 0.017 1.0 802.11g 2437 5 3.16 14.7029.54 20 0.019 1.0 802.11n20 2412 5 3.16 13.6423.12 20 0.015 1.0 802.11n40 2437 5 3.16 11.4814.06 20 0.009 1.0 Result: The device meet FCC MPE at 20 cm distance Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130809018-00A FCC Part 15.247 Page 80 of 80 Chain 1: Power Spectral Density, 802.11n40 Middle Channel Ref 20 dBmAtt 30 dB A MAXH * Offset 1 dB LVL 1 PK 5.466533467 MHz/Center 2.437 GHzSpan 54.66533467 MHz * 3DB RBW 3 kHz SWT 6.2 s * VBW 10 kHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -20.31 dBm 2.435141379 GHz Date: 5.SEP.2013 14:07:36 Chain 1: Power Spectral Density, 802.11n40 High Channel Ref 20 dBmAtt 30 dB A MAXH * Offset 1 dB LVL 1 PK 5.418581419 MHz/Center 2.452 GHzSpan 54.18581419 MHz * 3DB RBW 3 kHz SWT 6.2 s * VBW 10 kHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -20.49 dBm 2.450428611 GHz Date: 5.SEP.2013 14:09:11 ***** END OF REPORT *****

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” (Rev.2), This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For NEXXT SOLUTIONS 3505 N.W 107TH AVE, MIAMI, FL, 33178 United States Report Type: Original Report Product Type: Xtender300 Wireless-N Universal Repeater Test En gineer: Leon Chen Re port Number: R2DG130809018-00A Re port Date: 2013-09-06 Reviewed By: Ivan Cao RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: X4Y304U1 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130809018-00A FCC Part 15.247 Page 2 of 80 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL CABLE ........................................................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.247 (i) & §1.1310& §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS .....................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions – Side View Radiated Emission -Front View Radiated Emission - Rear View Radiated Emission Above 1GHz-Front View Radiated Emission Above 1GHz-Rear View
