Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 NEXXT SOLUTIONS 3505 NW 107th Ave ,Miami ,FL, 33178,USA Date: 2013-12-12 Subject: Ad Hoc Mode Function Declaration FCC ID: X4Y541U1 To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Name Naftali Mizrachi Position VP Company NEXXT SOLUTIONS Adress 3505 NW 107th Ave ,Miami ,FL, 33178,USA Tel.: (786) 280-7600 Fax.: (305) 477-5694 E-Mail [email protected]

Authorization Letter We, (the approval holder) Company name NEXXT SOLUTIONS Addresss 3505 N.W 107TH AVE. City MIAMI FLORIDA 33178 Country USA declare that the following representative (agent): Name (person) Hebe Lee Company name MTI Technology Laboratory Ltd．. Addresss 10F, Yinxing Business Hotel, Xixiang Road, City Shenzhen Country P,R.China. to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description IP Camera Type or Model(s) XPY520 Tradename or Brand(s) NEXXT SOLUTIONS Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen 2013/11/7 Naftali Mizrachi VP

NEXXT SOLUTIONS 3505 NW 107th Ave ,Miami ,FL, 33178,USA Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: NEXXT SOLUTIONS FCC ID: X4Y541U1 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Naftali Mizrachi Position VP Company Name NEXXT SOLUTIONS Address NEXXT SOLUTIONS / 3505 NW 107th Ave ,Miami ,FL, 33178,USA Tel / Fax (786) 280-7600/ (305) 477-5694 E-Mail [email protected]

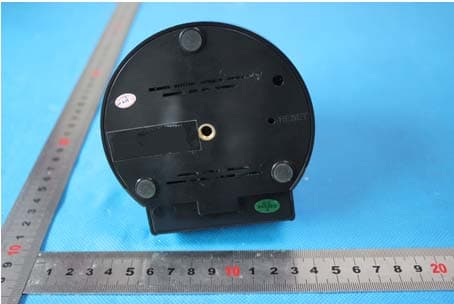

Model: XPY520 APPENDIX B – External Photo EUT – Rear View 1 EUT - Rear View 2 Model: XPY520 EUT - Rear View 3 EUT - Rear View 4 Model: XPY520 EUT - Rear View 5 EUT - Rear View 6

Model: XPY520 Proposed Label Location on EUT FCC ID Label Location

Model: XPY520 APPENDIX A - PRODUCT LABELING Proposed FCC ID Label Format Label size: 60mm*40mm 60mm 40mm Company: NEXXT SOLUTIONS Name:IP CAMERA Model Number: XPY520 FCC ID: X4Y541U1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Accvent LLC Model: XPY520 APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Inside View EUT – PCB View 1 Accvent LLC Model: XPY520 EUT – PCB View 2 EUT – PCB View 3 Accvent LLC Model: XPY520 EUT – PCB View 4 EUT – PCB View 5 Accvent LLC Model: XPY520 EUT – PCB View 6 EUT – PCB View 7 Accvent LLC Model: XPY520 EUT – PCB View 8 EUT – PCB View 9 Accvent LLC Model: XPY520 EUT – PCB View 10 EUT – PCB View 11

R=distance to the center of radiated antenna MPE Calculation FCC ID: X4Y541U1 RF Exposure Requirements: 47CFR§1.1307(b) RF Radiation Exposure Limits: 47CFR§1.1310 RF Radiation Exposure Guidelines: 47CFR§2.1091 EUT Frequency Band: 2412 – 2462MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100000MHz Power Density Limit: 1.0mW/cm 2 ; Equation: S=PG/4PiR 2 Where, S=Power Density P=Power Input to Antenna G=Antenna Gain Low Channel (2412MHz): Power=17.52dBm, Antenna Gain=2.5dBi, Prediction distance 20cm S=(56.49*1.78)/(4*3.14*20 2 )=0.02 mW/cm 2 Result The above result had shown that device complied with 1.0mW/cm 2 Power density requirement for distance of 20 cm.

FCC Part 15C Measurement And Test Report For NEXXT SOLUTIONS 3505 N.W 107TH AVE. MIAMI FLORIDA 33178 U.S.A FCC ID: X4Y541U1 Dec.12, 2013 This Report Concerns: Original Report Equipment Type: IP Camera Report Number: MTI130922001RF Test Engineer: Bill Chen Reviewed By: Jason Zheng Approved & Authorized By: Hebe Lee Test Date: Dec.01- Dec.12,2013 Prepared By: Shenzhen Microtest Technology Co.,Ltd 6F, Zhongbao Building, Gushu, Bao＇ an District, Shenzhen, P.R.China Tel: +86-755-8885 0135 Fax: +86-755-8885 0136 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of Shenzhen Microtest Technology Co.,Ltd. Report No.：MTI130922001RF Page 2 of 65 TEST RESULT CERTIFICATION Applicant’s name ................. : NEXXT SOLUTIONS Address .................................. : 3505 N.W 107TH AVE. MIAMI FLORIDA 33178 U.S.A Manufacture's Name ............ : NEXXT SOLUTIONS Address .................................. : 3505 N.W 107TH AVE. MIAMI FLORIDA 33178 U.S.A Product description Product name ............................: IP Camera Model and/or type reference : XPY520 Serial Model ...............................: N/A Standards .............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 Report No.：MTI130922001RF Page 3 of 65 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 3.3 BAND EDGE EMISSION(RADIATED MEASUREMENT): 24 4 . POWER SPECTRAL DENSITY TEST 37 4.1 APPLIED PROCEDURES / LIMIT 37 4.1.1 TEST PROCEDURE 37 4.1.2 DEVIATION FROM STANDARD 37 4.1.3 TEST SETUP 37 4.1.4 EUT OPERATION CONDITIONS 37 4.1.5 TEST RESULTS 38 5 . BANDWIDTH TEST 46 5.1 APPLIED PROCEDURES / LIMIT 46 5.1.1 TEST PROCEDURE 46 Report No.：MTI130922001RF Page 4 of 65 Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 46 5.1.3 TEST SETUP 46 5.1.4 EUT OPERATION CONDITIONS 46 5.1.5 TEST RESULTS 47 6 . PEAK OUTPUT POWER TEST 55 6.1 APPLIED PROCEDURES / LIMIT 55 6.1.1 TEST PROCEDURE 55 6.1.2 DEVIATION FROM STANDARD 55 6.1.3 TEST SETUP 55 6.1.4 EUT OPERATION CONDITIONS 55 6.1.5 TEST RESULTS 56 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 57 7.1 DEVIATION FROM STANDARD 57 7.2 TEST SETUP 57 7.3 EUT OPERATION CONDITIONS 57 7.4 TEST RESULTS 58 8 . ANTENNA REQUIREMENT 63 8.1 STANDARD REQUIREMENT 63 8.2 EUT ANTENNA 63 9 . EUT TEST PHOTO 64 Report No.：MTI130922001RF Page 5 of 65 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.：MTI130922001RF Page 6 of 65 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Report No.：MTI130922001RF Page 7 of 65 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment IP Camera Trade Name N/A Model Name XPY520 Serial Model N/A Model Difference N/A Product Description The EUT is a IP Camera Operation Frequency: 802.11b/g/n(20):2412~2462 MHz 802.11n(40):2422~2452MHz Modulation Type: CCK, OFDM Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n(20MHz/40MHz):150/144.4 4/130/117/115.56/104/86.67/78/52/6 .5 Mbps Number Of Channel 802.11b/g/n(20):11CH 802.11n(40):7CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 17.52 dBm (Max.) 802.11g: 15.61 dBm (Max.) 802.11n(20): 13.41dBm (Max.) 802.11n(40): 11.15 dBm (Max.) Antenna Gain (dBi) 2.50dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Ratings 120V/60Hz Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Report No.：MTI130922001RF Page 8 of 65 2. Channel List for 802.11b/g/n(20) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2412 04 2427 07 2442 10 2457 02 2417 05 2432 08 2447 11 2462 03 2422 06 2437 09 2452 Channel List for 802.11n(40MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channe…
