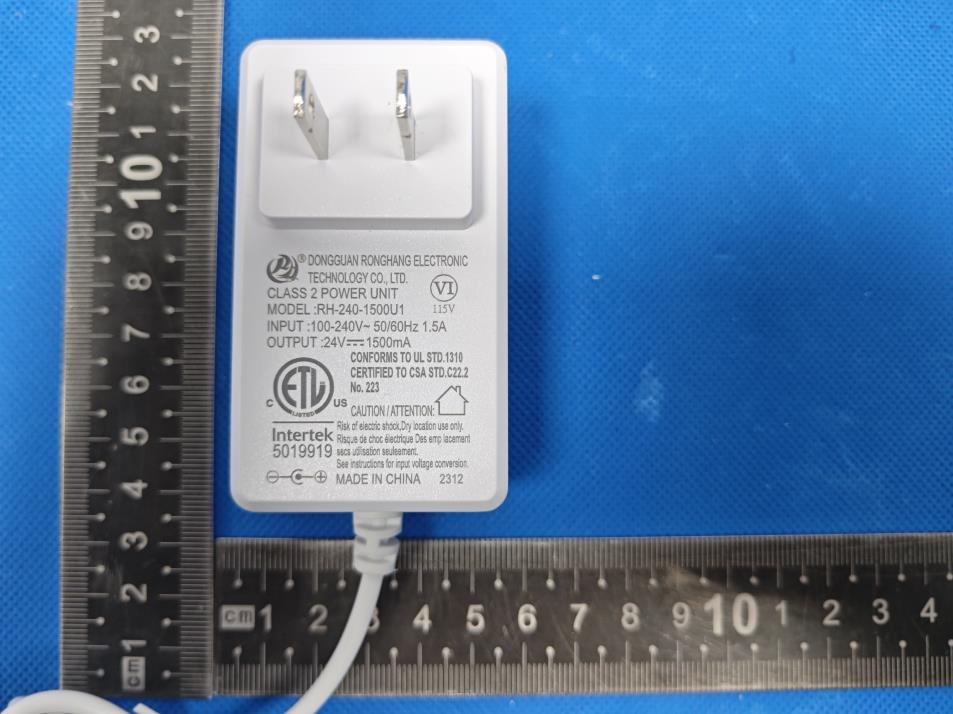

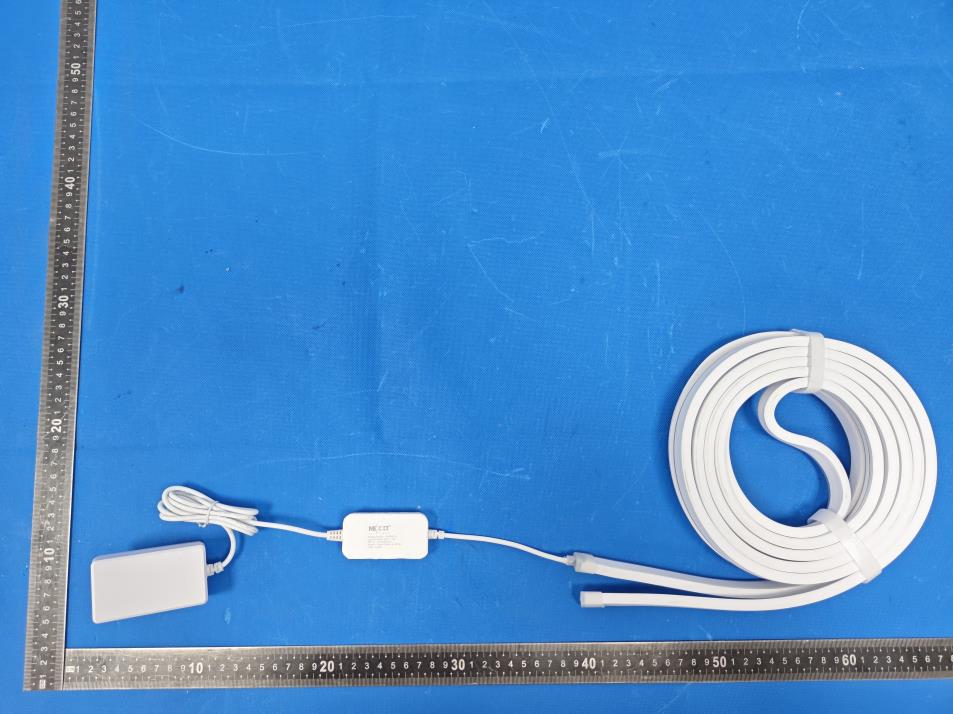

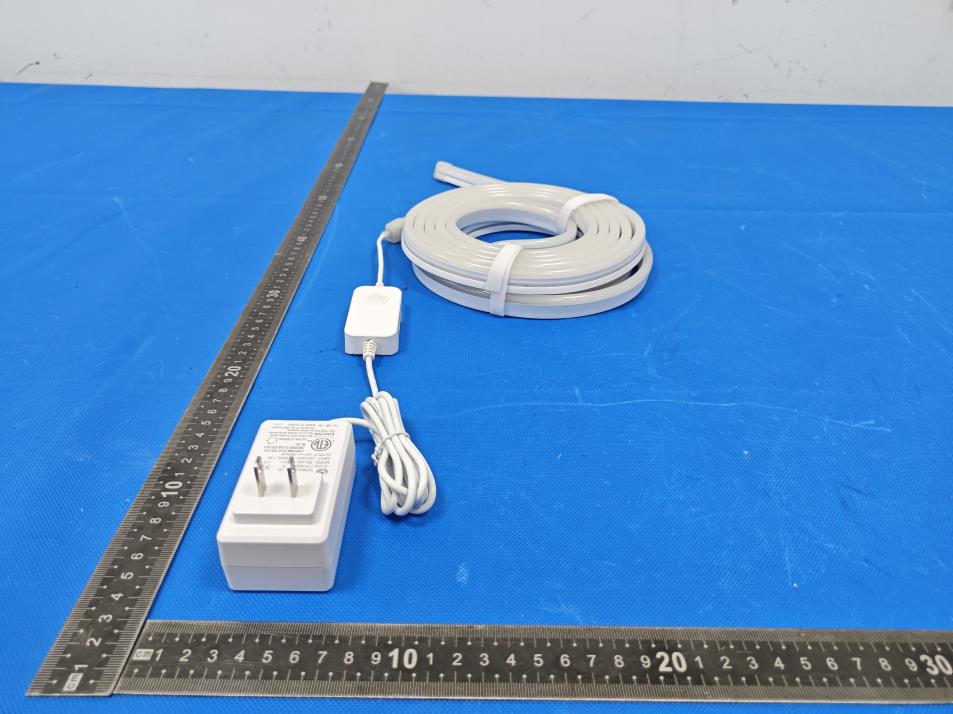

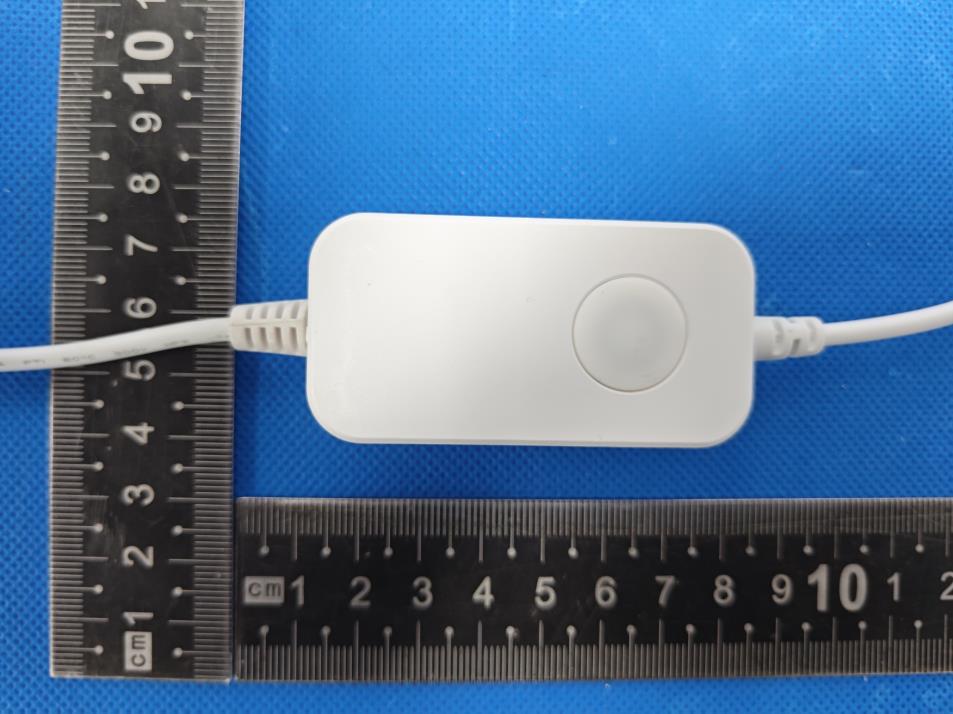

Appendix-Photographs FCC ID: X4YHABS614 External Photos

Size:30*20mm Label location

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: X4YHABS614 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result : 0.00659≤ 1.0, compliance with FCC's RF Exposure Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result WIFI 12±1 13 19.95 1.66 (2.21dBi) 0.00659 1 Pass

AntennaSpecification Manufacture：TUYA ProductName：CBUAntenna AntennaType：PCB TestDate：2020.11.24 Testedby：YinhuaZhang Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................5 5.EUTPhoto................................................................................................5 6.TestSetupPhoto......................................................................................6 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameCBUAntenna Productmodel CBU AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 2400 2.1132.36 2410 2.1832.3 2420 2.2132.1 2430 2.0632.4 2440 2.0732.9 2450 1.9130.9 2460 2.0430.8 2470 2.0930.7 2480 1.9831.6 2490 1.9130.6 2500 1.0330.5 4 3.2RadiationPattern Phi02D Phi902D Theta902D 5 2440MHz3D 4.AntennaDimensions 5.EUTPhoto 6 6.TestSetupPhoto

No.：BCTC/RF-EMC-005 Page: 1 of 79 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2308197048E Applicant: NEXXT SOLUTIONS Product Name: NEON STRIP LIGHT Model/Type Reference: NHB-S614 Tested Date: 2023-08-28 to 2023-09-04 Issued Date: 2023-09-04 Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 2 of 79 Edition：B.0 FCC ID: X4YHABS614 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: NEON STRIP LIGHT Trademark: N/A Model/Type Reference: NHB-S614 Prepared For: NEXXT SOLUTIONS Address: 3505 N.W 107TH AVE. MIAMI, Florida 33178, United States Manufacturer: Sungale Electronics (Shenzhen) Limited Address: No. 1302, DaHong High-Tech Park, No. 6-18, Xinhe Road, Xinqiao, BaoAn, Shenzhen 518125, CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-08-28 Sample tested Date: 2023-08-28 to 2023-09-04 Issue Date: 2023-09-04 Report No.: BCTC2308197048E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 3 of 79 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 21 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT Operating Conditions .................................................................................. 26 8.5 Test Result .......................................................................................................... 27 9. Power Spectral Density Test ............................................................................... 29 9.1 Block Diagram Of Test Setup .............................................................................. 29 9.2 Limit .................................................................................................................... 29 9.3 Test procedure .................................................................................................... 29 9.4 EUT Operating Conditions .................................................................................. 29 9.5 Test Result ..............................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 62 of 79 Edition：B.0 Tx. Spurious NVNT n20 2412MHz Ref Tx. Spurious NVNT n20 2412MHz Emission Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 63 of 79 Edition：B.0 Tx. Spurious NVNT n20 2437MHz Ref Tx. Spurious NVNT n20 2437MHz Emission Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 64 of 79 Edition：B.0 Tx. Spurious NVNT n20 2462MHz Ref Tx. Spurious NVNT n20 2462MHz Emission Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 65 of 79 Edition：B.0 Tx. Spurious NVNT n40 2422MHz Ref Tx. Spurious NVNT n40 2422MHz Emission Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 66 of 79 Edition：B.0 Tx. Spurious NVNT n40 2437MHz Ref Tx. Spurious NVNT n40 2437MHz Emission Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 67 of 79 Edition：B.0 Tx. Spurious NVNT n40 2452MHz Ref Tx. Spurious NVNT n40 2452MHz Emission Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 68 of 79 Edition：B.0 13. Duty Cycle Of Test Signal 13.1 Standard Requirement Pre-analysis Check: While conducting average power measurement, duty cycle of each mode shall be checked to ensure its duty cycle in order to compensate for the loss due to insufficient ratio of duty cycle. All duty cycle is pre-scanned, and result as obtained below shows only the most representative ones where duty cycle is conducted as the given transmission with given virtual operation that expresses the percentage. 13.2 Formula Duty Cycle = Ton / (Ton+Toff) 13.3 Test Procedure 1.Set span = Zero 2. RBW = 10MHz 3. VBW = 10MHz, 4. Detector = Peak 13.4 Test Result Test mode Duty Cycle Duty Fator (dB) 802.11b 100 0 100 0 100 0 802.11g 100 0 100 0 100 0 802.11n(HT20) 100 0 100 0 100 0 802.11n(HT40) 100 0 100 0 100 0 Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 69 of 79 Edition：B.0 Test Graphs Duty Cycle NVNT b 2412MHz Duty Cycle NVNT b 2437MHz Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 70 of 79 Edition：B.0 Duty Cycle NVNT b 2462MHz Duty Cycle NVNT g 2412MHz Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 71 of 79 Edition：B.0 Duty Cycle NVNT g 2437MHz Duty Cycle NVNT g 2462MHz Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 72 of 79 Edition：B.0 Duty Cycle NVNT n20 2412MHz Duty Cycle NVNT n20 2437MHz Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 73 of 79 Edition：B.0 Duty Cycle NVNT n20 2462MHz Duty Cycle NVNT n40 2422MHz Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 74 of 79 Edition：B.0 Duty Cycle NVNT n40 2437MHz Duty Cycle NVNT n40 2452MHz Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 75 of 79 Edition：B.0 14. Antenna Requirement 14.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 14.1 Test Result The EUT antenna is PCB antenna, fulfill the requirement of this section. Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 76 of 79 Edition：B.0 15. EUT Photographs EUT Photo 1 EUT Photo 2 NOTE: Appendix-Photographs Of EUT Constructional Details Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 77 of 79 Edition：B.0 16. EUT Test Setup Photographs Conducted Measurement Photos Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 78 of 79 Edition：B.0 Radiated Measurement Photos Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 79 of 79 Edition：B.0 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com E-Mail: [email protected] ※※※※※ END ※※※※※

Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 77 of 79 Edition：B.0 16. EUT Test Setup Photographs Conducted Measurement Photos Report No.: BCTC2308197048E No.：BCTC/RF-EMC-005 Page: 78 of 79 Edition：B.0 Radiated Measurement Photos
