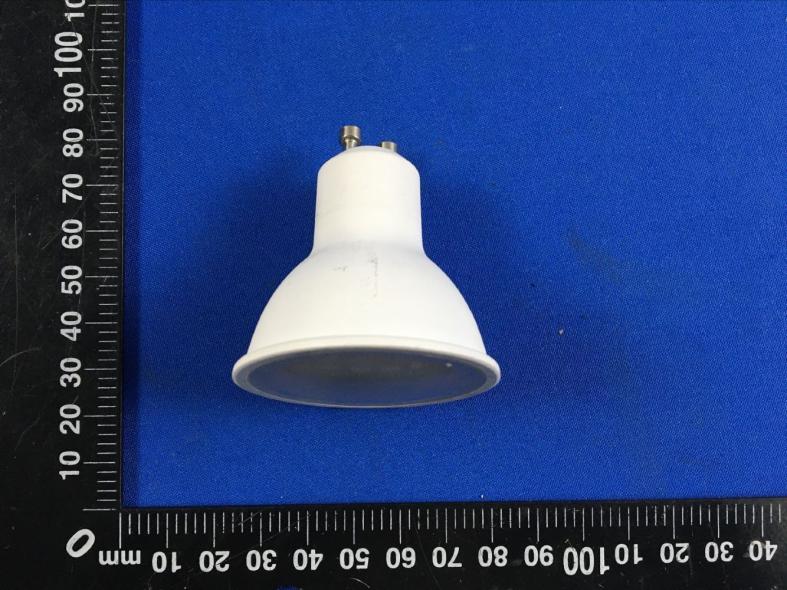

X4YHABUW310Smart LED bulb

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device must operate with a minimum distance of 20 cm between the radiator and user body.  FCC statement

FCC ID Label Information 1. Label location: 2. FCC ID Label: FCC ID:X4YHABUW310 FCCID Label Location

Antenna

version01 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: NHB-W310 FCC ID: X4YHABUW310 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: 2.4G antenna Type of antenna: Chip antenna Gain of the antenna: 2.5 dBi Frequency range: 2412-2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: NEXXT SOLUTIONS Address: 3505 N.W 107TH AVE.MIAMI, Florida, 33178 United States City: MIAMI ZIP / Postal code: 33178 Country: United States Place: MIAMI Date: 2020-01-16 Signature:

RF Exposure evaluation FCC ID: X4YHABUW310 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1dBi, the RF power density can be obtained. WIFI Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11g 21.00 125.8925 1.2589 0.0315 1 PASS 5. Conclusion The SAR evaluation is not required.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL1911293025-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Smart LED bulb Model/Type reference ................ : NHB-W310 List Model(s) ............................... : N/A Trade Mark .................................. : NEXXT FCC ID ......................................... : X4YHABUW310 Applicant’s name ....................... : NEXXT SOLUTIONS Address of applicant ................. : 3505 N.W 107TH AVE.MIAMI, Florida, 33178 United States Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Dec. 25, 2019 Date of sampling ........................ : Dec. 25, 2019 Date of Test Date ........................ : Dec. 25, 2019–Jan. 14, 2020 Data of Issue............................... : Jan. 15, 2020 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 29 Report No.: CTL1911293025-WF TEST REPORT Test Report No. : CTL1911293025-WF Jan. 15, 2020 Date of issue Equipment under Test : Smart LED bulb Model /Type : NHB-W310 Listed Models : N/A Applicant : NEXXT SOLUTIONS Address : 3505 N.W 107TH AVE.MIAMI, Florida, 33178 United States Manufacturer : SUNGALE ELECTRONICS (SHENZHEN) CO.,LTD Address : No.1302, DaHong High-Tech Park, No. 6-18, XinHe Road, Xinqiao,Shajing, BaoAn, Shenzhen, 518105, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 29 Report No.: CTL1911293025-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-01-15 CTL1911293025-WF Tracy Qi V1.0 Page 4 of 29 Report No.: CTL1911293025-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................................... 21 3.4. POWER SPECTRAL DENSITY .................................................................................…

Text truncated - open the document above for the full version.

1 / 24 Annex for WIFI TABLE OF CONTENTS Annex for WIFI ....................................................................................................................................... 1 TABLE OF CONTENTS .................................................................................................................. 1 1. Duty Cycle ......................................................................................................................................... 2 1.1 Test Result ............................................................................................................................... 2 1.2 Test Graph ................................................................................................................................ 2 2. Bandwidth .......................................................................................................................................... 5 2.1 Test Result ............................................................................................................................... 5 2.2 Test Graph - 6dB Bandwidth ..................................................................................................... 5 2.3 Test Graph - 99% Occupied Bandwidth .................................................................................... 8 3. Maximum Conducted Output Power ................................................................................................ 11 3.1 Test Result ............................................................................................................................. 11 3.2 Test Graph .............................................................................................................................. 12 4. Maximum Power Spectral Density (PSD) ......................................................................................... 15 4.1 Test Result ............................................................................................................................. 15 4.2 Test Graph .............................................................................................................................. 15 5. Unwanted Emissions in Non-restricted Frequency Bands ................................................................ 18 5.1 Test Result ............................................................................................................................. 18 5.2 Test Graph .............................................................................................................................. 18 2 / 24 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency( MHz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 100.000 100.000 100.00 0.00 2437 SISO 1 100.000 100.000 100.00 0.00 2462 SISO 1 100.000 100.000 100.00 0.00 802.11g 2412 SISO 1 100.000 100.000 100.00 0.00 2437 SISO 1 100.000 100.000 100.00 0.00 2462 SISO 1 100.000 100.000 100.00 0.00 802.11n(HT20) 2412 SISO 1 100.000 100.000 100.00 0.00 2437 SISO 1 100.000 100.000 100.00 0.00 2462 SISO 1 100.000 100.000 100.00 0.00 1.2 Test Graph 802.11b_2412MHz_SISO_ANT1 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 3 / 24 802.11g_2412MHz_SISO_ANT1 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 4 / 24 802.11n(HT20)_2412MHz_SISO_ANT1 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 5 / 24 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 8.910 ≥0.5 PASS 2437 SISO 1 8.893 ≥0.5 PASS 2462 SISO 1 9.484 ≥0.5 PASS 802.11g 2412 SISO 1 16.466 ≥0.5 PASS 2437 SISO 1 16.489 ≥0.5 PASS 2462 SISO 1 16.491 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.556 ≥0.5 PASS 2437 SISO 1 17.663 ≥0.5 PASS 2462 SISO 1 17.662 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 12.255 Only for Report Use 2437 SISO 1 12.380 Only for Report Use 2462 SISO 1 12.351 Only for Report Use 802.11g 2412 SISO 1 16.536 Only for Report Use 2437 SISO 1 16.598 Only for Report Use 2462 SISO 1 16.582 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.559 Only for Report Use 2437 SISO 1 17.667 Only for Report Use 2462 SISO 1 17.637 Only for Report Use 2.2 Test Graph - 6dB Bandwidth 802.11b_2412MHz_SISO_ANT1 6 / 24 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 802.11g_2412MHz_SISO_ANT1 7 / 24 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 802.11n(HT20)_2412MHz_SISO_ANT1 8 / 24 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 2.3 Test Graph - 99% Occupied Bandwidth 802.11b_2412MHz_SISO_ANT1 9 / 24 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 802.11g_2412MHz_SISO_ANT1 10 / 24 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 802.11n(HT20)_2412MHz_SISO_ANT1 11 / 24 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 12 / 24 802.11b 2412 SISO 18.56 30 PASS 2437 SISO 18.82 30 PASS 2462 SISO 19.14 30 PASS 802.11g 2412 SISO 20.88 30 PASS 2437 SISO 20.53 30 PASS 2462 SISO 21.00 30 PASS 802.11n(HT20) 2412 SISO 20.43 30 PASS 2437 SISO 20.18 30 PASS 2462 SISO 20.14 30 PASS 3.2 Test Graph 802.11b_2412MHz_SISO_ANT1 802.11b_2437MHz_SISO_ANT1 802.11b_2462MHz_SISO_ANT1 13 / 24 802.11g_2412MHz_SISO_ANT1 802.11g_2437MHz_SISO_ANT1 802.11g_2462MHz_SISO_ANT1 14 / 24 802.11n(HT20)_2412MHz_SISO_ANT1 802.11n(HT20)_2437MHz_SISO_ANT1 802.11n(HT20)_2462MHz_SISO_ANT1 15 / 24 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -10.12 ≤8 PASS 2437 SISO -10.10 ≤8 PASS 2462 SISO -9.61 ≤8 PASS 802.11g 2412 SISO -12.55 ≤8 PASS 2437 SISO -12.92 ≤8 PASS 2462 SISO -12.32 ≤8 PASS 802.11n(HT20) 2412 SISO -13.57 ≤8 PASS 2437 SISO -14.1…
