X4YHADPD610Smart Dual plug

Smart Dual Plug Quick Guide MODEL NO: NHP-D610 ⚫ Product Overview eco4life Smart Power Strip with Surge Protection has 2 power outlets and 2 USB ports. This product works seamlessly with your home automation devices through the eco4life app or voice commands with Amazon Alexa or Google Assistant. It enables wireless control of your lights and devices from anywhere. It automatically switches individual devices on and off based on multiple timers. Intelligent USB charging ports can detect your devices and deliver the ideal charging for optimum safety. ⚫ Easy Installation 1.Scan the QR Code or directly download and install the eco4life app from the Apple App Store or Google Play on your smartphone. App Download 2. Make sure your smartphone is connected to your home Wi-Fi network. 3. Plug the Smart Power Strip into the wall outlet and wait for the red LED light to blink rapidly. 4. If the red light does not blink rapidly, reset the device by pressing the ON/OFF button in five (5) second intervals until red light blinks. 5. From the eco4life app, click + on the upper right corner of the screen to add your device. Select Electrical Outlet and customize settings for your Smart Power Strip. You can rename the individual outlets on the power strip to identify the device plugged in for easier control. ⚫ ADD DEVICES TO ECO4LIFE APP 1. Open the "eco4life" app, click "+", select "Electrical outlet", then enter the mobile phone is connected Wi-Fi password configured. 2. Once configured, click on the icon on the upper right corner to customize or restore your settings, check firmware updates and other tasks. Main Switch USB Ports output Power output 3. From the "Scenes" page click "+" to add scene. Enter the scene name, then add "condition" to perform a single or multiple tasks, collectively with your other smart devices. (See picture 1) 4．From Profile Page, select "Device Sharing", share device control with family members ( pic 2) ⚫ Light Indicators Red Light (Blinking): Sync mode Red Light (Steady On): Successfully paired to wireless network Red Light (Off): Not connected to wireless network Blue Light (On): Output ports have power Blue Light (Off): Output ports have no power ⚫ Technical Specification Disconnection means: Type 1B Pollution degree:2 Rated Impulse voltage: 1500V Rates Automation action: 6000 cycles Input: 125V~, 15A, 60Hz, 1875W USB input: 100-125V~, 50/60Hz, 0.35A Output: 5V, 2.1A each, 2.1A total Wireless Type: Wi-Fi 2.4GHz, IEEE 802.11b/g/n NOTE: This device supports 2.4 GHz Wi-Fi Network only. It is compatible with Android Version 4.4 -8.0 and iOS Version 8 and above. DO NOT overload capacity. CAUTION: Risk of electric shock; Dry location use only, Used indoor only. Contains Always On Receptacles. To Reduce the Risk of Electric Shock -Disconnect power strip from power source before servicing any equipment connected to the power strip FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

1/1 CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-01-15> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name X4YHADPD610 NHP-D610 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. 1/1 Sincerely, (Signed) Name / Title: Albert Mizrachi / Vice president of product development Company: NEXXT SOLUTIONS Address: 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Phone: 786-280-7600 Fax: 305 477- 5694 E-Mail: [email protected]

NEXXT SOLUTIONS 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/15/2020 To whom it may concern: We, NEXXT SOLUTIONS the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: X4YHADPD610 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Albert Mizrachi / Vice president of product development Company: NEXXT SOLUTIONS Address: 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Phone: 786-280-7600 Fax: 305 477- 5694 E-Mail: [email protected]

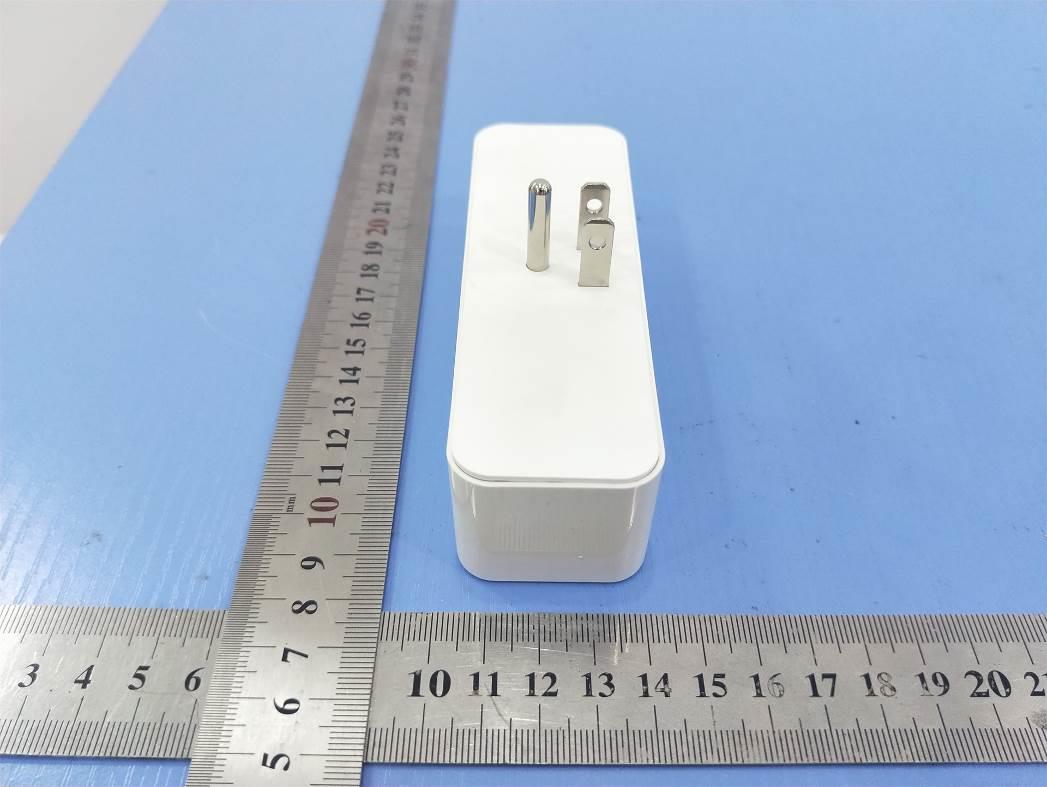

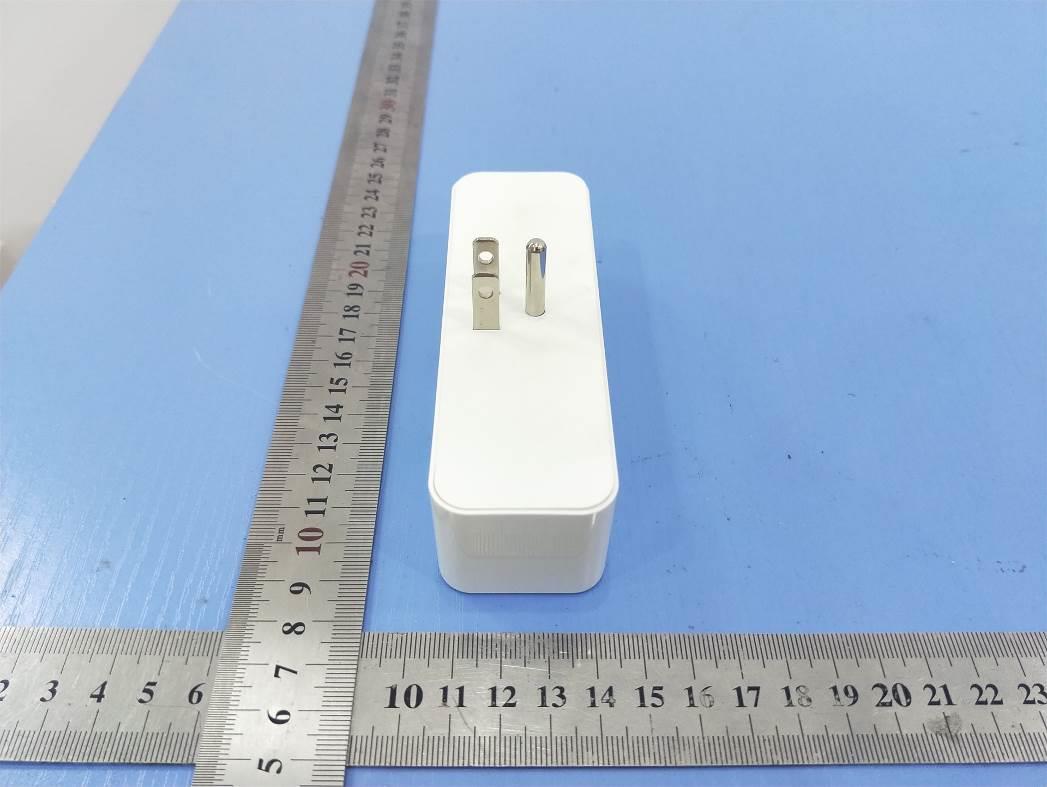

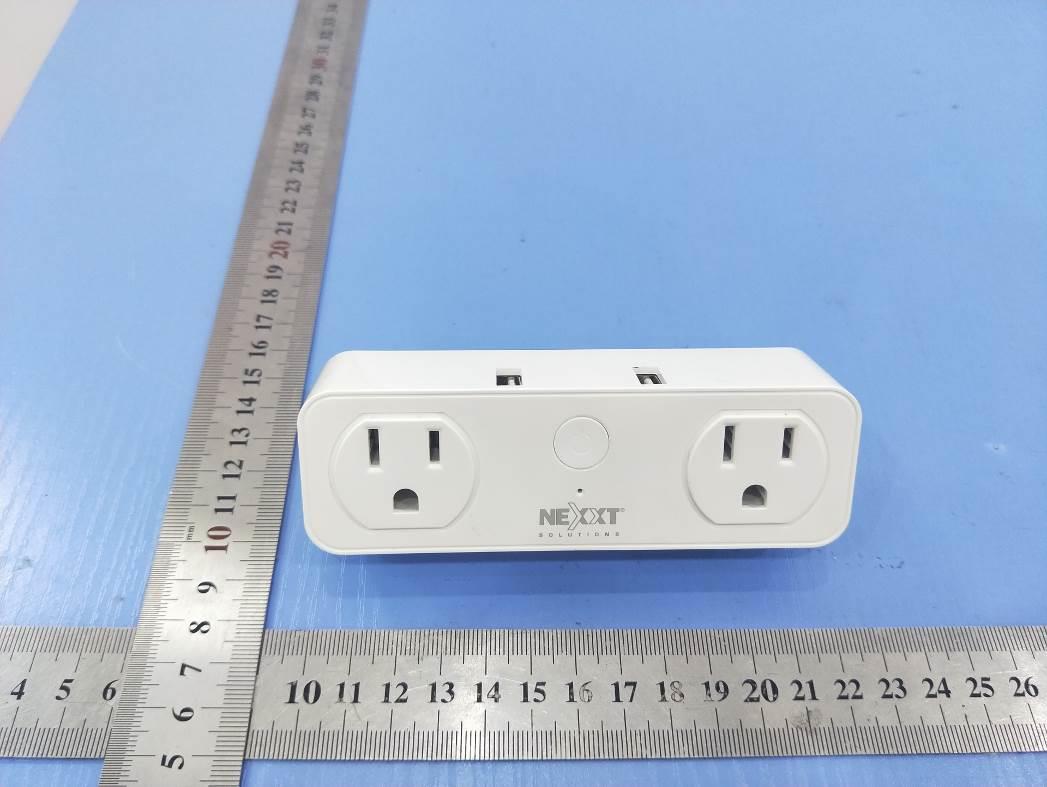

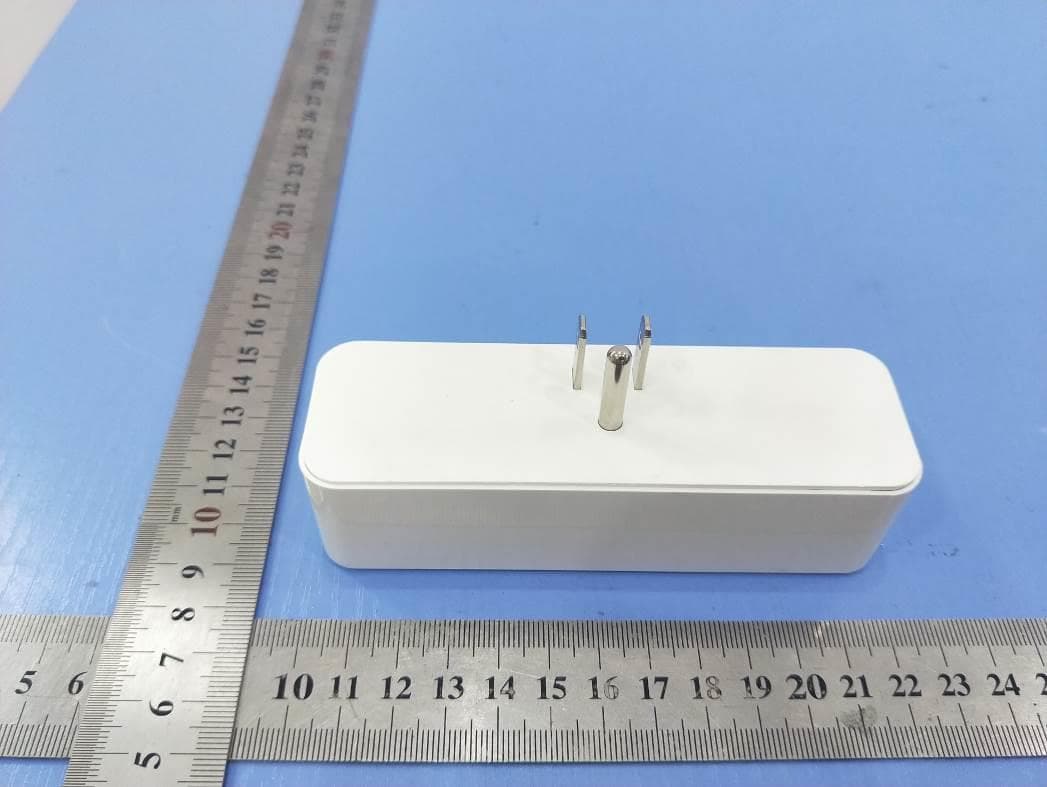

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Smart Dual plug Model No.: NHP-D610 FCC ID : X4YHADPD610 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Fig.7 Fig.8 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Maximum Permissible Exposure Report 1. Product Information FCC ID X4YHADPD610 Product name Smart Dual plug Test Model NHP-D610 Additional Model No. DPS2110D, DPS2210D Power supply Current tap rating: 125V AC 60 Hz 15A 1875W(Resistive) USB Input: 100-125V AC,50/60Hz, 0.35A USB Output: 5Vdc, 2.1A (each USB port) Total Output Current: 2.1A max Modulation Type IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type PCB Antenna Antenna Gain 2.00dBi (Max.) Hardware version REV:A Software version 1.0.0 WLAN FCC Operation Frequency IEEE 802.11b: 2412 – 2462 MHz IEEE 802.11g: 2412 – 2462 MHz IEEE 802.11n HT20: 2412 – 2462 MHz IEEE 802.11n HT40: 2422 – 2452 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information NHP-D610 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2000 MHz – 2500 MHz 2.00dBi WLAN Antenna 6. Conducted Power [2.4GWLAN] Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 16.98 6 2437 16.31 11 2462 15.98 IEEE 802.11g 1 2412 13.19 6 2437 15.19 11 2462 14.43 IEEE 802.11n HT20 1 2412 15.74 6 2437 15.05 11 2462 14.19 IEEE 802.11n HT40 3 2422 15.54 6 2437 14.88 9 2452 14.47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 7. Manufacturing Tolerance [2.4GWLAN] IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.00 16.00 16.00 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.00 15.00 15.00 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.00 15.00 14.00 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 15.00 14.00 14.00 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the max…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 1 of 52 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Smart Dual plug Trade Mark: Nexxt Solutions Test Model: NHP-D610 Environmental Conditions Temperature: 24.3  C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Alisa Huang Supervised by: Wang Chuang A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 2 of 52 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 3 of 52 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 4 of 52 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 16.98 30 PASS MCH 16.31 30 PASS HCH 15.98 30 PASS 11G LCH 13.19 30 PASS MCH 15.19 30 PASS HCH 14.43 30 PASS 11N20SISO LCH 15.74 30 PASS MCH 15.05 30 PASS HCH 14.19 30 PASS 11N40SISO LCH 15.54 30 PASS MCH 14.88 30 PASS HCH 14.47 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 11 of 52 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/30KHz] Limit [dBm/3KHz] Verdict 11B LCH -0.970 8 PASS MCH -1.816 8 PASS HCH -1.596 8 PASS 11G LCH -11.232 8 PASS MCH -8.832 8 PASS HCH -9.726 8 PASS 11N20SISO LCH -8.195 8 PASS MCH -8.846 8 PASS HCH -9.947 8 PASS 11N40SISO LCH -11.752 8 PASS MCH -12.557 8 PASS HCH -12.619 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 12 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 13 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 14 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 15 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 16 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 17 of 52 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 18 of 52 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 13.07 ≥0.5 PASS MCH 13.07 ≥0.5 PASS HCH 13.06 ≥0.5 PASS 11G LCH 16.37 ≥0.5 PASS MCH 16.39 ≥0.5 PASS HCH 16.39 ≥0.5 PASS 11N20SISO LCH 17.03 ≥0.5 PASS MCH 17.13 ≥0.5 PASS HCH 17.07 ≥0.5 PASS 11N40SISO LCH 35.58 ≥0.5 PASS MCH 35.57 ≥0.5 PASS HCH 35.58 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 19 of 52 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 20 of 52 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 21 of 52 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 22 of 52 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 23 of 52 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 24 of 52 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 25 of 52 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 2.961 -36.714 -17.039 PASS MCH 2.529 -37.761 -17.471 PASS HCH 2.517 -37.978 -17.483 PASS 11G LCH -5.733 -37.170 -25.733 PASS MCH -3.647 -37.067 -23.647 PASS HCH -4.301 -37.802 -24.301 PASS 11N20 SISO LCH -3.186 -37.901 -23.186 PASS MCH -3.58 -37.643 -23.580 PASS HCH -4.949 -38.103 -24.949 PASS 11N40 SISO LCH -5.921 -37.579 -25.921 PASS MCH -7.297 -37.365 -27.297 PASS HCH -6.76 -37.895 -26.760 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 26 of 52 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 27 of 52 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 28 of 52 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 29 of 52 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 30 of 52 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 31 of 52 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 32 of 52 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 33 of 52 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 34 of 52 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA Page 35 of 52 11N40SISO_LCH_Gr…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For NEXXT SOLUTIONS Smart Dual plug Test Model: NHP-D610 Additional Model No.: Please Refer To Page 6 Prepared for : NEXXT SOLUTIONS Address : 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 24, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : December 24, 2019 ~ January 09, 2020 Date of Report : January 13, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS191202142AEA Date of Issue ................................... : January 13, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : NEXXT SOLUTIONS Address ........................................... : 3505 N.W 107TH AVE.MIAMI, FL United States 33178 Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................. : Smart Dual plug Trade Mark ...................................... : Nexxt Solutions Model/ Type reference .................... : NHP-D610 Ratings ............................................ : Please Refer To Page 6 Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jaydan Zhuo/ File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT........................................ : Smart Dual plug Type / Model........................... : NHP-D610 Applicant............................... : NEXXT SOLUTIONS Address.................................. : 3505 N.W 107TH AVE.MIAMI, FL United States 33178 Telephone.............................. : / Fax......................................... : / Manufacturer........................ : SUNGALE ELECTRONICS (SHENZHEN) CO., LTD. Address................................... : No.1302-1306, Dahong High-Tech Park, No. 6-18 Xinhe Road, Xinqiao, Shajing, Baoan district, Shenzhen, China Telephone.............................. : / Fax......................................... : / Factory.................................. : SUNGALE ELECTRONICS (SHENZHEN) CO., LTD. Address.................................. : No.1302-1306, Dahong High-Tech Park, No. 6-18 Xinhe Road, Xinqiao, Shajing, Baoan district, Shenzhen, China Telephone.............................. : / Fax......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191202142AEA January 13, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 January 13, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ......................................................................................................................... 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ........................................................................................... 6 1.3. EXTERNAL I/O CABLE .......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY .................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHADPD610 Report No.: LCS191202142AEA _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
