X4YHAPF600WiFi photo frame

CLOUD FRAME QUICK USER GUIDE 1 SIZE: 435x202mm 105g CLOUD FRAME User Manual Model #: CPF892 For ongoing product improvement, this manual is subject to modification without prior notice. What's-In-The Box? 1 Cloud Frame 1 User manual 1 Power Adaptor 1 Warranty card 1 Cloud Frame Stand Let's Power Up! Connect the power adaptor to an outlet to turn the frame on. 2 CLOUD FRAME QUICK USER GUIDE Let's download and install "eco4life" App on your phone Download eco4life app by scanning the QR code or searching "eco4life" from app store. Once you have installed the "eco4life" app, follow prompt to register an account, login, and start to add your cloud frame. How to add your Cloud Frame Step 1: Power on the cloud frame . Tap "SETTINGS" at the top of the frame screen to set up Wi-Fi connection. Your network Step 2: Launch the eco4life app, press "+" to start adding cloud frame. On the following screen, press " " to scan your cloud frame. Step 3: Use your phone to scan the QR code on the cloud frame screen. Your phone will add your frame automatically (see image 3). The cloud frame will be successfully added to your account shortly (see image 4). How to send photos to the frame from your phone 5 CLOUD FRAME QUICK USER GUIDE 4 CLOUD FRAME QUICK USER GUIDE 3 CLOUD FRAME QUICK USER GUIDE How to auto power on/off the frame How to remove a cloud frame from eco4life app 1. On your cloud frame, tap " " at the top of the frame screen, a pop up message will show up, tap "Remove" to confirm removing the frame from your eco4life app. 2. Meanwhile, open the eco4life app, select your "WiFi frame", tap the " " on the upper right corner to edit frame setting, and tap "Remove Device" to completely delete the frame from your account. Image 1Image 2 Image 3Image 4 Open the "eco4life" app, choose your "WiFi frame", press the " " botton at the bottom right corner. Tap "Add Schedule" at the bottom, pick a time that you want to auto power on/off your frame, then save it. Open the eco4life app on your phone, select your "WiFi Frame", tap "+" button at the bottom to select photos. Pick photos you want to send to your frame, then press the "Confirm" button to start the uploading, the uploaded photos will show up on your cloud frame shortly if it is connected to Wi-Fi. FederalCommunicationsCommission(FCC)Statement Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures: ●Reorientorrelocatethereceivingantenna. ●Increasetheseparationbetweentheequipmentandreceiver. ●Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. ●Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Warning:ChangesormodificationsmadetothisdevicenotexpresslyapprovedbyNEXXT SOLUTIONSmayvoidtheFCCauthorizationtooperatethisdevice. Note:ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedby unauthorizedmodificationstothisequipment.Suchmodificationscouldvoidtheuser’sauthority tooperatetheequipment. RFexposurestatement: Thetransmittermustnotbecolocatedoroperatedinconjunctionwithanyotherantennaor transmitter.ThisequipmentcomplieswiththeFCCRFradiationexposurelimitssetforthfor anuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwitha Minimumdistanceof20cmbetweentheradiatorandanypartofyourbody.

FCCIDLabelInformation Labellocation:

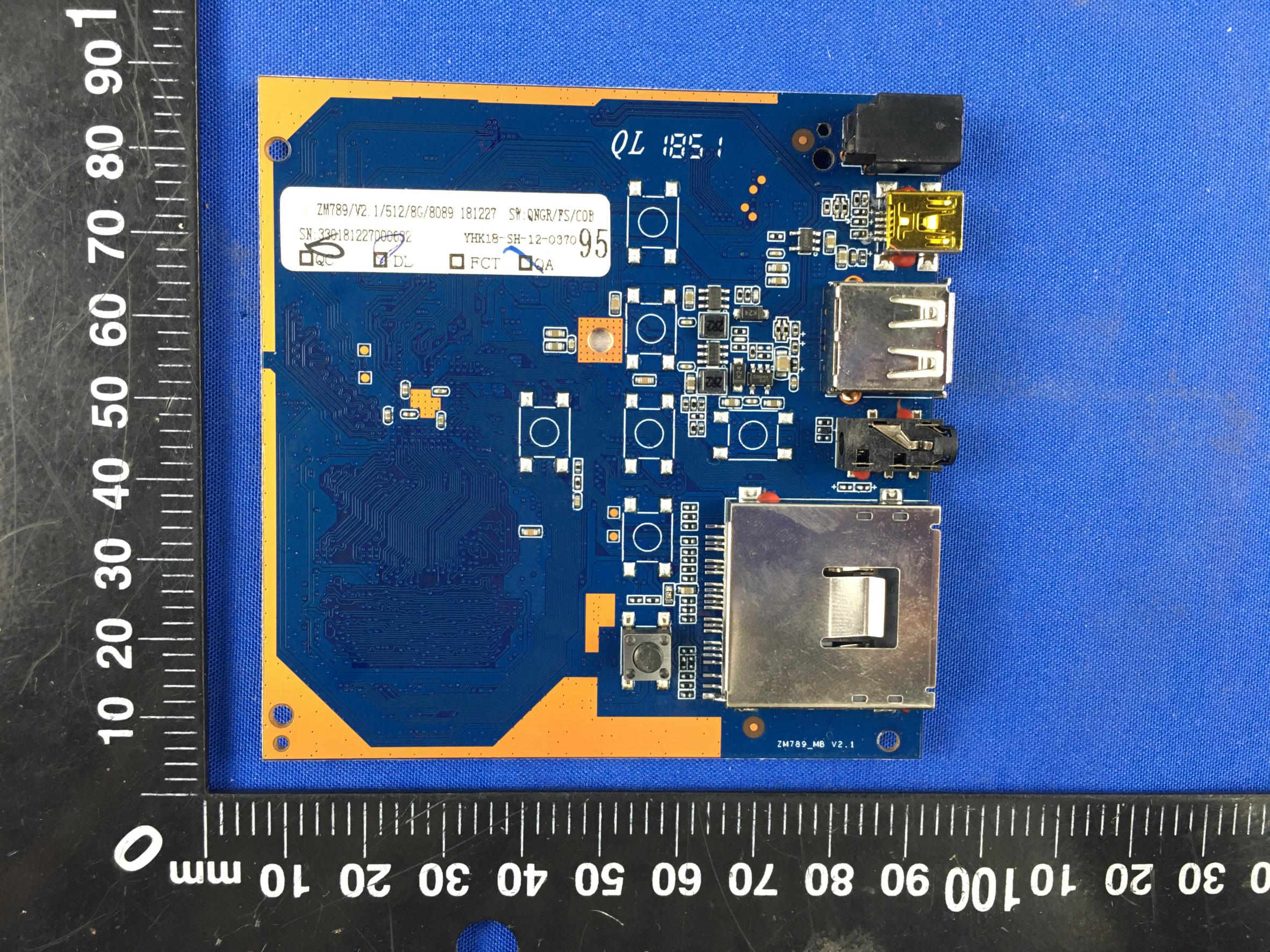

InternalPhotosofEUT FCCID：X4YHAPF600 Antenna

version01 NEXXTSOLUTIONS 3505NW107AVENUE,DORAL,FLORIDA,33178,US Tel:786-280-7600Fax:305477-5694 DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.: NHA-P600,SCF800,SCF820,SCF830,SCF1025,SCF1030,SCF1200,SCF1500, SCF1800,SCF2000. fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforFPCantennatype(s)described below: ModelNo.ofantenna:N/A Typeofantenna: FPCAntenna Gainoftheantenna:1.67dBi Frequencyrange:2412-2462MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:NEXXTSOLUTIONS Address:3505NW107AVENUE,DORAL,FLORIDA,33178,US City:MIAMI ZIP/Postalcode: Country:US Place:ShenzhenDate:2020-12-14 Signature:

Appendix for 15.247 Report No.: CTL2009212011-WF 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 11.349 ≥0.5 PASS 2437 SISO 1 11.653 ≥0.5 PASS 2462 SISO 1 11.099 ≥0.5 PASS 802.11g 2412 SISO 1 16.434 ≥0.5 PASS 2437 SISO 1 16.407 ≥0.5 PASS 2462 SISO 1 16.447 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.001 ≥0.5 PASS 2437 SISO 1 16.996 ≥0.5 PASS 2462 SISO 1 17.016 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 15.194 Only for Report Use 2437 SISO 1 15.135 Only for Report Use 2462 SISO 1 15.182 Only for Report Use 802.11g 2412 SISO 1 16.715 Only for Report Use 2437 SISO 1 18.155 Only for Report Use 2462 SISO 1 16.762 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.683 Only for Report Use 2437 SISO 1 18.448 Only for Report Use 2462 SISO 1 17.728 Only for Report Use 1.2 Test Graph - 6dB Bandwidth 1.3 Test Graph - 99% Occupied Bandwidth 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 21.11 30 PASS 2437 SISO 21.64 30 PASS 2462 SISO 21.97 30 PASS 802.11g 2412 SISO 18.77 30 PASS 2437 SISO 22.13 30 PASS 2462 SISO 19.10 30 PASS 802.11n(HT20) 2412 SISO 18.86 30 PASS 2437 SISO 22.06 30 PASS 2462 SISO 19.30 30 PASS 2.2 Test Graph 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -9.01 ≤8 PASS 2437 SISO -9.26 ≤8 PASS 2462 SISO -7.86 ≤8 PASS 802.11g 2412 SISO -12.68 ≤8 PASS 2437 SISO -10.28 ≤8 PASS 2462 SISO -13.10 ≤8 PASS 802.11n(HT20) 2412 SISO -13.00 ≤8 PASS 2437 SISO -10.06 ≤8 PASS 2462 SISO -12.96 ≤8 PASS 3.2 Test Graph 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -12.83 PASS 2437 SISO 1 Refer to test graph -12.83 PASS 2462 SISO 1 Refer to test graph -12.83 PASS 802.11g 2412 SISO 1 Refer to test graph -15.53 PASS 2437 SISO 1 Refer to test graph -15.53 PASS 2462 SISO 1 Refer to test graph -15.53 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -15.72 PASS 2437 SISO 1 Refer to test graph -15.72 PASS 2462 SISO 1 Refer to test graph -15.72 PASS 4.2 Test Graph

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................. : CTL2009212011-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Cary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name .............................. : WiFi photo frame Model/Type reference ................. : NHA-P600 List Model(s) ................................ : SCF800, SCF820, SCF830, SCF1025, SCF1030, SCF1200, SCF1500, SCF1800, SCF2000. Trade Mark ................................... : N/A FCC ID .......................................... : X4YHAPF600 Applicant’s name ........................ : NEXXT SOLUTIONS Address of applicant .................. : 3505 NW 107 AVENUE, DORAL, FLORIDA, 33178, US Test Firm ...................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm .................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ........................ : Standard ........................................ : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator .............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF ................................... : Dated 2011-01 Date of receipt of test item ......... : Nov. 03, 2020 Date of sampling ......................... : Nov. 03, 2020 Date of Test Date ......................... : Nov. 03, 2020-Dec. 10, 2020 Date of Issue ................................ : Dec. 11, 2020 Result ........................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 29 Report No.: CTL2009212011-WF TEST REPORT Test Report No. : CTL2009212011-WF Dec. 11, 2020 Date of issue Equipment under Test : WiFi photo frame Sample No : CTL200921201-1-S001 Model /Type : NHA-P600 Listed Models : SCF800, SCF820, SCF830, SCF1025, SCF1030, SCF1200, SCF1500, SCF1800, SCF2000. Series Models Description : Only the colour and model’s names are different. Applicant : NEXXT SOLUTIONS Address : 3505 NW 107 AVENUE, DORAL, FLORIDA, 33178, US Manufacturer : SUNGALE ELECTRONICS (SHENZHEN) CO., LTD Address : No.1302, Dahong High-Tech Park, No. 6-18, Xinhe Road, Xinqiao, Shajing, Bao’an, Shenzhen, 518105, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 29 Report No.: CTL2009212011-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-12-11 CTL2009212011-WF Tracy Qi V1.0 Page 4 of 29 Report No.: CTL2009212011-WF Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CO…

Text truncated - open the document above for the full version.

Testset-upProcedures FCCID：X4YHAPF600
