X4YHASI600SMART IR UNIVERSAL REMOTE

Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Xian Chishine Optoelectronics Technology Co.,Ltd may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

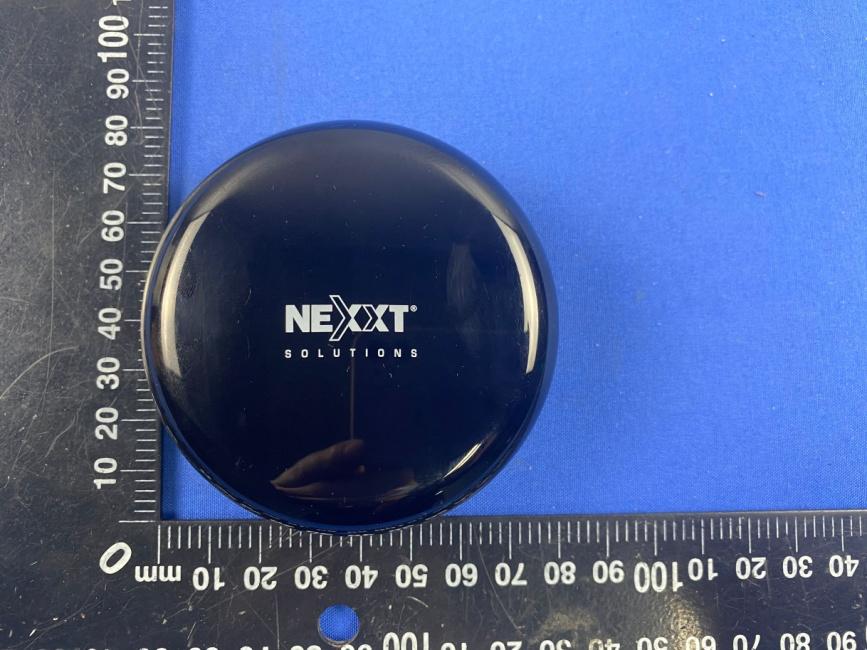

FCC-ID: X4YHASI600 Page 1 of 3 Report No.: CTL2011302141-WF External Photos of EUT FCC-ID: X4YHASI600 Page 2 of 3 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 3 of 3 Report No.: CTL2011302141-WF

FCC-ID:X4YHASI600Page1of1 ReportNo.:CTL2011302141-WF FCCIDLabelInformation 1.Labellocation: SMARTIRUNIVERSALREMOTE Model:NHA-I600 FCCID:X4YHASI600 Thisdevicecomplieswithpart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation. 2.FCCIDLabel:FCCID:X4YHASI600

FCC-ID: X4YHASI600 Page 1 of 4 Report No.: CTL2011302141-WF Internal Photos of EUT Antenna FCC-ID: X4YHASI600 Page 2 of 4 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 3 of 4 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 4 of 4 Report No.: CTL2011302141-WF

version01 NEXXT SOLUTIONS 3505 NW 107 AVENUE, DORAL, FLORIDA, 33178, US Tel: 786-280-7600 Fax: 305 477- 5694 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: NHA-I600, ECIR200, ECIR300, ECIR500, ECIR600 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 3.5dBi Frequency range: 2412-2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: NEXXT SOLUTIONS Address: 3505 NW 107 AVENUE, DORAL, FLORIDA, 33178, US City: MIAMI ZIP / Postal code: Country: US Place: Shenzhen Date: 2021-01-15 Signature:

FCC-ID: X4YHASI600 Page 1 of 2 Report No.: CTL2011302141-WF RF Exposure evaluation FCC ID: X4YHASI600 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density FCC-ID: X4YHASI600 Page 2 of 2 Report No.: CTL2011302141-WF 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 3.5dBi for 2.4GHz, the RF power density can be obtained. For 2.4Ghz wifi Frequency (MHz) Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 2412 21.81 151.7050 2.2387 0.0676 1.0000 PASS 2437 21.52 141.9058 2.2387 0.0632 1.0000 PASS 2462 22.44 175.3881 2.2387 0.0781 1.0000 PASS 5. Conclusion The SAR evaluation is not required.

FCC-ID: X4YHASI600 Page 1 of 30 Report No.: CTL2011302141-WF Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) 802.11b 2412 SISO 1 8.106 PASS 2437 SISO 1 8.038 PASS 2462 SISO 1 8.064 PASS 802.11g 2412 SISO 1 16.499 PASS 2437 SISO 1 16.427 PASS 2462 SISO 1 16.490 PASS 802.11n(HT20) 2412 SISO 1 17.622 PASS 2437 SISO 1 17.599 PASS 2462 SISO 1 17.645 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 11.251 Only for Report Use 2437 SISO 1 11.247 Only for Report Use 2462 SISO 1 11.258 Only for Report Use 802.11g 2412 SISO 1 17.024 Only for Report Use 2437 SISO 1 16.913 Only for Report Use 2462 SISO 1 16.976 Only for Report Use 802.11n(HT20) 2412 SISO 1 18.064 Only for Report Use 2437 SISO 1 17.981 Only for Report Use 2462 SISO 1 18.049 Only for Report Use 1.2 Test Graph - 6dB Bandwidth FCC-ID: X4YHASI600 Page 2 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 3 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 4 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 5 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 6 of 30 Report No.: CTL2011302141-WF 2.3 Test Graph - 99% Occupied Bandwidth FCC-ID: X4YHASI600 Page 7 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 8 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 9 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 10 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 11 of 30 Report No.: CTL2011302141-WF 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 21.81 30 PASS 2437 SISO 21.52 30 PASS 2462 SISO 22.44 30 PASS 802.11g 2412 SISO 19.61 30 PASS 2437 SISO 19.18 30 PASS 2462 SISO 20.08 30 PASS 802.11n(HT20) 2412 SISO 18.28 30 PASS 2437 SISO 18.03 30 PASS 2462 SISO 18.92 30 PASS 2.2 Test Graph FCC-ID: X4YHASI600 Page 12 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 13 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 14 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 15 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 16 of 30 Report No.: CTL2011302141-WF 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -6.06 ≤8 PASS 2437 SISO -6.30 ≤8 PASS 2462 SISO -5.50 ≤8 PASS 802.11g 2412 SISO -11.75 ≤8 PASS 2437 SISO -11.99 ≤8 PASS 2462 SISO -11.40 ≤8 PASS 802.11n(HT20) 2412 SISO -7.37 ≤8 PASS 2437 SISO -7.32 ≤8 PASS 2462 SISO -6.59 ≤8 PASS 3.2 Test Graph FCC-ID: X4YHASI600 Page 17 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 18 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 19 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 20 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 21 of 30 Report No.: CTL2011302141-WF 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -11.40 PASS 2437 SISO 1 Refer to test graph -11.40 PASS 2462 SISO 1 Refer to test graph -11.40 PASS 802.11g 2412 SISO 1 Refer to test graph -18.06 PASS 2437 SISO 1 Refer to test graph -18.06 PASS 2462 SISO 1 Refer to test graph -18.06 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -19.07 PASS 2437 SISO 1 Refer to test graph -19.07 PASS 2462 SISO 1 Refer to test graph -19.07 PASS 4.2 Test Graph FCC-ID: X4YHASI600 Page 22 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 23 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 24 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 25 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 26 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 27 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 28 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 29 of 30 Report No.: CTL2011302141-WF FCC-ID: X4YHASI600 Page 30 of 30 Report No.: CTL2011302141-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2011302141-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Cary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : SMART IR UNIVERSAL REMOTE Model/Type reference ................ : NHA-I600 List Model(s) ............................... : ECIR200, ECIR300, ECIR500, ECIR600 Trade Mark .................................. : N/A FCC ID ......................................... : X4YHASI600 Applicant’s name ....................... : NEXXT SOLUTIONS Address of applicant ................. : 3505 NW 107 AVENUE, DORAL, FLORIDA, 33178, US Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Dec. 30, 2020 Date of sampling ........................ : Dec. 30, 2020 Date of Test Date ........................ : Jan. 01, 2021-Jan. 12, 2021 Date of Issue .............................. : Jan. 13, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 32 Report No.: CTL2011302141-WF TEST REPORT Test Report No. : CTL2011302141-WF Jan. 13, 2021 Date of issue Equipment under Test : SMART IR UNIVERSAL REMOTE Sample No : CTL201130214-1-S001 Model /Type : NHA-I600 Listed Models : ECIR200, ECIR300, ECIR500, ECIR600 Series Models Description : Only the colour and model’s names are different. Applicant : NEXXT SOLUTIONS Address : 3505 NW 107 AVENUE, DORAL, FLORIDA, 33178, US Manufacturer : SUNGALE ELECTRONICS (SHENZHEN) CO., LTD Address : No.1302, Dahong High-Tech Park, No. 6-18, Xinhe Road, Xinqiao, Shajing, Bao’an, Shenzhen, 518105, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 32 Report No.: CTL2011302141-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-01-13 CTL2011302141-WF Tracy Qi V1.0 Page 4 of 32 Report No.: CTL2011302141-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER............................................................…

Text truncated - open the document above for the full version.

FCC-ID: X4YHASI600 Page 1 of 1 Report No.: CTL2011302141-WF 1. Test set-up Procedures
