X4YHASPT610Wall Tap Plug

Wall Tap Plug Quick Guide MODEL NO: NHP-T610 ⚫ Product Overview eco4life Smart Power Strip with Surge Protection has 4 power outlets and 4 USB ports. This product works seamlessly with your home automation devices through the eco4life app or voice commands with Amazon Alexa or Google Assistant. It enables wireless control of your lights and devices from anywhere. It automatically switches individual devices on and off based on multiple timers. Intelligent USB charging ports can detect your devices and deliver the ideal charging for optimum safety. ⚫ Easy Installation 1.Scan the QR Code or directly download and install the eco4life app from the Apple App Store or Google Play on your smartphone. App Download 2. Make sure your smartphone is connected to your home Wi-Fi network. 3. Plug the Smart Power Strip into the wall outlet and wait for the red LED light to blink rapidly. 4. If the red light does not blink rapidly, reset the device by pressing the ON/OFF button in five (5) second intervals until red light blinks. 5. From the eco4life app, click + on the upper right corner of the screen to add your device. Select Electrical Outlet and customize settings for your Smart Power Strip. You can rename the individual outlets on the power strip to identify the device plugged in for easier control. ⚫ ADD DEVICES TO ECO4LIFE APP 1. Open the "eco4life" app, click "+", select "Electrical outlet", then enter the mobile phone is connected Wi-Fi password configured. 2. Once configured, click on the icon on the upper right corner to customize or restore your settings, check firmware updates and other tasks. 3. From the "Scenes" page click "+" to add scene. Enter the scene name, then add "condition" to perform a single or multiple tasks, collectively with your other smart devices. (See picture 1) Main Switch USB Ports output Power output 4．From Profile Page, select "Device Sharing", share device control with family members ( pic 2) ⚫ Light Indicators Red Light (Blinking): Sync mode Red Light (Steady On): Successfully paired to wireless network Red Light (Off): Not connected to wireless network Blue Light (On): Output ports have power Blue Light (Off): Output ports have no power ⚫ Technical Specification Disconnection means: Type 1B Pollution degree:2 Rated Impulse voltage: 1500V Rates Automation action: 6000 cycles Input: 125V~, 15A, 60Hz, 1875W USB input: 100-125V~, 50/60Hz, 0.5A Output: 5V, 3.1A each, 3.1A total Wireless Type: Wi-Fi 2.4GHz, IEEE 802.11b/g/n NOTE: This device supports 2.4 GHz Wi-Fi Network only. It is compatible with Android Version 4.4 -8.0 and iOS Version 8 and above. DO NOT overload capacity. CAUTION: Risk of electric shock; Dry location use only, Used indoor only. Contains Always On Receptacles. To Reduce the Risk of Electric Shock -Disconnect power strip from power source before servicing any equipment connected to the power strip FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

NEXXT SOLUTIONS Add: 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Tel: 786-280-7600 Fax: 305 477- 5694 Date: 2020-01-08 Dear Sir/Madam, We, NEXXT SOLUTIONS Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wall Tap Plug Model No.: NHP-T610, WTP110, WTP120 Sincerely, Client’s name / title : Albert Mizrachi / Vice president of product development Contact information / address : 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Tel: 786-280-7600 Fax: 305 477- 5694 E-Mail: [email protected]

NEXXT SOLUTIONS Add: 3505 N. W 107TH AVE.MIAMI, FL United States 33178 NEXXT SOLUTIONS FCC ID: X4YHASPT610 Model Number: NHP-T610, WTP110, WTP120 DATE: Jan. 08, 2020 To Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 We, NEXXT SOLUTIONS don’t provide any controls or software to allow the operation outside of the USA frequency band (only use 2412MHz to 2462MHz) when we sell this product in USA. Best Regards! (Signed) Client’s name / title : Albert Mizrachi / Vice president of product development Contact information / address : 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Tel: 786-280-7600 Fax: 305 477- 5694 E-Mail: [email protected]

1/1 CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-01-08> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name X4YHASPT610 NHP-T610 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. C5266091_X10_Ed.1 1/1 Sincerely, (Signed) Name / Title: Albert Mizrachi / Vice president of product development Company: NEXXT SOLUTIONS Address: 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Phone: 786-280-7600 Fax: 305 477- 5694 E-Mail: [email protected]

NEXXT SOLUTIONS 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/8/2020 To whom it may concern: We, NEXXT SOLUTIONS the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: X4YHASPT610 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Albert Mizrachi / Vice president of product development Company: NEXXT SOLUTIONS Address: 3505 N. W 107TH AVE.MIAMI, FL United States 33178 Phone: 786-280-7600 Fax: 305 477- 5694 E-Mail: [email protected]

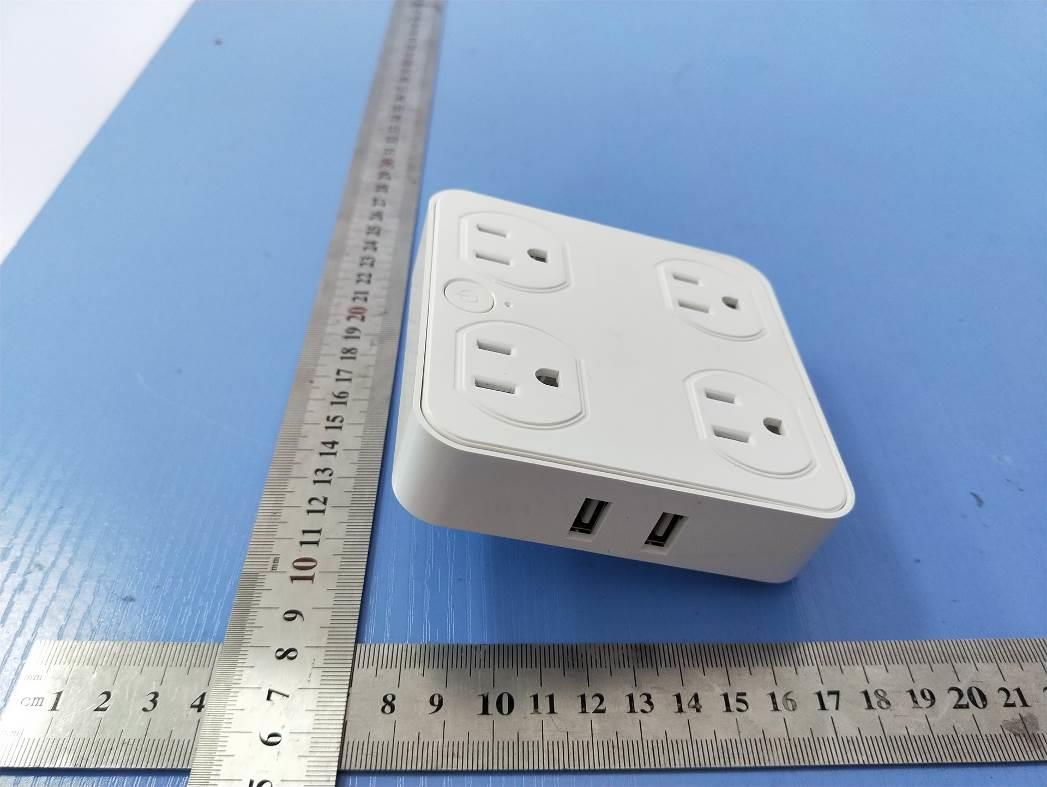

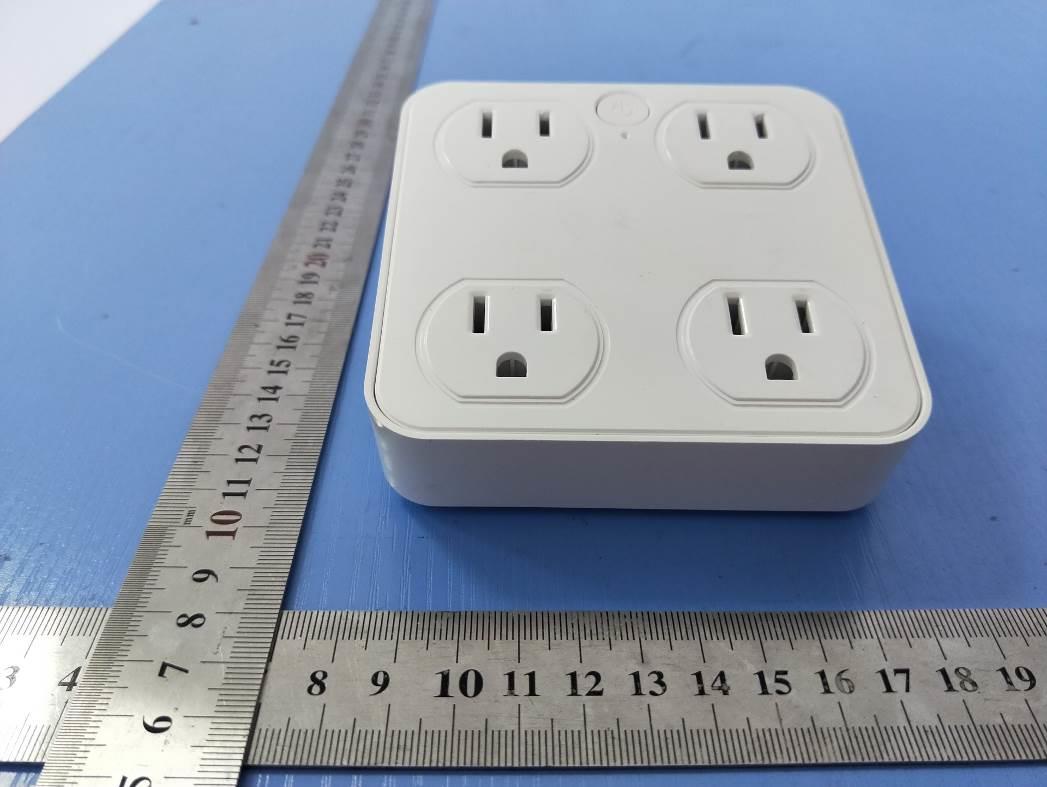

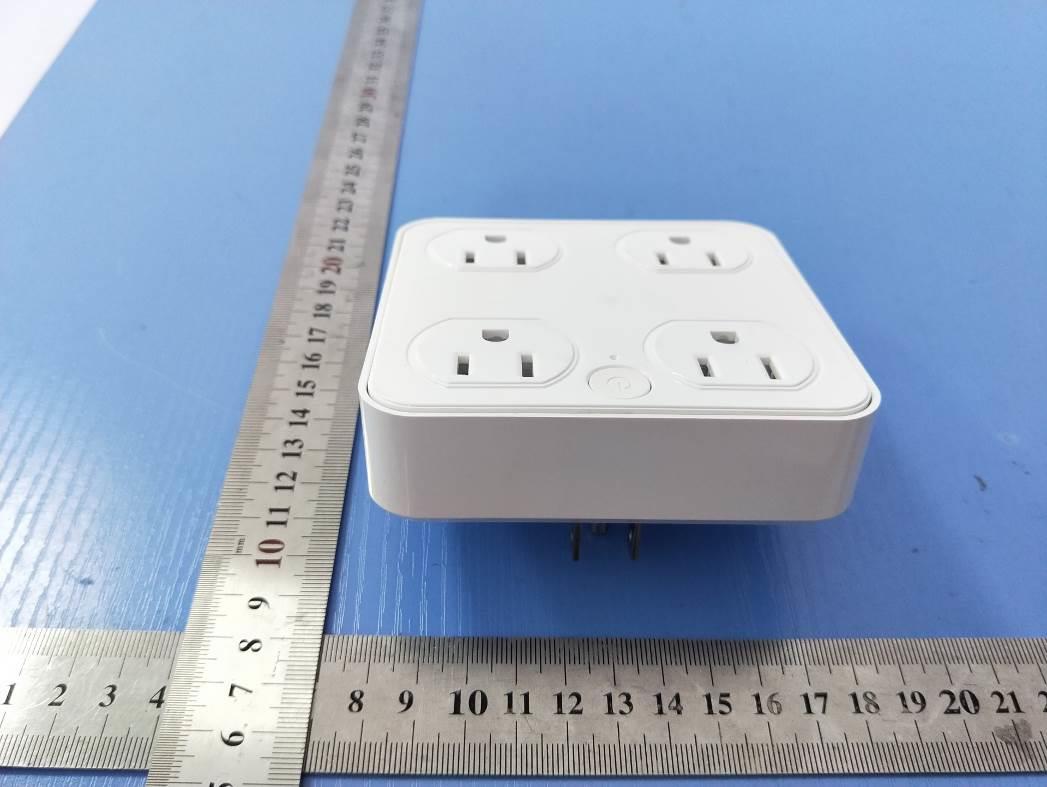

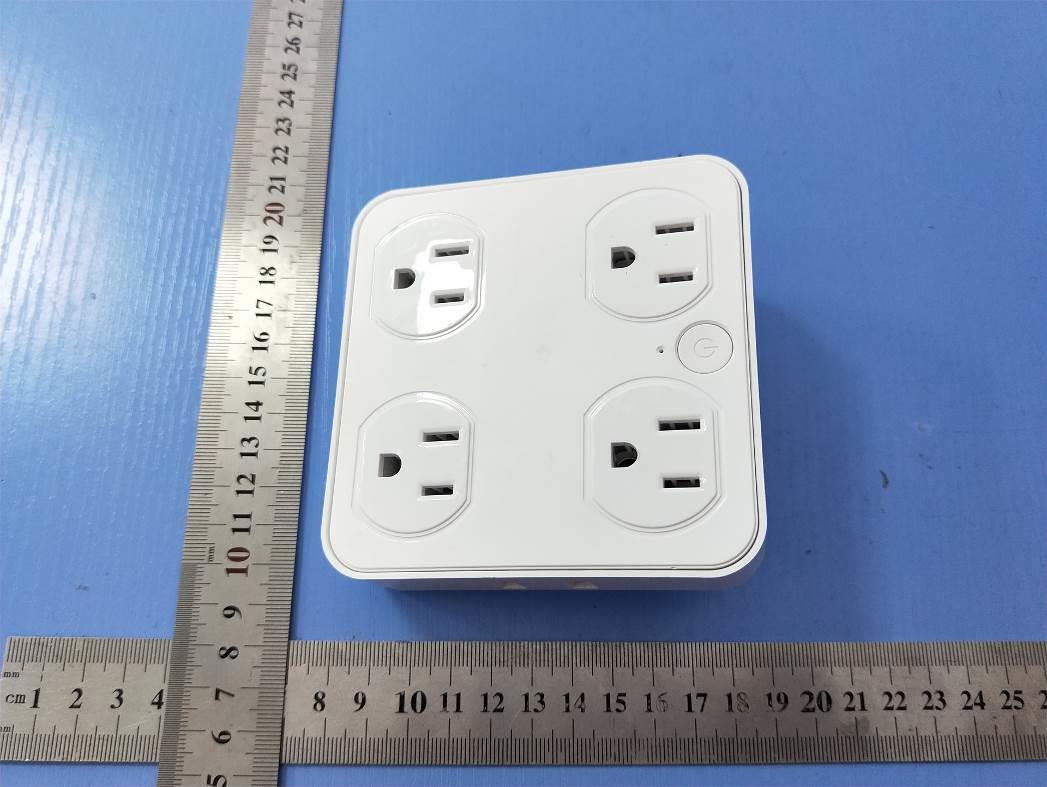

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location Wall Tap Plug Model No.: NHP-T610 FCC ID : X4YHASPT610 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Fig.7 Fig.8 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Wall Tap Plug Trade Mark: Nexxt Solutions Test Model: NHP-T610 Environmental Conditions Temperature: 24.3  C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Alisa Huang Supervised by: Wang Chuang A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 16.06 30 PASS MCH 15.98 30 PASS HCH 15.46 30 PASS 11G LCH 17.81 30 PASS MCH 15.17 30 PASS HCH 15.50 30 PASS 11N20SISO LCH 14.83 30 PASS MCH 15.21 30 PASS HCH 15.02 30 PASS 11N40SISO LCH 15.32 30 PASS MCH 15.38 30 PASS HCH 15.23 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/30KHz] Limit [dBm/3KHz] Verdict 11B LCH -1.416 8 PASS MCH -1.597 8 PASS HCH -2.092 8 PASS 11G LCH -6.175 8 PASS MCH -8.953 8 PASS HCH -8.407 8 PASS 11N20SISO LCH -9.584 8 PASS MCH -8.955 8 PASS HCH -9.001 8 PASS 11N40SISO LCH -11.822 8 PASS MCH -12.070 8 PASS HCH -12.063 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 12.59 ≥0.5 PASS MCH 12.54 ≥0.5 PASS HCH 13.06 ≥0.5 PASS 11G LCH 16.37 ≥0.5 PASS MCH 16.37 ≥0.5 PASS HCH 16.36 ≥0.5 PASS 11N20SISO LCH 17.00 ≥0.5 PASS MCH 16.99 ≥0.5 PASS HCH 16.98 ≥0.5 PASS 11N40SISO LCH 35.52 ≥0.5 PASS MCH 35.54 ≥0.5 PASS HCH 35.55 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 2.961 -31.582 -17.039 PASS MCH 2.625 -31.754 -17.375 PASS HCH 2.103 -32.318 -17.897 PASS 11G LCH -0.629 -37.444 -20.629 PASS MCH -3.319 -37.431 -23.319 PASS HCH -3.148 -38.791 -23.148 PASS 11N20 SISO LCH -3.396 -37.852 -23.396 PASS MCH -3.07 -37.359 -23.070 PASS HCH -3.283 -37.664 -23.283 PASS 11N40 SISO LCH -6.283 -37.800 -26.283 PASS MCH -5.912 -37.398 -25.912 PASS HCH -5.879 -37.347 -25.879 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA Page 29 of 46 11N40SISO_LCH_Graphs Pr…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT For NEXXT SOLUTIONS Wall Tap Plug Test Model: NHP-T610 Additional Model No.: Please Refer To Page 6 Prepared for : NEXXT SOLUTIONS Address : 3505 N.W 107TH AVE.MIAMI, FL United States 33178 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 24, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : December 24, 2019 ~ December 27, 2019 Date of Report : December 30, 2019 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS191202141AEA Date of Issue ................................... : December 30, 2019 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : NEXXT SOLUTIONS Address ........................................... : 3505 N.W 107TH AVE.MIAMI, FL United States 33178 Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................. : Wall Tap Plug Trade Mark ...................................... : Nexxt Solutions Model/ Type reference .................... : NHP-T610 Ratings ............................................ : Please Refer To Page 6 Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jaydan Zhuo/ File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT EUT........................................ : Wall Tap Plug Type / Model........................... : NHP-T610 Applicant............................... : NEXXT SOLUTIONS Address.................................. : 3505 N.W 107TH AVE.MIAMI, FL United States 33178 Telephone.............................. : / Fax......................................... : / Manufacturer........................ : SUNGALE ELECTRONICS (SHENZHEN) CO., LTD. Address................................... : No.1302-1306, Dahong High-Tech Park, No. 6-18 Xinhe Road, Xinqiao, Shajing, Baoan district, Shenzhen, China Telephone.............................. : / Fax......................................... : / Factory.................................. : SUNGALE ELECTRONICS (SHENZHEN) CO., LTD. Address.................................. : No.1302-1306, Dahong High-Tech Park, No. 6-18 Xinhe Road, Xinqiao, Shajing, Baoan district, Shenzhen, China Telephone.............................. : / Fax......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191202141AEA December 30, 2019 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 December 30, 2019 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ......................................................................................................................... 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ........................................................................................... 6 1.3. EXTERNAL I/O CABLE .......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ...................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: X4YHASPT610 Report No.: LCS191202141AEA _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
