X4YION150150Mbps Wireless N PCI-E Adapter

NEXXT SOLUTIONS
150Mbps Wireless N PCI-E Adapter - FCC ID X4YION150 - NEXXT SOLUTIONS
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 20, 2010
Application Purpose
Original Equipment
Date of Application
Sep 16, 2010
Equipment Note
150Mbps Wireless N PCI-E Adapter
Frequency Range
2422.00000000 - 2452.00000000
Company
NEXXT SOLUTIONS
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Unmatched wireless performance, reception, and security protection The Ion-150 allows you to easily upgrade or expand your wireless connectivity Fast Ethernet Adapter Model:NW230NXT45 Ion150 150Mbps WIRELESS N PCI-E ADAPTER User Guide FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: t Reorient or relocate the receiving antenna. t Increase the separation between the equipment and receiver. t Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. t Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country RestrictionReason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply (not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. CONTENTS Package Contents .................................................................................................... 1 Chapter 1Introduction......................................................................................... 2 1.1Overview of the product ...................................................................................................2 1.2Features ...........................................................................................................................2 1.3LED Status .......................................................................................................................3 Chapter 2Installation Guide................................................................................ 4 2.1Hardware Installation........................................................................................................4 2.2Software Installation .........................................................................................................4 2.2.1Overview ........................................................................................................................... 4 2.2.2Software Installation for Windows XP............................................................................... 4 2.2.3Software Installation for Windows Vista ........................................................................... 9 2.2.4Software Installation for Windows 7 ............................................................................... 12 Chapter 3Configuration for Windows XP ........................................................ 16 3.1Current Status ................................................................................................................16 3.2Profile Management .......................................................................................................18 3.2.1Add or Modify a Configuration Profile............................................................................. 18 3.2.2Remove a profile............................................................................................................. 23 3.2.3Switch to a different Profile ............................................................................................ 23 3.2.4Export a Profile ......…

Text truncated - open the document above for the full version.

External Photos

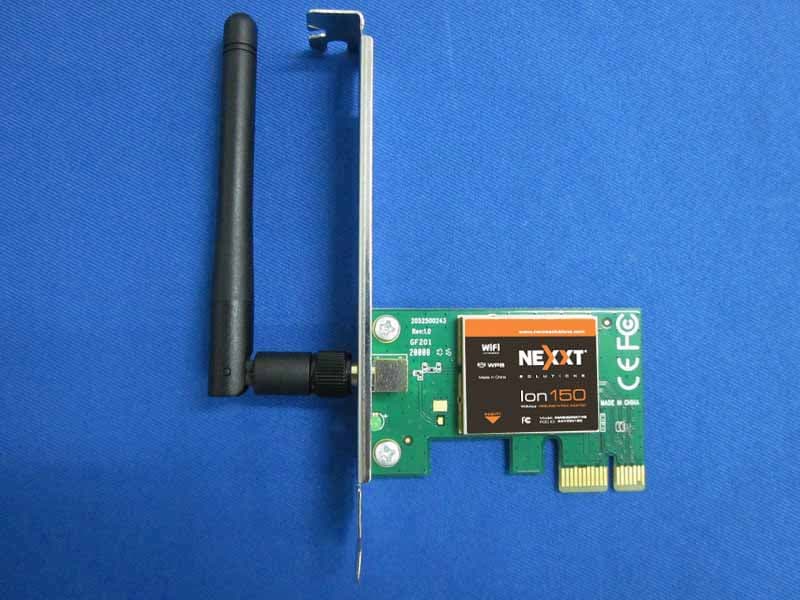

FCC ID:X4YION150 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

ID Label/Location Info

12 E D C B A 12 3456789 E D C 345678 B A 9 料号: 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 Ion-150屏蔽罩标贴 2010-8-04 周瑛 30*25.4mm,0.5R FCC ID X4YION150 PANTONE 165 C PANTONE Black C White white,PANTON 165 C PANTON 165 C,PANTON Black C white,PANTON 165 C 1.0 80g艾利铜版纸+光膜 Label Location

Internal Photos

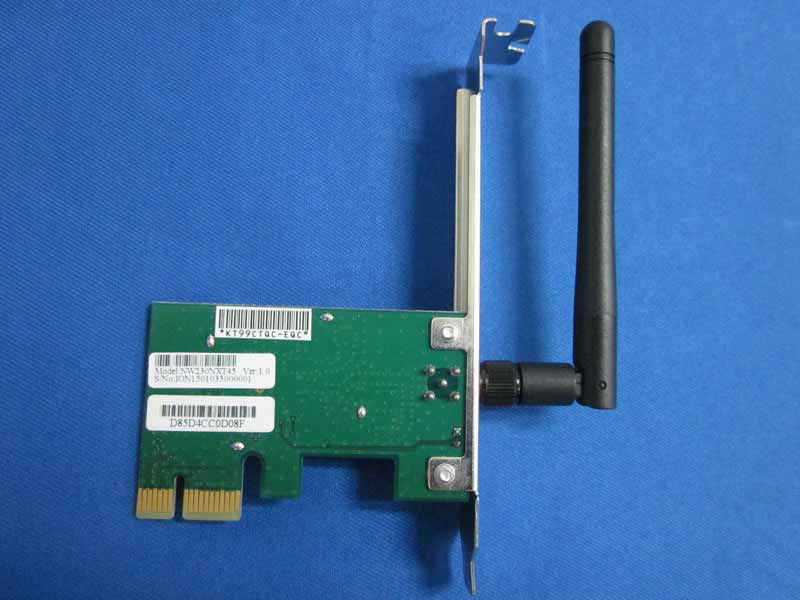

FCC ID:X4YION150 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 Figure 3 General Appearance of the EUT Figure 4 Components Side of the PCB

RF Exposure Info

FCC ID:X4YION150 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain(linear) MPE (mW/ cm2 ) 1 2412 17.61 57.68 2 1.58 0.0182 6 2437 20.12 102.80 2 1.58 0.0324 11b 11 2462 20.15 103.51 2 1.58 0.0327 1 2412 16.93 49.32 2 1.58 0.0156 6 2437 24.14 259.42 2 1.58 0.0818 11g 11 2462 16.89 48.87 2 1.58 0.0154 1 2412 16.06 40.36 2 1.58 0.0127 6 2437 25.32 340.41 2 1.58 0.1074 11n HT20 11 2462 15.66 36.81 2 1.58 0.0116 1 2422 11.43 13.90 2 1.58 0.0044 4 2437 22.61 182.39 2 1.58 0.0575 11n HT40 7 2452 11.65 14.62 2 1.58 0.0046 Note: The estimation distance is 20cm

Test Report

FCC ID:X4YION150 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 APPLICATION FOR CERTIFICATION On Behalf of NEXXT SOLUTIONS 150Mbps Wireless N PCI-E Adapter Model Number: NW230NXT45 FCC ID: X4YION150 Prepared for : NEXXT SOLUTIONS 3505N.W 107 TH AVE., MIAMI, Florida, United States Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number : ACS-F10255 Date of Test : Jan.28~30, 2010 Date of Report : Sep.07, 2010 FCC ID:X4YION150 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS................................................................... 1-1 1.1. Description of Standards and Results ............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test information .............................................................................................................................2-2 2.3. Date rate VS power ........................................................................................................................2-3 2.4. Tested Supporting System Details .................................................................................................2-4 2.5. Test Facility ...................................................................................................................................2-5 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-5 3. POWER LINE CONDUCTED EMISSION TEST ................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results ..............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS............................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit...............................................................................................................................................5-1 5.3. Test Procedure................................................................................................................................5-1 5.4. Test result .......................................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Limit...............................................................................................................................................6-1 6.3. Test Produce ...................................................................................................................................6-1 6.4. Test Results ....................................................................................................................................6-1 7. 6dB Bandwidth Test.................................................................................................................. 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Limit.................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID:X4YION150 Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test FCC ID:X4YION150 Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 13.2.Photos of Radiated Emission Test 30-1000MHz FCC ID:X4YION150 Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10255 Above 1000MHz

Contact Information

Applicant

Albert Mizrachi(Vice president of product development)
[email protected]786-280-7600Fax: 305 477- 5694

Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Ken Lu
[email protected]86-755-26639497

52 Block Shenzhen Science&Industry · Shenzhen · China

Non-Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Kris Zheng
[email protected]86-755-26639497

Test Firm

Audix Technology (Shenzhen) Co.Smart Tsai
[email protected]86-755-663-9495Fax: 86-755-663-2877

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz180.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
