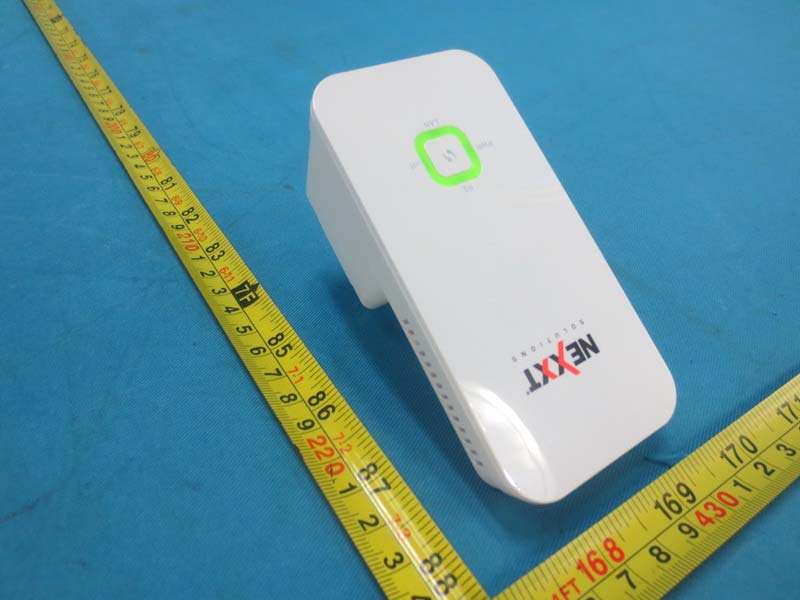

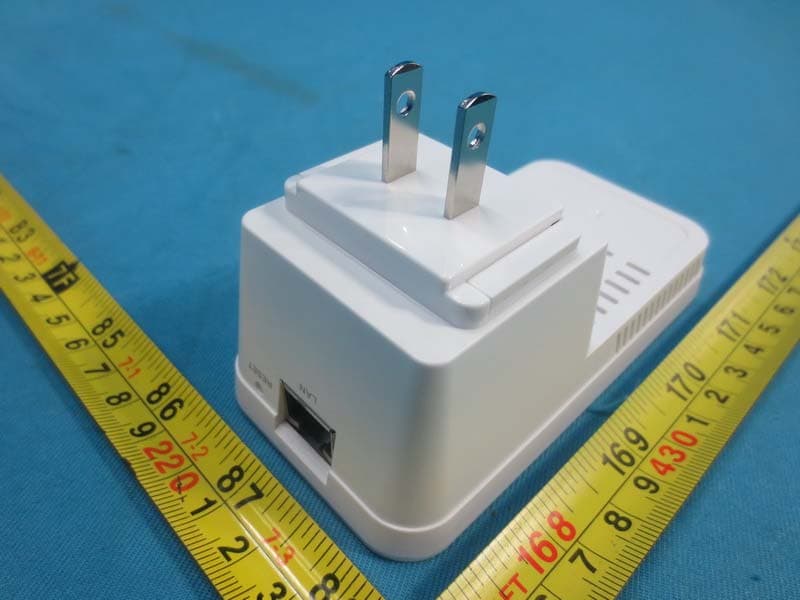

X4YKRNS300Universal Range Extender

RV-0000000 Project No.: 1508C180 Page 2 of 9 RV-0000000 Project No.: 1508C180 Page 3 of 9

JṲ᣿䗑䬒⡾㓮 ভ㻻 ߑзᔰ  $91(;䬌⡸䍤   PP5 PP PP 䗷ଁ㜦 ⋩㜦 㺘䶒༴⨶ ᓅ㜦 4.96mm 1.2mm Labellocation

RV-0000000 Project No.: 1508C180 Page 4 of 9 RV-0000000 Project No.: 1508C180 Page 5 of 9 RV-0000000 Project No.: 1508C180 Page 6 of 9 RV-0000000 Project No.: 1508C180 Page 7 of 9 RV-0000000 Project No.: 1508C180 Page 8 of 9 RV-0000000 Project No.: 1508C180 Page 9 of 9

FCC RF EXPOSURE REPORT FCC ID: X4YKRNS300 Project No. : 1508C180 Equipment : Universal Range Extender Model : AEIEL304U1 Applicant : NEXXT SOLUTIONS Address : 3505 N.W 107TH AVE,MIAMI ,FL,33178 According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) 1 N/A N/A Printed N/A 2 2 N/A N/A Printed N/A 2 TEST RESULTS EUT： Universal Range Extender Model Name : AEIEL304U1 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 19.77 94.8418 0.029919231 Complies 2 1.5849 20.45 110.9175 0.034990521 Complies 2 1.5849 20.06 101.3911 0.031985301 Complies EUT： Universal Range Extender Model Name : AEIEL304U1 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 18.25 66.8344 0.021083871 Complies 2 1.5849 24.37 273.5269 0.086287991 Complies 2 1.5849 18.86 76.9130 0.024263331 Complies EUT： Universal Range Extender Model Name : AEIEL304U1 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 21.46 139.9587 0.044152001 Complies 2 1.5849 26.99 500.0345 0.157743101 Complies 2 1.5849 21.76 149.9685 0.047309721 Complies EUT： Universal Range Extender Model Name : AEIEL304U1 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 20.41 109.9006 0.034669721 Complies 2 1.5849 19.54 89.9498 0.028375951 Complies 2 1.5849 19.03 79.9834 0.025231921 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1508C180 Page 1 of 137 FCC Radio Test Report FCC ID: X4YKRNS300 This report concerns (check one): Original Grant Class II Change Project No. : 1508C180 Equipment : Universal Range Extender Model Name : AEIEL304U1 Applicant : NEXXT SOLUTIONS Address : 3505 N.W 107TH AVE,MIAMI ,FL,33178 Date of Receipt : Aug. 19, 2015 Date of Test : Aug. 19, 2015 ~ Aug. 27, 2015 Issued Date : Aug. 28, 2015 Tested by : BTL Inc. Testing Engineer : (Shawn Xiao) Technical Manager : (David Mao) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1508C180 Page 2 of 137 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement b y NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1508C180 Page 3 of 137 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 Report No.: BTL-FCCP-1-1508C180 Page 4 of 137 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 91 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 100 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 104 ATTACHMENT H - POWER SPECTRAL DENSITY 123 Report No.: BTL-FCCP-1-1508C180 Page 5 of 137 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1508C180 Original Issue. Aug. 28, 2015 Report No.: BTL-FCCP-1-1508C180 Page 6 of 137 1. CERTIFICATION Equipment : Universal Range Extender Brand Name : NEXXT Model Name : AEIEL304U1 Applicant : NEXXT SOLUTIONS Manufacturer : NEXXT SOLUTIONS Address : 3505 N.W 107TH AVE,MIAMI ,FL,33178 Date of Test : Aug. 19, 2015 ~ Aug. 27, 2015 Test Sample : Engineering Sample Standard(s) : FCC Part15, Subpart C: 2014 (15.247) / ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1508C180) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1508C180 Page 7 of 137 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2014 Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Pea…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1508C180 Page 26 of 137 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1508C180 Page 27 of 137 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1508C180 Page 28 of 137 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1508C180 Page 29 of 137 Radiated Measurement Photos Above 1000MHz
