X4YSAROS300300Mbps Wireless N PCI Adapter

1910020586 REV1.0.0 Nexxt Solutions - SAROS - Wireless N PCI-E Adapter 2 Copyright Statement Nexxt Solutions™ is a registered trademark. Other trademarks or brand names contained herein are the trademarks or registered brand names of their respective owners. Copyright of the whole product as integration, including its accessories and software, belongs to Nexxt Solutions Ltd. No individual or third party is allowed to copy, plagiarize, reproduce, or translate it into oth¬er languages, without express consent from Nexxt Solutions, Ltd. All of the photos and product specifications mentioned in this manual are used as reference only. Upgrades of software and hardware may occur, and should there be any changes, Nexxt Solutions shall not be responsible for notifying about any such modifications in advance. If you would like to know more about our products, please visit our website at www.NexxtSolutions.com. Nexxt Solutions - SAROS - Wireless N PCI-E Adapter 3 Table of Contents Package contents Product features Product applications Preliminary steps Product care Hardware Installation Low-profile bracket installation LED Indicator Wireless Network Connection under Windows 7 Wireless Network Connection under VISTA Wireless Network Connection under Windows XP Disabling other manufacturer’s wireless network adapters 1.1 1.2 1.3 1.4 1.5 2.1 2.2 2.3 3.1 3.2 3.3 3.4 Chapter 1 Introduction Chapter 2 Installation Guide Chapter 3 How to use the Windows Built-in Wireless Configuration Appendix 1: Acronyms and terms Appendix 2: Regulatory information Nexxt Solutions - SAROS - Wireless N PCI-E Adapter 4 Chapter 1 Introduction 1.1 Package contents 1.2 Product features Thank you for purchasing the Saros 300 Wireless-N PCI-E Network Adapter from Nexxt Solutions. Now you can take advantage of this great new technology and the freedom of setting up a network wirelessly in your home or office. By integrating the most advanced N-networking technology, this convenient PCI adapter is designed to deliver reliable high-speed connectivity along with enhanced performance in high-bandwidth applications. The hassle-free installation and configuration will get you connected to your network in minutes. We also encourage you to read this manual thoroughly to become familiar with the most important features and achieve optimal performance from your new PCI fast Ethernet adapter. • • • • • • • • Wireless-N PCI-E Adapter • Quick installation guide • Two detachable omni-directional antennas • Additional low-profile bracket • One CD ROM (with a digital copy of the quick installation guide, user guide and driver configuration tool). Wireless N 300Mbps Speed Compatible with IEEE wireless standards, it provides three times the wireless speed of the 802.11g technology. Perfect for video streaming, online conferencing and large file transfer applications. Backward-Compatibility Supports 802.11b/g devices, so you can upgrade your network to the latest N standard at no extra cost. Networking modes Infrastructure and ad-hoc (peer-to-peer). Robust signal Delivers reliable high-speed connectivity to wireless networks, by providing longer trans¬mitting distances and enhanced signal reception. Auto negotiation capability Detects wireless networks and selects the optimal transmission rate automatically. Advanced security WEP data encryption and WPA-PSK/WPA2-PSK encryption methods. Operating systems Supports Windows 7/XP/2000/Vista Nexxt Solutions - SAROS - Wireless N PCI-E Adapter 5 1.3 Product applications 1.4 Preliminary steps 1.5 Product care Greater mobility – enables you to have access to the wireless network from any location within the operating range. Hassle-free installation – enables wireless communication for companies or places which are not suitable for wired LAN installations due to budget or building environment restrictions, such as historical buildings, rentals, or places for short-term usage. Flexibility – adapts easily to businesses or individuals that require regular alteration of the networking topology. Easy expansion – allows you to expand your network in order to include multiple devices and peripherals. Small office/Home office – provides a quick way to establish a SOHO network installation, either on a permanent or temporary basis, according to the user’s needs. Please read this user guide thoroughly before installing and using this product. In order to avoid possible UI (user interface) conflicts, close or uninstall any configuration programs belonging to other manufacturers prior to setting up the Nexxt Solutions network adapter. To avoid any potential conflicts with network adapters from other manufacturers, we recommend that you first disable them completely before proceeding with the installation of the Nexxt Solutions driver. To guarantee best performance of the unit, never expose this device to water or humid environments. Keep the adapter away from hazardous substances, chemicals, acids and alkalis. Never expose the adapter to direct sunlight or excessive heat. Please contact Nexxt Solutions tech support if any problems occur during the setup process. This wireless adapter offers a fast, reliable and extendable solution for wireless access. Most relevant features of this adapter are the following: 1. 2. 3. 1. 2. 3. Nexxt Solutions - SAROS - Wireless N PCI-E Adapter 6 Chapter 2 Installation guide 2.1 Hardware Installation 2.2 Low-profile bracket installation The installation guide will guide you through the installation process of the Saros -300 Wireless N PCI-E Adapter, including basic hardware and software configuration. Turn off your desktop PC and disconnect the AC power cable. As soon as you remove the cover of your PC, locate an available PCI-E slot on the motherboard. Remove the metal slot cover on the back of the PC. Should you need further instructions, consult with your computer manufacturer. If you want to install the low-profile bracket (Small Form Factor, SFF), use a Phillips screwdriver to unfast…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID： X4YSAROS300 Date: Apr. 1, 2013 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you.

Date: Apr. 1, 2013 Federal Communications Commission Authorization and Evaluation Division FCC ID: X4YSAROS300 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application.

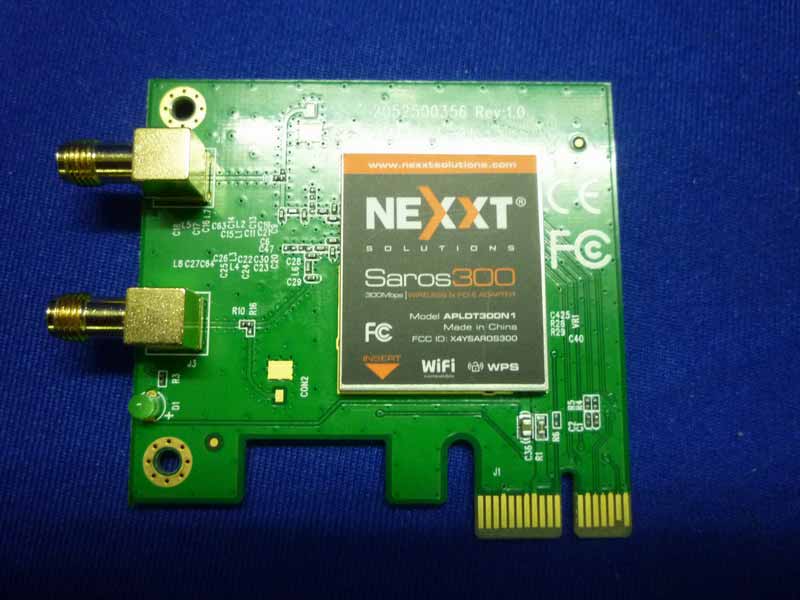

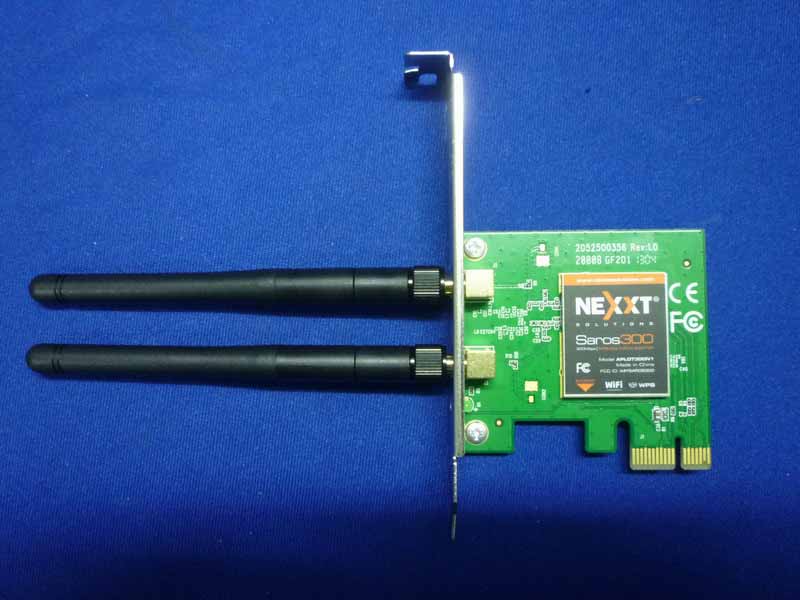

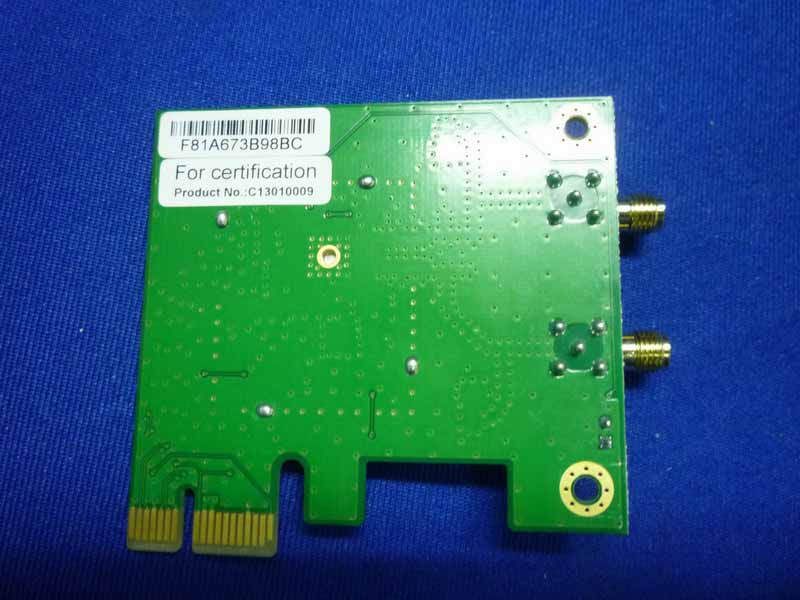

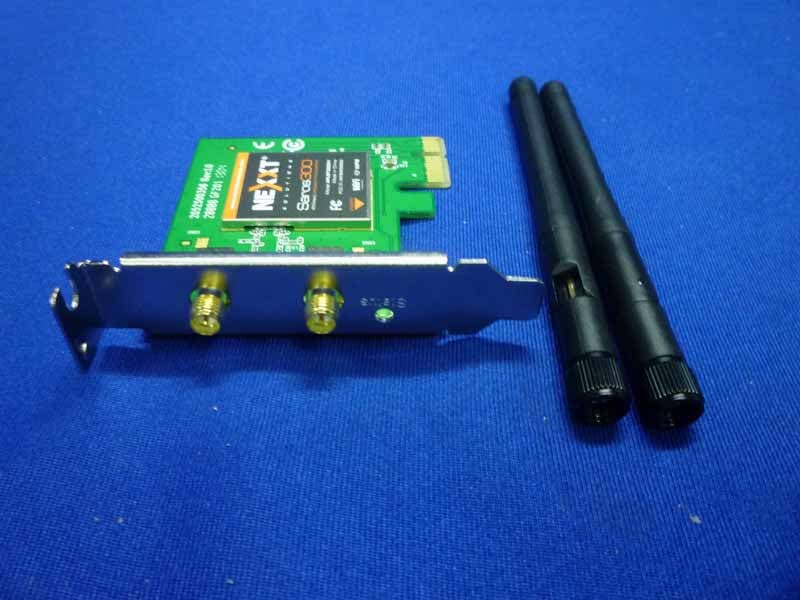

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-5 Figure 9 General Appearance of the EUT Figure 10 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-6 Figure 11 General Appearance of the EUT

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 与上一版的区别 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 审 核 完成日期 设 计 PANTONE 165 C PANTONE Black C White

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-5 Figure 9 General Appearance of the EUT Figure 10 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 14-6 Figure 11 General Appearance of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: 300Mbps Wireless N PCI Adapter M/N: APLDT300N1 Test date: 2013-03-22 Pressure: 101.3±1.0 kpa Humidity:49.7±3.0% Tested by: Leo-Li Test site: RF Site Temperature21.9±0.6°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 2 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 17.74 59.43 2 1.58 0.0187 CH6 2437 17.30 53.70 2 1.58 0.0169 11b CH11 2462 17.58 57.28 2 1.58 0.0181 CH1 2412 17.71 59.02 2 1.58 0.0186 CH6 2437 18.19 65.92 2 1.58 0.0208 11g CH11 2462 16.84 48.31 2 1.58 0.0152 CH1 2412 18.20 66.07 2 1.58 0.0208 CH6 2437 19.58 90.78 2 1.58 0.0286 11n HT20 CH11 2462 18.76 75.16 2 1.58 0.0237 CH1 2422 16.32 42.85 2 1.58 0.0135 CH4 2437 18.15 65.31 2 1.58 0.0206 11n HT40 CH7 2452 16.37 43.35 2 1.58 0.0137 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of NEXXT SOLUTIONS LLC 300Mbps Wireless N PCI Adapter Model No.: APLDT300N1 FCC ID: X4YSAROS300 Prepared for : NEXXT SOLUTIONS LLC 454 Holiday Drive, Hallandale, Florida, 33009 USA Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13076 Date of Test ： Mar.22~Apr.01, 2013 Date of Report ： Apr.09, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ..........................................................1-1 1.1. Description of Standards and Results...................................................................................1-1 2. GENERAL INFORMATION..........................................................................................2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details .......................................................................................2-3 2.4. Block Diagram of Test Setup ...............................................................................................2-3 2.5. Test Facility..........................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST .......................................................3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test .............................................................................................3-2 3.5. Operating Condition of EUT................................................................................................3-2 3.6. Test Procedure......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results.....................................................................3-2 4. RADIATED EMISSION TEST.......................................................................................4-1 4.1. Test Equipment ....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-2 4.3. Radiated Emission Limit ......................................................................................................4-3 4.4. EUT Configuration on Test..................................................................................................4-3 4.5. Operating Condition of EUT................................................................................................4-3 4.6. Test Procedure......................................................................................................................4-4 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ......................................................................5-1 5.1. Test Equipment ....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST.............................................................................6-1 6.1. Test Equipment ....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test .........................................................................................................7-1 7.1. Test Equipment ....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure......................................................................................................................7-1 7.4. Test Results ...............................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-38 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-39 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-40 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-41 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-42 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-43 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-44 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-45 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-46 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-47 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-48 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-49 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-50 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-51 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-52 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-53 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-54 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-55 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-56 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-57 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-58 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-59 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-60 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-61 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-62 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-63 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-64 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-65 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-66 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-67 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-68 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-69 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-70 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-71 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-72 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-73 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-74 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-75 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-76 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-77 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 4-78 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-1 5. CONDUCTED SPURIOUS EMISSIONS 5.1. Test Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Spectrum AnalyzerAgilent E4446A US44300459 May.08,12 1 Year 2. Attenuator Agilent 8491B MY39262165 May.08,12 1 Year 3. RF Cable Hubersuhner SUCOFLEX10228618/2 May.08,12 1Year 5.2. Limit In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that con…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-11 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-13 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-15 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-16 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-18 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-20 Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-22 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-24 Chain 1: Test Mode: IEEE 802.11b TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-25 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-26 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-27 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-28 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-29 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-31 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-33 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-34 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-35 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-36 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-37 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-38 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-39 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-40 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-41 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-42 Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-43 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-44 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 5-45 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 6-1 6. BAND EDGE COMPLIANCE TEST 6.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459 May.08, 12 1 Year 2. Amp HP 8449B 3008A08495 May.08, 12 1 Year 3. Antenna EMCO 3115 9510-4580 May.08, 12 1Year 4. HF Cable Hubersuhne Sucoflex104- May.08, 12 1 Year 6.2. Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3. Test Pro…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:X4YSAROS300 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13076 13-3 (Above 1000MHz)
