X4YSPARX2WSparx200W WIRELESS POWERLINE NETWORK MINIADAPTER

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This device complies with Part 15 of the FCC Rules; Operation is subject to the following two conditions:1). this device may not cause harmful interference, and 2). this device must accept any interference received, including interference that may cause undesired operation.Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

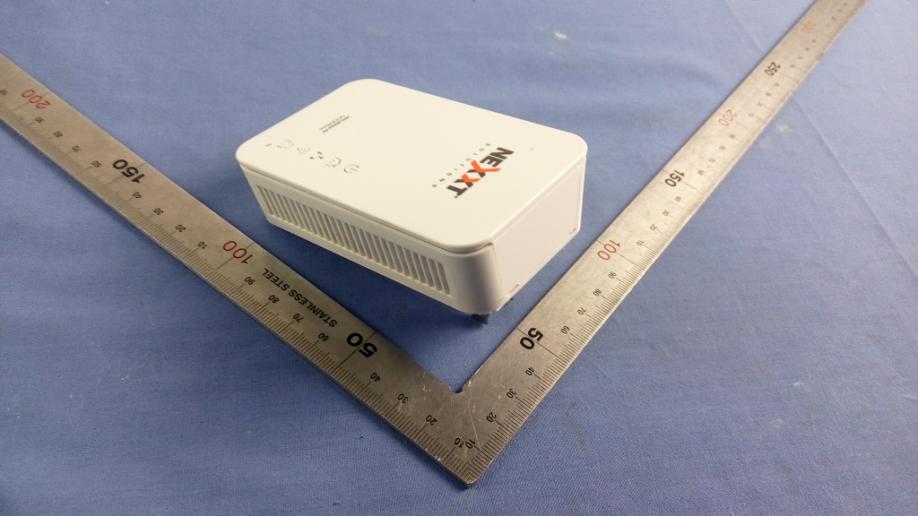

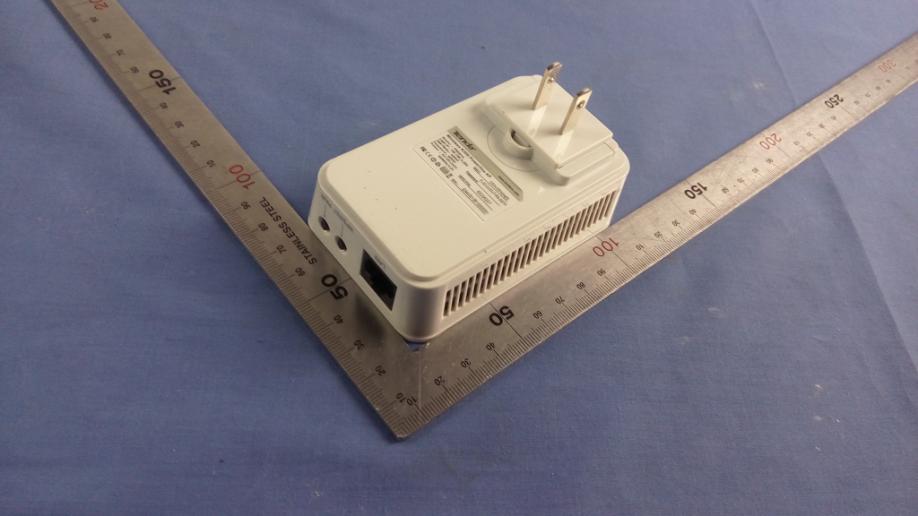

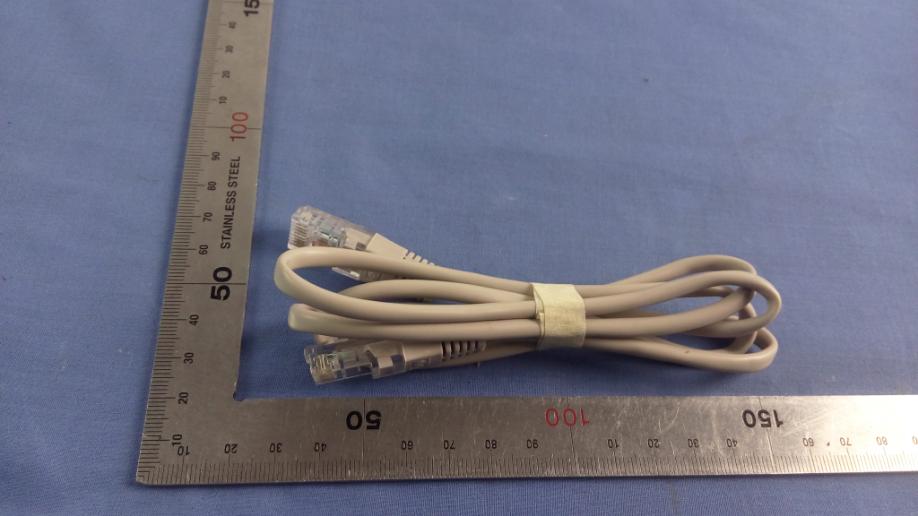

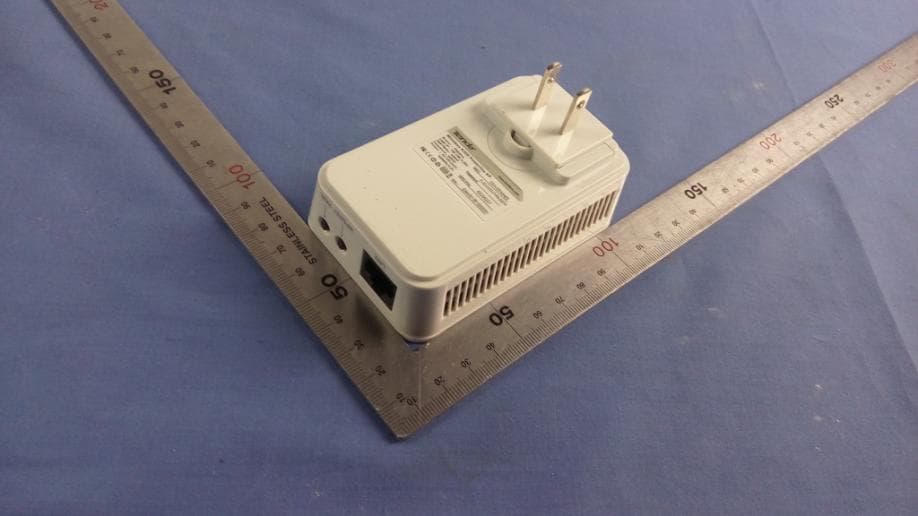

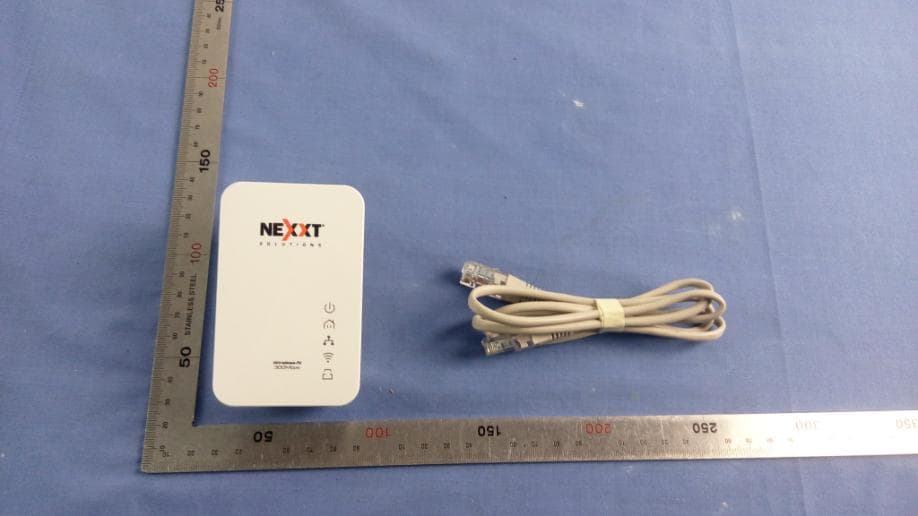

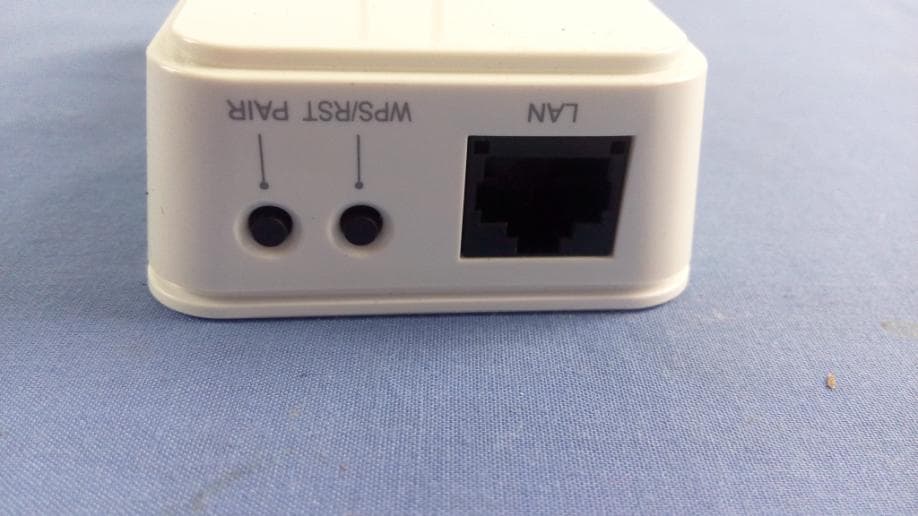

Report No.: C150803Z04 Page 1/2 External Photos of EUT Report No.: C150803Z04 Page 2/3 . Report No.: C150803Z04 Page 3/3 .

尺寸：（20mm×40mm） 1

Report No.: C150803Z04 Page 1/3 Internal Photos of EUT Report No.: C150803Z04 Page 2/5 . RF Module Antenna 2 Antenna 1 Report No.: C150803Z04 Page 3/5 . Report No.: C150803Z04 Page 4/5 . Report No.: C150803Z04 Page 5/5 .

Compliance Certification Services Inc. Report No: C150803Z04-RP1_MPE FCC ID: X4YSPARX2W Date of Issue: September 8, 2015 MPE Report Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1091 1. Evaluation method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 2. Limits for General Population/Uncontrolled Exposure 3. Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 Compliance Certification Services Inc. Report No: C150803Z04-RP1_MPE FCC ID: X4YSPARX2W Date of Issue: September 8, 2015 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the maximum gain of the used antenna is 2dBi, the RF power density can be obtained. 4. Estimation Result 4.1 Conducted Power Results Antenna Mode Frequency(MHz) AVG Conducted Output Power (dBm) Antenna 1 IEEE 802.11b 2412 17.32 2437 16.92 2462 15.32 Antenna 2 2412 17.89 2437 17.32 2462 16.85 Antenna 1 IEEE 802.11g 2412 8.13 2437 7.87 2462 7.63 Antenna 2 2412 8.69 2437 8.32 2462 8.08 Antenna 1 IEEE 802.11n HT20 2412 7.86 2437 6.73 2462 6.76 Antenna 2 2412 8.30 2437 7.43 2462 7.36 Antenna 1 IEEE 802.11n HT40 2422 3.88 2437 6.72 2452 6.51 Antenna 2 2422 4.31 2437 7.21 2452 7.11 Compliance Certification Services Inc. Report No: C150803Z04-RP1_MPE FCC ID: X4YSPARX2W Date of Issue: September 8, 2015 4.2 Manufacturing tolerance IEEE 802.11 b ( Average) Frequency (MHz) Antenna 1 Antenna 2 2412 2437 2462 2412 2437 2462 Target (dBm) 17.0 16.0 15.0 17.0 17.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11 g ( Average) Frequency (MHz) Antenna 1 Antenna 2 2412 2437 2462 2412 2437 2462 Target (dBm) 8.0 7.0 7.0 8.0 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11 n HT20 ( Average) Frequency (MHz) Antenna 1 Antenna 2 2412 2437 2462 2412 2437 2462 Target (dBm) 7.0 6.0 6.0 8.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11 n HT40 ( Average) Frequency (MHz) Antenna 1 Antenna 2 2422 2437 2452 2422 2437 2452 Target (dBm) 3.0 6.0 6.0 4.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 4.3 Measurement Results Antenna 1 Mode Frequency (MHz) Output power (Including tune-up tolerance) (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) IEEE 802.11b 2412 18.0 63.0957 2.0 1.5849 0.0199 2442 17.0 50.1187 2.0 1.5849 0.0158 2462 16.0 39.8107 2.0 1.5849 0.0126 IEEE 802.11g 2412 9.0 7.9433 2.0 1.5849 0.0025 2442 8.0 6.3096 2.0 1.5849 0.0020 2462 8.0 6.3096 2.0 1.5849 0.0020 IEEE 802.11n HT20 2412 8.0 6.3096 2.0 1.5849 0.0020 2442 7.0 5.0119 2.0 1.5849 0.0016 2462 7.0 5.0119 2.0 1.5849 0.0016 IEEE 802.11n HT40 2422 4.0 2.5119 2.0 1.5849 0.0008 2442 7.0 5.0119 2.0 1.5849 0.0016 2452 7.0 5.0119 2.0 1.5849 0.0016 Compliance Certification Services Inc. Report No: C150803Z04-RP1_MPE FCC ID: X4YSPARX2W Date of Issue: September 8, 2015 Antenna 2 Mode Frequency (MHz) Output power (Including tune-up tolerance) (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) IEEE 802.11b 2412 18.0 63.0957 2.0 1.5849 0.0199 2442 18.0 63.0957 2.0 1.5849 0.0199 2462 17.0 50.1187 2.0 1.5849 0.0158 IEEE 802.11g 2412 9.0 7.9433 2.0 1.5849 0.0025 2442 9.0 7.9433 2.0 1.5849 0.0025 2462 9.0 7.9433 2.0 1.5849 0.0025 IEEE 802.11n HT20 2412 9.0 7.9433 2.0 1.5849 0.0025 2442 8.0 6.3096 2.0 1.5849 0.0020 2462 8.0 6.3096 2.0 1.5849 0.0020 IEEE 802.11n HT40 2422 5.0 3.1623 2.0 1.5849 0.0010 2442 8.0 6.3096 2.0 1.5849 0.0020 2452 8.0 6.3096 2.0 1.5849 0.0020 According to KDB447498 for Transmitters used in mobile exposure conditions for simultaneous transmission operations; ∑ of MPE ratios ≤ 1.0 Mode Frequency (MHz) ∑ MPE ratios Limit Results Antenna 1 and Antenna 2 IEEE 802.11b 2412 N/A 1.000 Pass 2442 N/A 1.000 Pass 2462 N/A 1.000 Pass IEEE 802.11g 2412 N/A 1.000 Pass 2442 N/A 1.000 Pass 2462 N/A 1.000 Pass IEEE 802.11n HT20 2412 0.0045 1.000 Pass 2442 0.0036 1.000 Pass 2462 0.0036 1.000 Pass IEEE 802.11n HT40 2422 0.0018 1.000 Pass 2442 0.0036 1.000 Pass 2452 0.0036 1.000 Pass Note: The estimation distance is 20cm Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile…

Text truncated - open the document above for the full version.

Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 91 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 92 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11b mode (Antenna 2) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 93 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 94 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 95 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 96 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11g mode (Antenna 1) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 97 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 98 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 99 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 100 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11g mode (Antenna 2) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 101 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 102 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 103 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 104 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT20 MHz mode (Combine with Antenna 1 and Antenna 2) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 105 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 106 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 107 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 108 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT40 MHz mode (Combine with Antenna 1 and Antenna 2) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 109 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 110 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 111 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 112 / …

Text truncated - open the document above for the full version.

Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 1 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C for Sparx200W WIRELESS POWERLINE NETWORK MINIADAPTER Model: AELEL204U1 Brand: NEXXT Test Report Number: C150803Z04-RP1 Issued Date: September 8, 2015 Issued for NEXXT SOLUTIONS 3505 N.W 107TH AVE.MIAMI Florida United States 33178 Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services (Shenzhen) Inc. This document may be altered or revised by Compliance Certification Services (Shenzhen) Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. 㡨㡨 㳳㳳 CNAS L4818 Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 2 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 8, 2015 Initial Issue ALL Amzula Chen Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 3 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION .................................................................................................. 4 2 TEST RESULT SUMMARY ............................................................................................ 4 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST ........................................................................ 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY ....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS .......................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT ........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 65 7.4. ANTENNA GAIN ................................................................................................................ 80 7.5. PEAK OUTPUT POWER ................................................................................................... 82 7.6. BAND EDGES MEASUREMENT ....................................................................................... 86 7.7. PEAK POWER SPECTRAL DENSITY MEASUREMENT ................................................ 112 Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 4 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Sparx200W WIRELESS POWERLINE NETWORK MINIADAPTER Model AELEL204U1 Brand NEXXT Tested August 3~ September 7, 2015 Applicant NEXXT SOLUTIONS 3505 N.W 107TH AVE.MIAMI Florida United States 33178 Manufacturer NEXXT SOLUTIONS 3505 N.W 107TH AVE.MIAMI Florida United States 33178 APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Services (Shenzhen) Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Services (Shenzhen) Inc. Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 5 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type Result Remark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement Pass Meet the requirement of limit. 15.247(d) Band Edges Measurement Pass Meet the re…

Text truncated - open the document above for the full version.

Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 1/2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C150803Z04-RP1 FCC ID: X4YSPARX2W Page 2/2 RADIATED EMISSION TEST Below 1GHz Above 1GHz
