DATE :2015-03-17 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ X5B - 051019R__ ______ Product Name:_ AG PS4 BT headset dongle ____ _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2015- 03-17 Day of By: Tom roberts Signature Printed Title: Chief Technical Officer On behalf of : Performance Designed Products LLC Telephone: 13232349911 FCC ID: X5B-051019R

FCC DOC status letter Product˖AG PS4 BT headset dongle Model˖051-019R We Performance Designed Products LLC taking FCC DOC approval via PEP Certification Corp. The FCC DOC certificate will get in front of the product sales. By: 2015-03-24 Signature Date Title: Chief Technical Officer On behalf of : Performance Designed Products LLC We Performance Designed Products LLC is applying FCC DOC approval via PEP Certification Corp(FCC recorgnized and accredited MRA TW lab. The FCC DOC certificate will be got before to sell product .

Label Label location

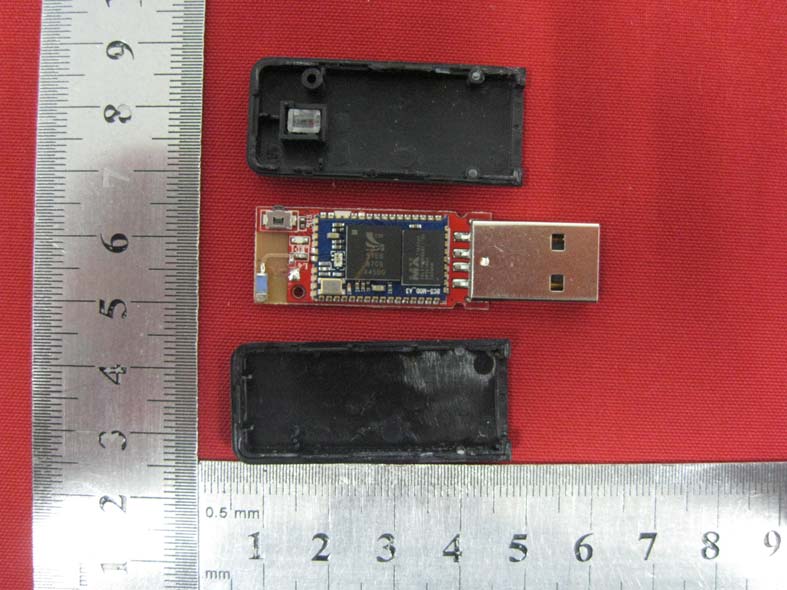

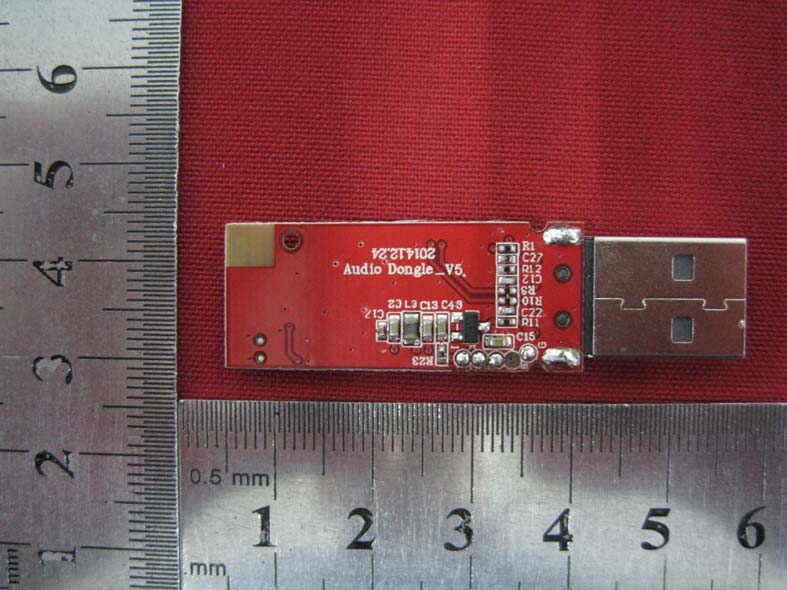

Internal photo

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz 2.4dBm（1.74mW） output power] (1.74mW /5mm) ·[√2.402(GHz)]= 0.539<3.0 for 1-g SAR Then SAR evaluation is not required

Report No.: 15FAB01021 41 1 of 59 ATT Product Service Co., Ltd (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] Rev. 1.0 FCC CERTIFICATION TEST REPORT For FCC ID ˖X5B-051019R Report Reference No....................... : 15FAB01021 41 Date of issue .................................... : 2015-02-10 Testing Laboratory ........................... : ATT Product Service Co., Ltd. Address............................................ : No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name ............................. : Performance Designed Products LLC Address............................................ : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Manufacturer.................................... : Performance Designed Products LLC Test specification: Test item description........................ : AG PS4 BT headset dongle Trade Mark....................................... : -- Model/Type reference .................... : 051-019R Ratings............................................. : 5Vdc by USB Port Supply Responsible Engineer Approved by ʳ (Rock Huang/Engineer) (King Wang/EMC Manger) Report No.: 15FAB01021 41 2 of 59 ATT Product Service Co., Ltd (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] Rev. 1.0 TABLE OF CONTENTS 1. Summary of test results.................................................................................................................... 5 2. General test information ................................................................................................................... 6 2.1. Description of EUT ........................................................................................................................... 6 2.2. Accessories of EUT.......................................................................................................................... 6 2.3. Assistant equipment used for test .................................................................................................... 6 2.4. Block diagram of EUT configuration for test .................................................................................... 7 2.5. Test environment conditions ............................................................................................................ 7 2.6. Measurement uncertainty................................................................................................................. 8 3. 20dB Bandwidth ............................................................................................................................... 9 3.1. Test equipment................................................................................................................................. 9 3.2. Block diagram of test setup .............................................................................................................. 9 3.3. Limits ................................................................................................................................................ 9 3.4. Test Procedure................................................................................................................................. 9 3.5. Test Result ..................................................................................................................................... 10 3.6. Original test data ............................................................................................................................ 10 4. CARRIER FREQUENCY SEPARATION TEST ............................................................................. 15 4.1.The Requirement For Section 15.247(a)(1)..................................................................................... 15 4.2.EUT Configuration on Measurement ............................................................................................... 15 4.3.Operating Condition of EUT............................................................................................................. 15 4.4.Test Procedure ................................................................................................................................ 15 4.5.Test Result ....................................................................................................................................... 16 5. NUMBER OF HOPPING FREQUENCY TEST .............................................................................. 22 5.1.The Requirement For Section 15.247(a)(1)(iii) ................................................................................ 22 5.2.EUT Configuration on Measurement ............................................................................................... 22 5.3.Operating Condition of EUT............................................................................................................. 22 5.4.Test Procedure ................................................................................................................................ 22 5.5.Test Result ....................................................................................................................................... 23 6. DWELL TIME TEST ....................................................................................................................... 24 6.1.The Requirement For Section 15.247(a)(1)(iii) ................................................................................ 24 6.2.EUT Configuration on Measurement ............................................................................................... 24 6.3.Operating Condition of EUT............................................................................................................. 24 6.4.Test P…
