X5B-052017TAirlite Pro Wireless Dongle for PlayStation

126.9 mm 114.3 mm Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The Dongle should be used at a distance of 20cm from the human body Airlite Pro Wireless Dongle for PlayStation

Performance Designed Products, LLC (Sept. 02, 2022) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Airlite Pro Wireless Dongle for PlayStation/MODEL 052-017T / FCC ID: X5B-052017T) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block diagram, Operational description, Schematics) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment description and related information about the product which Performance Designed Products, LLC considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Performance Designed Products, LLC considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Name: Tom Roberts Title: Chief Technical Officer Signature of applicant:

Performance Designed Products, LLC (Sept. 02, 2022) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Cerpass technology corporation Test Laboratory) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Tom Roberts Title: Chief Technical Officer Signature of applicant:

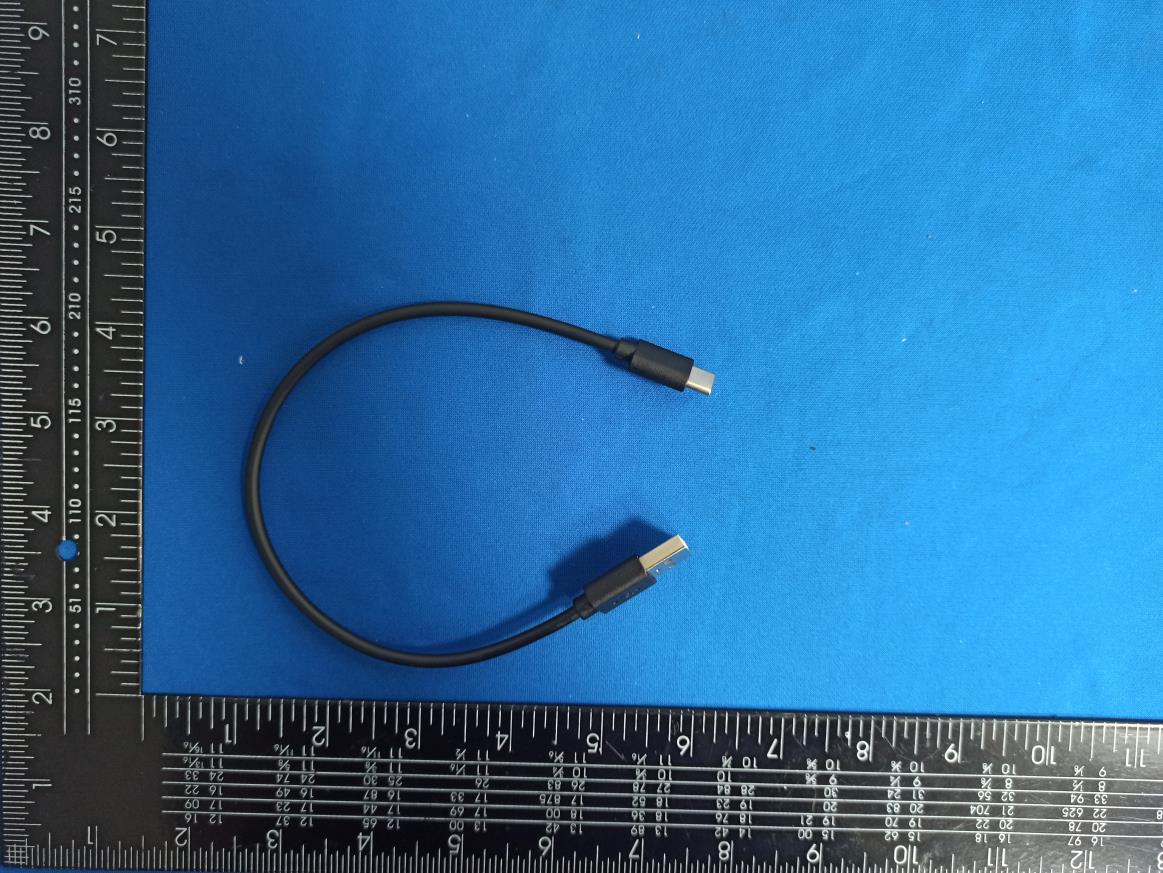

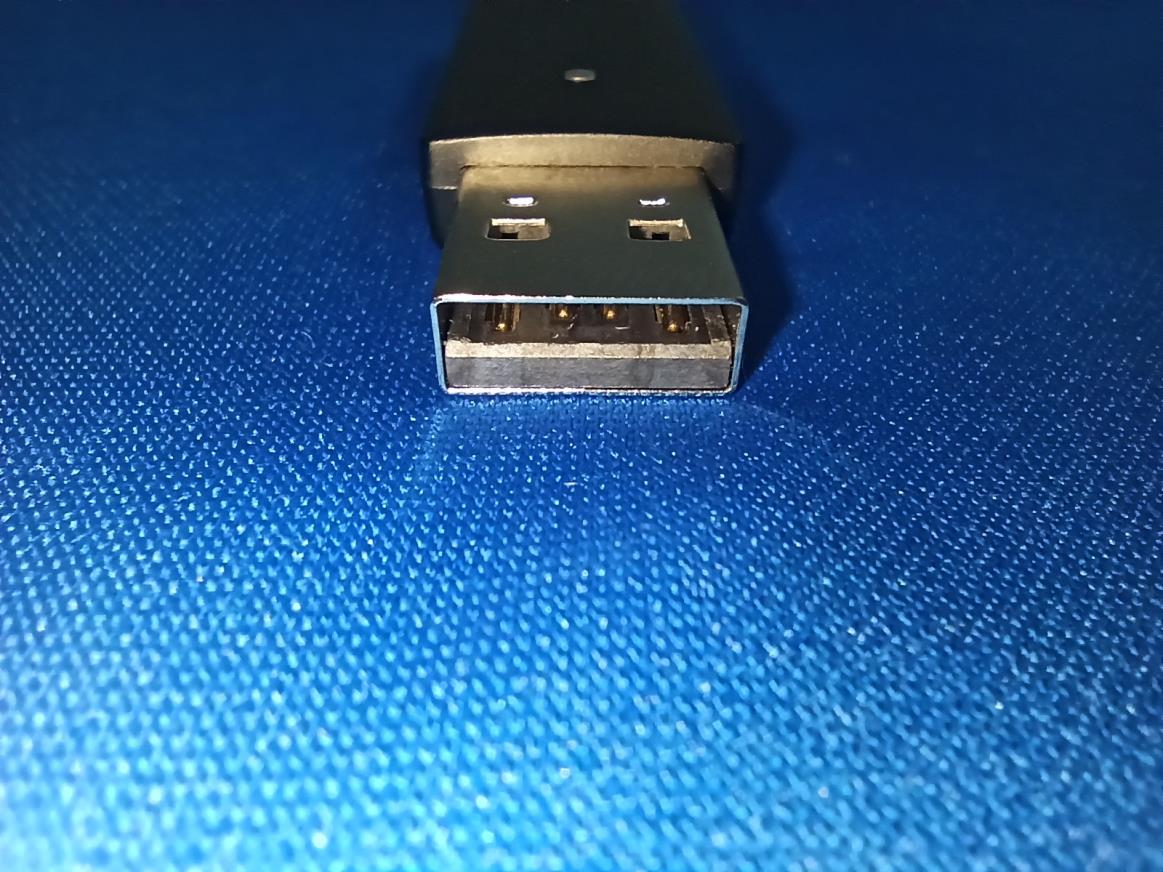

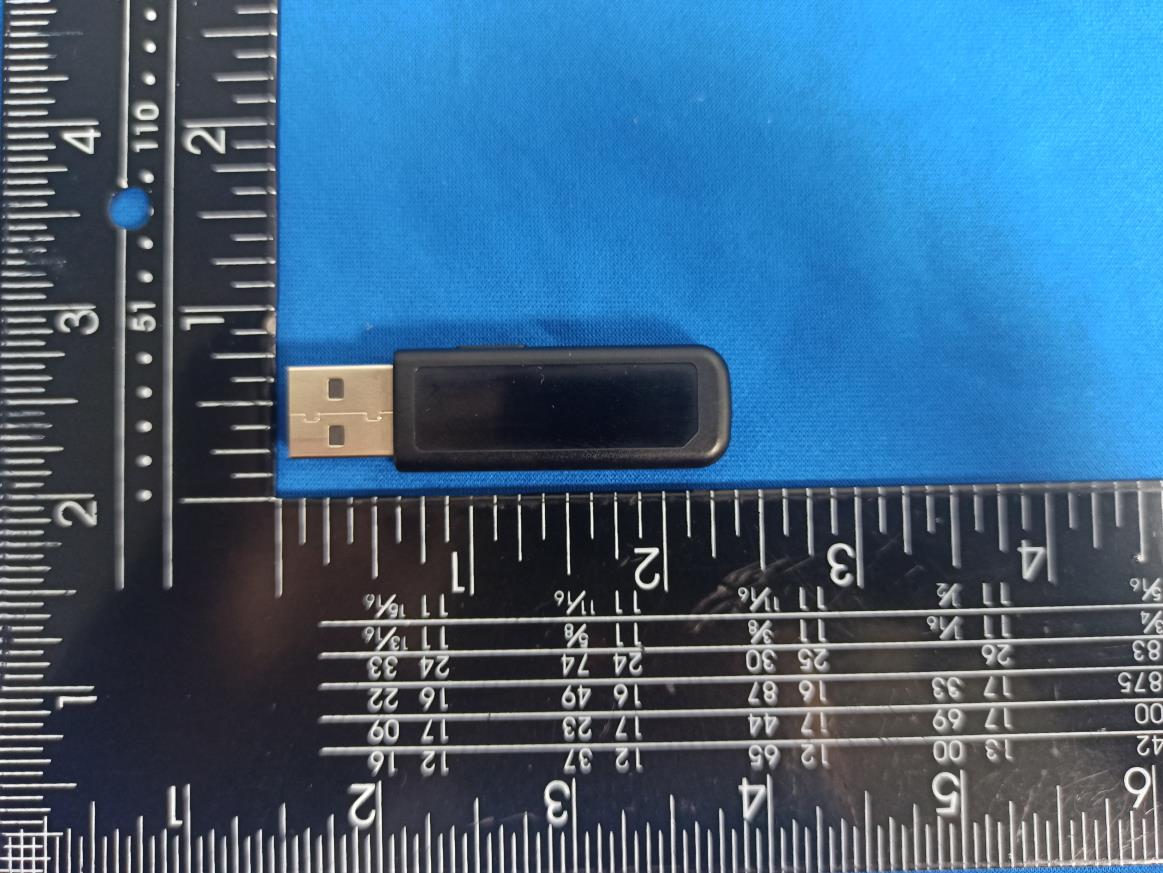

CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 1 of 9 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 2 of 9 CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 3 of 9 CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 4 of 9 CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 9 of 9 Airlite Pro Wireless Headset for PlayStation Brand: PDP Model: 052-017 Type-C USB Cable Brand: ADJ Model: #1

0391I-A4-107P03x 1. 材質：黑色銅板紙, 背膠 2. 印刷顏色 : 灰色 Material：Art paper, Black , Adhesive Printing：PMS Cool Grey 4C 3. 表面上霧膜 / Matte Laminating 052-017T FI510000004216x Sam Chen20220415 01 Sam Chen20220415 Jan Chan20220415 Jan Chan20220415 AEBU Package Team ALPWWL-U01 Compliance label for TX M code 定義格式 (XXXXXXX) Week (01,02, .......52) Year (12,13...99) Supplier TATUNG / 3e Electronics (TT) TATUNG / LGSM (TL) Version (A,B,C.......Z); Airlite Series A & TL 35.6mm 10.6mm C1.8mm (倒角) R0.8mm 藍色文字依Sku定義 黏貼位置: (Dongle凹槽處) Model Number : 052-017T FCC ID : X5B-052017T IC : 8814A-052017T M code : XXXXXXA Performance Designed Products LLC Model Number : 052-017T FCC ID : X5B-052017T IC : 8814A-052017T M code : XXXXXXA Performance Designed Products LLC

CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 5 of 9 CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 6 of 9 RF Chip CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 7 of 9 CERPASS TECHNOLOGY CORP. Report No.: 22060154 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 Page No. : 8 of 9 Antenna position

Walsin Technology Corporation Page 1 of 8 ASC_RFANT3216120A5T_V02 June. 2006 MULTILAYER CERAMIC ANTENNA RFANT Series – RoHS Compliance 2.4 GHz ISM Band Working Frequency



*Contents in this sheet are subject to change without prior notice. Walsin Technology Corporation Page 2 of 8 ASC_RFANT3216120A5T_V02 June. 2006 FEATURES 1. Surface Mounted Devices with a small dimension of 3.2 X 1.6 X1.2 mm 3 meet future miniaturization trend. 2. LTCC process 3. High stability in Temperature / Humidity Change APPLICATIONS 1. 2.4GHz ISM band RF applications 2. Bluetooth, Wireless, HomeRF CONSTRUCTION DIMENSIONS Figure Symbol Dimension (mm) L 3.20 ± 0.20 W 1.60 ± 0.10 T 1.20 ± 0.10 a 0.25 ± 0.15 1. Feeding 2. Identification Mark 3. Soldering terminal L W T 1 2 3
 a a Walsin Technology Corporation Page 3 of 8 ASC_RFANT3216120A5T_V02 June. 2006
      W
       W WW W
      W
       W WW W           SOLDER LAND PATTERN DESIGN Figure ELECTRICAL CHARACTERISTICS Product code Specification Working Frequency Range 2450 ± 50 MHz Fc (GHz) 2.9 Gain (dBi) 2 (Typical) Series 1 6.8nH Matching component valve Series 2 - * This frequency must be adjusted to 2.45GHz with matching circuit.                                 Walsin Technology Corporation Page 4 of 8 ASC_RFANT3216120A5T_V02 June. 2006         W WW W
         W WW W
 Antenna on Test Board ( Thickness 1.2mm) Antenna S11 on Test Board E Walsin Technology Corporation Page 5 of 8 ASC_RFANT3216120A5T_V02 June. 2006 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT3216120A5T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= 0.891 dBi Peak Gain = 2.12dBi Average Gain = 0.64 dBi Peak Gain= -6.07dBi Average Gain=-11.62dBi X - Z Plane Average Gain= -1.846 dBi Peak Gain= -7.78 dBi Average Gain= -11.97dBi Peak Gain= 0.96 dBi Average Gain= -2.29 dBi X - Y Plane Average Gain= -2.556 dBi Peak Gain= -9.41 dBi Average Gain= -15.54dBi Peak Gain= 1.40 dBi Average Gain= -2.78 dBi

       Walsin Technology Corporation Page 6 of 8 ASC_RFANT3216120A5T_V02 June. 2006 RELIABILITY TEST
Mechanical performance Test item Test condition / Test method Specification Solderability Solder temp. : 235 ̈́ 5к Immersion time: 2 ̈́ 1 sec Solder: SN63 At least 95% of a surface of each terminal electrode must be covered by fresh solder. Resistance to soldering heat Solder: Sn63 Preheating temperature: 150 ̈́ 10 к Solder Temperature: 260 ̈́ 5 к Immersion time: 10 ̈́ 1 sec Measurement to be made after keeping at room temp. for 24 ̈́ 2 hrs. No mechanical damage. Ceramic surface shall not be exposed in the middle of the termination or on the terminated product edge by leaching. Drop Test Height : 75 cm Times : 3 times No mechanical damage. Samples shall satisfy electrical specification after test.
Environmental characteristics Test item Test condition / Test method Specification Humidity (steady conditions) Humidity:90% to 95% R.H. Tempertaure:40 ̈́ 2к Time: 1000 ̈́ 24 hours. Measurement: After placing for 24 hours Minimum. No mechanical damage. Samples shall satisfy electrical specification after test. Temperature cycle 1. 30 ̈́ 3 minutes at –40 к ̈́ 3 к , 2. 10~15 minutes at room temperature, 3. 30 ̈́ 3 minutes at +85к ̈́ 3к, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement after placing for 48 ̈́ 2 hrs min. No mechanical damage. Samples shall satisfy electrical specification after test. High temperature Temperature: 85к ̈́ 2к Test duration: 1000+48/-0 hours Measurement must be taken after subjection to the above conditions, followed by exposure in room environment for 1 to 2 hours. No mechanical damage. Samples shall satisfy electrical specification after test. Low temperature Temperature: -40к ̈́ 3к Test duration: 1000+48/-0 hours Measurement must be taken after subjection to the above conditions, followed by exposure in room environment for 1 to 2 hours. No mechanical damage. Samples shall satisfy electrical specification after test. Walsin Technology Corporation Page 7 of 8 ASC_RFANT3216120A5T_V02 June. 2006 SOLDERING CONDITION Typical examples of soldering processes that provide reliable joints without any damage are given in Fig 2 Fig 2. Infrared soldering profile ORDERING CODE RF ANT 321612 0 A 5 - T Walsin RF device Product code ANT : Antenna Dimension code Per 2 digits of Length, Width, Thickness : e.g. : 321612 = Length 32, Width 16, Thickness 12 Unit of dimension 0 : 0.1 mm 1 : 1.0 mm Application A : 2.4GHZ ISM Band Specification Code from 0 ~ 9 dependent on different electrical specification Packing T : 7” Reeled G : 10” Reeled B : Bulk X : SFC product PACKAGING Plastic Tape specifications (unit :mm) Index Ao Bo FD T W Dimension (mm) 1.95 ± 0.10 3.45 ± 0.10 1.55 ± 0.05 1.30 ± 0.10 8.20 +0.10 -0.30 Index E F Po P1 P2 Dimension (mm) 1.75 ± 0.10 3.50 ± 0.05 4.00 ± 0.10 4.00 ± 0.10 2.00 ± 0.10 E E E E E Walsin Technology Corporation Page 8 of 8 ASC_RFANT3216120A5T_V02 June. 2006 Reel dimensions ! A! B! C ! Typing Quantity: 2000 pieces per 7” reel CAUTION OF HANDLING Limitation of Applications Please contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects, which might directly cause damage to the third party’s life, body or property. (1) Aircraft equipment (2) Aerospace equipment (3) Undersea equipment (4) Medical equipment (5) Disast…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22060154-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 T-FD-506-0 Ver 1.5 Page No. : 46 of 46 FCC ID. : X5B-052017T 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) 2400MHz -2483.5MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied Blanket 1 mW Blanket Exemption MPE-based Exemption SAR-based Exemption Remark: The maximum conducted output power is 3.65 dBm (2.317 mW) at 2403.35MHz (with 2.12dBi antenna gain.) 12.3 Result Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 2403.35 3.65 4.15 2.12 4.12 2.58 3060 No non-compliance noted. ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 22060154-TRFCC01-A Cerpass Technology Corp. Issued Date : Sep. 06, 2022 T-FD-506-0 Ver 1.5 Page No. : 1 of 46 FCC ID. : X5B-052017T FCC RADIO TEST REPORT Applicant : PERFORMANCE DESIGNED PRODUCTS, LLC Address : 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Equipment : Airlite Pro Wireless Dongle for PlayStation Model No. : 052-017T Trade Name : PDP FCC ID : X5B-052017T I HEREBY CERTIFY THAT : The sample was received on Jun. 20, 2022 and the testing was completed on Jul. 05, 2022 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22060154-TRFCC01-A Cerpass Technology Corp. Issued Date : Sep. 06, 2022 T-FD-506-0 Ver 1.5 Page No. : 2 of 46 FCC ID. : X5B-052017T CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................ 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 11 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 12 4. Antenna Requirements ..................................................................................................................... 14 4.1 Standard Applicable ................................................................................................................. 14 4.2 Antenna Construction and Directional Gain ............................................................................. 14 5. Test of AC Power Line Conducted Emission ................................................................................. 15 5.1 Test Limit .................................................................................................................................. 15 5.2 Test Procedures ....................................................................................................................... 15 5.3 Typical Test Setup .................................................................................................................... 16 5.4 Test Result and Data ................................................................................................................ 17 5.5 Test Photographs ..................................................................................................................... 19 6. Test of Spurious Emission (Radiated) ............................................................................................ 20 6.1 Test Limit .................................................................................................................................. 20 6.2 Test Procedures ....................................................................................................................... 21 6.3 Typical Test Setup .................................................................................................................... 22 6.4 Test Result and Data (9kHz ~ 30MHz)..................................................................................... 24 6.5 Test Result and Data (30MHz ~ 1GHz) ................................................................................... 24 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 26 6.7 Restricted Bands of Operation ................................................................................................. 32 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 33 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 34 7. Test of Spurious Emission (Conducted)......................................................................................... 36 7.1 Test Limit .................................................................................................................................. 36 7.2 Test Procedure ......................................................................................................................... 36 7.3 Test Setup Layout .................................................................................................................... 36 7.4 Test Result and Data ................................................................................................................ 36 8. On Time, Duty Cycle and Measurement methods ......................................................................... 39 8.1 Test Limit .................................................................................................................................. 39 8.2 T…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22060154-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 T-FD-506-0 Ver 1.5 Page No. : 19 of 46 FCC ID. : X5B-052017T 5.5 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 22060154-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 T-FD-506-0 Ver 1.5 Page No. : 33 of 46 FCC ID. : X5B-052017T 6.8 Test Photographs (30MHz ~ 1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 22060154-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 T-FD-506-0 Ver 1.5 Page No. : 34 of 46 FCC ID. : X5B-052017T 6.9 Test Photographs (1GHz ~ 25GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: 22060154-TRFCC01 Cerpass Technology Corp. Issued Date : Aug. 22, 2022 T-FD-506-0 Ver 1.5 Page No. : 35 of 46 FCC ID. : X5B-052017T Side View
