X5B-085018AFTERGLOW PRO CONTROLLER FOR WII U

Declaration of Conformity We confirm, battery will not install in battery compartment before consumer take apart the package. Signature: Name: JT Wu Position: Compliance Officer Date 2015.9.18 Company name: PERFORMANCE DESIGNED PRODUCTS, LLC Company address: 2300 West Empire Avenue Suite 600 Burbank CA 91504

DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:X5B-085081 Product Name: AFTERGLOW PRO CONTROLLER FOR WII U Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2015- 09-01 Day of By: Tom roberts Signature Printed Title:Chief Technical Officer On behalf of : Performance Designed Products LLC Telephone:13232349911 FCC ID:X5B-085018

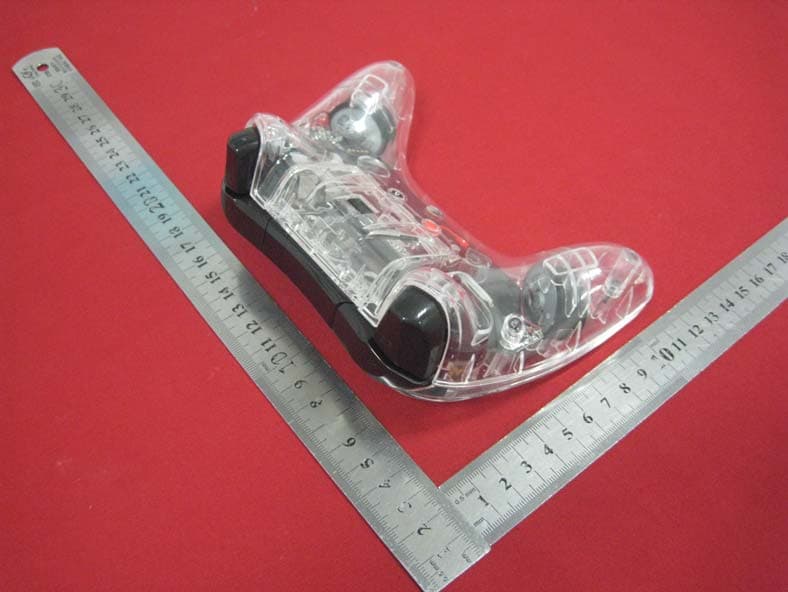

External photo

Label Location Label Location

WWYYVEA

Internal photo ٛ

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [2480 MHz 1.32 dBm（1.3 55mW）output power] (1.3 55mW /5mm) ·[√2.4 80(GHz)]= 0.43<3.0 for 1-g SAR Then SAR evaluation is not required

Report No.: 15FAB07031 61 1 of 40 ATT Product Service Co., Ltd (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] Rev. 1.0 FCC CERTIFICATION TEST REPORT For FCC ID: X5B-085018 IC: 8814A-085018 Report Reference No....................... : 15FAB07031 61 Date of issue .................................... : 2015-07-29 Testing Laboratory ........................... : ATT Product Service Co., Ltd. Address............................................ : No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name ............................. : PERFORMANCE DESIGNED PRODUCTS, LLC Address............................................ : 14144 Ventura Blvd, Suite 200 Sherman Oaks,CA 91423 U.S.A Manufacturer.................................... : PERFORMANCE DESIGNED PRODUCTS, LLC Test specification: Test item description........................ : AFTERGLOW PRO CONTROLLER FOR WII U Trade Mark....................................... : -- Model/Type reference .................... : 085-018 Ratings............................................. : 3V d.c for battery supply (2 pcs ) Tested by Approved by (Lake Hu/Engineer) (King Wang/EMC Manger) Report No.: 15FAB07031 61 2 of 40 ATT Product Service Co., Ltd (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] Rev. 1.0 TABLE OF CONTENTS 1.Summary of test results............................................................................................................................5 2.General test information...........................................................................................................................6 2.1.Description of EUT.................................................................................................................................6 2.2.Accessories of EUT...............................................................................................................................6 2.3.Assistant equipment used for test........................................................................................................6 2.4.Block diagram of EUT configuration for test.......................................................................................7 2.5.Test environment conditions.................................................................................................................7 2.6.Measurement uncertainty.....................................................................................................................8 3. 20dB & 99% Bandwidth...........................................................................................................................9 3.1.Test equipment.......................................................................................................................................9 3.2.Block diagram of test setup..................................................................................................................9 3.3.Limits........................................................................................................................................................9 3.4.Test Procedure.......................................................................................................................................9 3.5.Test Result............................................................................................................................................10 3.6.Original test data..................................................................................................................................10 4. CARRIER FREQUENCY SEPARATION TEST.................................................................................12 4.1.Test equipment.....................................................................................................................................12 4.2.The Requirement For Section 15.247(a)(1).....................................................................................12 4.3.EUT Configuration on Measurement.................................................................................................12 4.4.Operating Condition of EUT...............................................................................................................12 4.5.Test Procedure.....................................................................................................................................13 4.6.Test Result............................................................................................................................................13 5. NUMBER OF HOPPING FREQUENCY TEST..................................................................................16 5.1.Test equipment.....................................................................................................................................16 5.2.The Requirement For Section 15.247(a)(1)(iii)................................................................................16 5.3.EUT Configuration on Measurement.................................................................................................16 5.4.Operating Condition of EUT...............................................................................................................16 5.5.Test Procedure.....................................................................................................................................16 5.6.Test Result............................................................................................................................................17 6. DWELL TIME TEST................................................................................................................................18 6.1.Test equipment.........…
