Little Wireless Controller for Nintendo Switch – User Guide and Controller Behavior pg. 1 Little Wireless Controller for Nintendo Switch 2-Year Manufacturer’s Warranty: For product issues, contact us instead of returning to the store. Further warranty information inside. User Guide and Controller Behavior 1. Initial Setup First press A/B/X/Y or the D-pad to wake up the controller. In the home screen, select [Controllers] > [Change Grip/Order]. Once on the pairing screen, press and hold the sync button at the top of the controller by the charging port. Hold for 2-3 seconds until the player indicator lights turn solid and you see the controller displayed on the screen. Tip: To unpair hold down the sync button for at least 1 second. 2. Charging the Controller When the controller is low on battery, the “function” button’s LED will blink RED every 30 seconds. Using the included USB-C cable, connect the controller to the Nintendo Switch dock. While charging, the player indicator LEDs will be on and RED. When the controller is fully charged, the LEDs will turn off. FCC ID:X5B-500165 IC:8814A-500165 Little Wireless Controller for Nintendo Switch – User Guide and Controller Behavior pg. 2 Warranty Information Pages (in the 7 languages) English 2-Year Limited Manufacturer’s Warranty • Coverage and Term: PDP warrants that this product will be free from manufacturing defects for two years from the original date of purchase. Manufacturing defects are those defects in materials and/or workmanship, subject to final determination by PDP’s customer service department. This warranty applies only to original purchasers with a valid proof of purchase from an authorized PDP retailer that clearly shows the date of purchase. • Exclusive Remedy and Exclusions: The exclusive remedy for valid claims will be the repair, replacement, or refund of the product. This warranty does not cover defects caused by accidents, improper or abusive use of the product, unauthorized or improper modifications, repairs, or handling. • How to Get Service: Purchasers with product issues should not return the product to the store, but instead contact PDP’s customer service department first. You can contact PDP customer service by phone at 1-800- 331-3844 (US and Canada only), Monday to Friday from 8 AM to 6 PM PST. International customers can contact us by phone at +442036957905. You can always reach us, 24/7, by visiting support.pdp.com and clicking the "Submit a Request" button top right of the page to open a support ticket. Inquiries are typically answered within 24 business hours. • Your Rights Under Applicable Law: This warranty does not affect the legal rights of customers under applicable state, provincial, or national laws governing the sale of consumer goods. • Additional Information for Australian Consumers: PDP products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given to you under our express warranty are in addition to other rights and remedies you have under the Australian Consumer Law and other laws.

DATE : 2020-06-01 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: X5B-500165 Product Name: Little Wireless Controller for Nintendo Switch Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Tom Roberts Title: Chief Technical Officer Applicant Company: PERFORMANCE DESIGNED PRODUCTS, LLC.

DATE: 2020-06-01 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with PERFORMANCE DESIGNED PRODUCTS, LLC 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America (Applicant Name and address) <Signature>: Name: Tom Roberts Title: Chief Technical Officer Applicant Company: PERFORMANCE DESIGNED PRODUCTS, LLC.

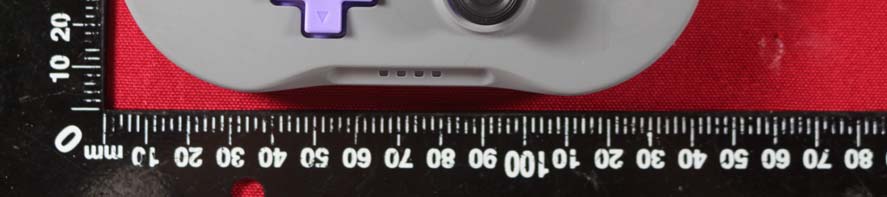

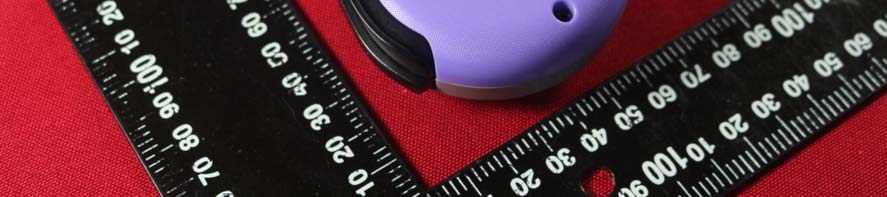

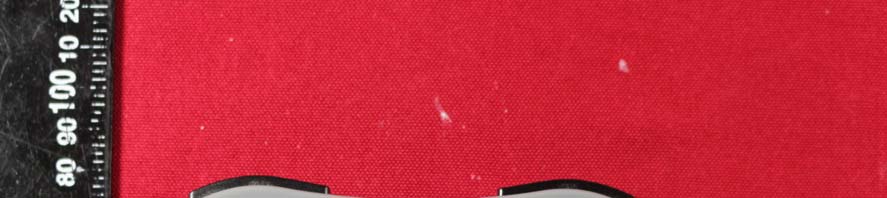

External photo

Label Location Silver Polyester Label Location

Internal photo

FCC ID: X5B-500165 RF EXP OS URE EVALUATION METHOD FCC ID: X5B-500165 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g an d 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test ex clus ions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT GFSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH0024021.0861.284 CH39 2441 1.946 1.565 CH78 2480 1.834 1.525 π/4-DQPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH0024023.2842.130 CH39 2441 3.906 2.458 CH78 2480 3.485 2.231 8DPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH0024023.6902.339 CH39 2441 4.297 2.690 CH78 2480 3.879 2.443 Remark: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation dis tances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distanc e,mm)] · [√f(GHz)] FCC ID: X5B-500165 BT Te s t Channel [(max. power of channel, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit GFSK CH00 1.284 5 2.402 0.398 3 CH39 1.565 5 2.441 0.489 3 CH78 1.525 5 2.480 0.480 3 π/4-DQPSK CH00 2.130 5 2.402 0.660 3 CH39 2.458 5 2.441 0.768 3 CH78 2.231 5 2.480 0.703 3 8DPSK CH00 2.339 5 2.402 0.725 3 CH39 2.690 5 2.441 0.840 3 CH78 2.443 5 2.480 0.769 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

Report No.: 20EFCB04024 3241 Page 1 of 62 FCC &ISED Radio Test Report FCC ID: X5B-500165 IC:8814A-500165 The report concerns: Original Grant Report Reference No. ................. : 20EFCB04024 3241 Date Sample(s) Received ........... : 2020-04-28 Date of Tested ............................. : 2020-04-28 to 2020-05-13 Date of issue ............................... : 2020-05-11 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : PERFORMANCE DESIGNED PRODUCTS, LLC Address ...................................... : 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Manufacturer............................... : PERFORMANCE DESIGNED PRODUCTS, LLC Equipment................................... : Little Wireless Controller for Nintendo Switch Trade Mark ................................. : -- Model ........................................ : 500-165 Ratings ....................................... : I/P: DC 5V By USB Charged DC 3.7V Li-ion Battery Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 20EFCB04024 3241 Page 2 of 62 Table of Contents Page 1 . TEST REPORT DECLARE 4 2 . SUMMARY OF TEST RESULTS 5 2.1 MEASUREMENT UNCERTAINTY 6 3 . GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 9 3.3 PARAMETERS OF TEST SOFTWARE 10 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.5 SUPPORT UNITS 10 3.6 TEST ENVIRONMENT CONDITIONS 11 4 . AC POWER LINE CONDUCTED EMISSIONS TEST 12 4.1 LIMIT 12 4.2 TEST PROCEDURE 12 4.3 MEASUREMENT INSTRUMENTS LIST 12 4.4 TESTSETUP 13 4.5 EUT OPERATING CONDITIONS 13 4.6 TEST RESULTS 14 5 . RADIATED EMISSION TEST 16 5.1 LIMIT 16 5.2 TEST PROCEDURE AND SETTING 17 5.3 MEASUREMENT INSTRUMENTS LIST 18 5.4 TESTSETUP 18 5.5 EUT OPERATING CONDITIONS 19 5.6 TEST RESULTS - 9 KHZ TO 30MHZ 20 5.7 TEST RESULTS- 30 MHZ TO 1000MHZ 21 5.8 TEST RESULTS - ABOVE 1000MHZ(BAND EDGE) 23 5.9 TEST RESULTS - ABOVE 1000MHZ(HARMONIC) 31 6 . NUMBER OF HOPPING FREQUENCY 43 6.1 LIMIT 43 6.2 TEST PROCEDURE AND SETTING 43 6.3 MEASUREMENT INSTRUMENTS LIST 43 6.4 TEST SETUP 43 6.5 EUT OPERATION CONDITIONS 43 6.6 TEST RESULTS 44 7 . AVERAGE TIME OF OCCUPANCY 45 7.1 LIMIT 45 7.2 TEST PROCEDURE AND SETTING 45 7.3 MEASUREMENT INSTRUMENTS LIST 45 7.4 TEST SETUP 45 7.5 EUT OPERATION CONDITIONS 45 Report No.: 20EFCB04024 3241 Page 3 of 62 Table of Contents Page 7.6 TEST RESULTS 46 8 . HOPPING CHANNEL SEPARATION MEASUREMENT 48 8.1 LIMIT 48 8.2 TEST PROCEDURE AND SETTING 48 8.3 MEASUREMENT INSTRUMENTS LIST 48 8.4 TEST SETUP 48 8.5 EUT OPERATION CONDITIONS 48 8.6 TEST RESULTS 49 9 . BANDWIDTH TEST 51 9.1 LIMIT 51 9.2 TEST PROCEDURE AND SETTING 51 9.3 MEASUREMENT INSTRUMENTS LIST 51 9.4 TEST SETUP 51 9.5 EUT OPERATION CONDITIONS 51 9.6 TEST RESULTS 52 10 . MAXIMUM OUTPUT POWER 54 10.1 LIMIT 54 10.2 TEST PROCEDURE AND SETTING 54 10.3 MEASUREMENT INSTRUMENTS LIST 54 10.4 TEST SETUP 54 10.5 EUT OPERATION CONDITIONS 54 10.6 TEST RESULTS 55 11 . CONDUCTED SPURIOUS EMISSION 58 11.1 LIMIT 58 11.2 TEST PROCEDURE AND SETTING 58 11.3 MEASUREMENT INSTRUMENTS LIST 58 11.4 TEST SETUP 58 11.5 EUT OPERATION CONDITIONS 58 11.6 TEST RESULTS 59 12 . FREQUENCY STABILITY MEASUREMENT 61 12.1 LIMIT 61 12.2 TEST PROCEDURE 61 12.3 MEASUREMENT INSTRUMENTS LIST 61 12.4 TEST SETUP 61 12.5 EUT OPERATION CONDITIONS 61 12.6 TEST RESULTS 62 Report No.: 20EFCB04024 3241 Page 4 of 62 1. TEST REPORT DECLARE Applicant PERFORMANCE DESIGNED PRODUCTS, LLC Address 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Manufacturer PERFORMANCE DESIGNED PRODUCTS, LLC Address 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Factory PERFORMANCE DESIGNED PRODUCTS, LLC Address 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Equipment Little Wireless Controller for Nintendo Switch Model No. 500-165 Trade Mark -- Standard FCC Part15, Subpart C (15.247) RSS-247 Issue 2, Feb. 2017 RSS-Gen Issue 5, Apr. 2018 ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuanShuoXin Electronic Technology Co., Ltd. and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuanShuoXin Electronic Technology Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. Report No.: 20EFCB04024 3241 Page 5 of 62 2. SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 RSS-Gen8.8 AC Power Line Conducted Emissions N/A ------ 15.247(d) 15.205(a) 15.209(a) RSS-247 5.5 RSS-Gen 8.9 RSS-Gen 8.10 Radiated Emission PASS ------ 15.247(a)(1)(iii) RSS-247 5.1 (d) Number of Hopping Frequency PASS ------ 15.247(a)(1)(iii) RSS-247 5.1 (d) Average Time Of Occupancy PASS ------ 15.247(a)(1) RSS-247 5.1 (b) Hopping Channel Separation PASS ------ 15.247(a)(1) RSS-247 5.1 (a) RSS-Gen 6.7 Bandwidth PASS ------ 15.247(a)(1) RSS-247 5.1 (b) Maximum Output Power PASS ------ 15.247(d) RSS-247 5.5 Conducted Spurious Emission PASS ------ - RSS-Gen6.11 Frequency Stability PASS ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: 20EFCB04024 3241 Page 6 of 62 2.1 MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conduction emission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for…

Text truncated - open the document above for the full version.

Radiated Setup photo (Below 1G)
Radiated Setup photo (Above 1G) Conduction Setup photo
